Description

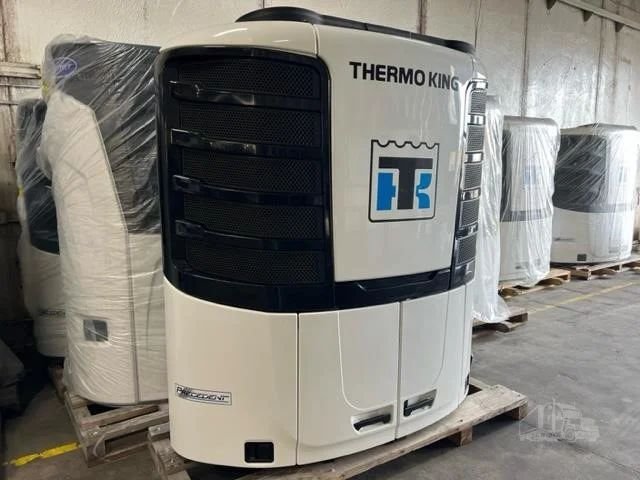

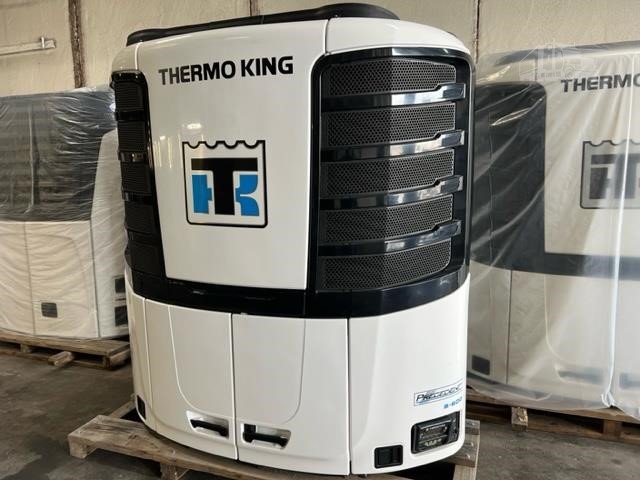

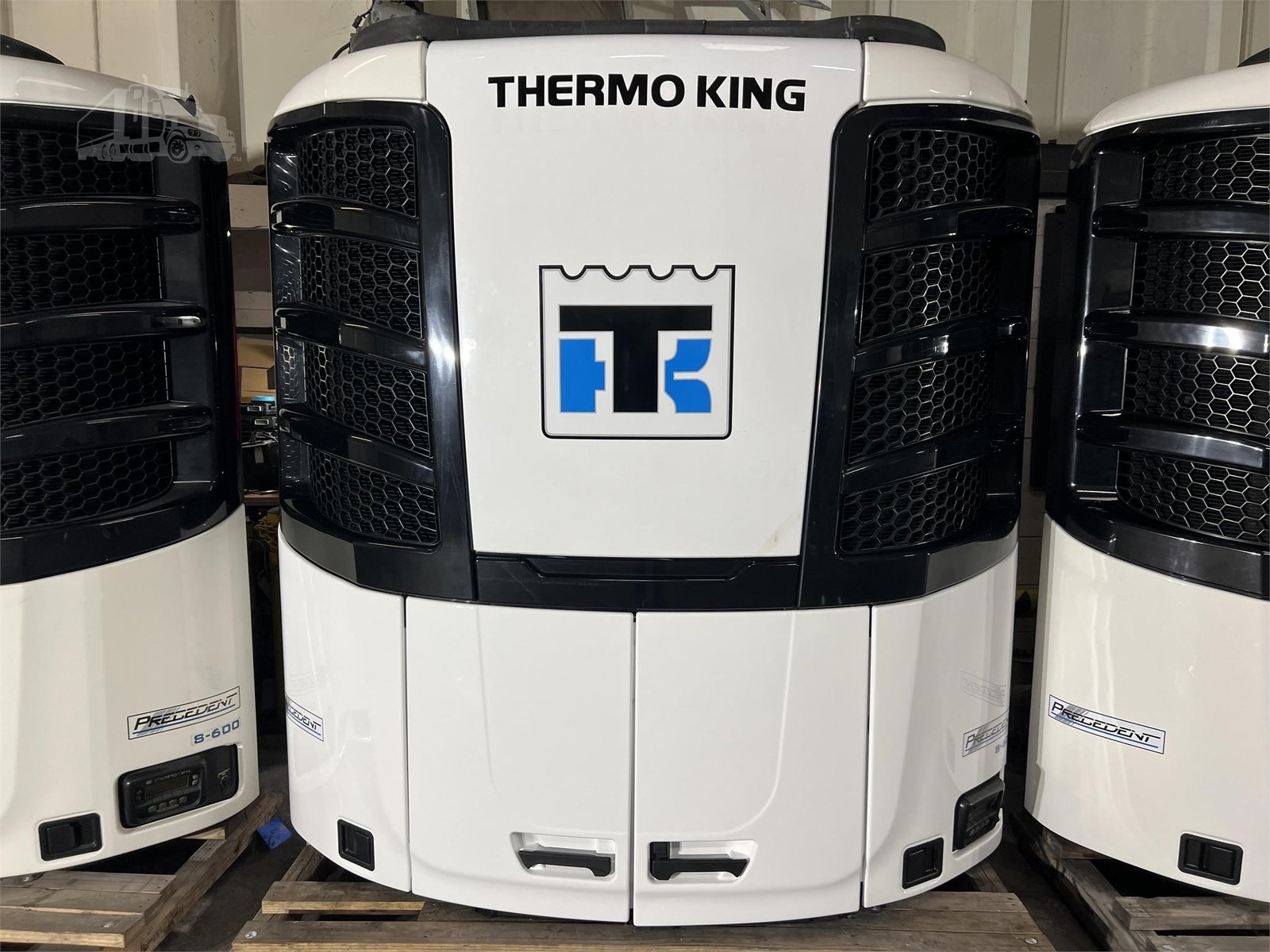

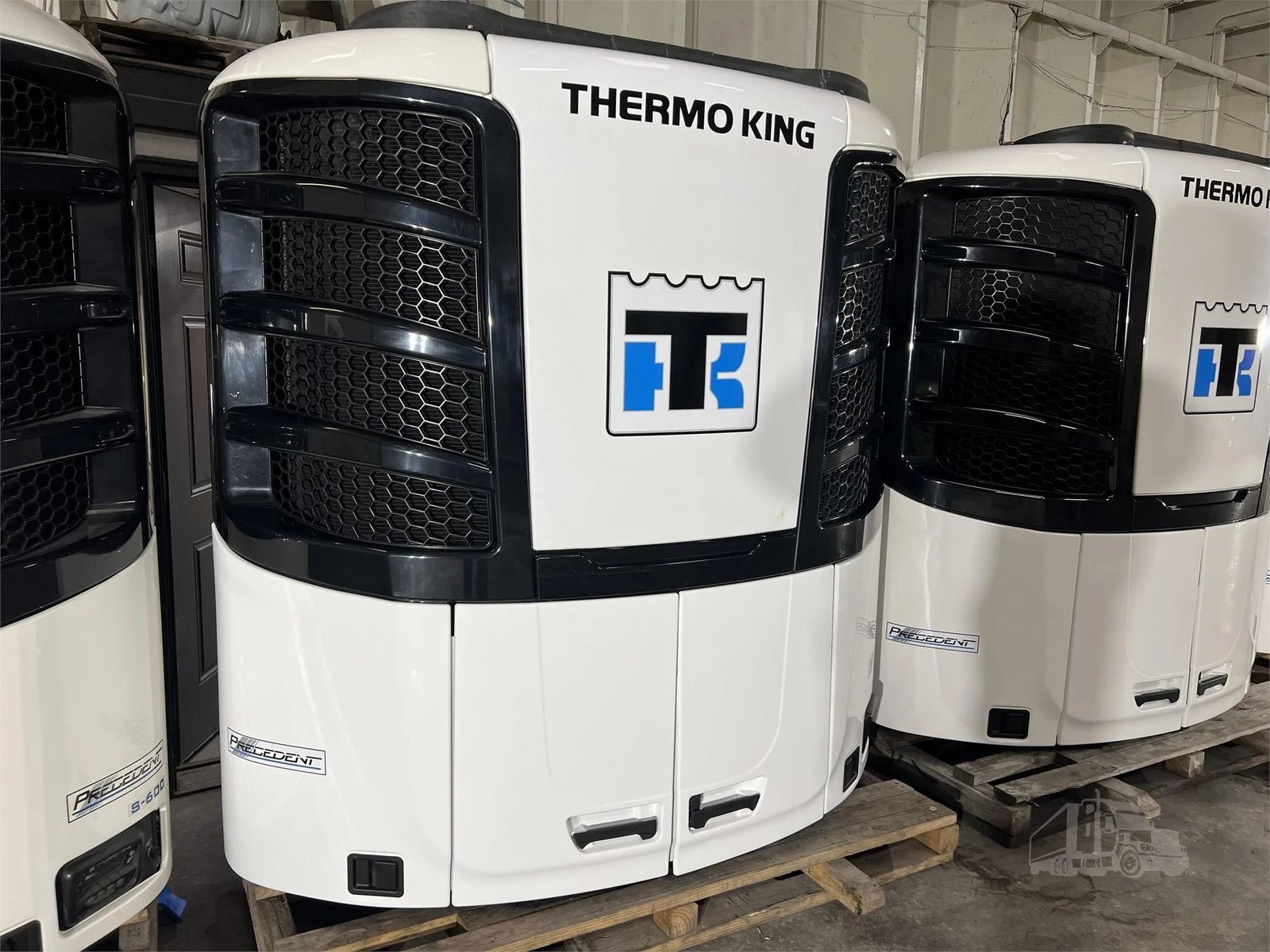

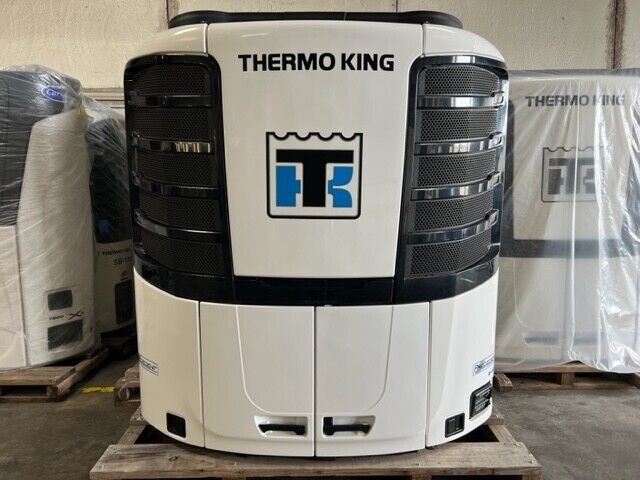

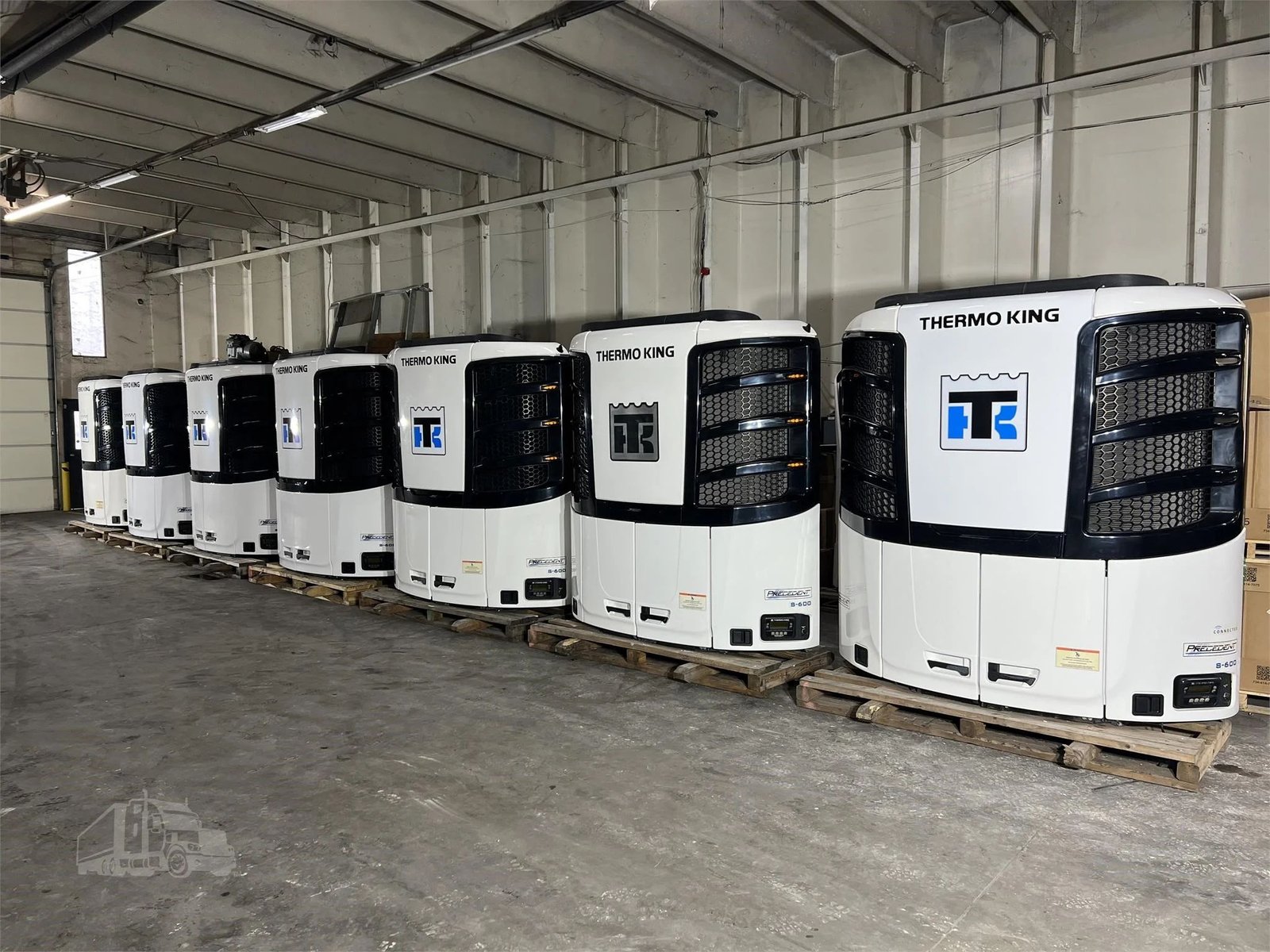

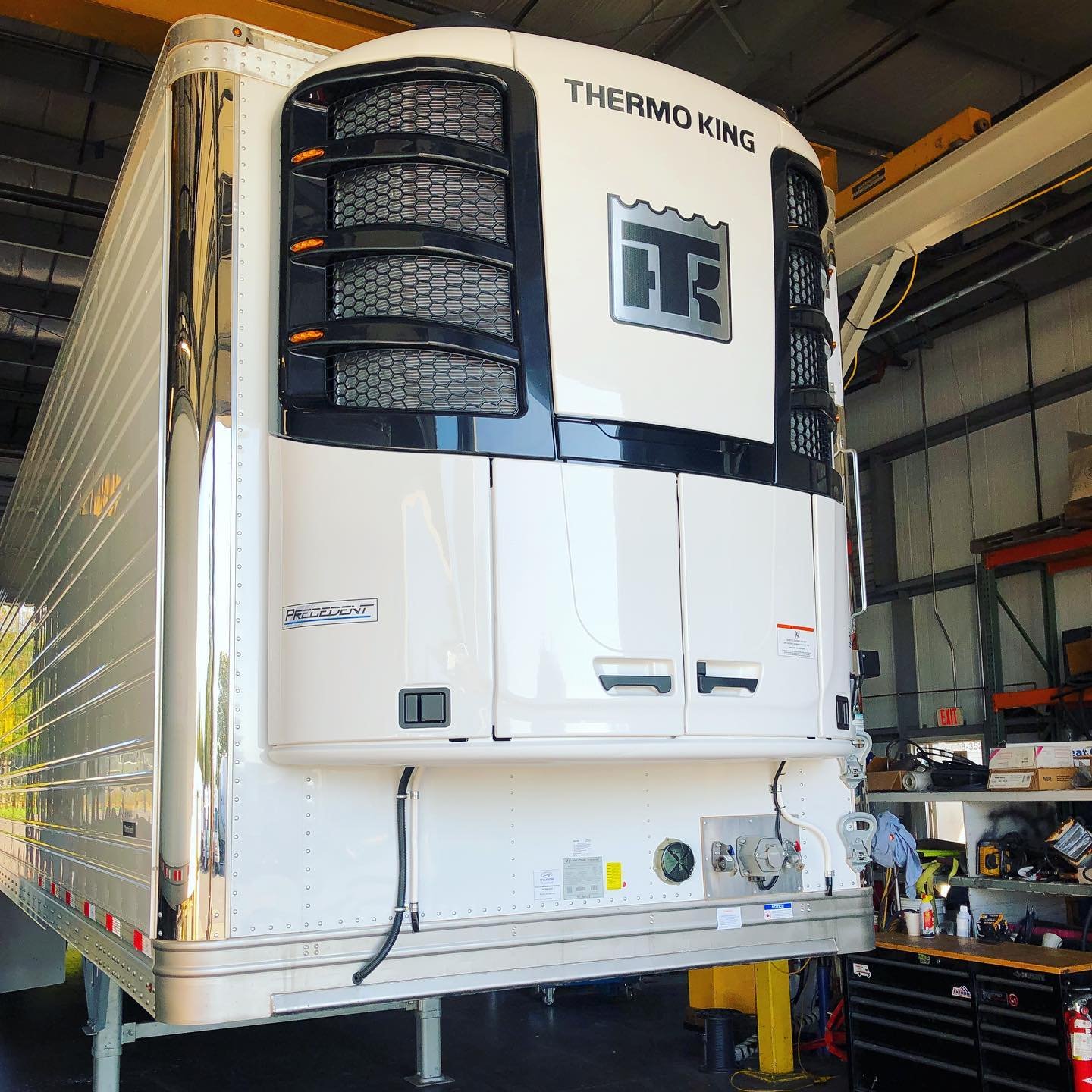

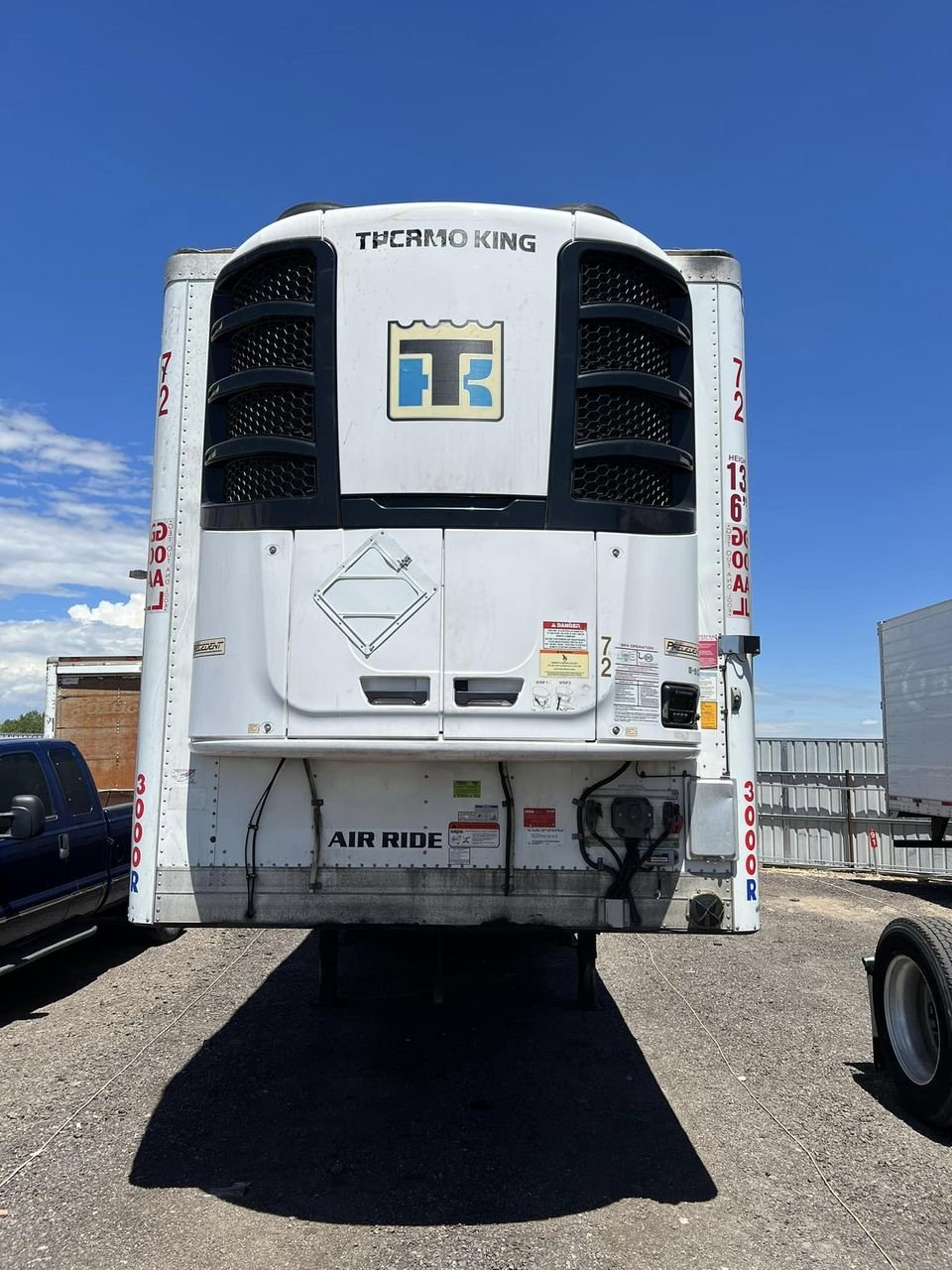

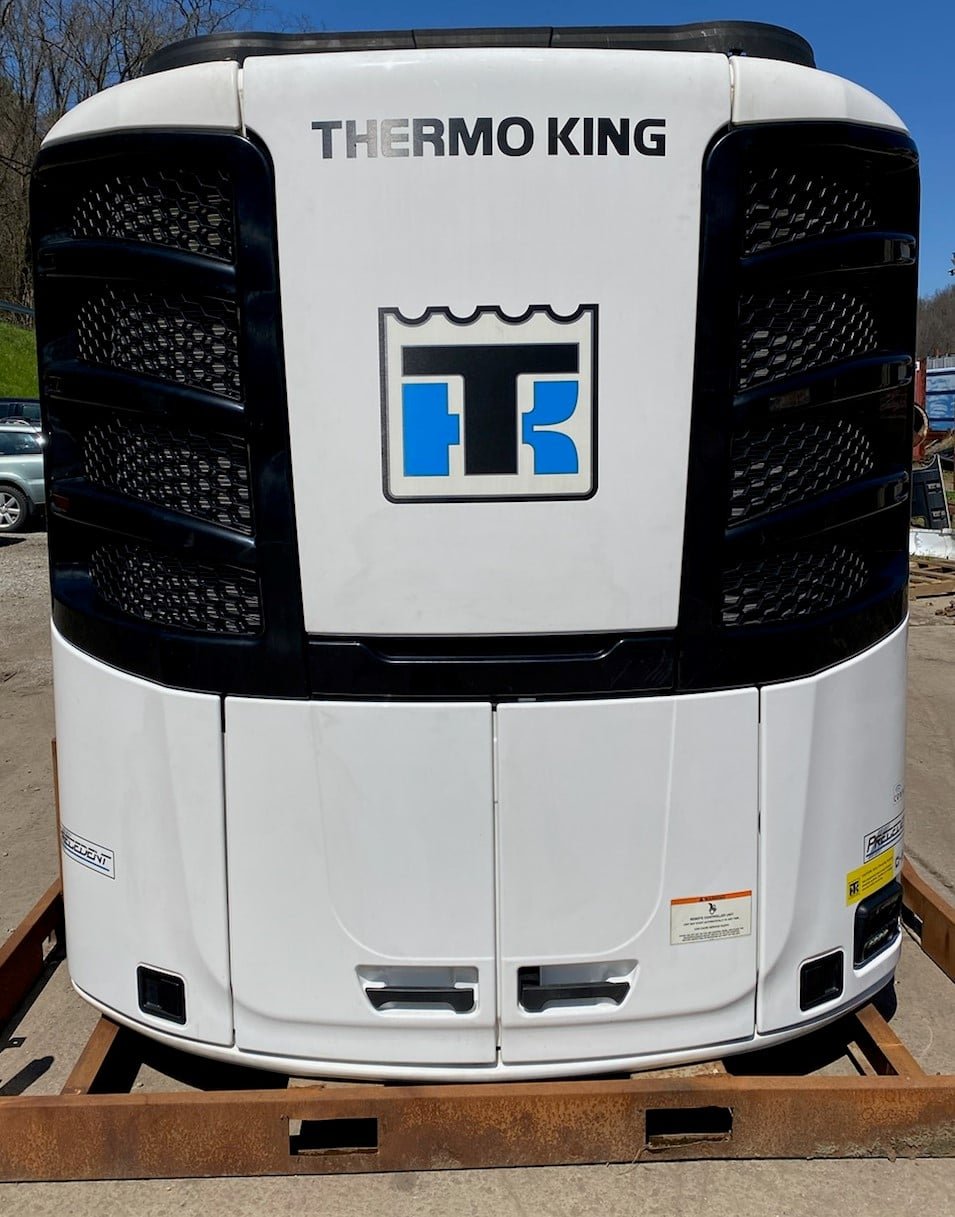

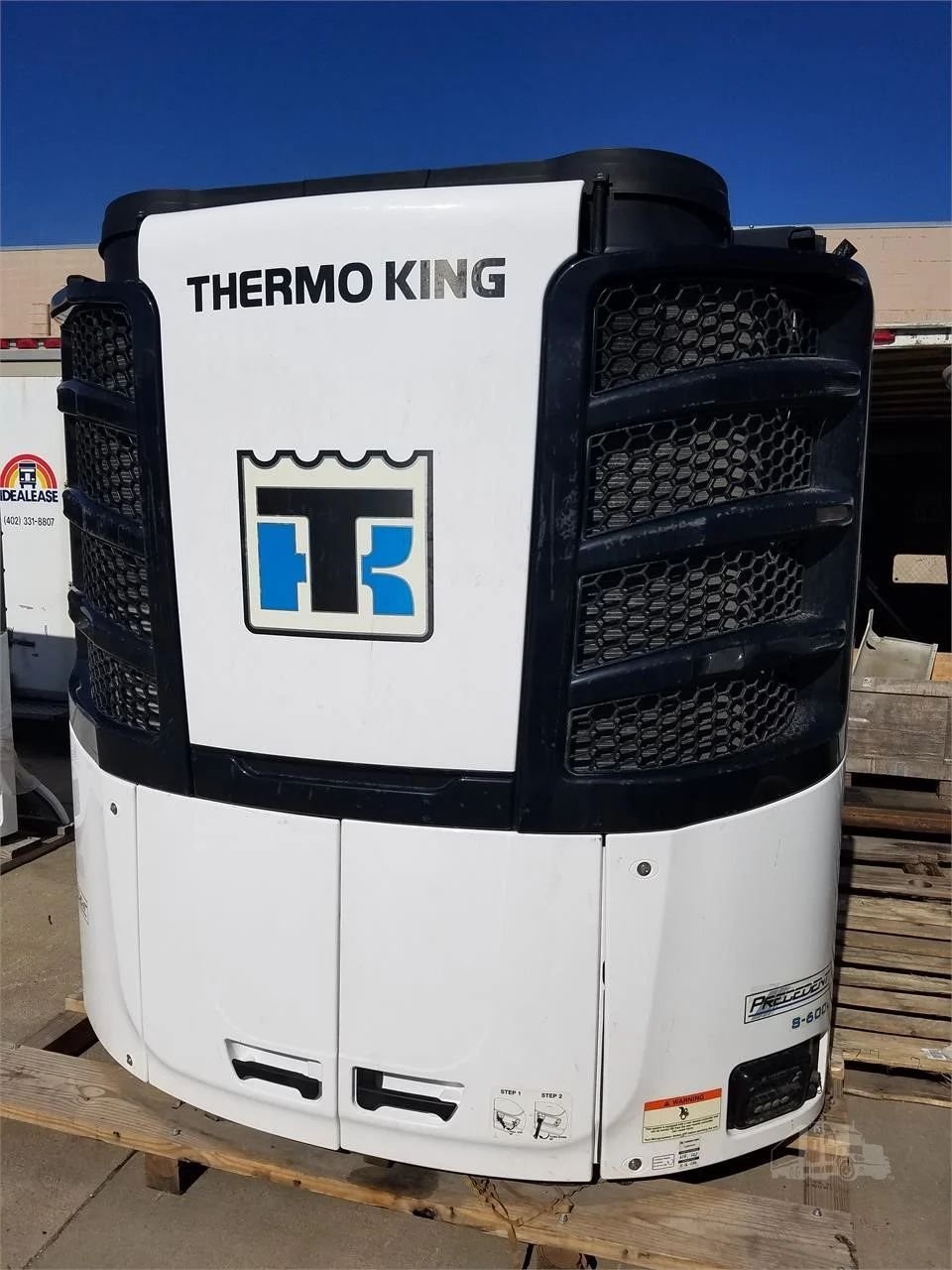

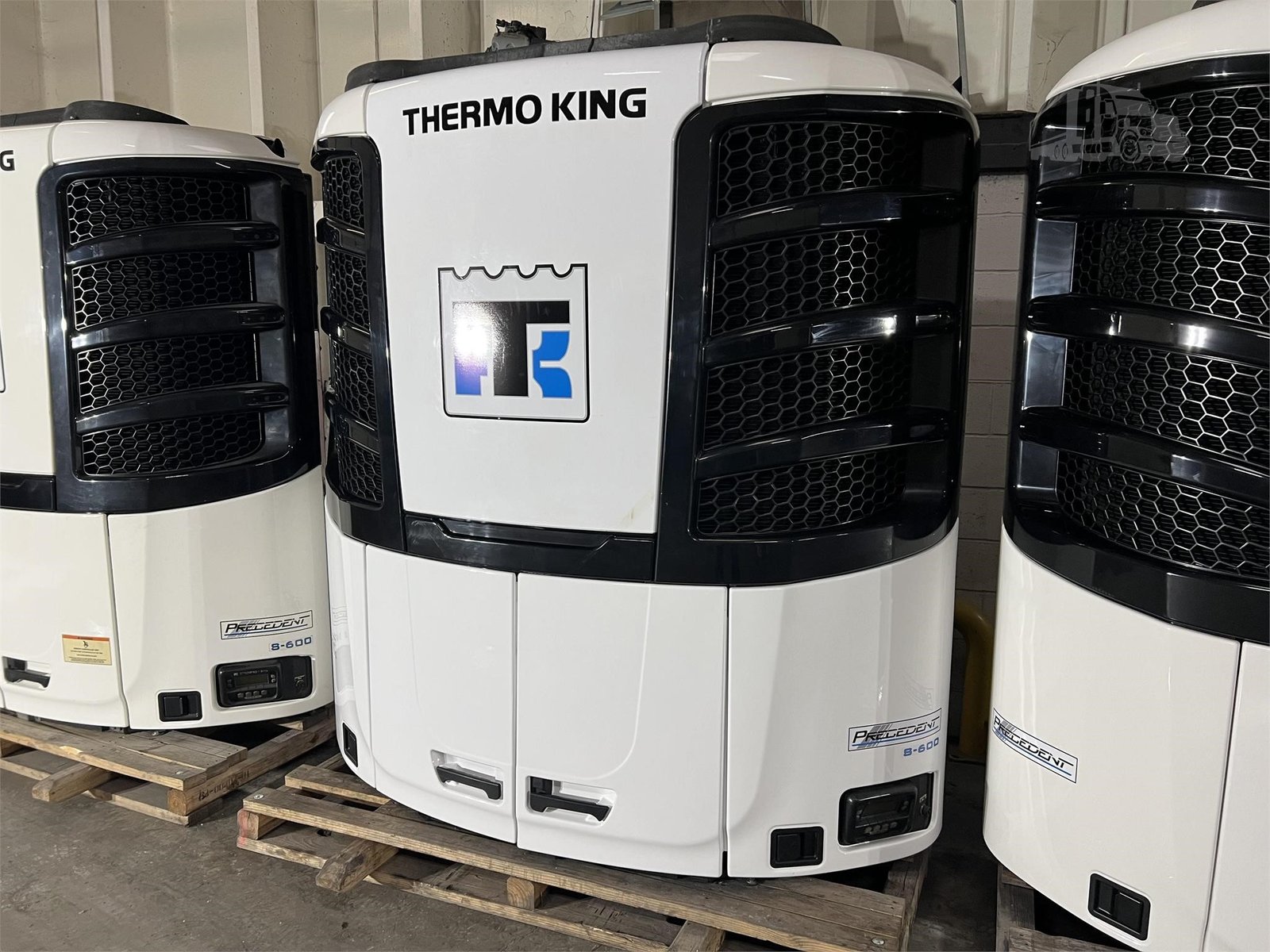

The Thermo King Precedent® S-600 trailer refrigeration system sets the benchmark in transport refrigeration technology. Designed with a Diesel Direct Electric (DDE) architecture, the S-600 provides double-digit fuel savings while optimizing temperature control and minimizing energy loss across operations.
As a CARB Evergreen certified unit, it delivers full nationwide emissions compliance without requiring a Diesel Particulate Filter (DPF). Equipped with common rail fuel injection, microchannel condenser coils, and a high-efficiency reciprocating compressor, the S-600 maximizes thermal performance and equipment longevity.
Key Features
- Diesel Direct Electric Architecture: Combines diesel reliability with electric efficiency to reduce fuel consumption and wear.
- CARB Evergreen Certified: Nationwide emissions compliance without the need for an expensive DPF aftertreatment system.
- Microchannel Condenser Coils: Curved coil architecture doubles surface area to eliminate dead spots and enhance airflow.

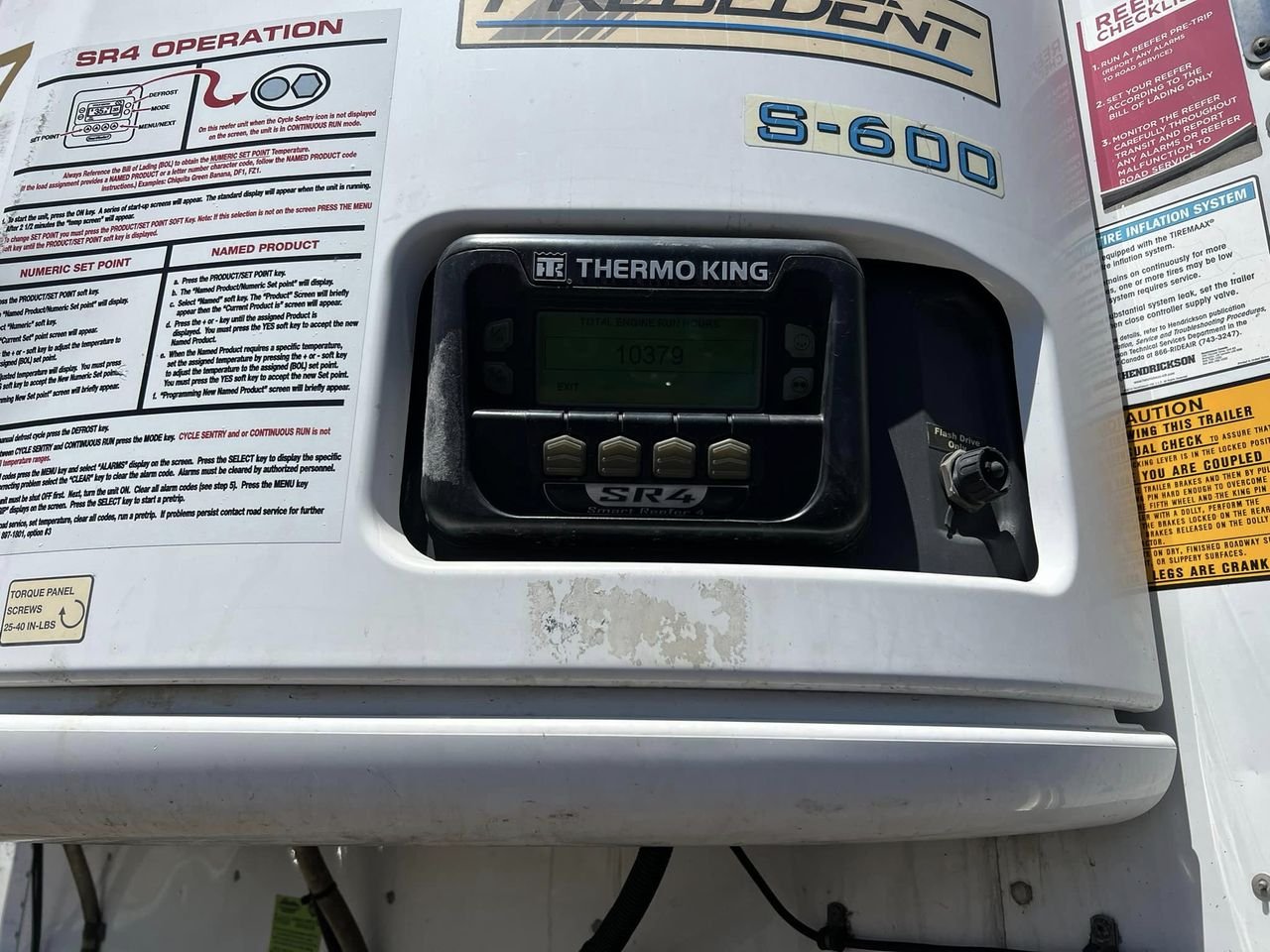

- Smart Reefer® SR-4 Controller: Advanced diagnostic tools, OptiSet® Plus temperature profiling, and real-time monitoring capabilities.
- Integrated Telematics: TracKing® connectivity built in for continuous asset tracking and fleet management.
- Extended Service Intervals: Designed around a 3,000 to 4,000 hour maintenance window to keep your fleet running longer.
| Brand | Thermo King |
| Model | Precedent S-600 |

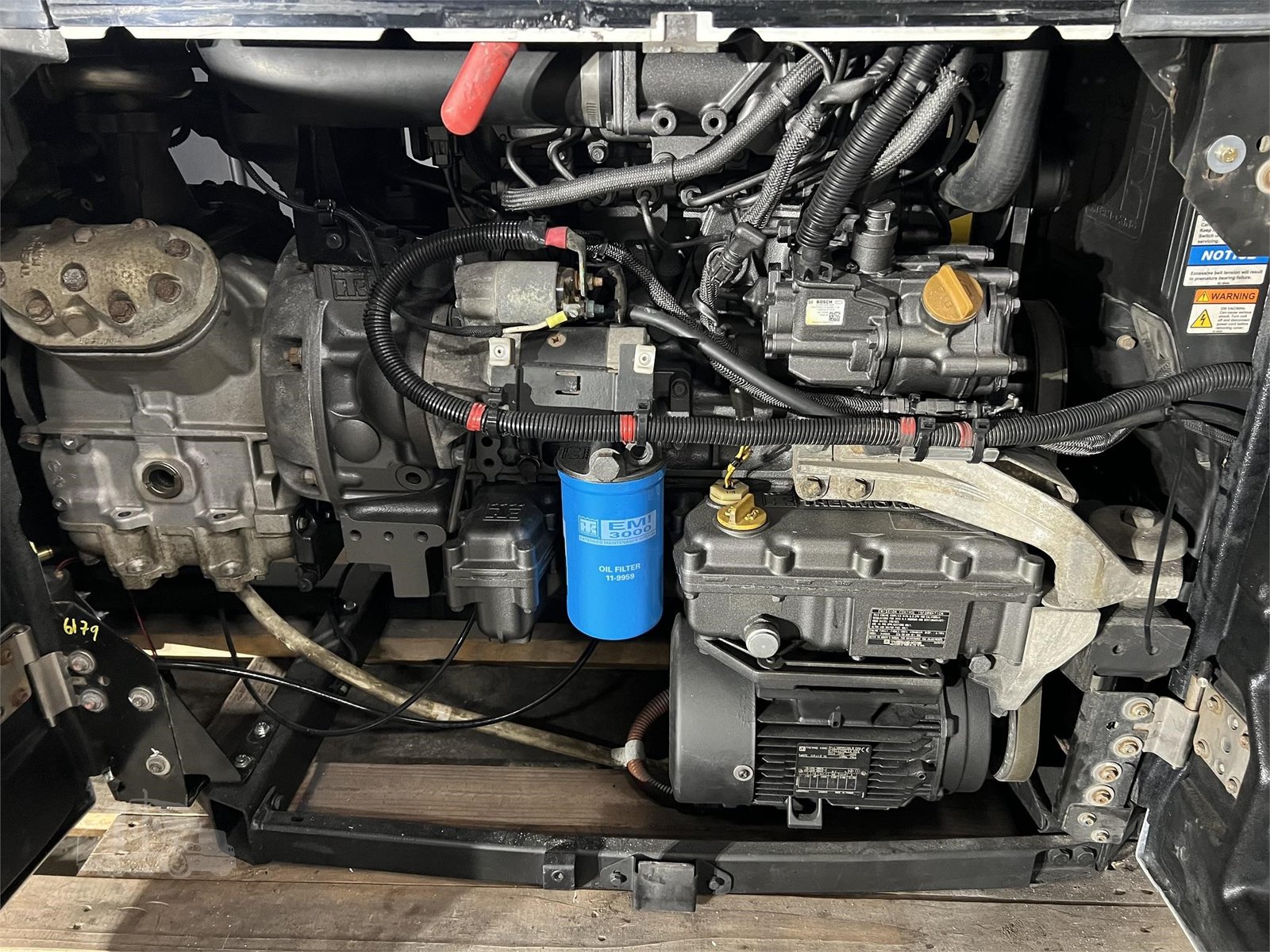

| Engine Model | TK488CR |
| Engine Type | Four cylinder, direct injection, liquid cooled (Tier 4 Final) |
| Engine Horsepower | 33 hp @ 2050 RPM |
| Refrigeration Capacity (35°F) | 60,000 BTU/hr (17,584 W) |
| Refrigeration Capacity (0°F) | 32,000 BTU/hr (9,378 W) |
| Refrigeration Capacity (-20°F) | 20,000 BTU/hr (5,861 W) |
| Heating Capacity | 59,500 BTU/hr |
| Airflow Volume | 3,300 ft³/min |
| Compressor Model | X430L |
| Refrigerant Type | R404A |
| Refrigerant Charge | 14.5 lb |
| System Weight | 1872 lb |
| Dimensions | 81.6 in x 86.2 in x 24 in |
| Maintenance Interval | 3,000 – 4,000 hrs |
