Description

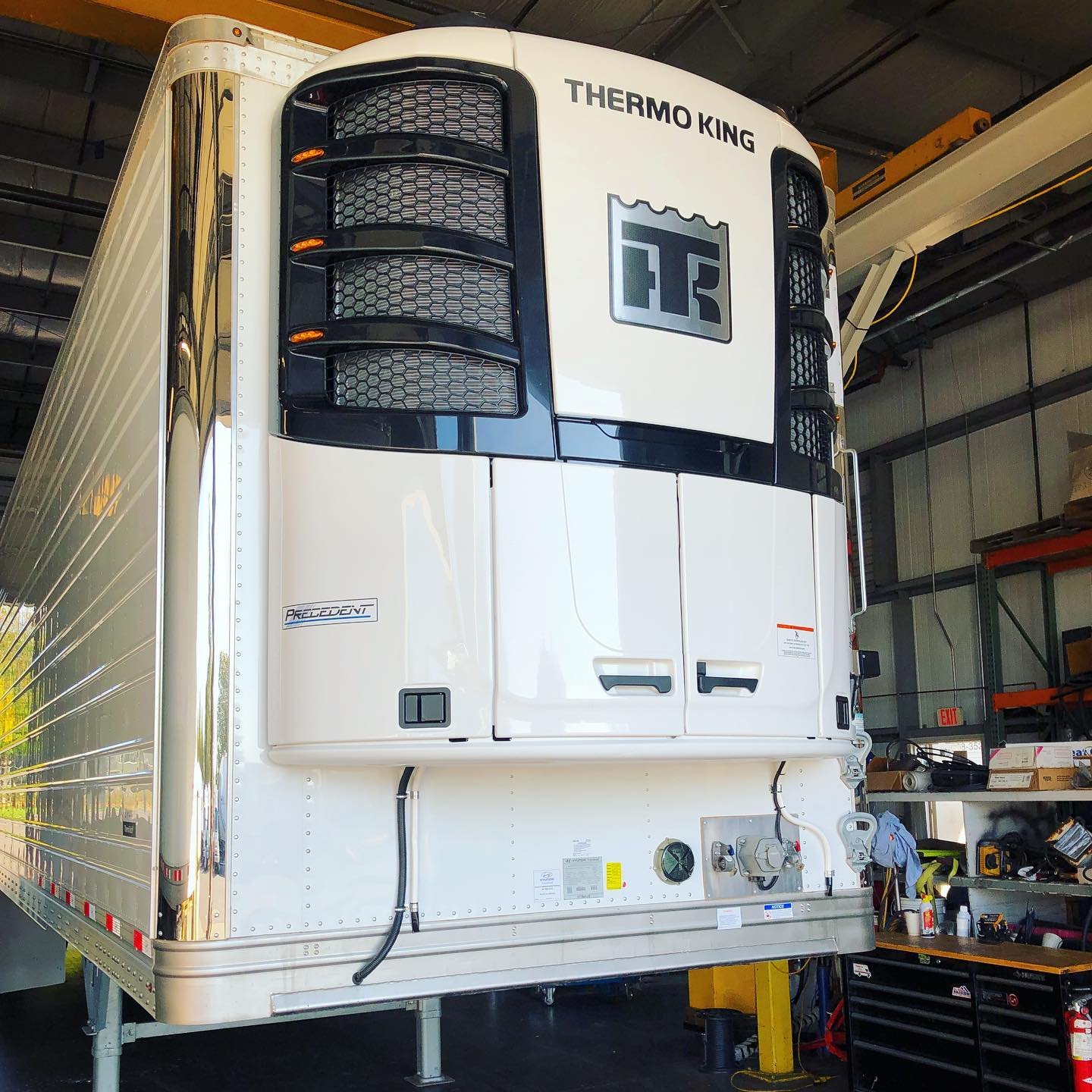

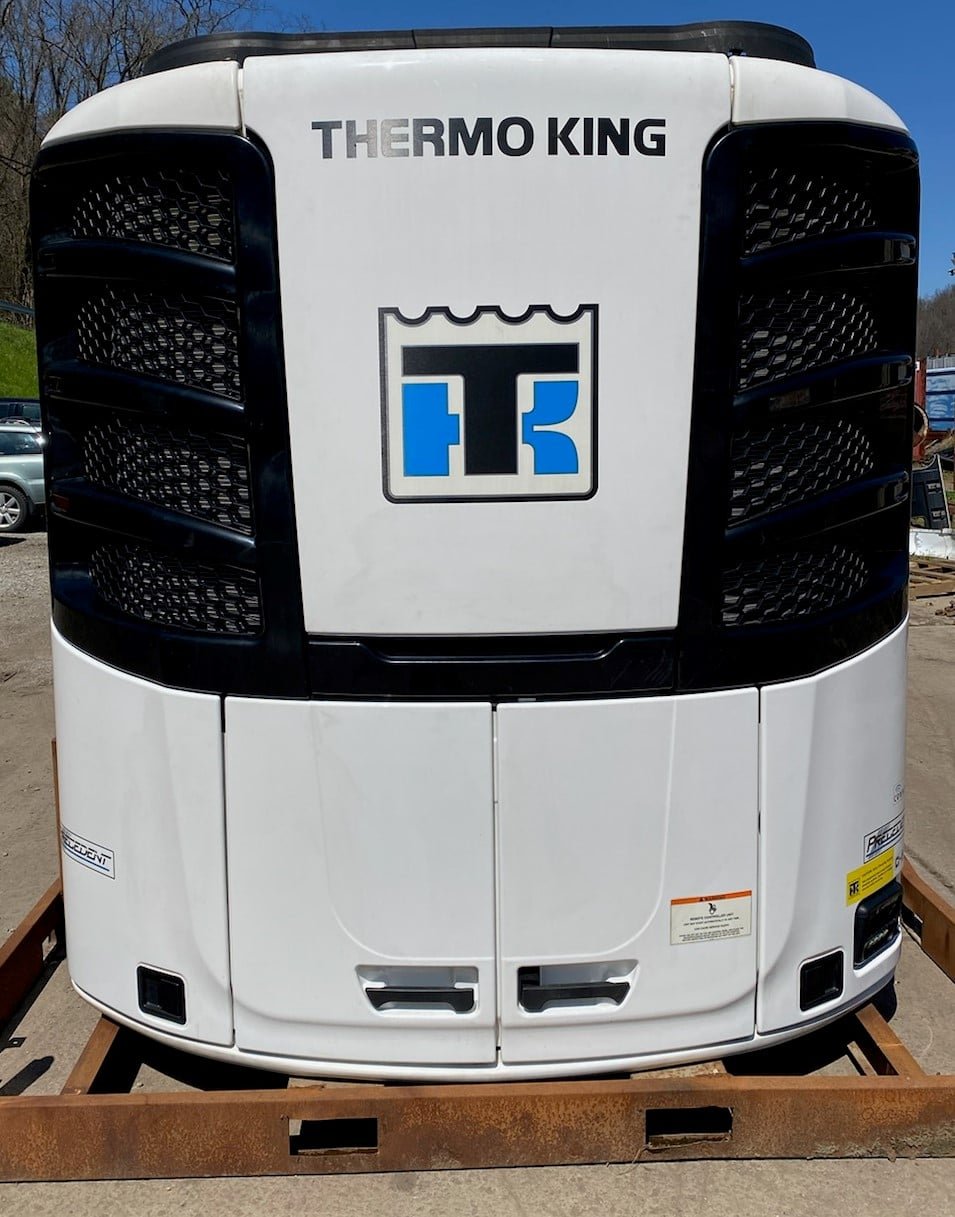

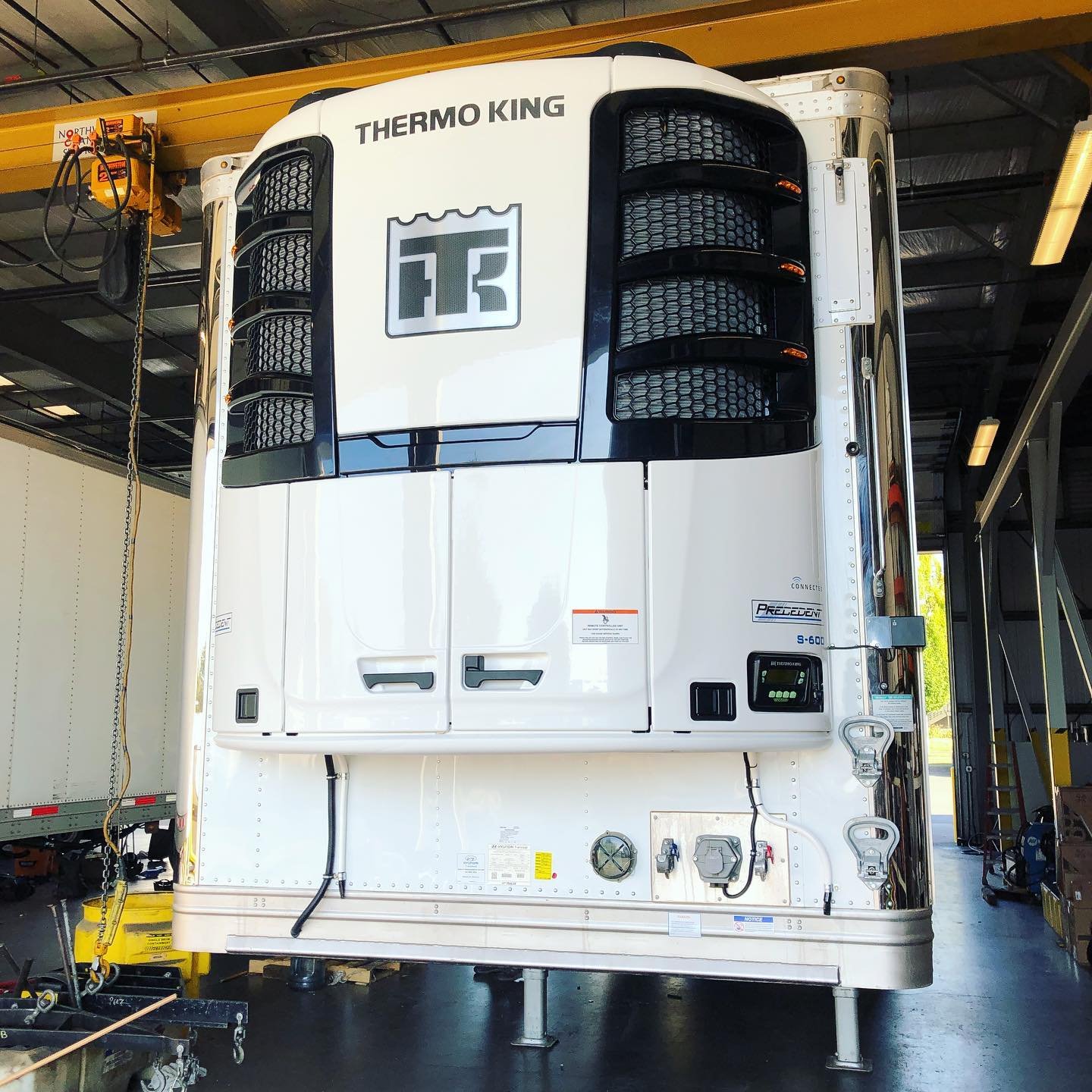

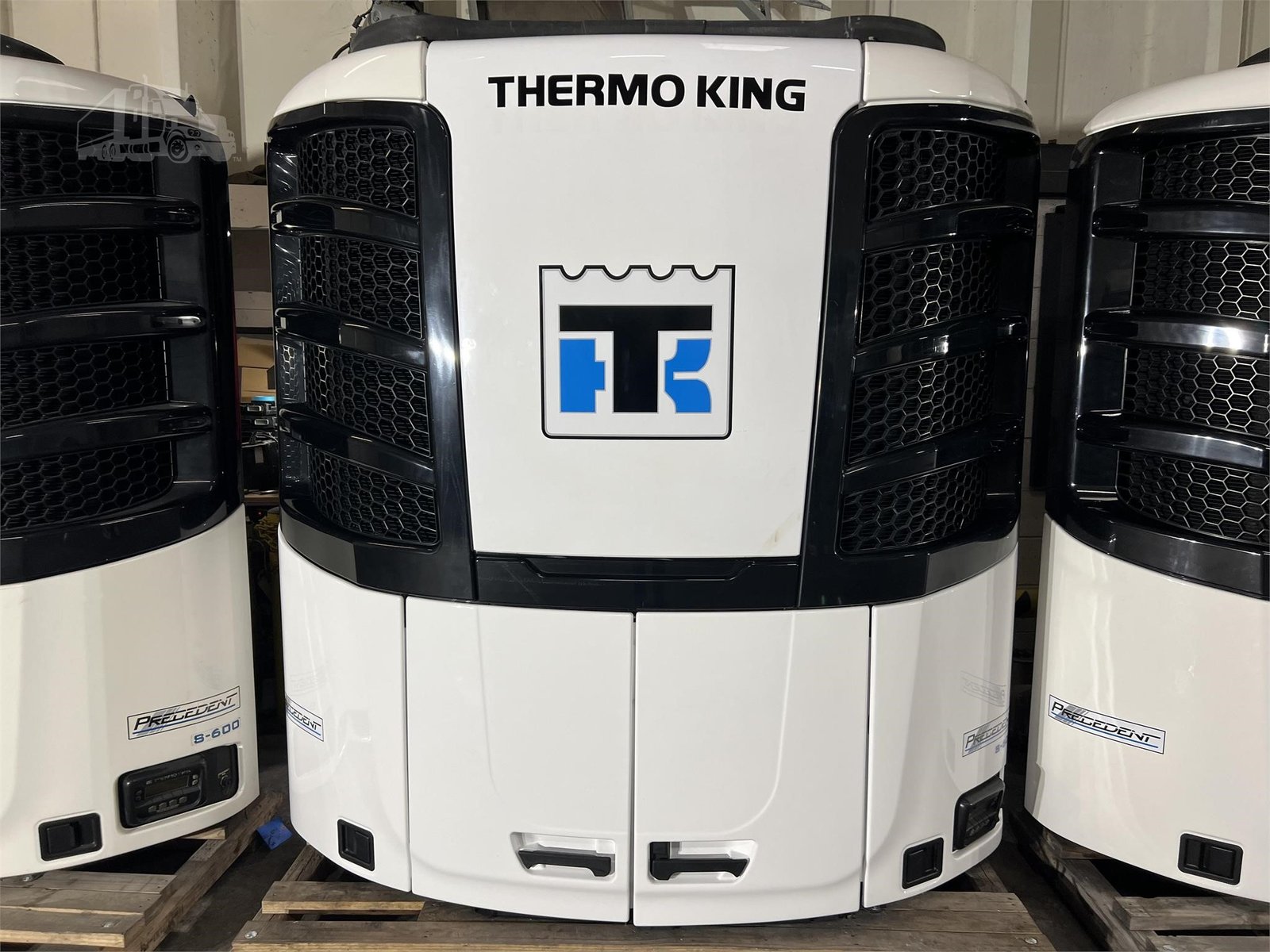

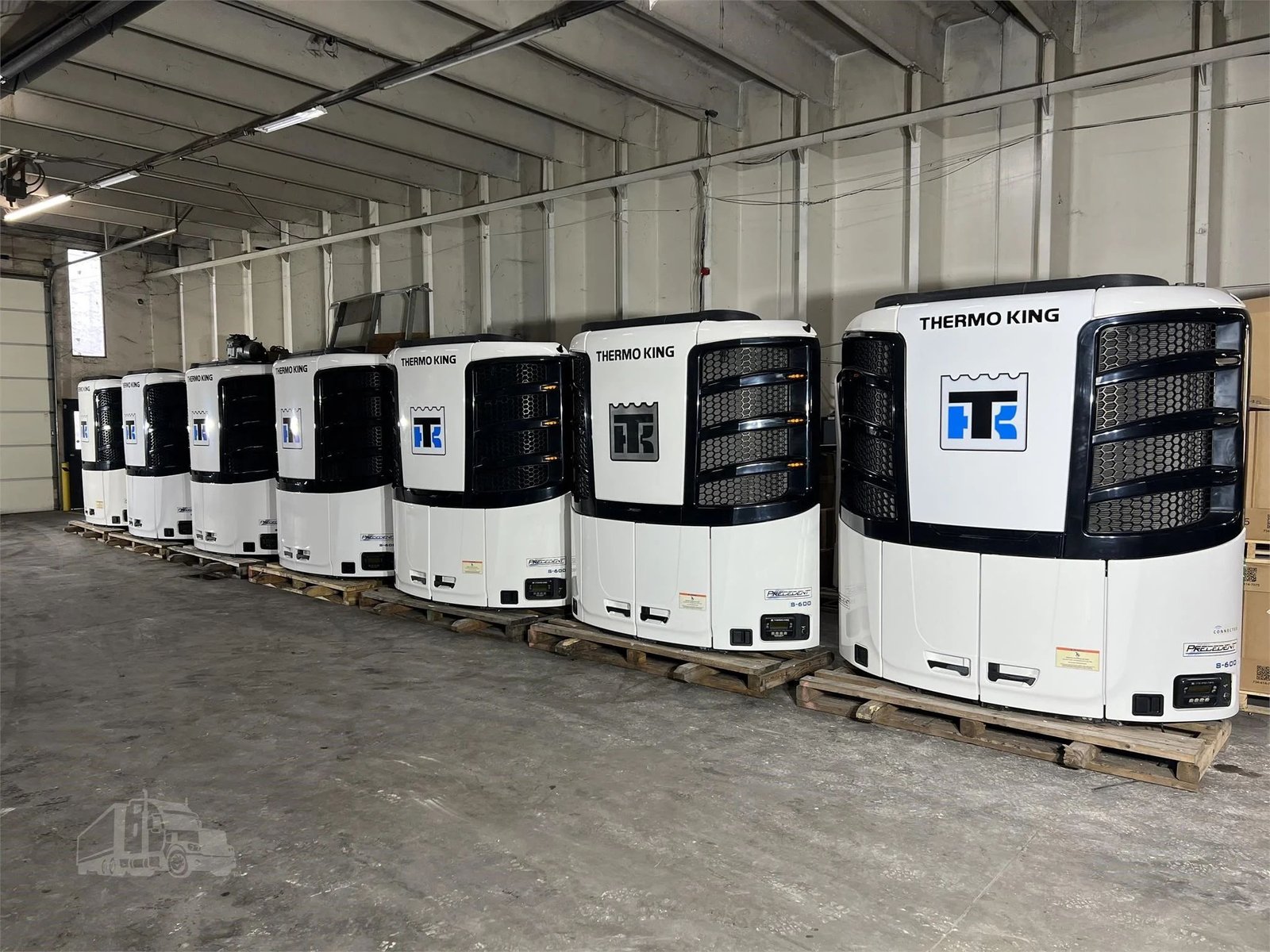

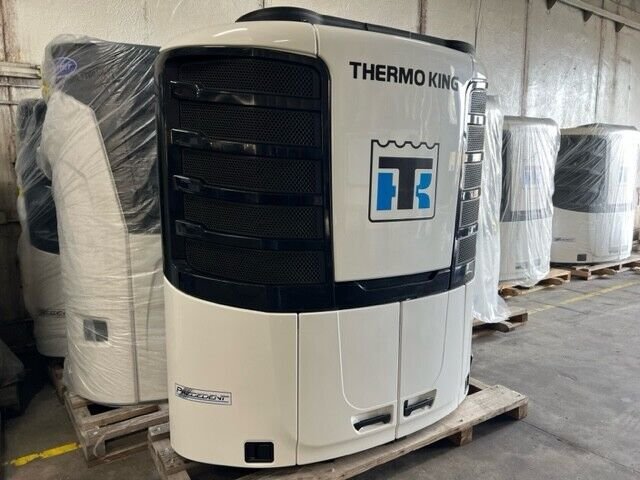

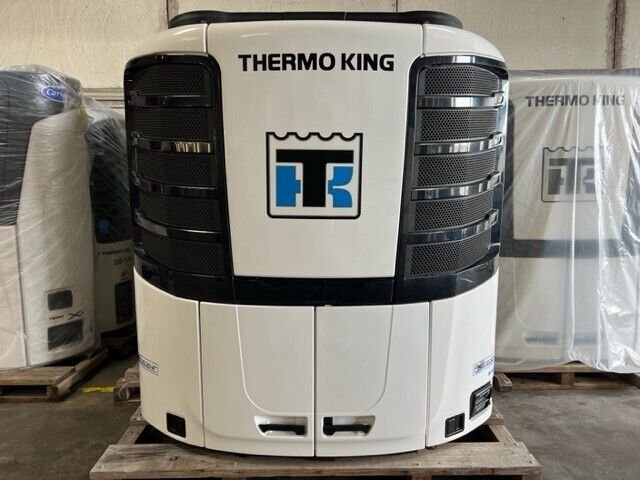

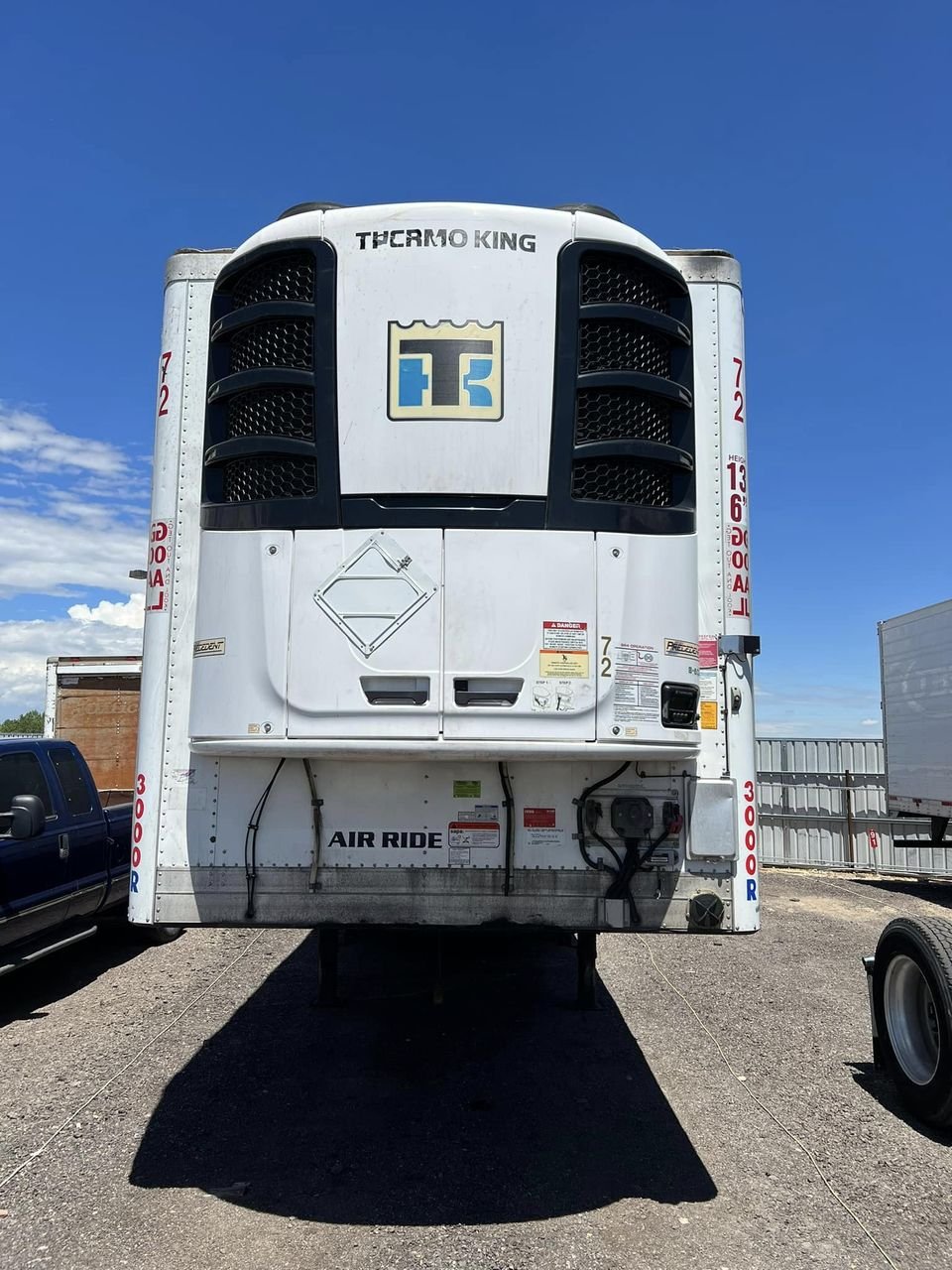

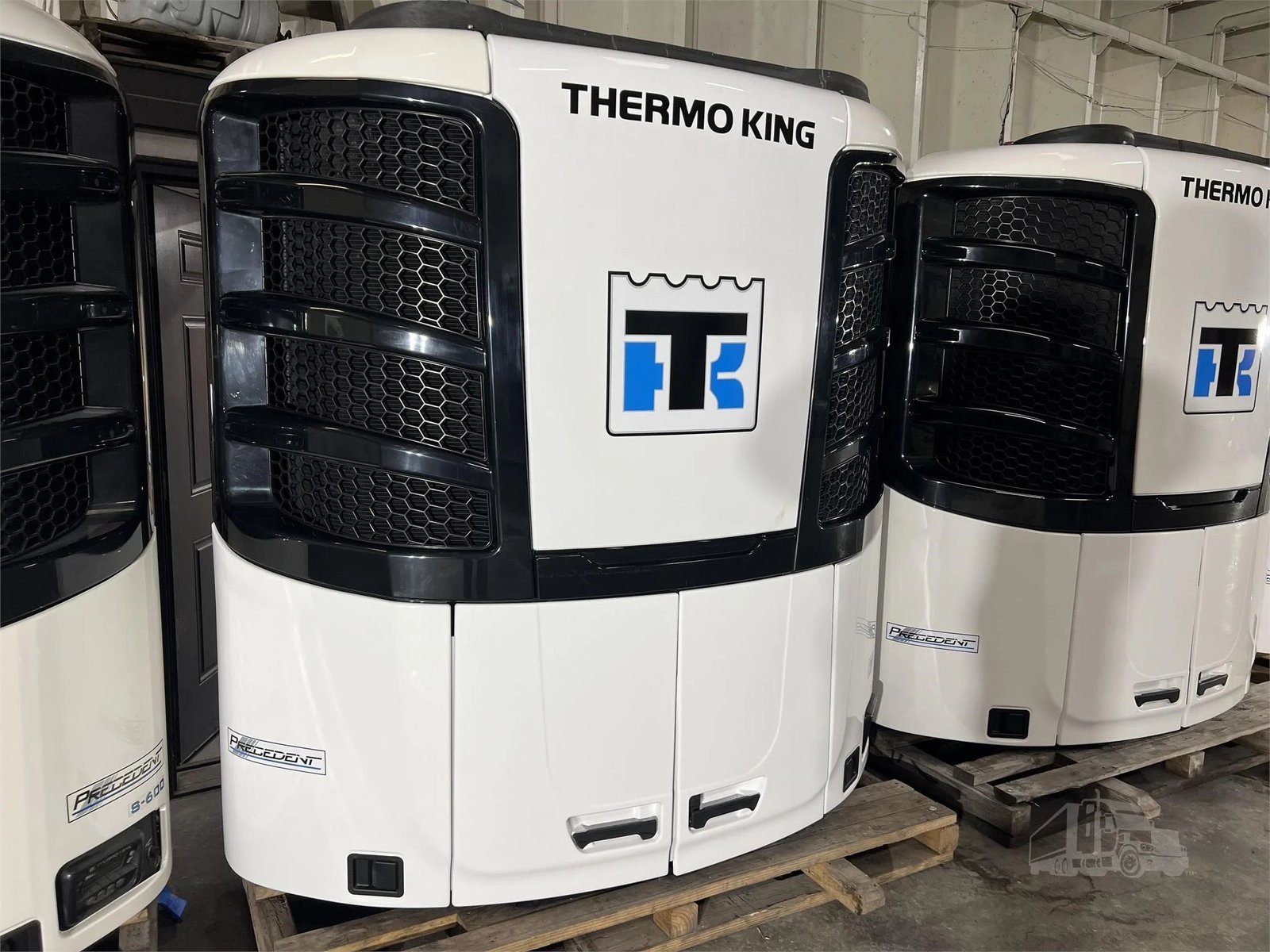

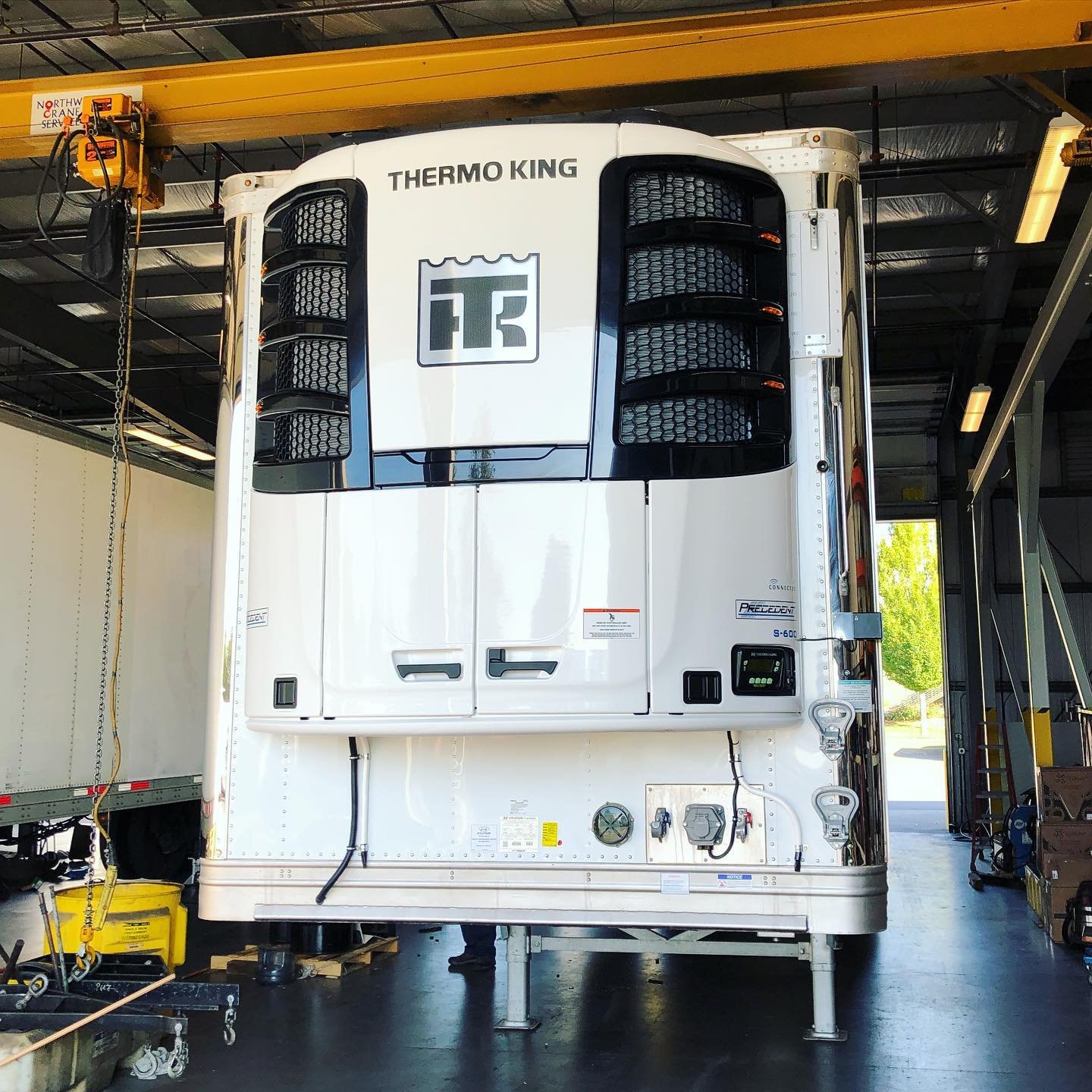

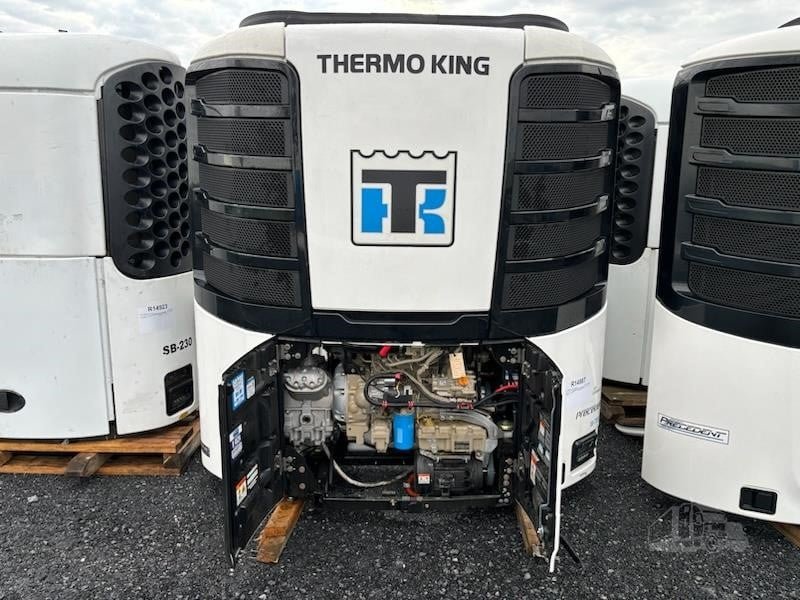

The Thermo King Precedent® S-700 Trailer Refrigeration System delivers high-capacity temperature control engineered for single-temperature trailers requiring deep-frozen capability. Built on a Diesel Direct Electric (DDE) architecture, the S-700 achieves double-digit fuel savings while providing full compliance with EPA Tier 4 Final and CARB Evergreen emissions standards without requiring a Diesel Particulate Filter (DPF).
Key Performance & Engineering
- High-Capacity Refrigeration: Features the X430P 4-cylinder reciprocating compressor with lightweight aluminum alloy construction and microchannel condenser coils that eliminate airflow dead spots.

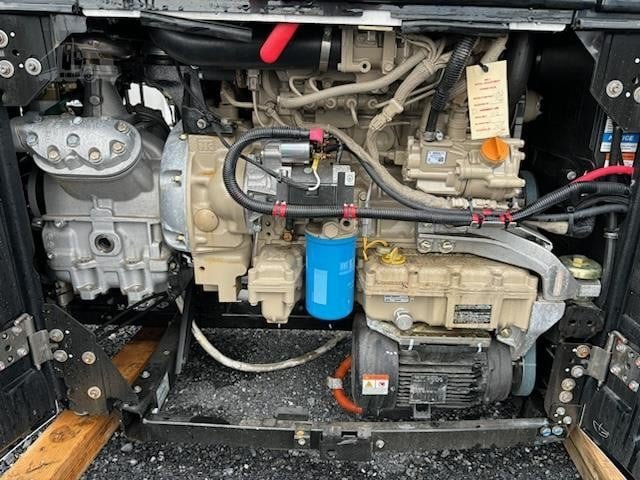

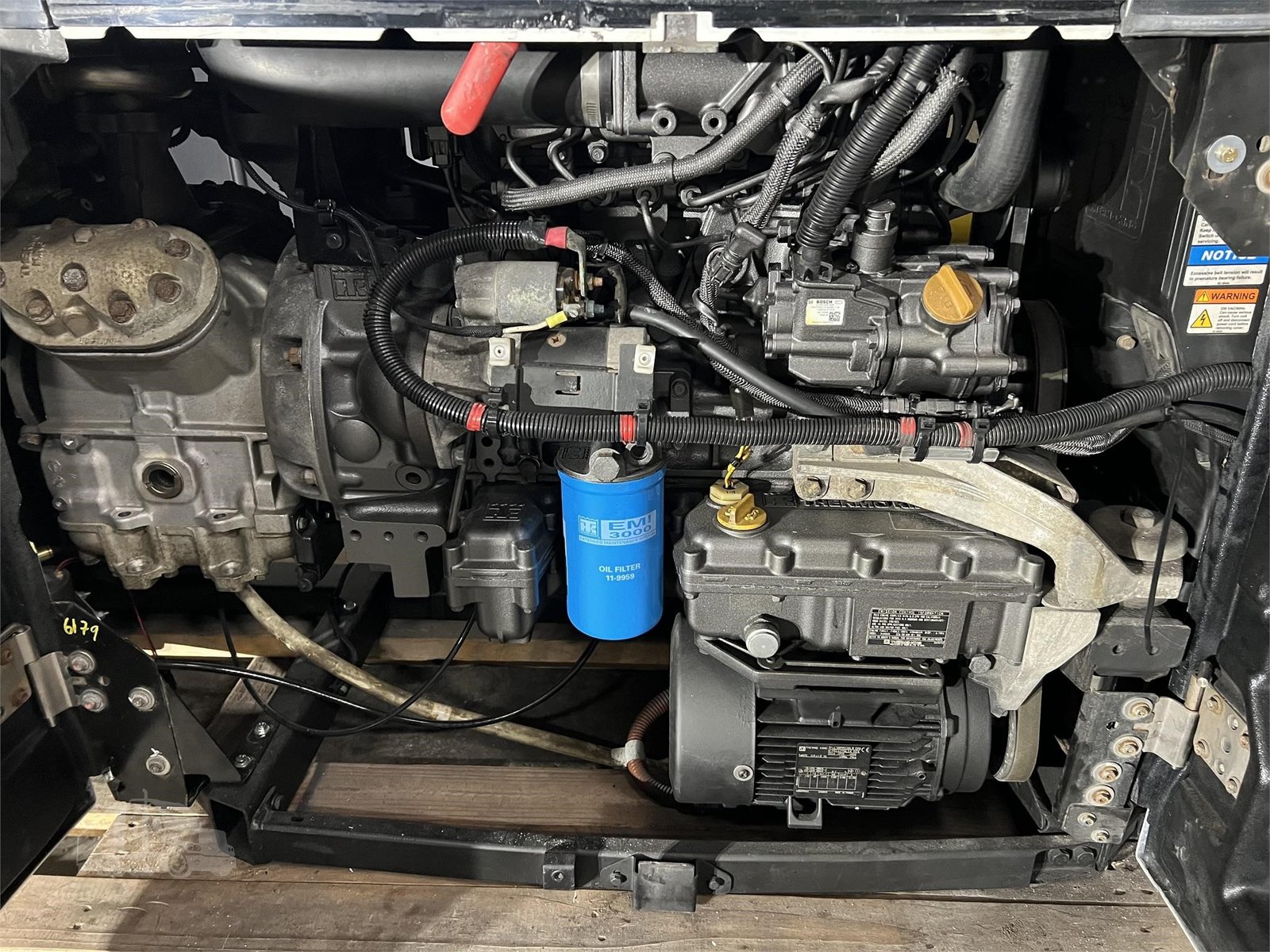

- Tier 4 Final Engine: Powered by the TK488CRH liquid-cooled engine with common rail fuel injection and electronic fuel monitoring to optimize fuel efficiency and lower emissions.
- Smart Control System: Equipped with the Smart Reefer® 4 (SR4) controller, integrated USB data port, OptiSet® Plus, and standard factory TracKing® telematics for real-time monitoring and FSMA compliance.
- Durable Construction: Features high-strength composite doors with auto-latching mechanisms and heavy-duty condenser grilles to resist road debris.
| Brand | Thermo King |
| Model | Precedent S-700 |
| Engine Model | TK488CRH |
| Engine Type | Four cylinder, direct injection, liquid cooled |
| Engine Horsepower | 35 hp @ 2600 RPM |
| Engine Oil Capacity | 12 qt |
| Compressor Model | X430P / X430L |
| Compressor Displacement | 30.0 in³ |
| Refrigeration Capacity (35°F) | 68,000 BTU/hr (19,929 W) |
| Refrigeration Capacity (0°F) | 37,000 BTU/hr (10,844 W) |
| Refrigeration Capacity (-20°F) | 25,000 BTU/hr (7,327 W) |
| Heating Capacity | 72,000 BTU/hr |
| Airflow Capacity | 3,300 ft³/min |
| Refrigerant Charge | 14.5 lbs |
| Emissions Compliance | EPA Tier 4 Final, CARB Evergreen, ULETRU |
| Dimensions | 81.6 in x 86.2 in x 24 in |
| System Weight | 1872 lb |
