Description

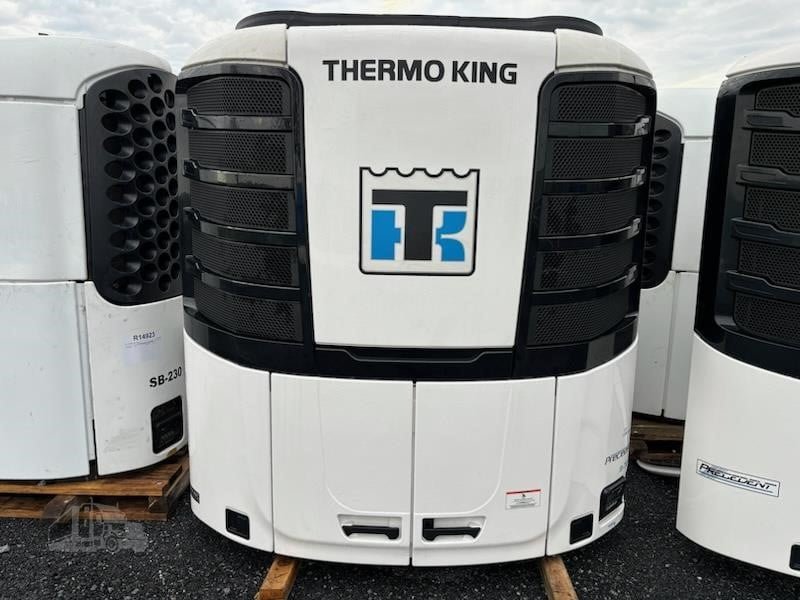

The Thermo King Precedent® S-700 trailer refrigeration system delivers industry-leading temperature control and high cooling capacity designed for deep-frozen transport and single-temperature trailers. Built on Diesel Direct Electric (DDE) architecture with Electronic Throttling Valve (ETV) technology, the S-700 maximizes operational efficiency and fuel savings while minimizing energy loss.

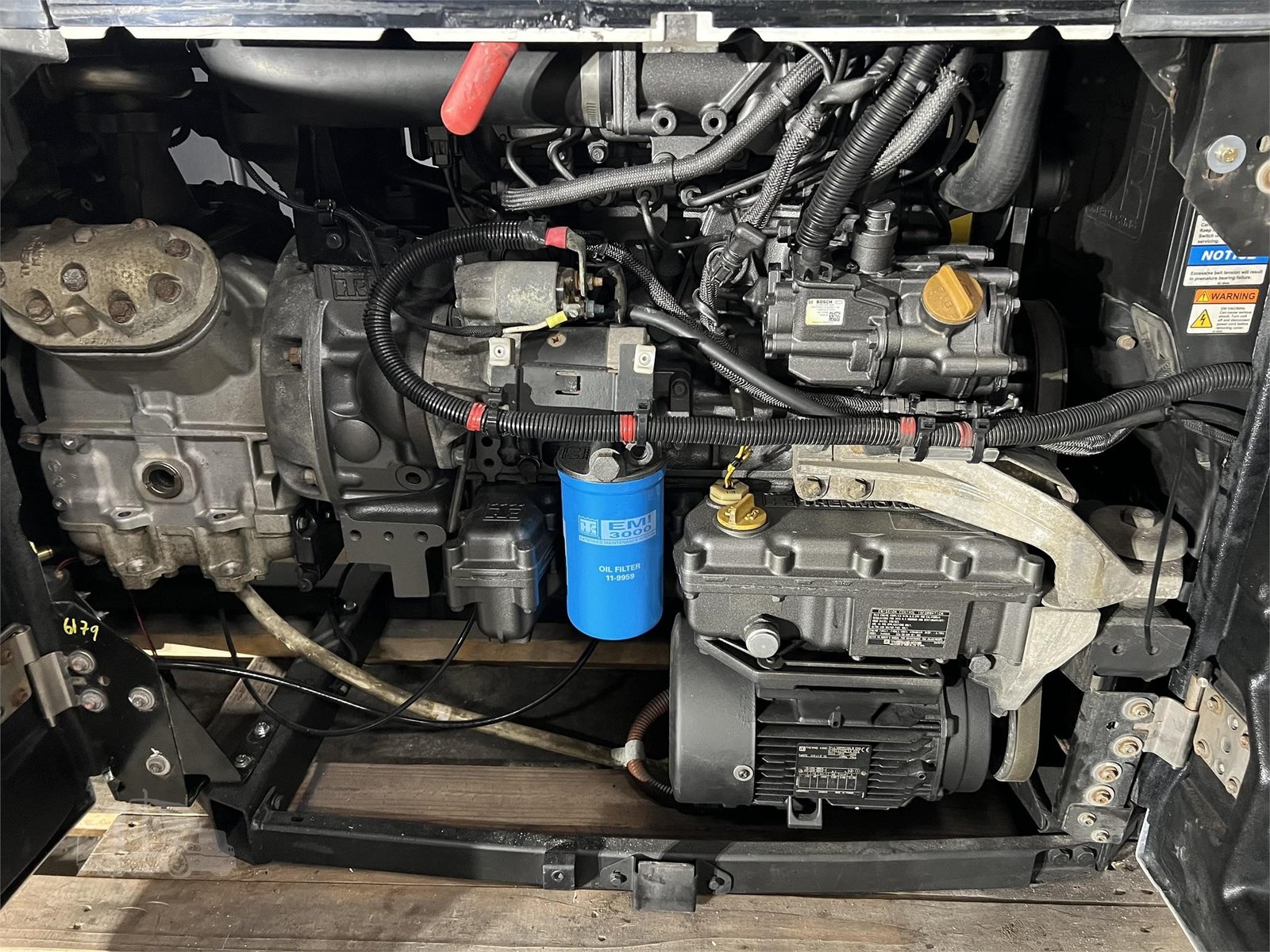

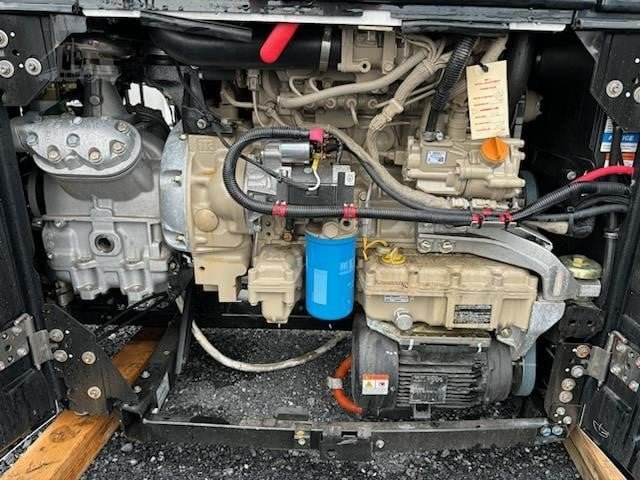

Powered by a 4-cylinder, direct-injection liquid-cooled engine, the Precedent S-700 achieves EPA Final Tier 4 and CARB Evergreen compliance without requiring a Diesel Particulate Filter (DPF). The high-efficiency system utilizes curved microchannel condenser coils that provide double the surface area to eliminate dead spots, paired with a dual-speed evaporator fan for optimized airflow.
Key Features & Performance
- Direct-Injection Engine: 35 hp TK488CRH engine with common rail fuel injection for low emissions and high efficiency.
- Reciprocating Compressor: Reliable X430L lightweight aluminum alloy compressor with 30.0 cu. in displacement.
- Advanced Airflow: Delivers up to 3,300 cu. ft/min airflow volume at 0 Pa static pressure.
- Cooling & Heating Capacity: Net cooling capacity reaching up to 68,000 BTU/hr (19,929 W) and heating capacity up to 72,000 BTU/hr.
- Integrated Telematics: Standard TracKing® connectivity for real-time asset tracking, temperature management, and diagnostics via the Smart Reefer® SR4 controller.
| Brand | Thermo King |
| Model | Precedent S-700 |
| Product Type | Trailer Refrigeration System |
| Dimensions | 81.6 in. x 86.2 in. x 24 in. |
| System Weight | 1872 lbs |
| Engine Model | TK488CRH |
| Engine Type | Four cylinder, direct injection, liquid cooled |
| Engine Horsepower | 35 hp @ 2600 RPM |
| Emissions Compliance | EPA Final Tier 4 / CARB Evergreen |
| Compressor Model | X430L |
| Compressor Displacement | 30.0 in³ |
| Cooling Capacity (35°F Ambient) | 68,000 BTU/hr (19,929 W) |
| Cooling Capacity (0°F Ambient) | 37,000 BTU/hr (10,844 W) |
| Cooling Capacity (-20°F Ambient) | 25,000 BTU/hr (7,327 W) |
| Heating Capacity | 72,000 BTU/hr |
| Airflow Volume | 3,300 ft³/min |
| Refrigerant | R404A |
| Refrigerant Charge | 14.5 lbs |
| Controller | Smart Reefer SR4 |
| Maintenance Interval | 3,000 hrs / 4,000 hrs |
