Description
The Thermo King Precedent® S-700 is engineered for single-temperature refrigerated trailer operations requiring deep-frozen capability and maximum efficiency. Featuring a proven Diesel Direct Electric (DDE) architecture with Electronic Throttling Valve (ETV) technology, the S-700 provides precise temperature control and double-digit fuel savings without requiring a Diesel Particulate Filter (DPF).
High-Efficiency Architecture & Emissions Compliance

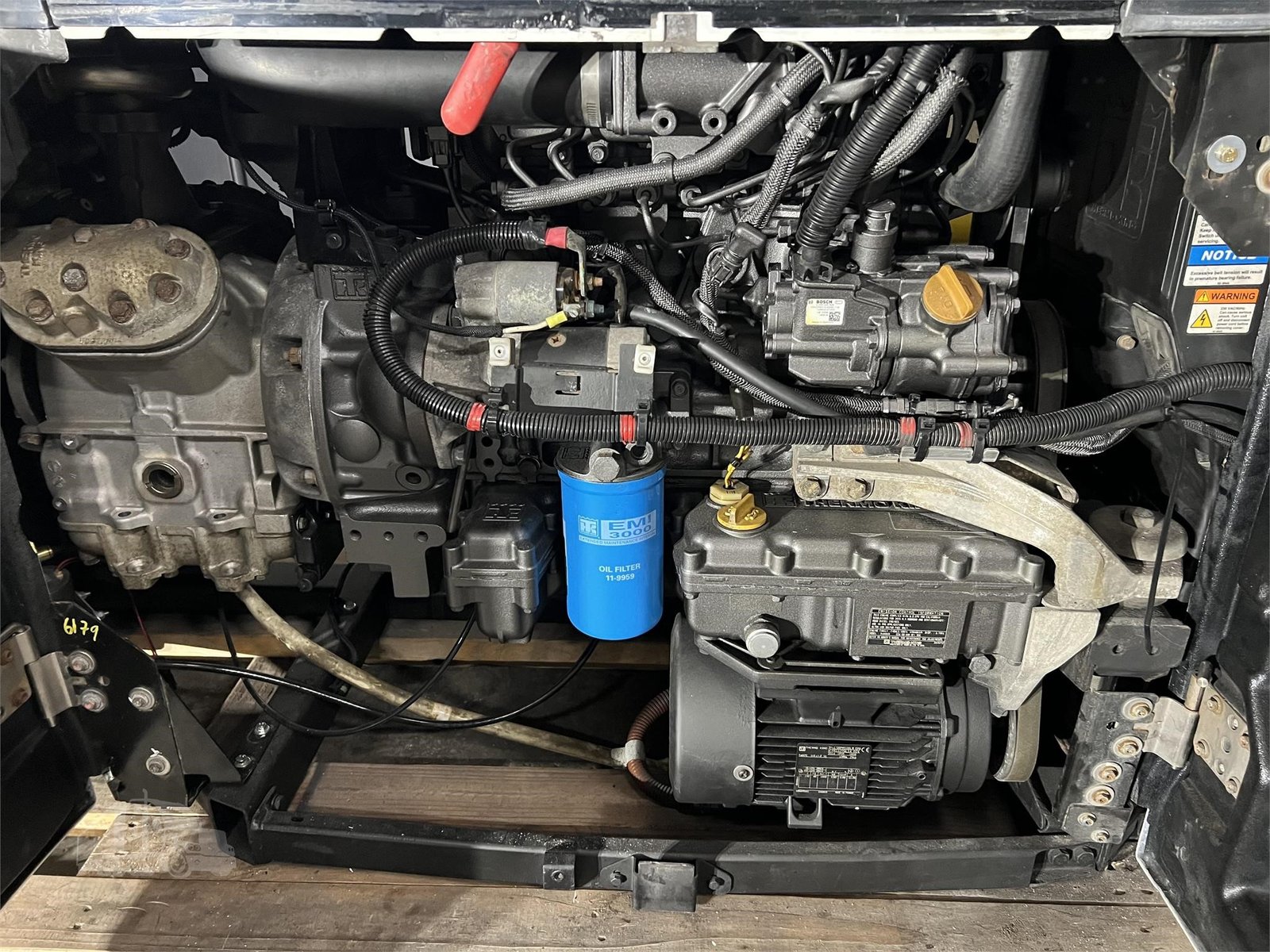

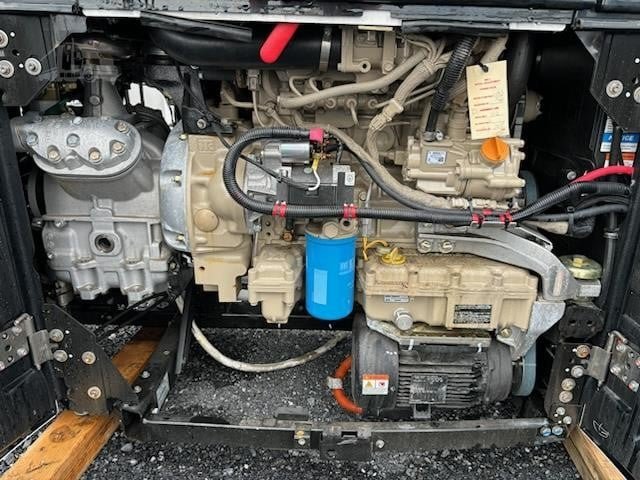

Powered by a 4-cylinder, direct-injection liquid-cooled engine (TK488CRH) rated at 35 hp, the Precedent S-700 achieves full EPA Final Tier 4 and CARB Evergreen compliance. The common rail fuel injection system optimizes particulate matter control in-cylinder, maintaining lifetime regulatory status across North America.
Advanced Refrigeration & Airflow Engineering
The unit incorporates an X430 lightweight reciprocating compressor alongside curved microchannel condenser coils that more than double total surface area to maximize airflow and eliminate operational dead spots. A dual-speed induction evaporator fan provides high airflow volume up to 3,300 ft³/min at 0 Pa static pressure.
Control & Telematics
Equipped with the Smart Reefer® 4 (SR4) control system, the S-700 includes built-in diagnostic tools, OptiSet® Plus, CargoWatch, and factory-integrated TracKing® telematics for real-time fleet monitoring and FSMA temperature compliance.
| Brand | Thermo King |
| Model | Precedent S-700 |
| Product Type | Trailer Refrigeration Unit |
| Engine Model | TK488CRH |
| Engine Type | 4-cylinder, direct injection, liquid-cooled |
| Horsepower Rating | 35 hp @ 2600 RPM |
| Emissions Compliance | EPA Final Tier 4 / CARB Evergreen |
| Compressor Model | X430L |
| Compressor Displacement | 30.0 in³ |
| Cooling Capacity (35°F) | 68,000 BTU/hr (19,929 W) |
| Cooling Capacity (0°F) | 37,000 BTU/hr (10,844 W) |
| Cooling Capacity (-20°F) | 25,000 BTU/hr (7,327 W) |
| Heating Capacity | 72,000 BTU/hr |
| Airflow Volume | 3,300 ft³/min |
| Refrigerant Charge | 14.5 lbs |
| Oil Capacity | 12 qt |
| Maintenance Interval | 3,000 hrs / 4,000 hrs |
| Overall Dimensions | 81.6 in x 86.2 in x 24 in |
| System Weight | 1872 lbs |
