Description

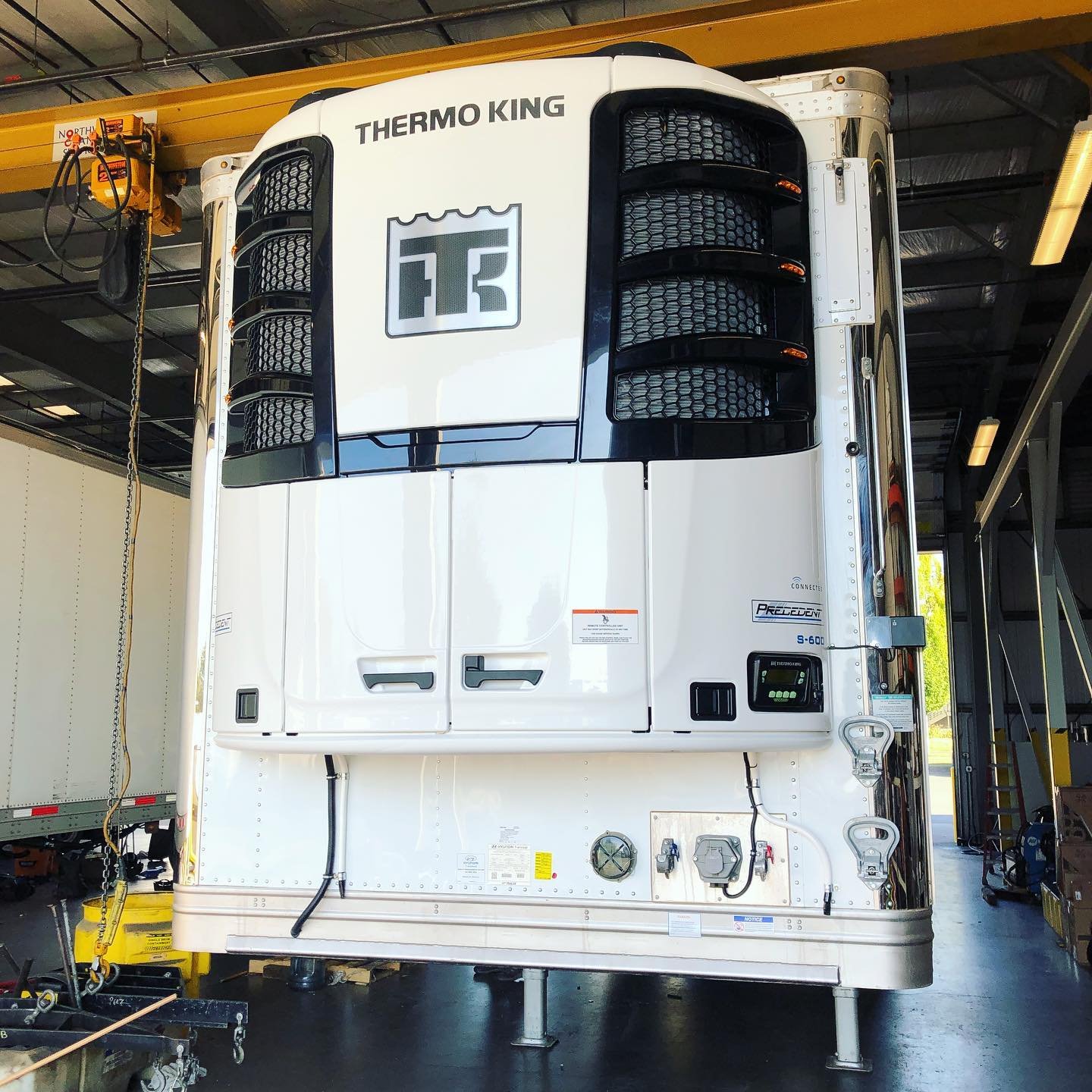

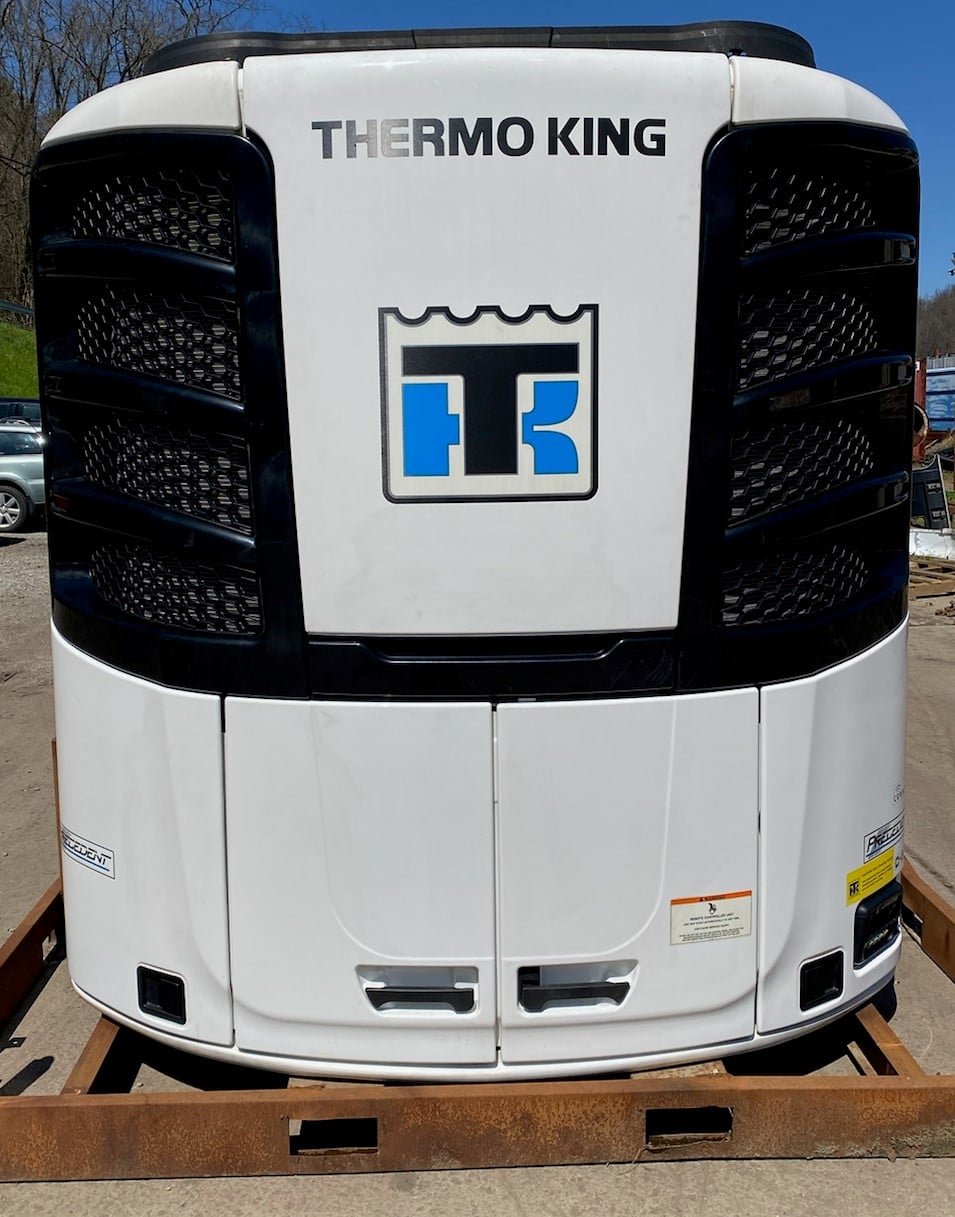

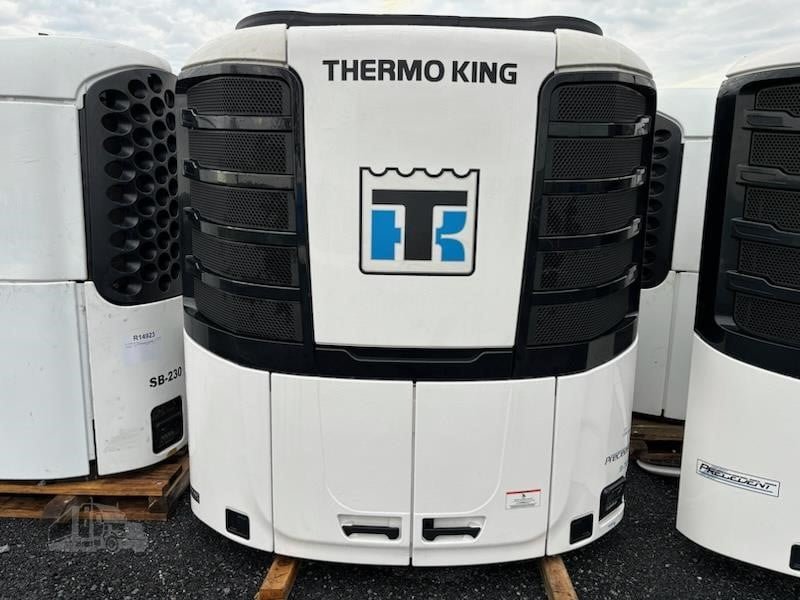

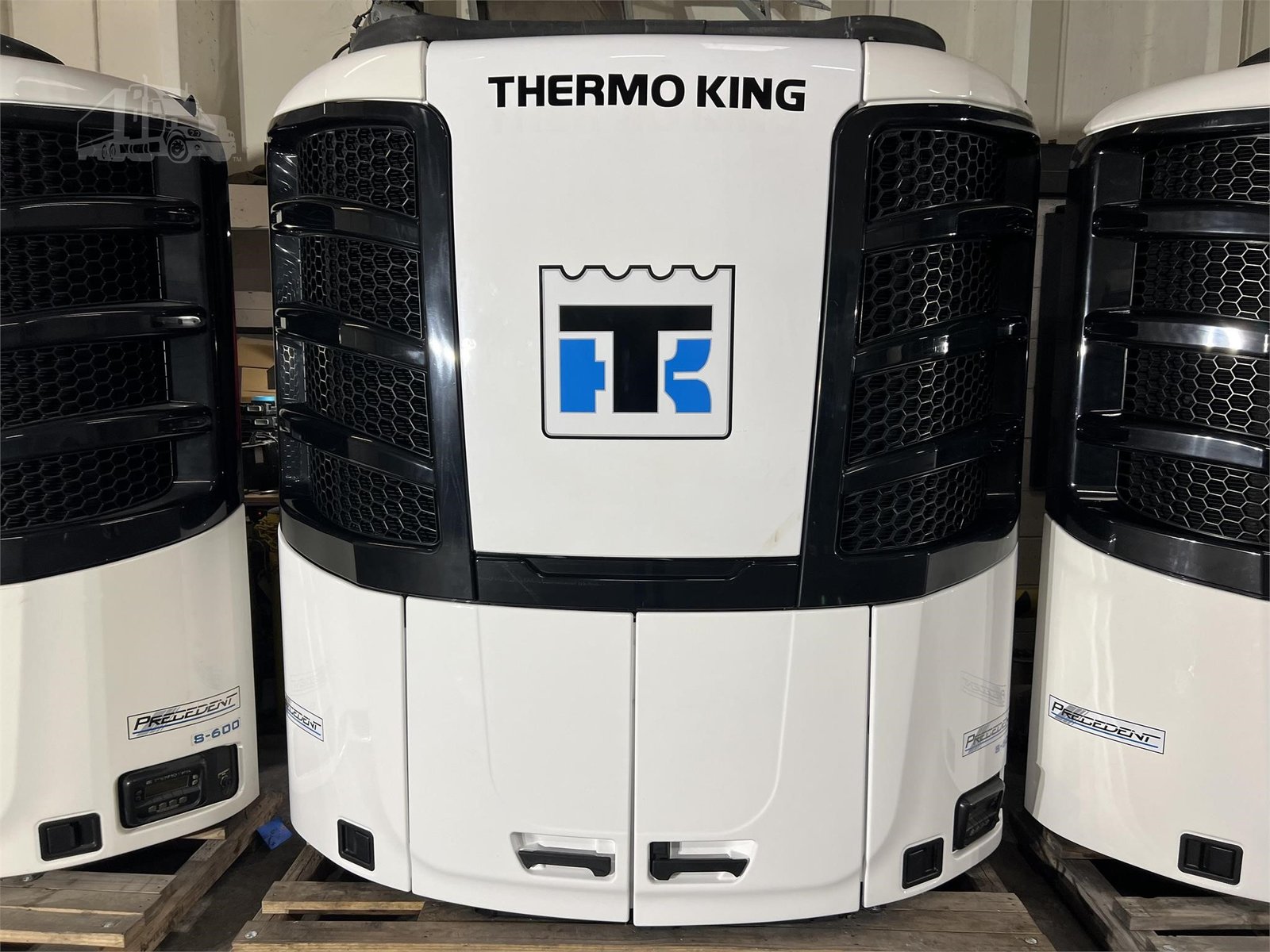

The Thermo King Precedent® S-700 trailer refrigeration system delivers industry-leading temperature control and deep-frozen capability for single-temperature trailers. Engineered with a direct-injection diesel electric architecture, the S-700 achieves double-digit fuel savings while meeting EPA Final Tier 4 and CARB Evergreen standards without requiring a Diesel Particulate Filter (DPF).
Key Features
- CARB Evergreen Certified: Compliant in California without the need for an aftermarket or replacement DPF.
- High-Capacity Performance: Delivers up to 68,000 BTU/hr of cooling capacity and 72,000 BTU/hr of heating capacity.
- Electronic Fuel Injection: Features real-time fuel recording and monitoring to optimize consumption.
- Advanced Telematics: Standard factory-installed TracKing® telematics for real-time fleet tracking, temperature management, and operational analytics.

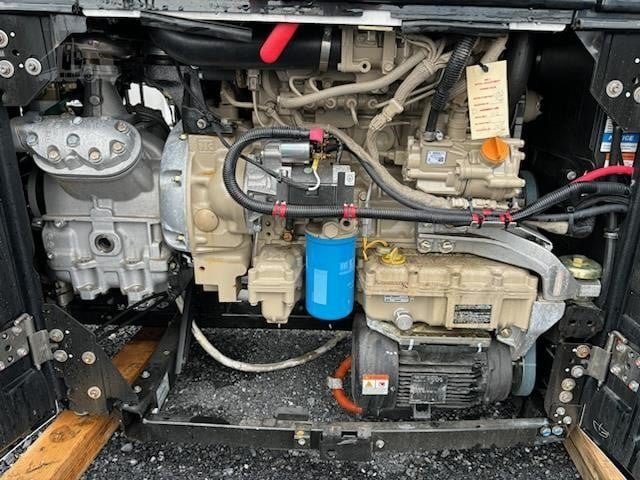

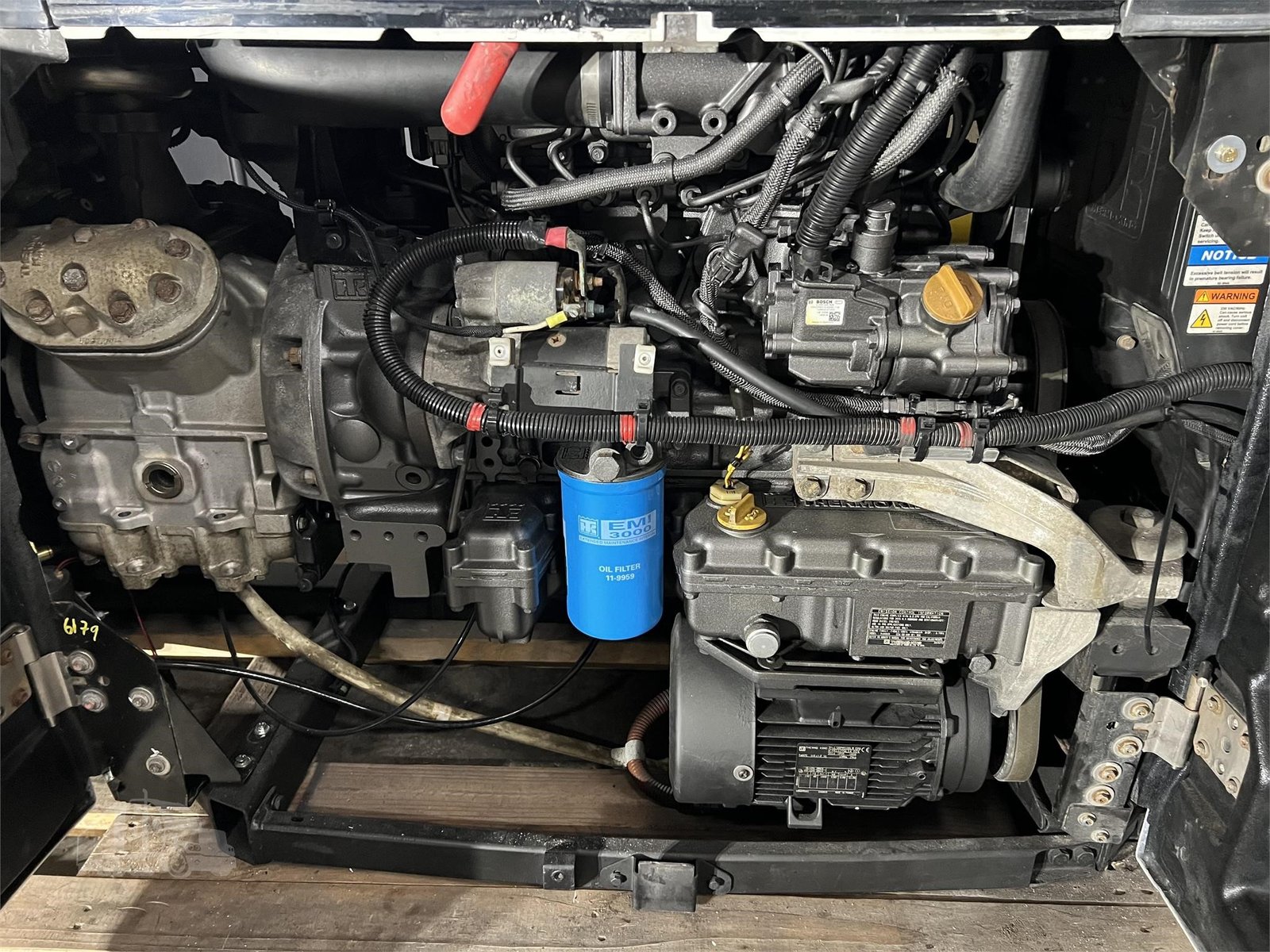

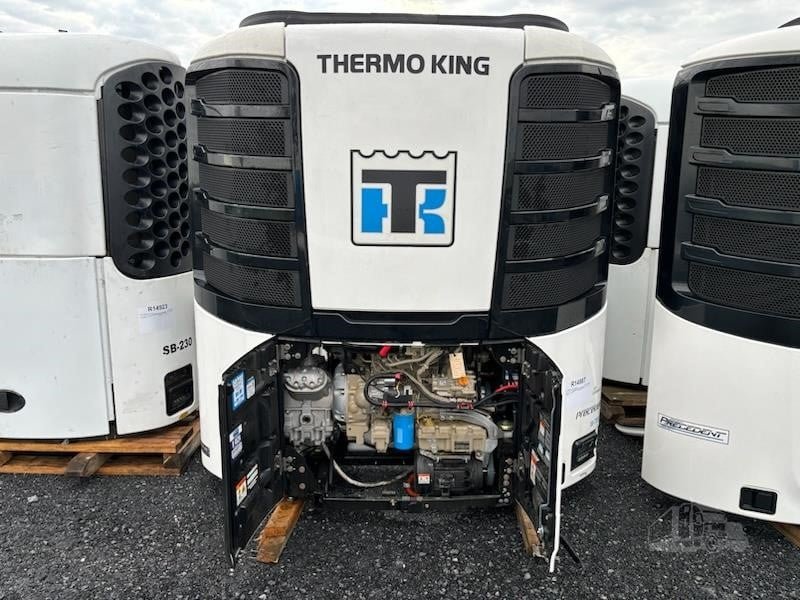

- Robust Powertrain: Powered by a liquid-cooled TK488CRH 4-cylinder engine generating 35 hp.
| Brand | Thermo King |
| Model | Precedent S-700 |
| Engine Model | TK488CRH |
| Engine Type | 4-Cylinder, Direct Injection, Liquid Cooled |
| Engine Horsepower | 35 hp @ 2600 RPM |
| Cooling Capacity (35°F) | 68,000 BTU/hr |
| Cooling Capacity (0°F) | 37,000 BTU/hr |
| Cooling Capacity (-20°F) | 25,000 BTU/hr |
| Heating Capacity | 72,000 BTU/hr |
| Airflow Volume | 3,300 ft3/min |
| Compressor Model | X430L |
| Compressor Displacement | 30.0 in3 |
| Refrigerant Type | R404A |
| Refrigerant Charge | 14.5 lbs |
| Dimensions | 81.6 in. x 86.2 in. x 24 in. |
| System Weight | 1,872 lbs |
| Maintenance Interval | 3,000 hrs / 4,000 hrs |
| Emissions Compliance | EPA Final Tier 4 / CARB Evergreen |
