Description

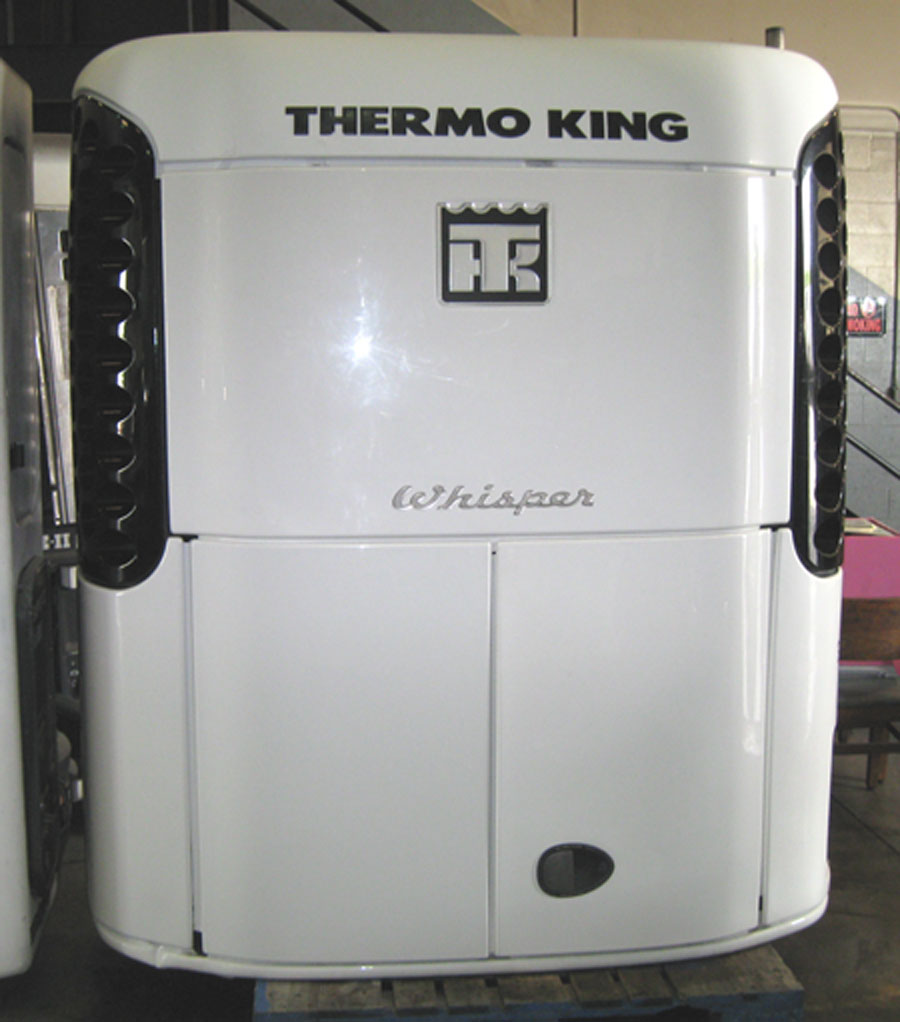

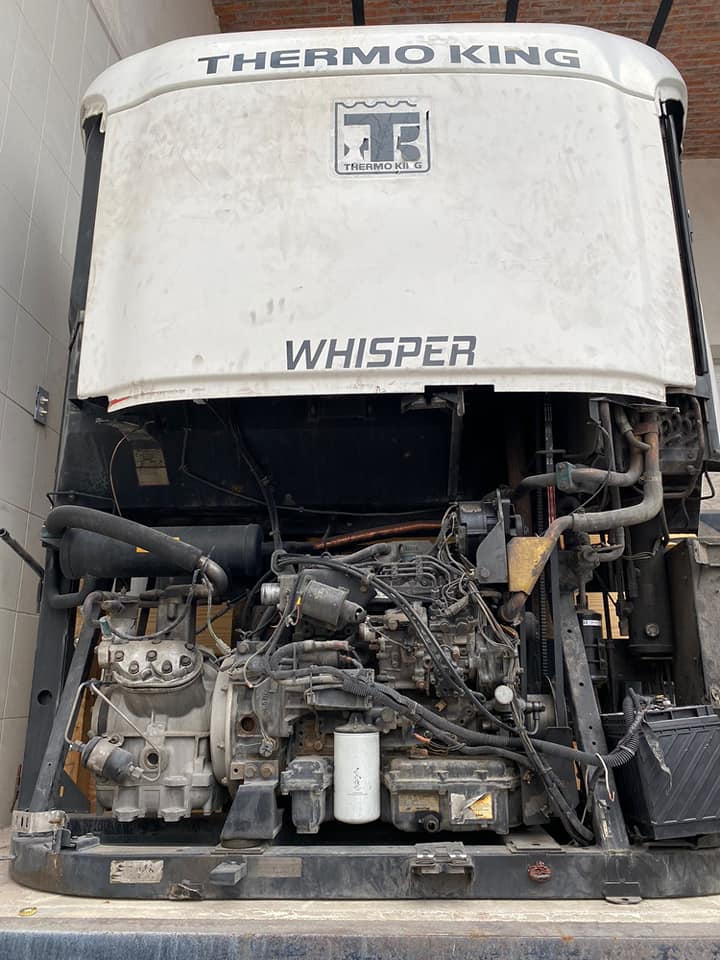

The Thermo King SB-110+ Trailer Refrigeration System is a high-capacity, front-mount temperature control unit engineered specifically for trailer transport applications, including dairy and deli routes, shorter trips, and in-city deliveries. Powered by the TK486V 4-cylinder, liquid-cooled diesel engine and the X426L compressor, this system delivers dependable cooling and heating performance while optimizing fuel efficiency.
Key Features & Performance

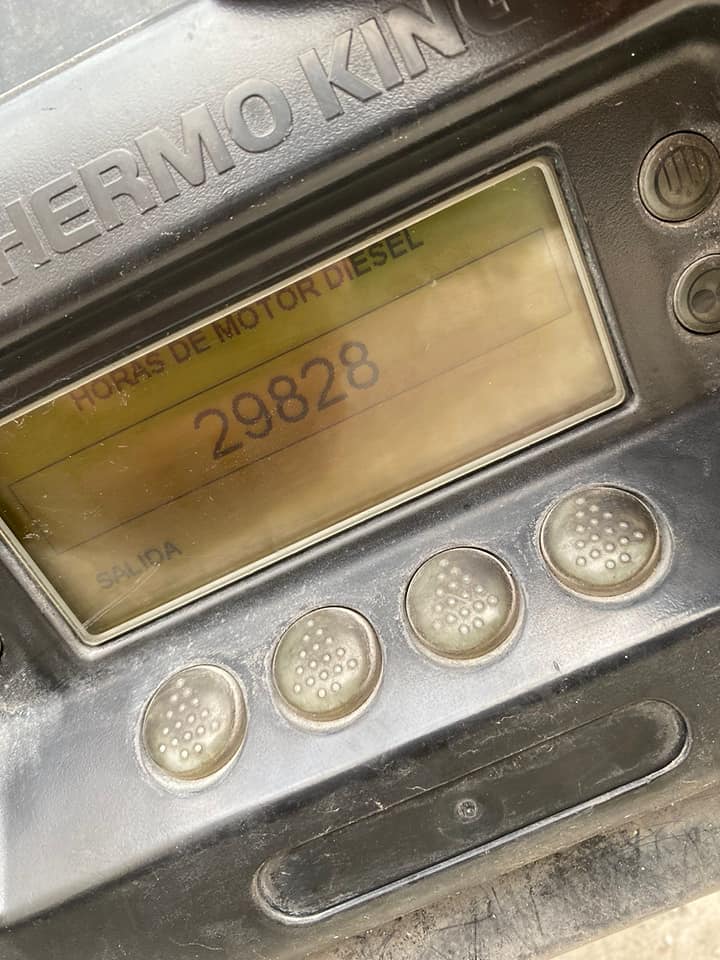

- SR-2 Controller: Features an easy-to-read, downward-sloping temperature display and multi-language support for simplified operation and reduced error rates.
- OptiSet™ Plus: Helps drivers select optimal unit settings and supports programmable commodity profiles to protect sensitive cargo and maximize shelf life.
- Robust Engine & Compressor: Equipped with a 34.0 hp TK486V diesel engine (meeting EPA Interim Tier 4 standards) and an X426L lightweight aluminum alloy compressor with 26.0 cu in displacement.
- Airflow & Temperature Control: Delivers up to 3,500 CFM of directional airflow using chlorine-free R-404A refrigerant.
- Cargo & Service Management: Integrated with CargoWatch™ for data compliance and ServiceWatch™ for tracking system alarms, settings, and maintenance intervals.
- Fuel System: Includes an aluminum undermount 50-gallon fuel tank with an integrated fuel level sensor.
| Brand | Thermo King |
| Model | SB-110+ |

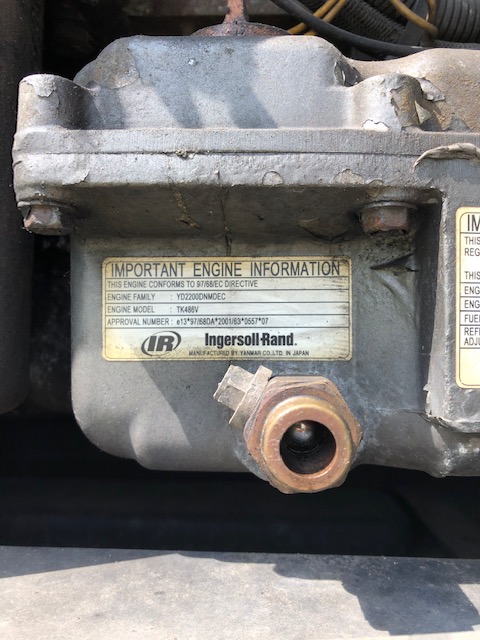

| Engine Model | TK486V direct-injection diesel engine |
| Engine Configuration | Four cylinder, liquid cooled |
| Engine Horsepower | 34.0 hp rating operating at 2200 rpm |
| Engine Oil Capacity | 15 qt (14.2 liter) |
| Maintenance Interval | 3000 hour |
| Compressor Model | X426L |
| Compressor Displacement | 26.0 cu in (426.1 cm3) |
| Controller Model | SR-2 |
| Refrigerant Type | R-404A |
| Refrigerant Charge | 13 pounds |
| Air Flow | 3,500 CFM @ 0 in static pressure; 3,200 CFM @ 0.5 in static pressure |
| Fuel Tank Capacity | 50 gal. (186 liter) |
| Fuel Tank Weight | 35 lbs (16 kg) |
| Unit Weight | 1635 lbs (742 kg) |
