Description

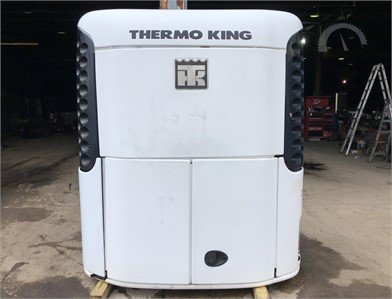

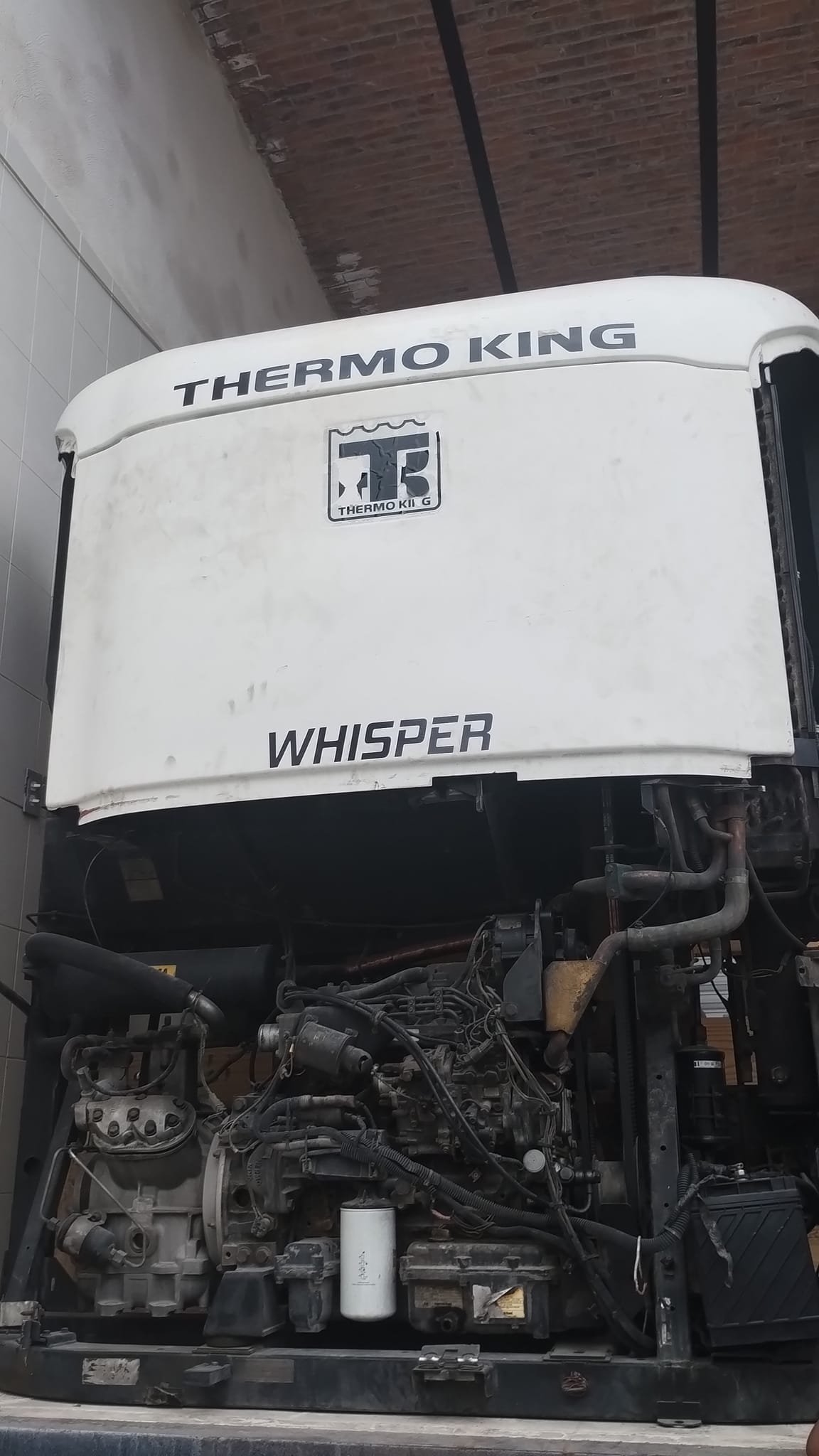

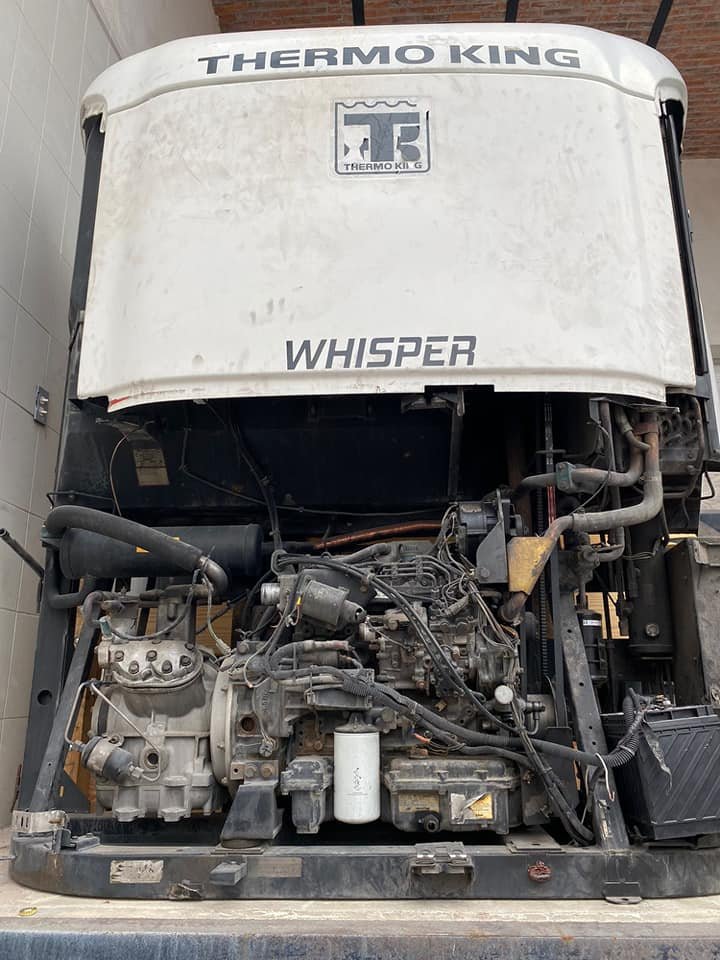

The Thermo King SB-110+ Trailer Refrigeration System delivers reliable temperature control designed for trailers and distribution operations. Powered by a TK486V 4-cylinder direct-injection diesel engine operating at 34.0 hp, this front-mount unit utilizes R-404A refrigerant and an X426L compressor with 26.0 cu in displacement to ensure consistent cooling and heating performance.
Key Features & Performance

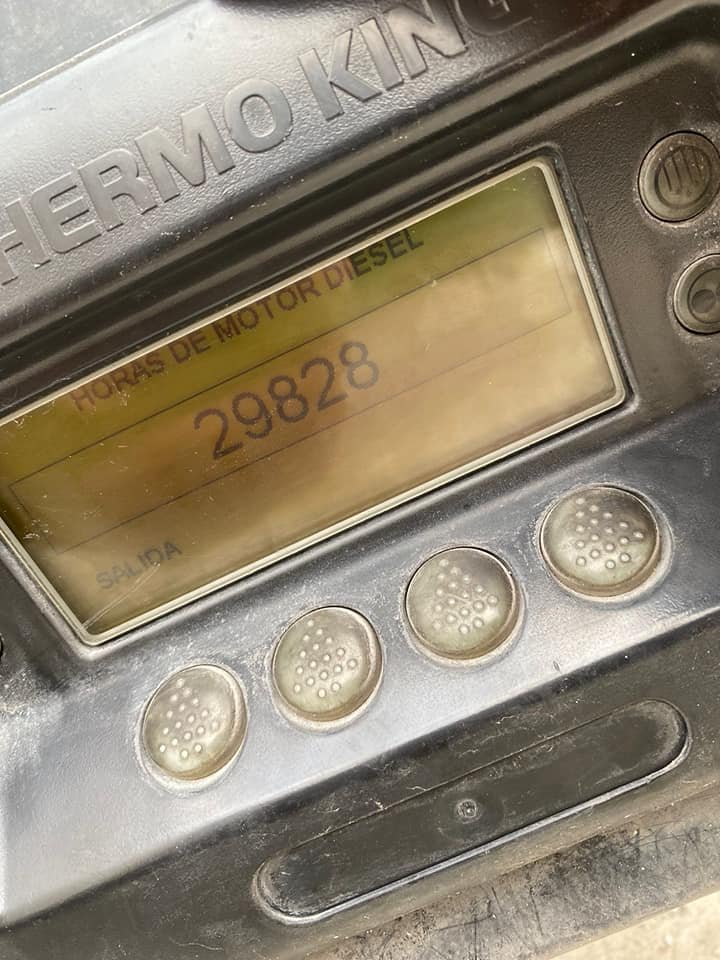

- SR-2 Microprocessor Controller: Features an intuitive, downward-sloping display with multi-language support (21 languages) for precise temperature adjustments and diagnostics.
- OptiSet™ Plus: Pre-programmed commodity profiles optimize operating parameters to protect cargo and maximize fuel efficiency.
- CargoWatch™ & ServiceWatch™: Trip history data recording compliant with HACCP and NIST standards, alongside continuous preventative maintenance logging.
- Efficient Air Delivery: Delivers up to 3,500 CFM airflow at 0 in static pressure with directional air distribution.
- CYCLE-SENTRY™ Operation: Fuel-saving start/stop modulation modes reduce engine run time and operational costs.
- Durable Construction: Lightweight aluminum undermount 50-gallon fuel tank, composite exterior panels, and vibration isolation mounting.
| Brand | Thermo King |
| Model | SB-110+ |

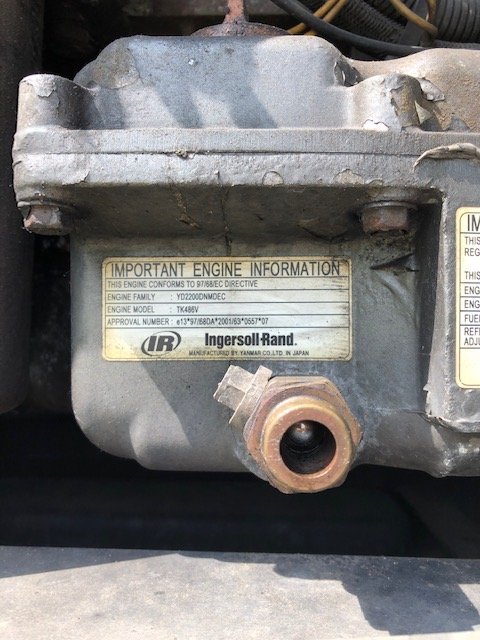

| Engine Model | TK486V direct-injection diesel engine |
| Engine Configuration | Four cylinder, liquid cooled |
| Engine Horsepower | 34.0 hp @ 2200 rpm |
| Engine Oil Capacity | 15 qt (14.2 liter) |
| Maintenance Interval | 3000 hour |
| Compressor Model | X426L |
| Compressor Displacement | 26.0 cu in (426.1 cm3) |
| Refrigerant Type | R-404A |
| Refrigerant Charge | 13 lbs |
| Airflow | 3,500 CFM @ 0 in static pressure |
| Microprocessor Controller | SR-2 |
| Fuel Tank Capacity | 50 gal. (186 liter) |
| Unit Weight | 1635 lbs (742 kg) |
