Description

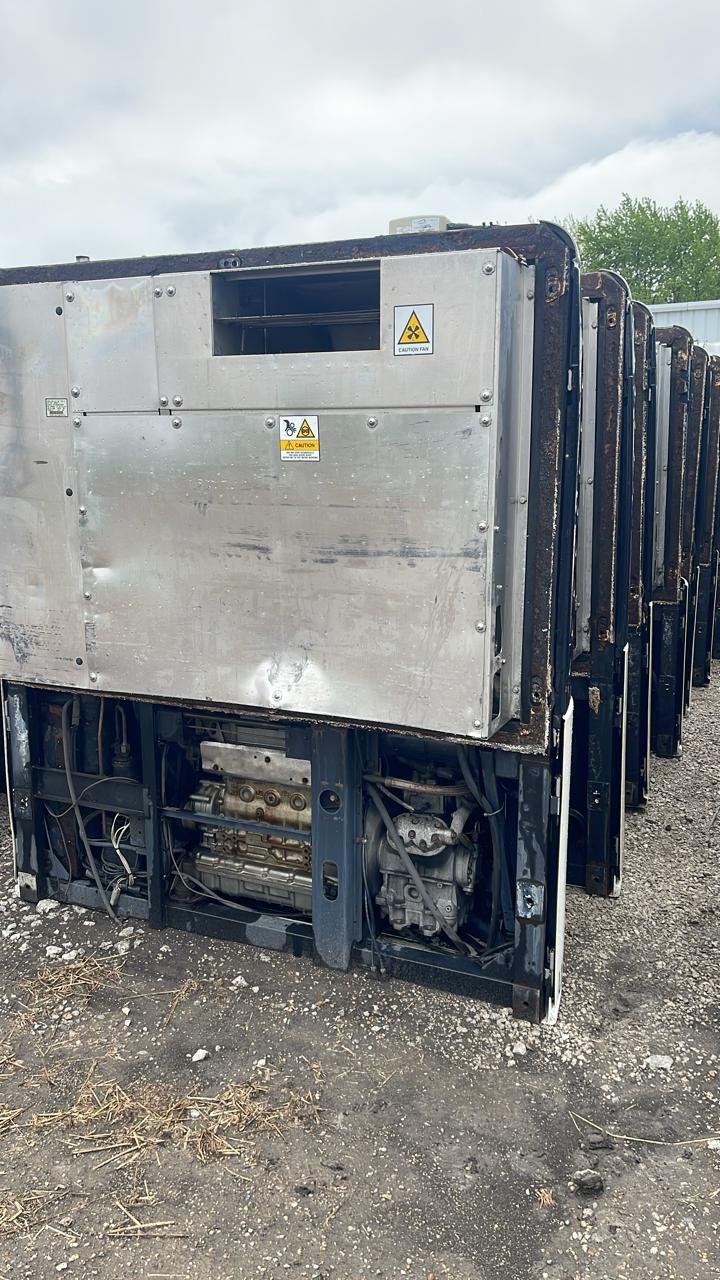

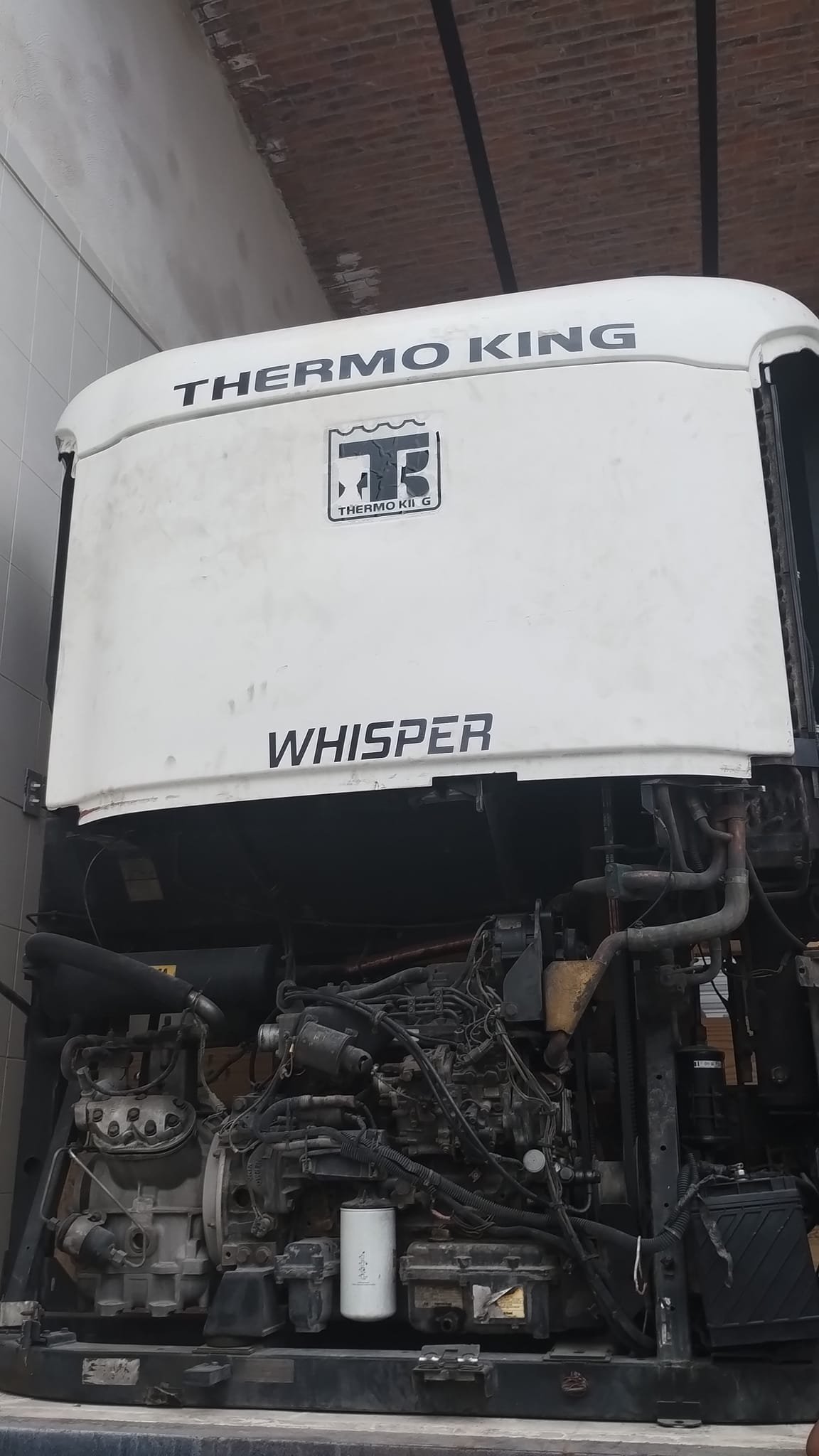

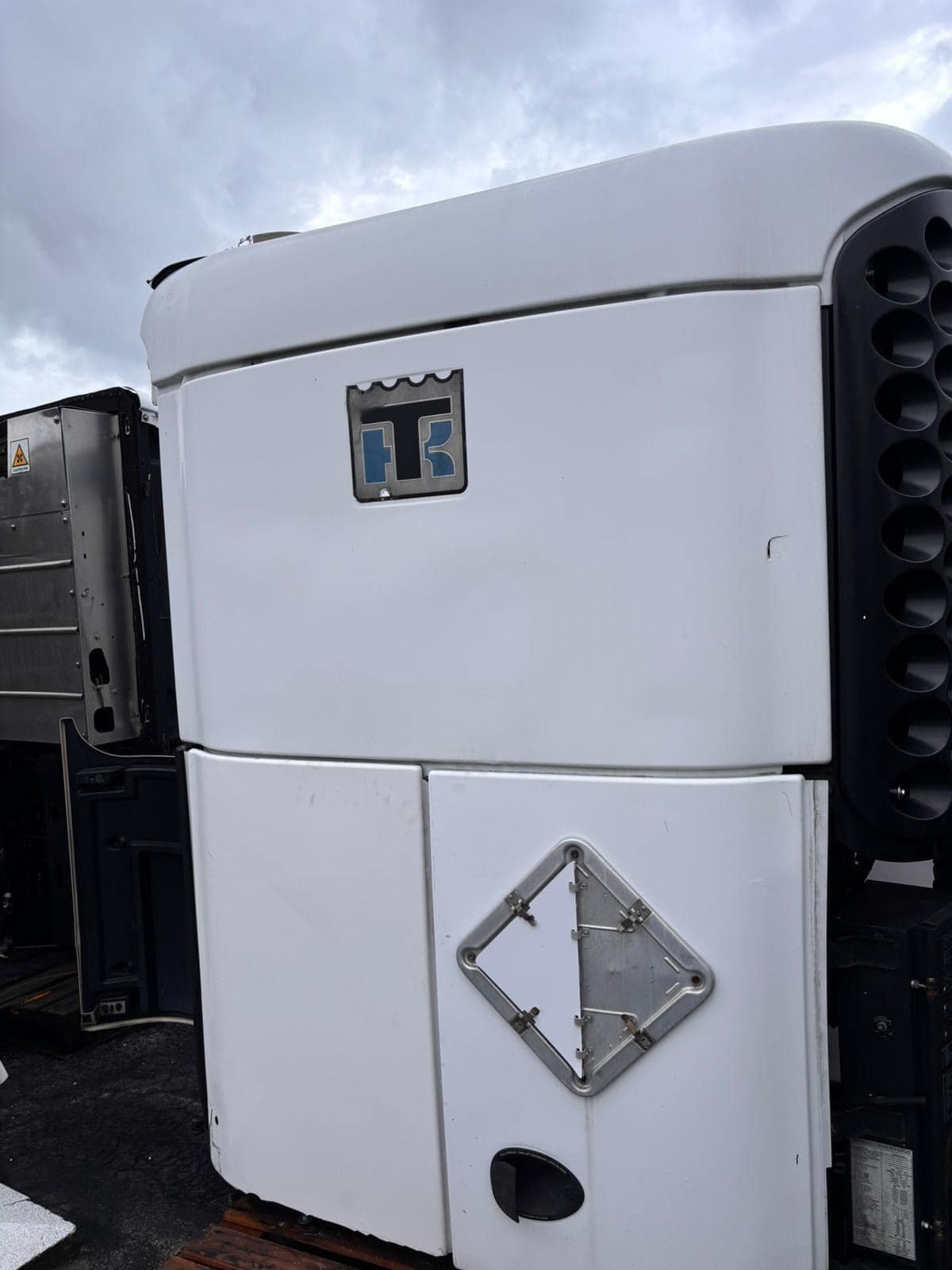

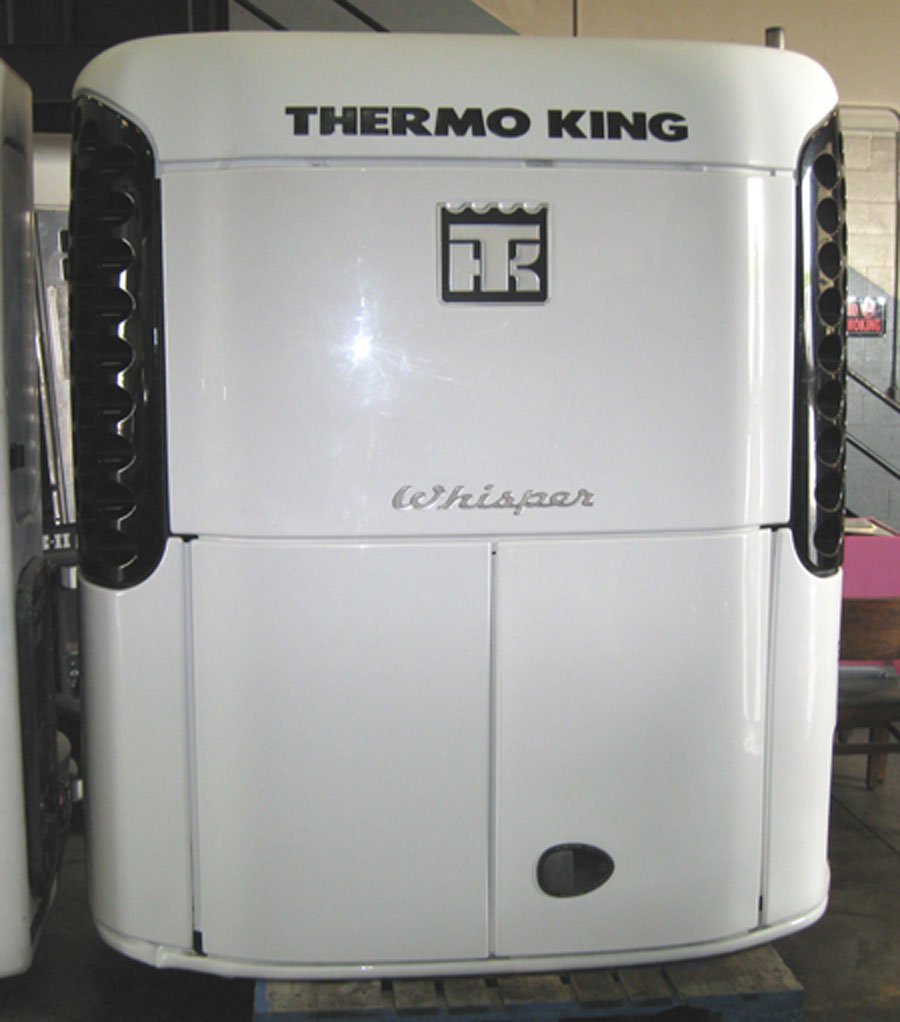

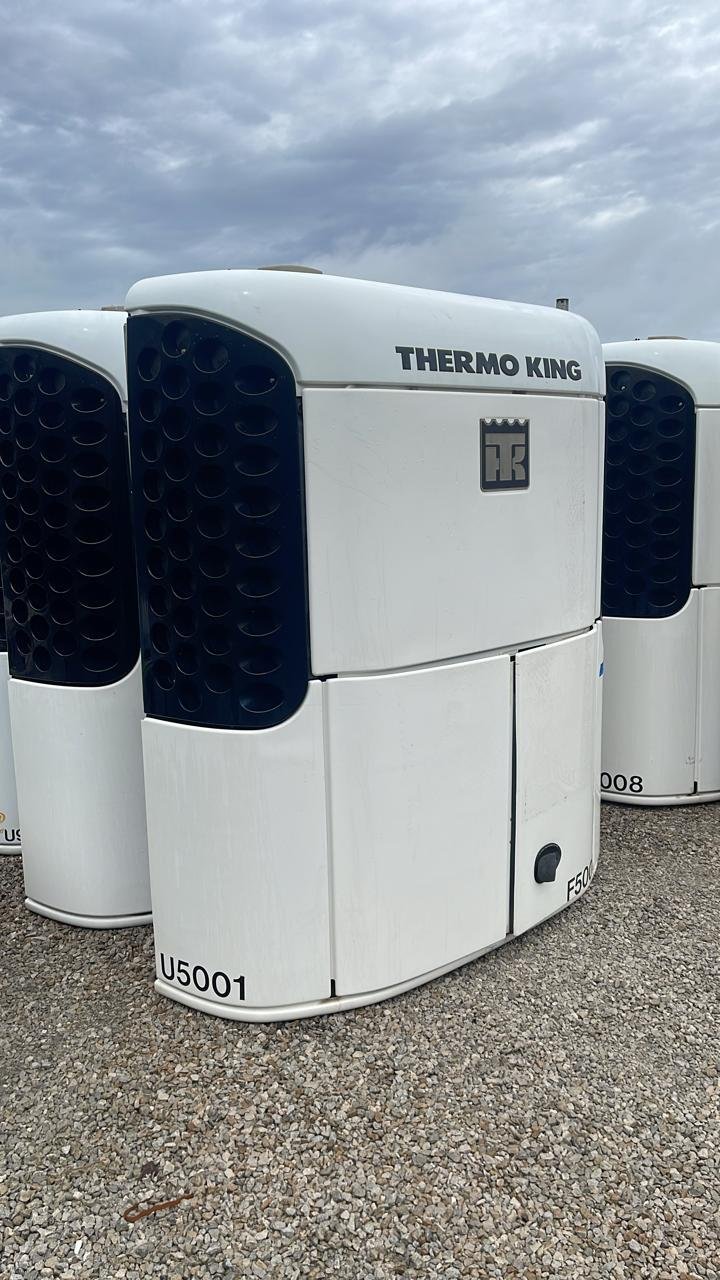

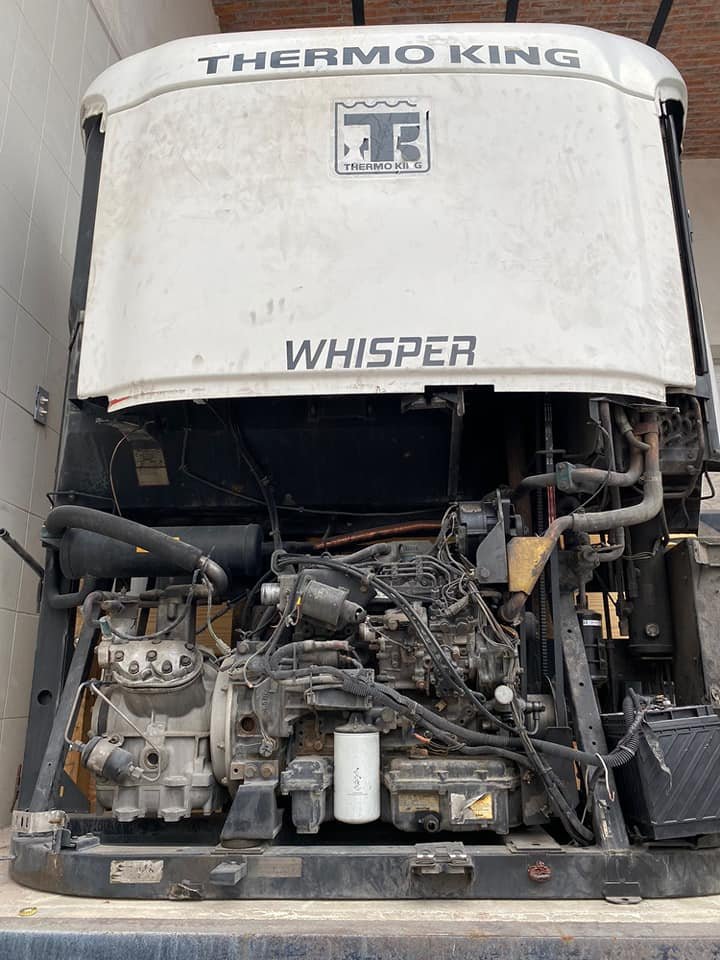

The Thermo King SB-110+ is a high-performance, front-mount trailer refrigeration system engineered for reliable temperature management and enhanced fuel efficiency. Powered by the 4-cylinder, liquid-cooled TK486V direct-injection diesel engine generating 34 hp, this unit delivers directional airflow of up to 3,500 CFM to protect temperature-sensitive cargo throughout transit.

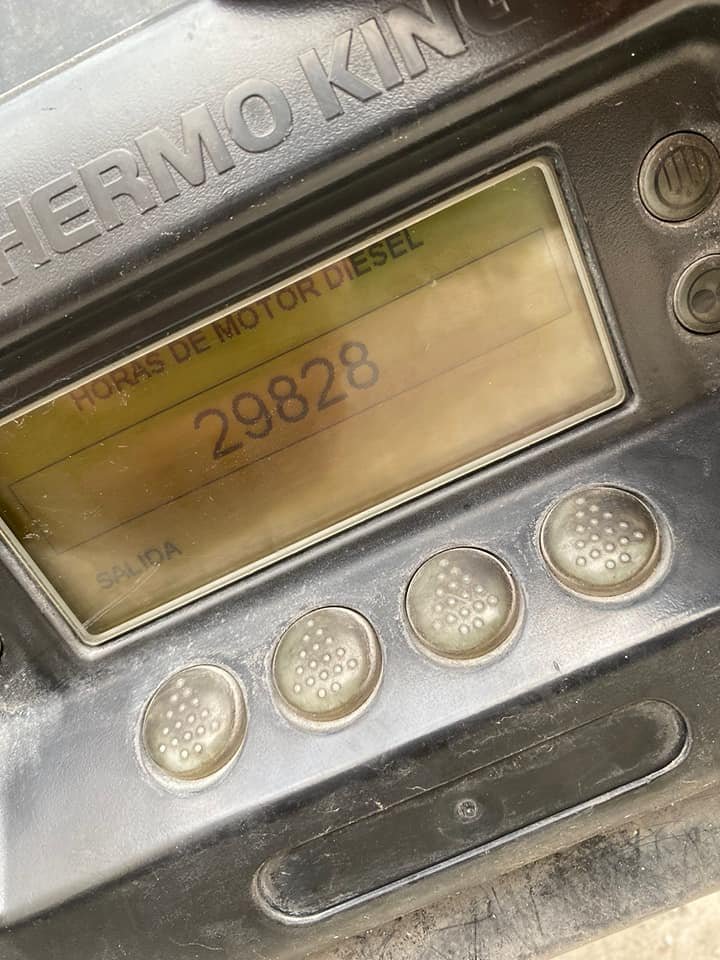

Equipped with the intuitive SMART REEFER SR-2 microprocessor controller, drivers can easily manage multi-lingual settings and monitor load integrity via OptiSet™ Plus and CargoWatch™ data logging. Featuring the X426L compressor with lightweight aluminum alloy construction and chlorine-free R-404A refrigerant, the SB-110+ combines reliable cooling capacity with extended maintenance intervals of up to 3,000 hours.
| Brand | Thermo King |
| Model | SB-110+ |

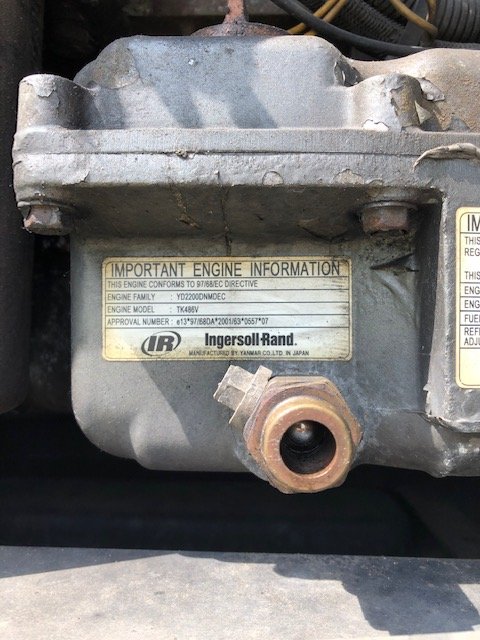

| Engine Model | TK486V |
| Engine Horsepower | 34 hp |
| High Speed Engine RPM | 2200 |
| Low Speed Engine RPM | 1450 |
| Engine Oil Capacity | 15 qt (14.2 L) |
| Maintenance Interval | 3000 hr |
| Compressor Model | X426L |
| Compressor Displacement | 26.0 cu in (426.1 cm³) |
| Airflow | 3,500 CFM @ 0 in static pressure |
| Refrigerant | R-404A |
| Refrigerant Charge | 13 lb |
| Controller | SR-2 Microprocessor |
| Fuel Tank Capacity | 50 gal (186 L) |
| Weight | 1635 lb |
