Description

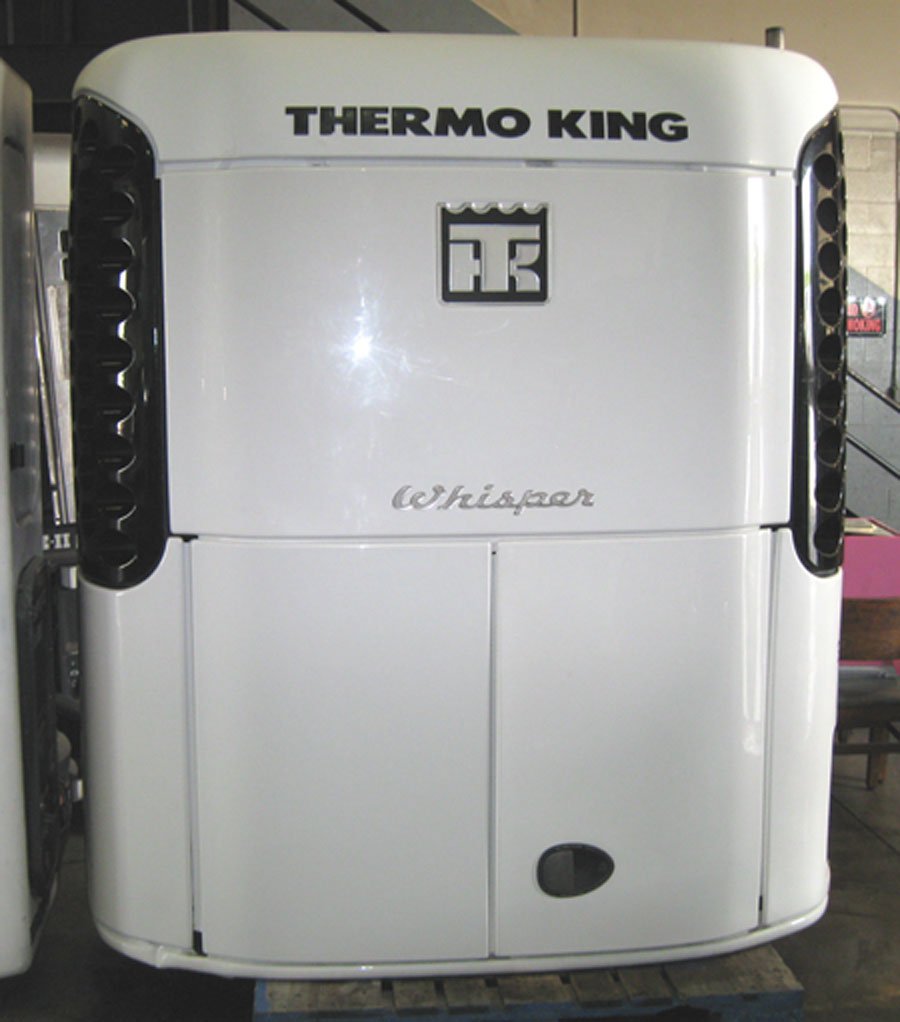

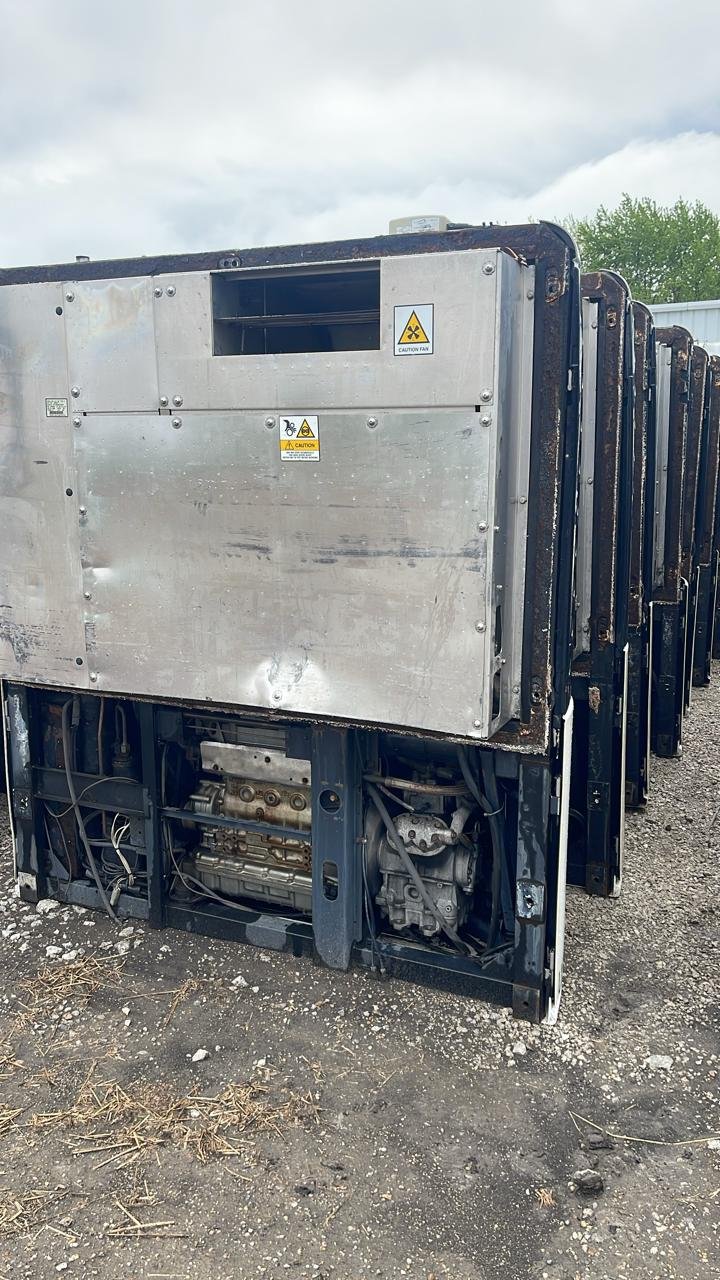

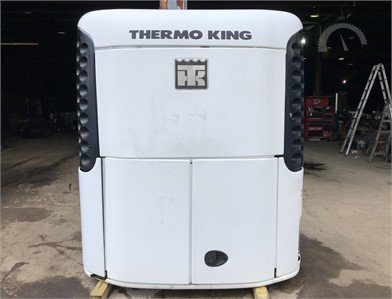

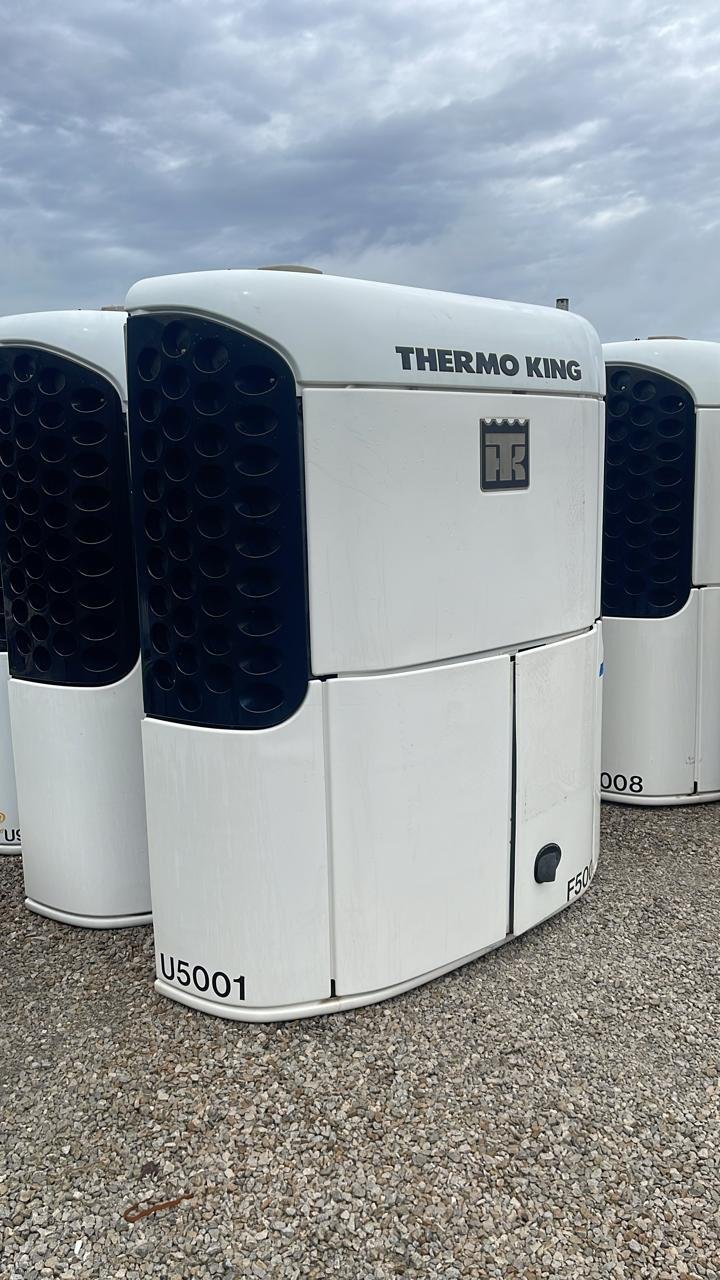

The Thermo King SB-110+ is a high-capacity, front-mount, diesel-powered temperature control unit engineered specifically for refrigerated transport trailers. Powered by a four-cylinder, liquid-cooled TK486V direct-injection diesel engine generating 34.0 hp at 2200 RPM, the SB-110+ delivers reliable cooling and heating performance while exceeding EPA Interim Tier 4 emissions standards.

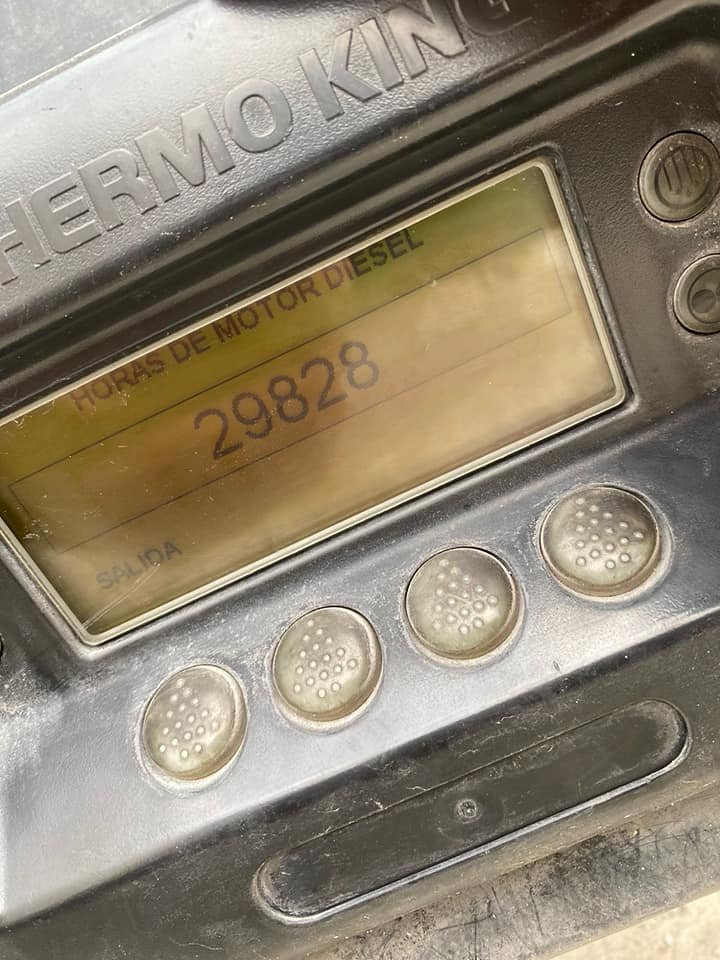

Featuring the advanced SMART REEFER SR-2 controller, this system allows operators to precisely manage temperatures across fresh and frozen cargo profiles. The downward-sloping, anti-glare display provides clear visibility and multi-lingual menu navigation in 21 languages. With built-in OptiSet™ Plus and FreshSet™ technology, drivers can select tailored commodity profiles to optimize protection and eliminate operational errors.
Equipped with an X426L lightweight aluminum alloy compressor with Vanasil® ringless pistons, the SB-110+ maximizes mechanical efficiency. The unit uses chlorine-free R-404A refrigerant with a compact 13 lb charge to minimize environmental impact. Extended Maintenance Intervals (EMI-3000) allow up to 3,000 hours between servicing to lower operating costs and reduce downtime.
Key Features & Specifications
- Engine: TK486V 4-cylinder liquid-cooled diesel (34.0 HP @ 2200 RPM)
- Compressor: Model X426L (26.0 cu in displacement)
- Refrigerant: R-404A (13 lbs charge)
- Airflow: 3,500 CFM at 0 in static pressure; 3,200 CFM at 0.5 in static pressure
- Monitoring & Telematics: CargoWatch™ HACCP-compliant trip logging and ServiceWatch™ diagnostics
- Fuel Tank: 50-gallon undermount aluminum tank with level sensor

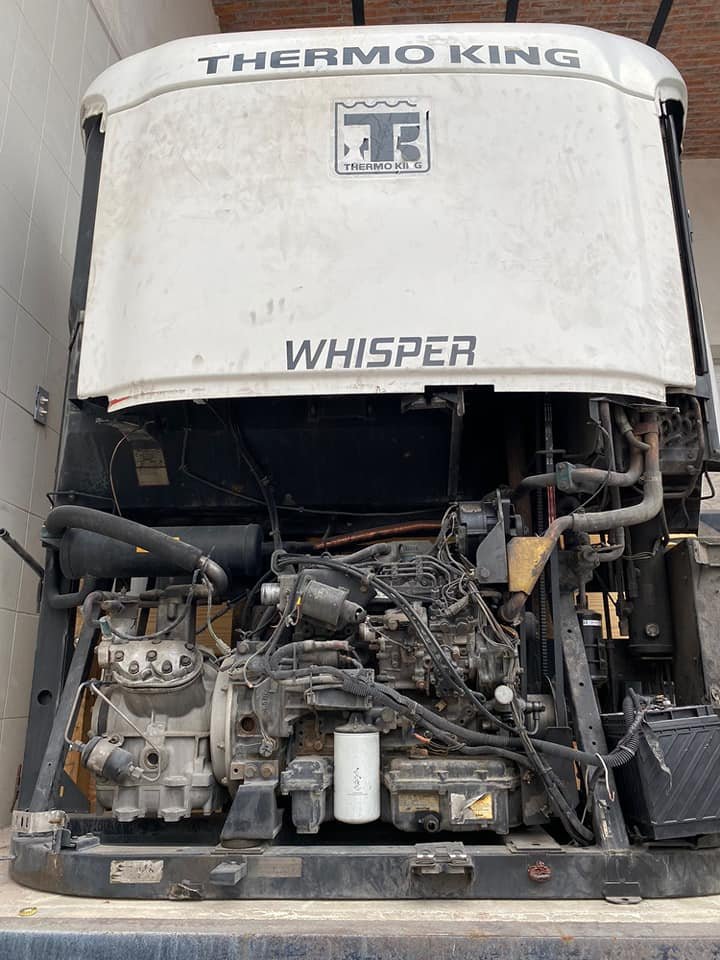

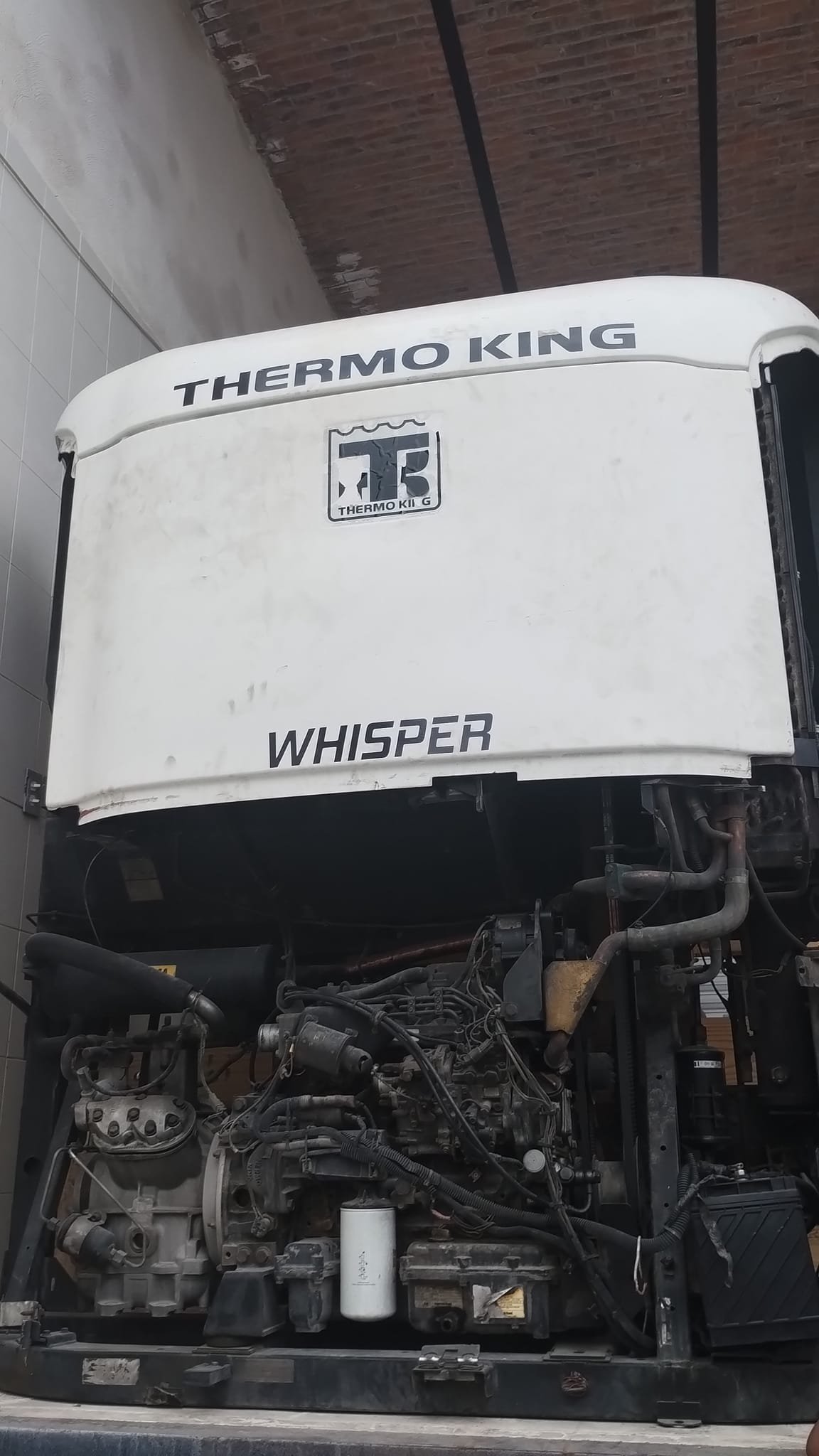

- Noise Reduction: Whisper™ Low Noise Technology
| Brand | Thermo King |
| Model | SB-110+ |
| Product Type | Trailer Refrigeration Unit |

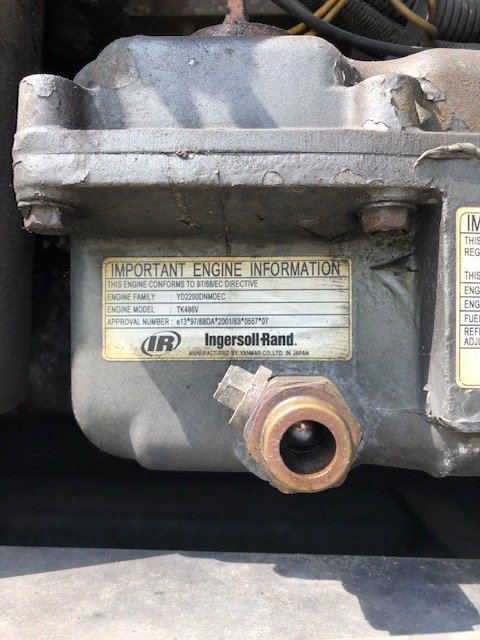

| Engine Model | TK486V Direct-Injection Diesel |
| Engine Configuration | 4-Cylinder, Liquid-Cooled |
| Engine Horsepower | 34.0 hp @ 2200 RPM |
| High Speed Engine RPM | 2200 |
| Low Speed Engine RPM | 1450 |
| Engine Oil Capacity | 15 qt (14.2 L) |
| Maintenance Interval | 3,000 Hours (EMI-3000) |
| Compressor Model | X426L |
| Compressor Displacement | 26.0 cu in (426.1 cm³) |
| Compressor Body Material | Aluminum Alloy |
| Refrigerant Type | R-404A |
| Refrigerant Charge | 13 lbs |
| Airflow (0 in static pressure) | 3,500 CFM |
| Airflow (0.5 in static pressure) | 3,200 CFM |
| Microprocessor Controller | SMART REEFER SR-2 |
| Controller Languages | 21 Languages |
| Fuel Tank Capacity | 50 gal (186 L) |
| Fuel Tank Material | Aluminum |
| Total Weight | 1635 lbs |
| Emissions Compliance | EPA Interim Tier 4 |
