Description

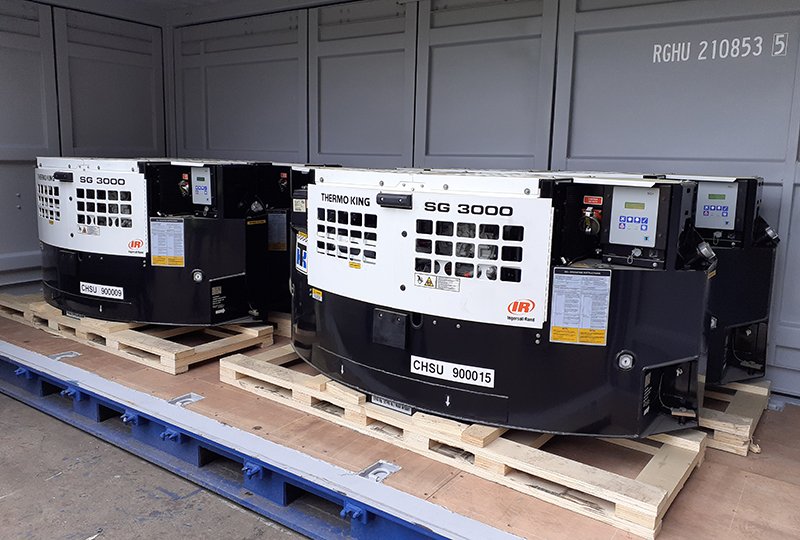

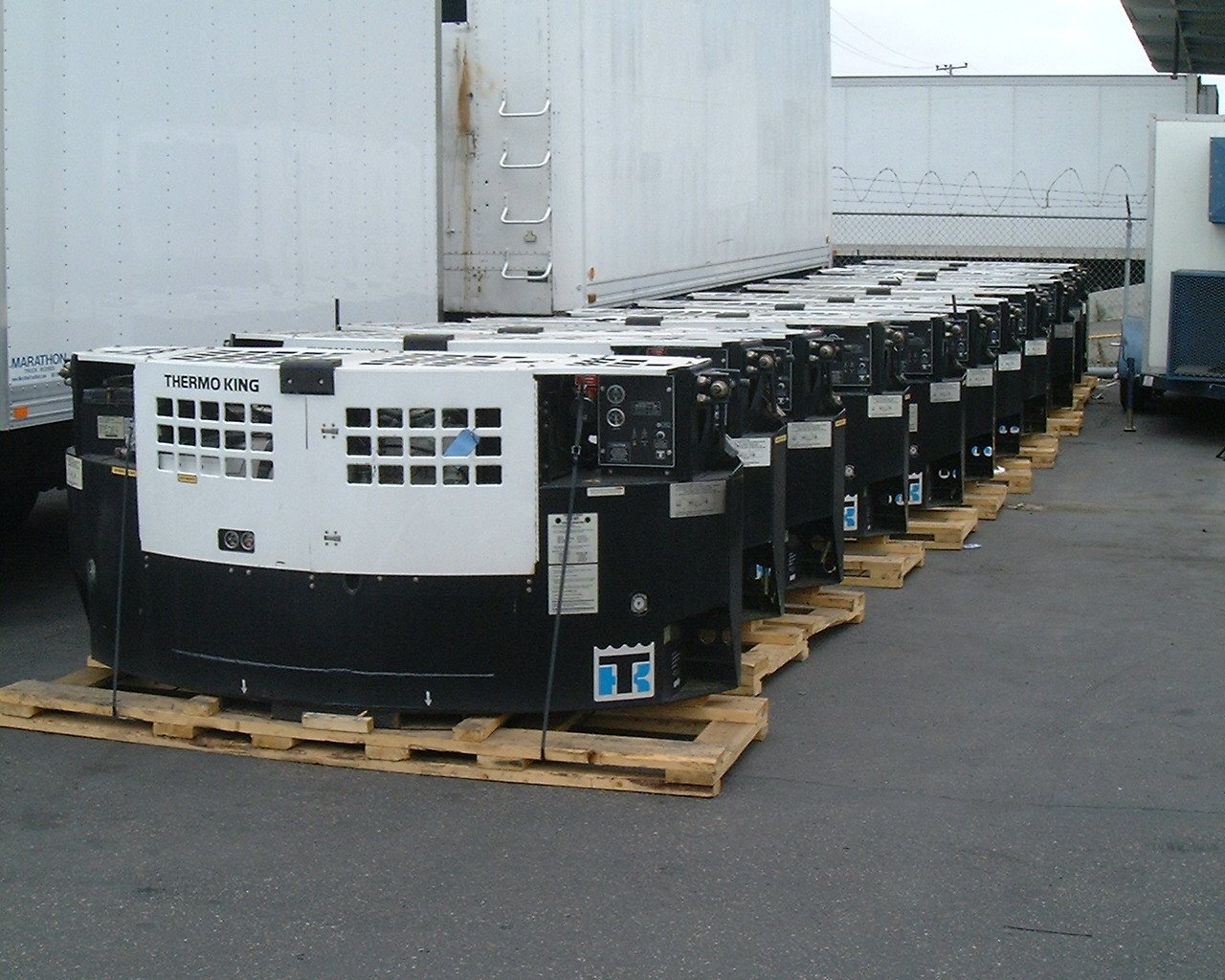

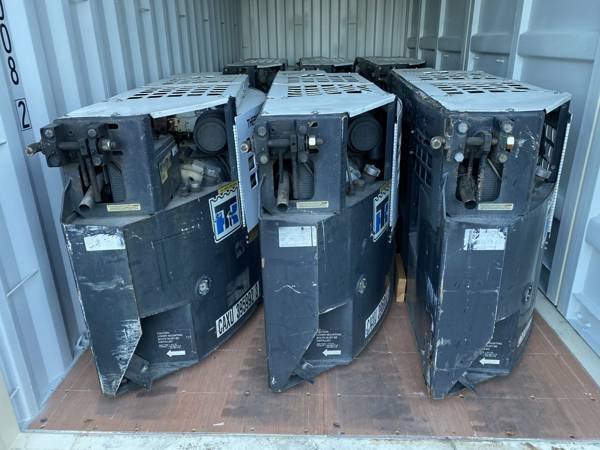

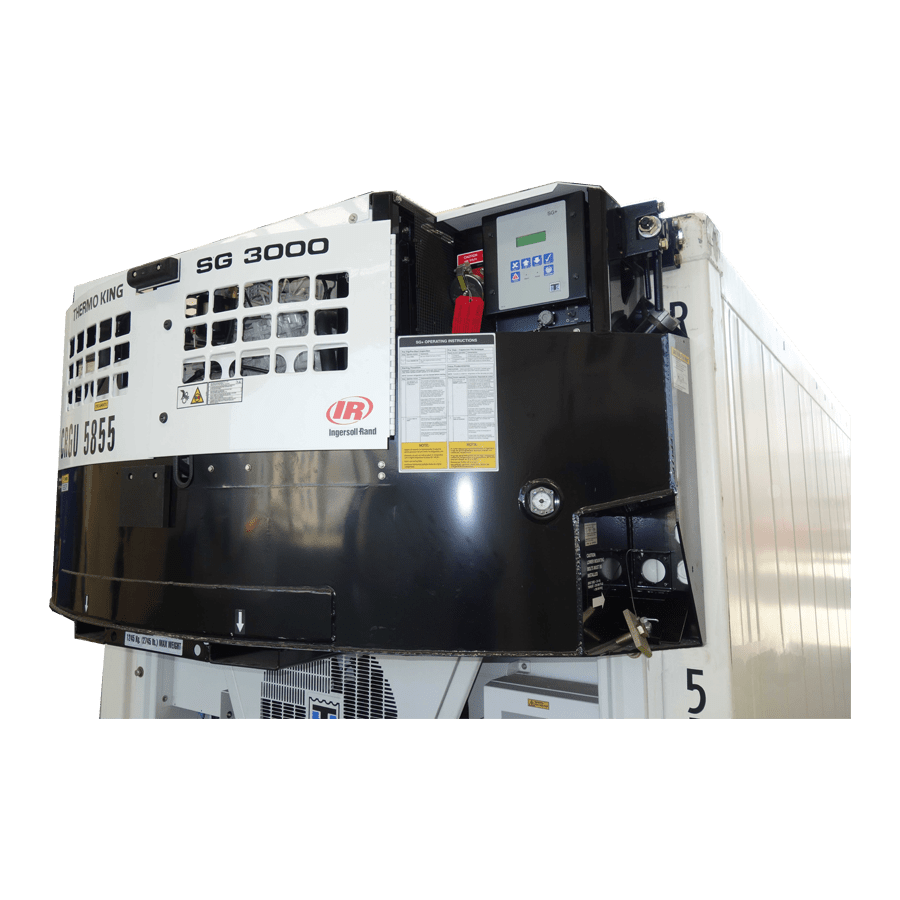

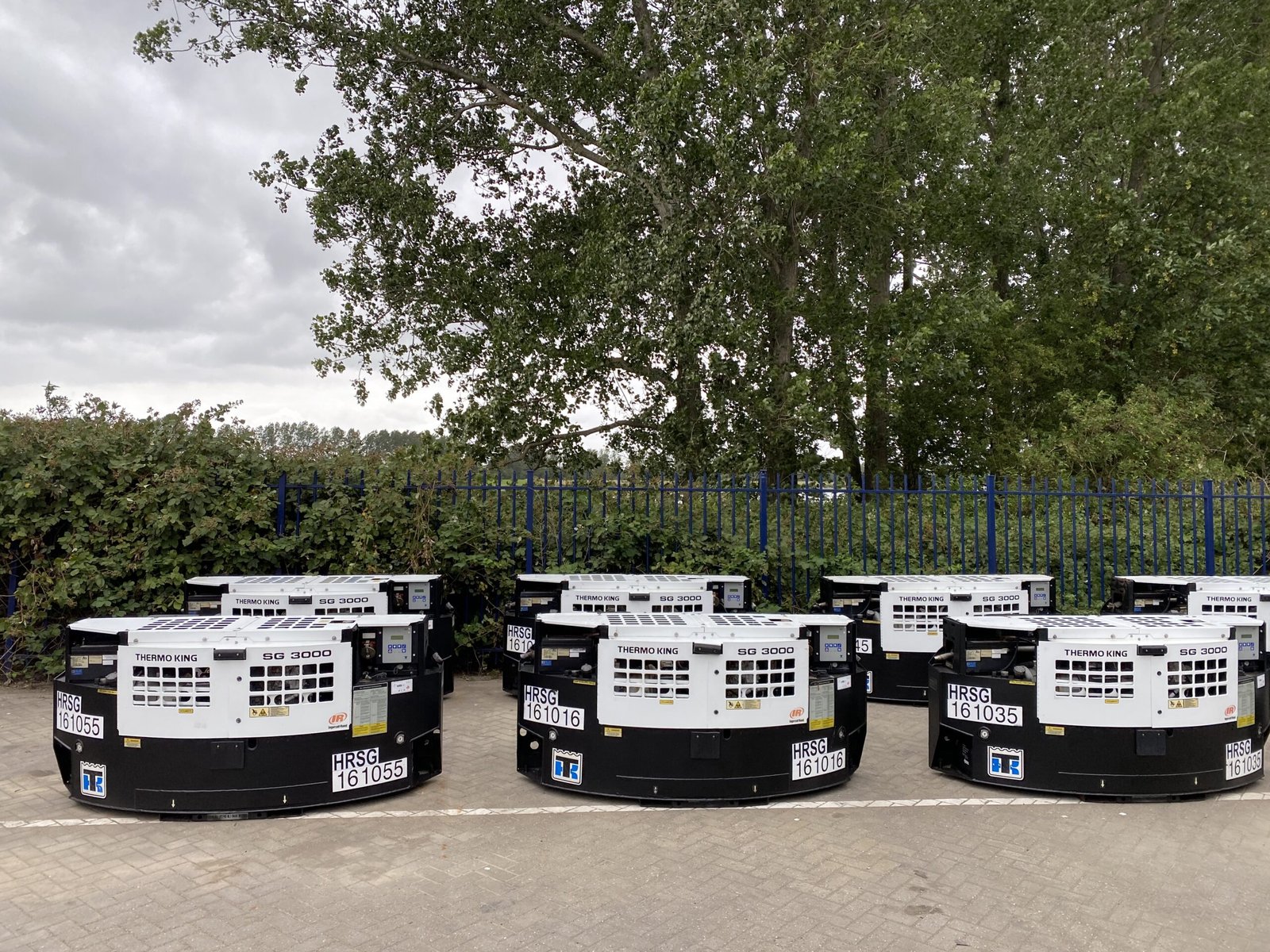

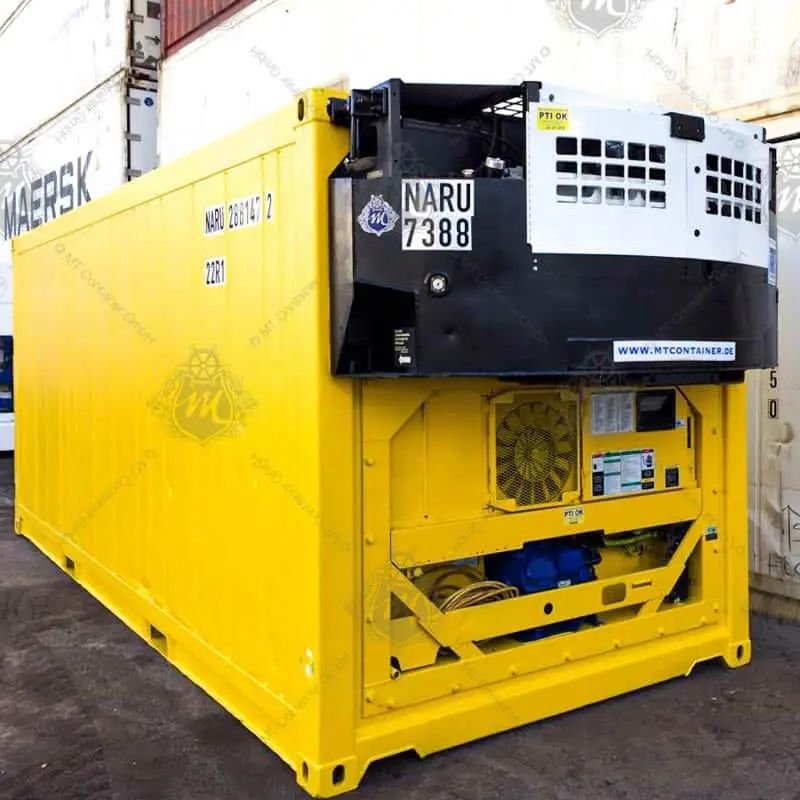

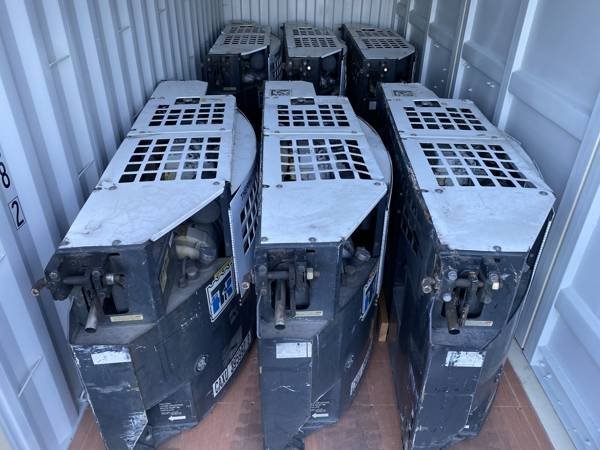

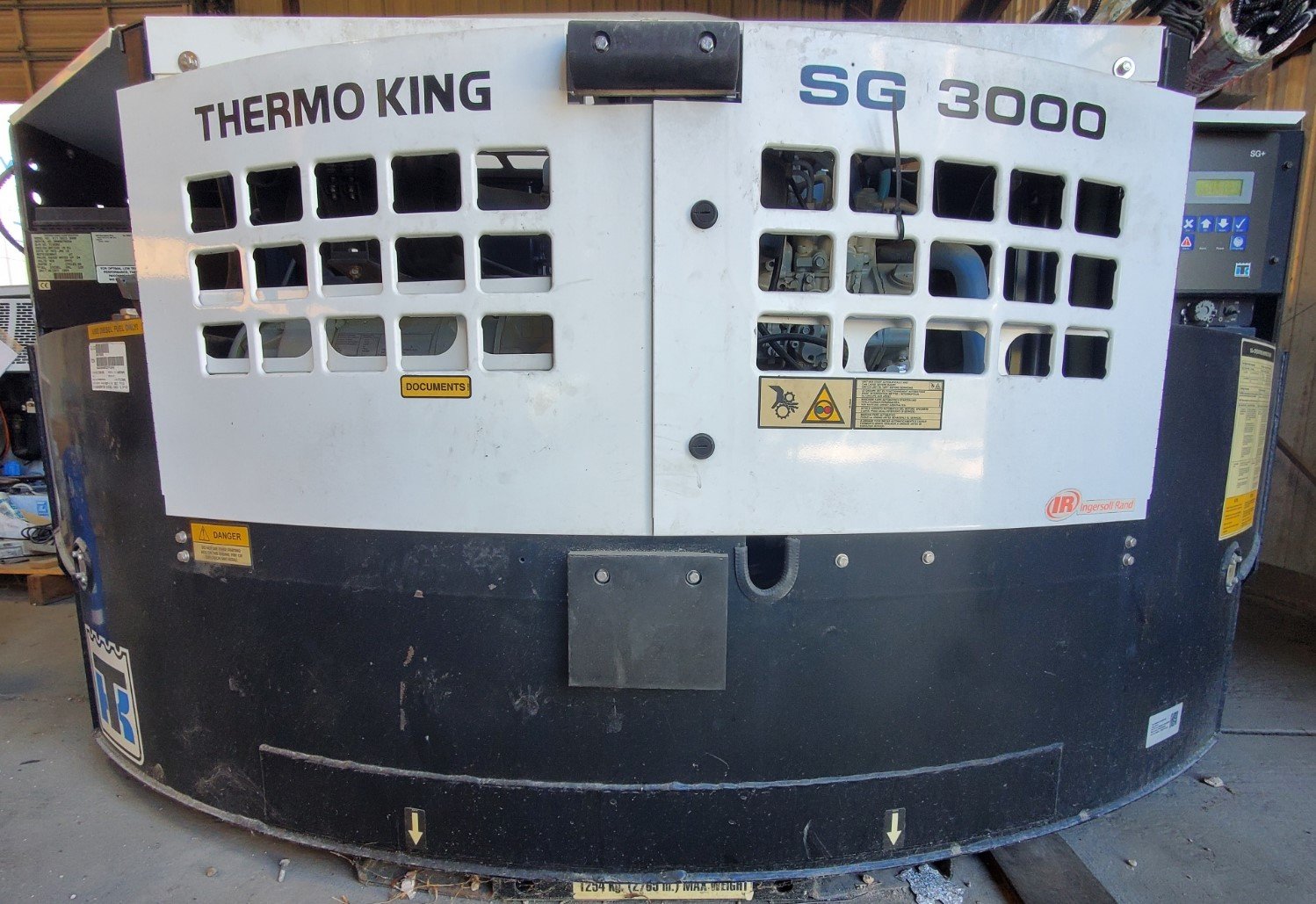

The Thermo King SG-3000 Clip-On Generator Set delivers a dependable, independent power supply engineered specifically for refrigerated shipping containers. Designed to protect temperature-sensitive cargo throughout intermodal transit, this self-contained genset attaches securely to ISO reefer corner castings via standard pin-mount or optional clamp-mount systems.
Key Features and Performance
- Reliable Power Generation: Produces 15 kW (18.75 kVA) output at 460V/230V VAC 3-phase, 60 Hz to operate refrigerated containers under demanding conditions.

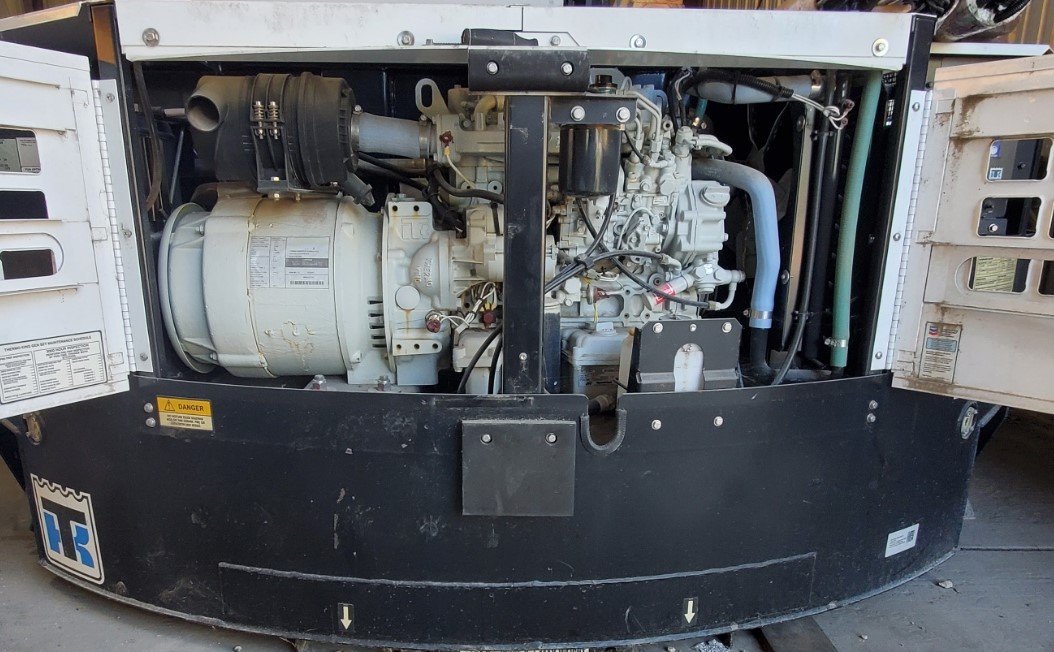

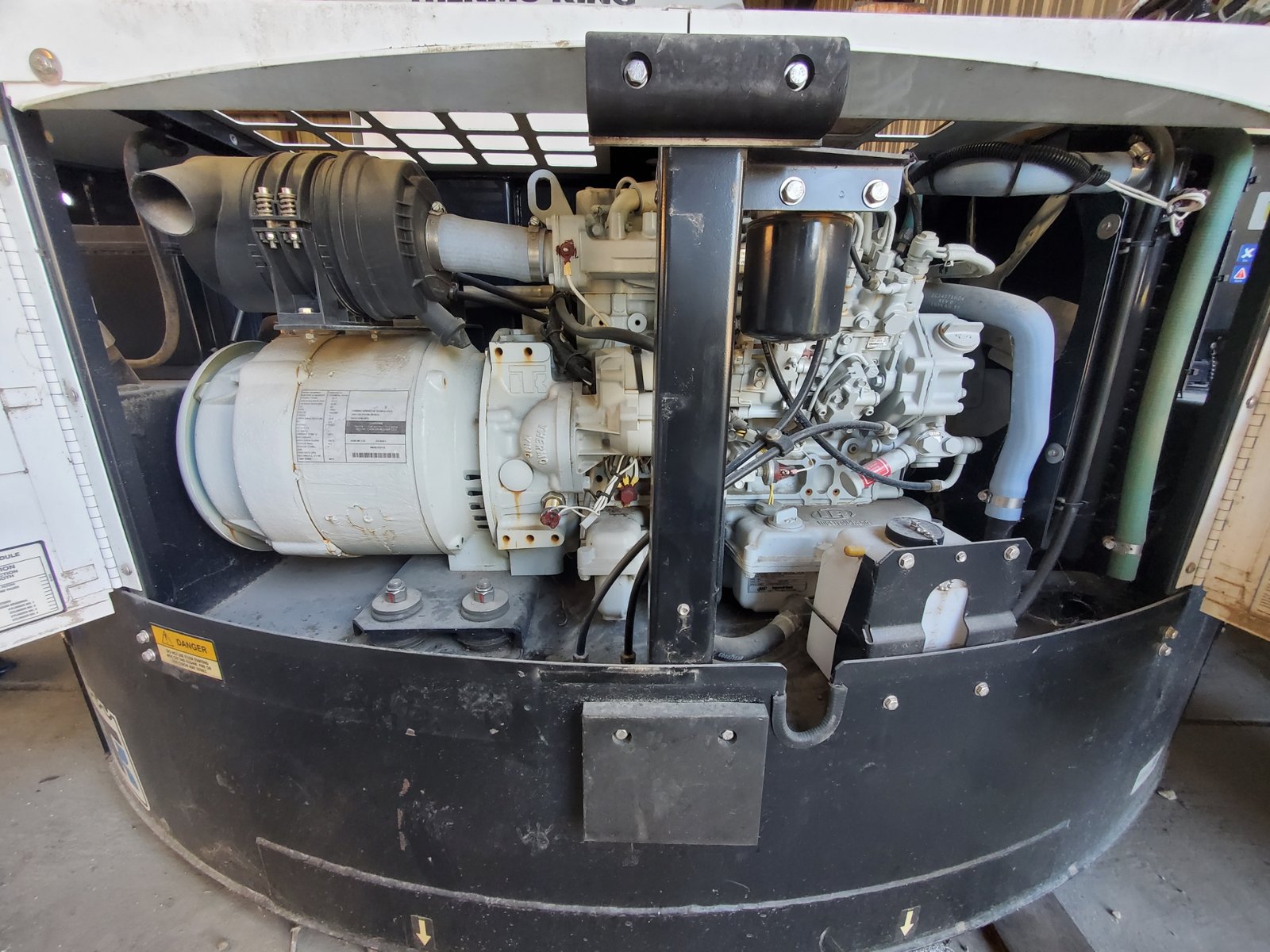

- Efficient Diesel Operation: Powered by a robust diesel engine delivering low fuel consumption and compatibility with standard diesel fuels as well as hydrotreated vegetable oil (HVO).

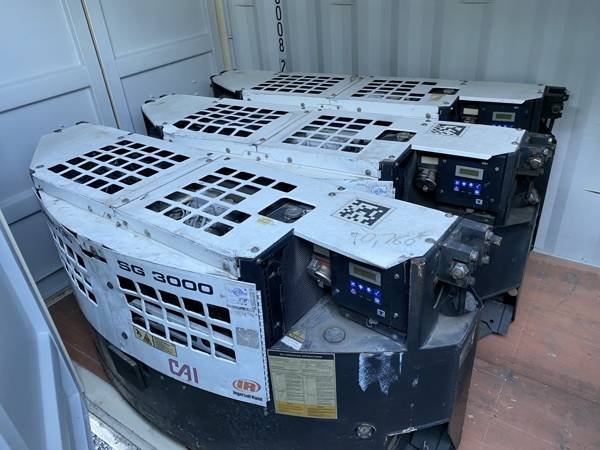

- Intelligent SG+ Controller: Features an advanced microprocessor with automated preheating, automatic restart functionality, diagnostic capabilities, alarm logging, and running hour tracking.
- Extended Service Intervals: Designed for low life-cycle costs with maintenance intervals of up to 3,000 operational hours.
- Independent Fuel Supply: Equipped with an integrated 125 gal (473 L) fuel tank for extended over-the-road and rail refrigeration operations.

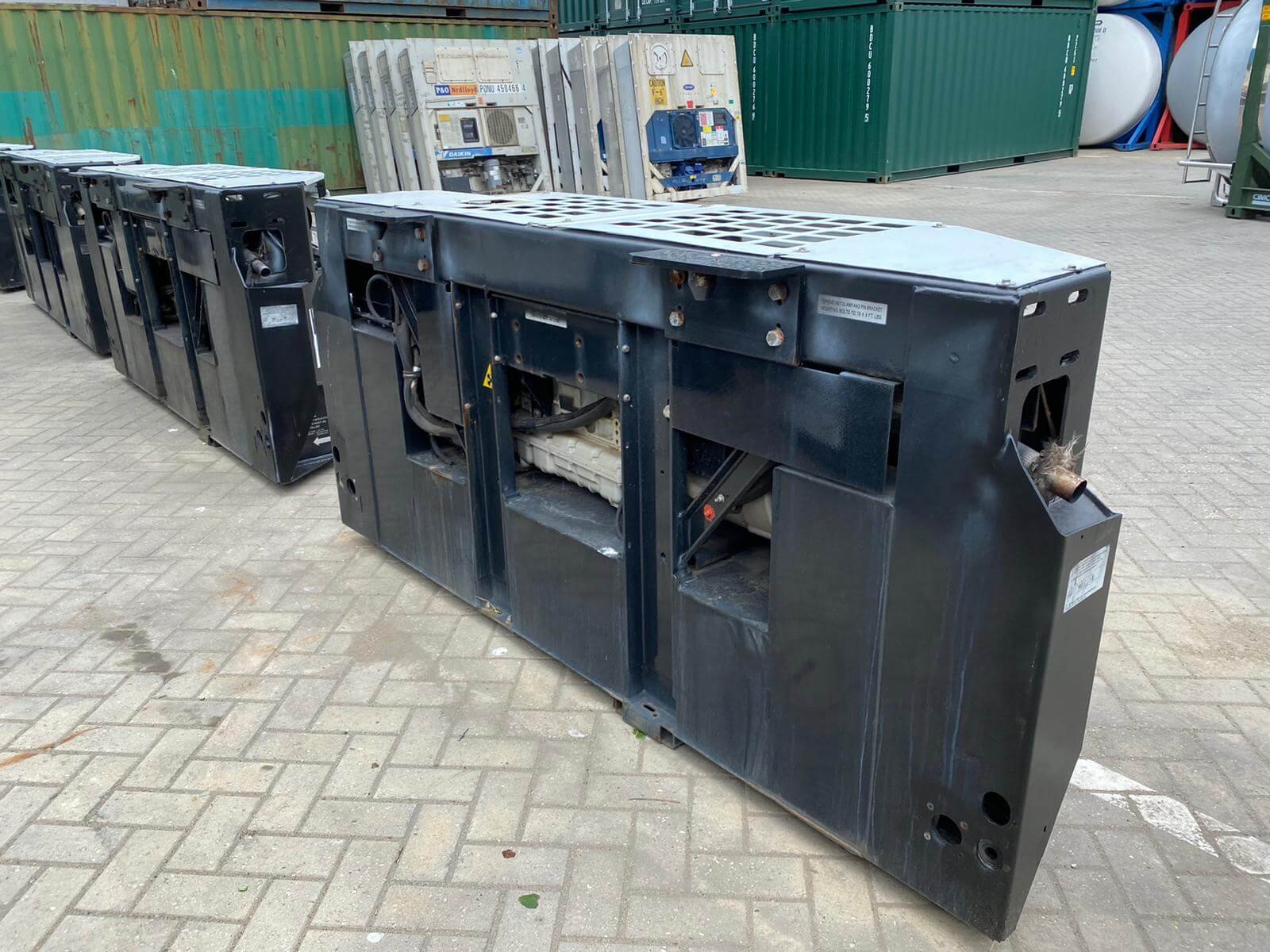

- Durable Construction: Heavy-duty steel housing with forklift pockets for streamlined handling, mounting, and depot mobility.
| Brand | Thermo King |
| Model | SG-3000 |
| Product Type | Clip-On Generator Set |
| Power Output | 15 kW / 18.75 kVA |
| Electrical Output | 460V / 230V VAC, 3-Phase, 60 Hz |
| Fuel Type | Diesel #1 & #2, HVO |
| Fuel Tank Capacity | 125 gal (473 L) |
| Service Interval | 3,000 Hours |
| Controller | SG+ Microprocessor Controller |
| Engine Speed | 1890 RPM (High) / 1560 RPM (Low) |
| Battery | 12 VDC, 925 CCA |
| Sound Level | 73 dB |
| Dimensions (L x W x H) | 2337 x 710 x 1053 mm |
| Weight | 818 kg (1,804 lbs) |
| Forklift Pockets | Yes |
