Description

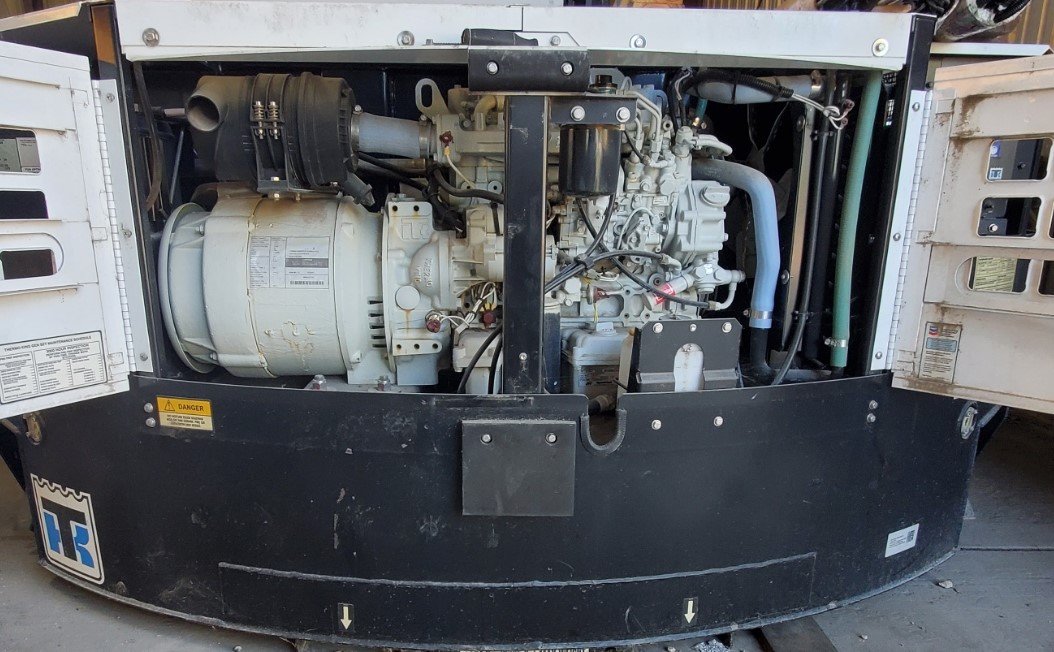

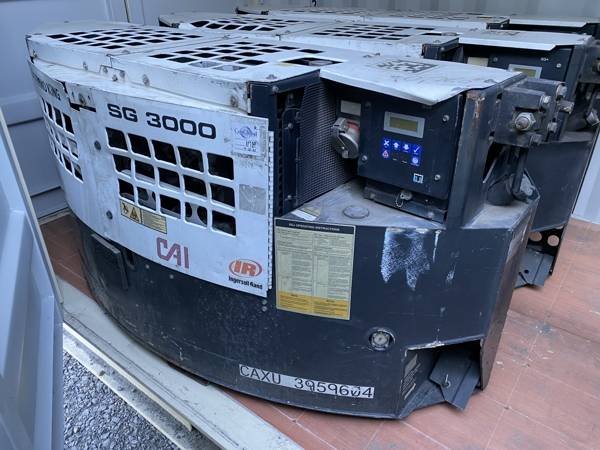

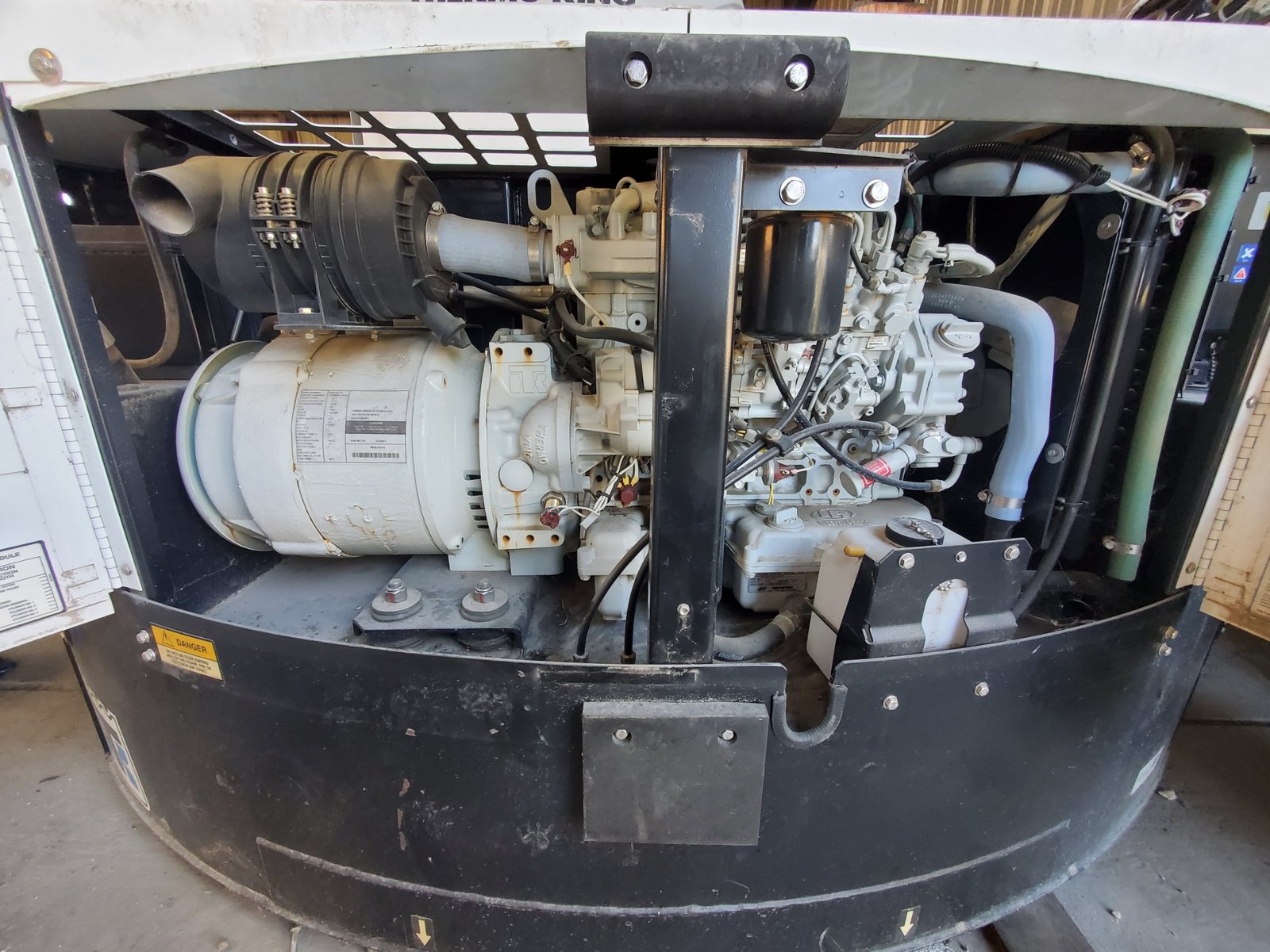

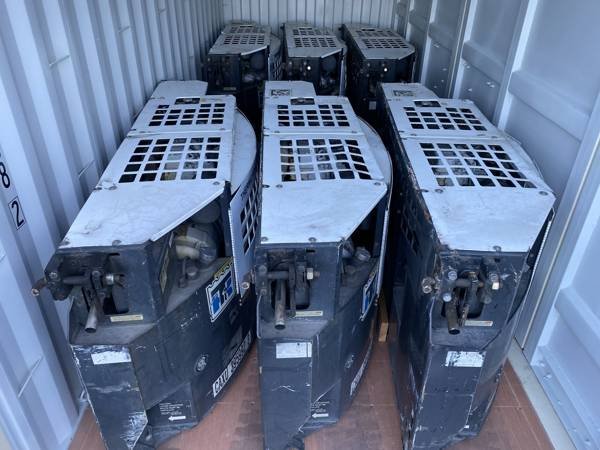

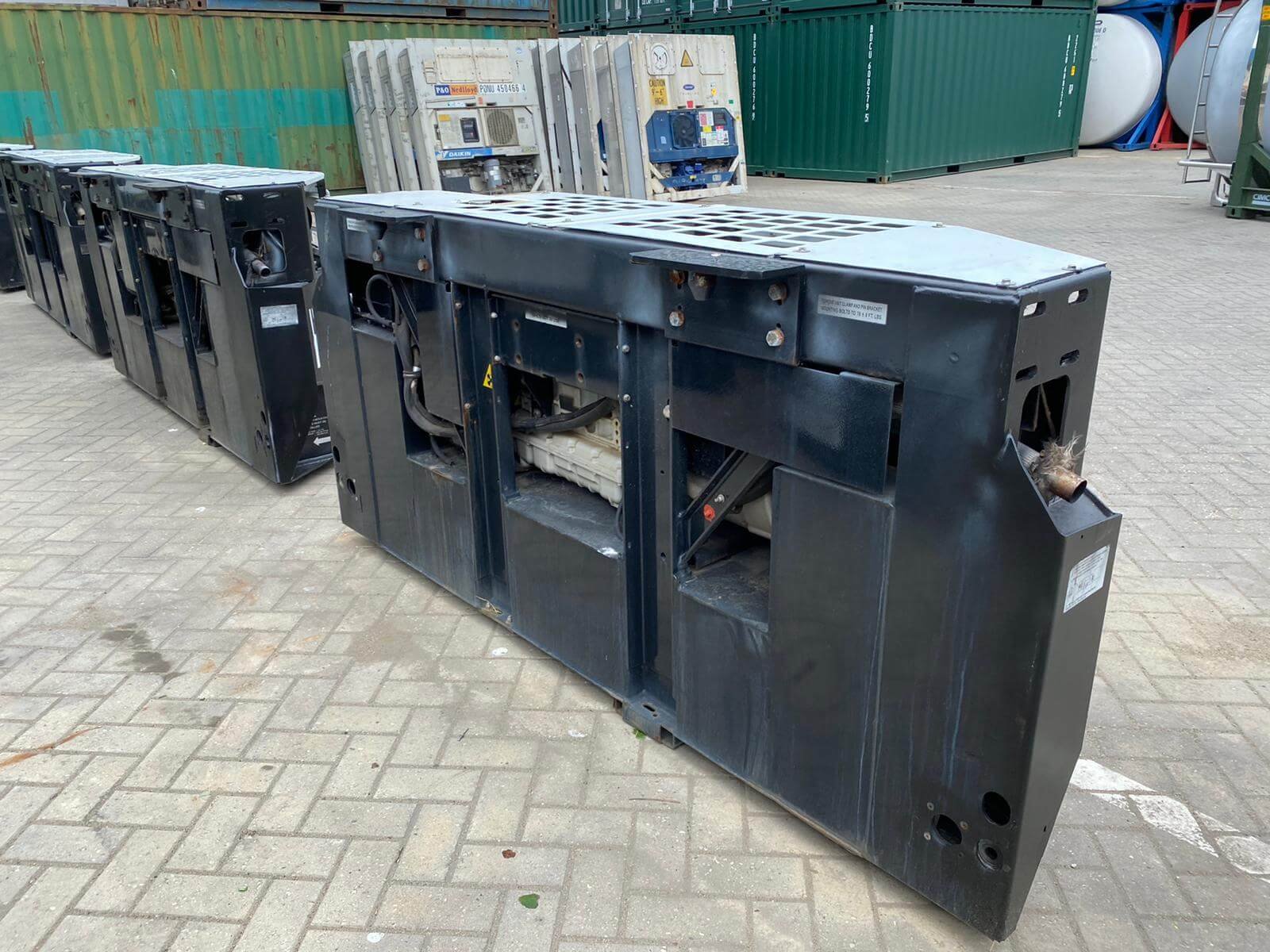

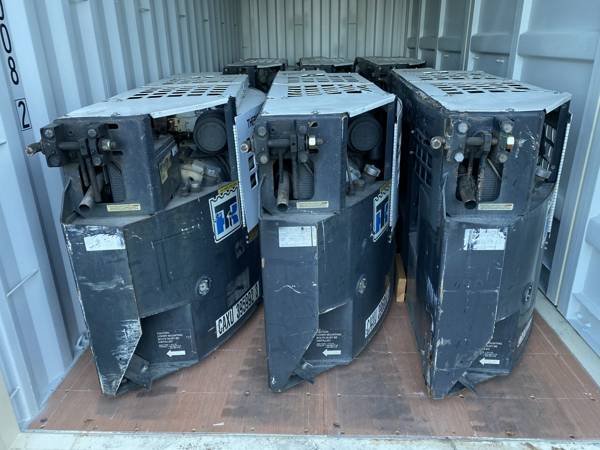

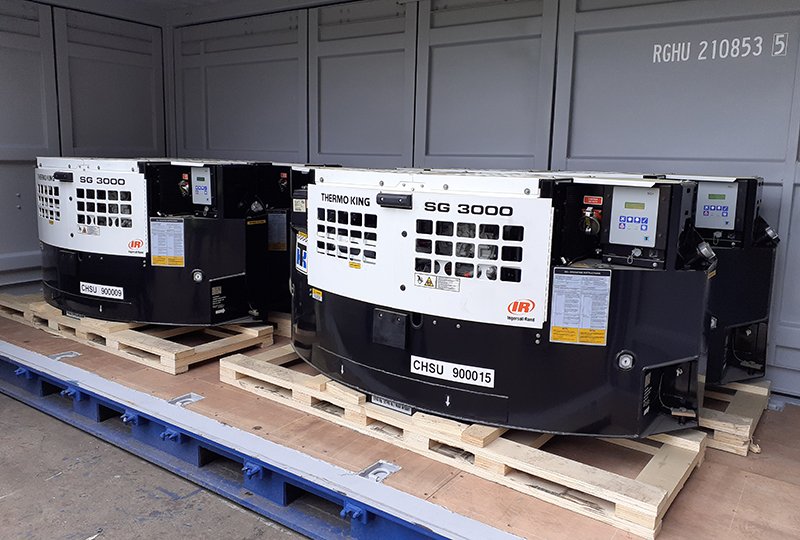

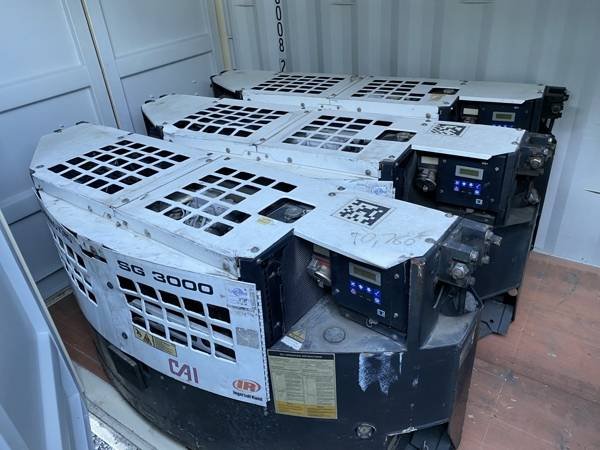

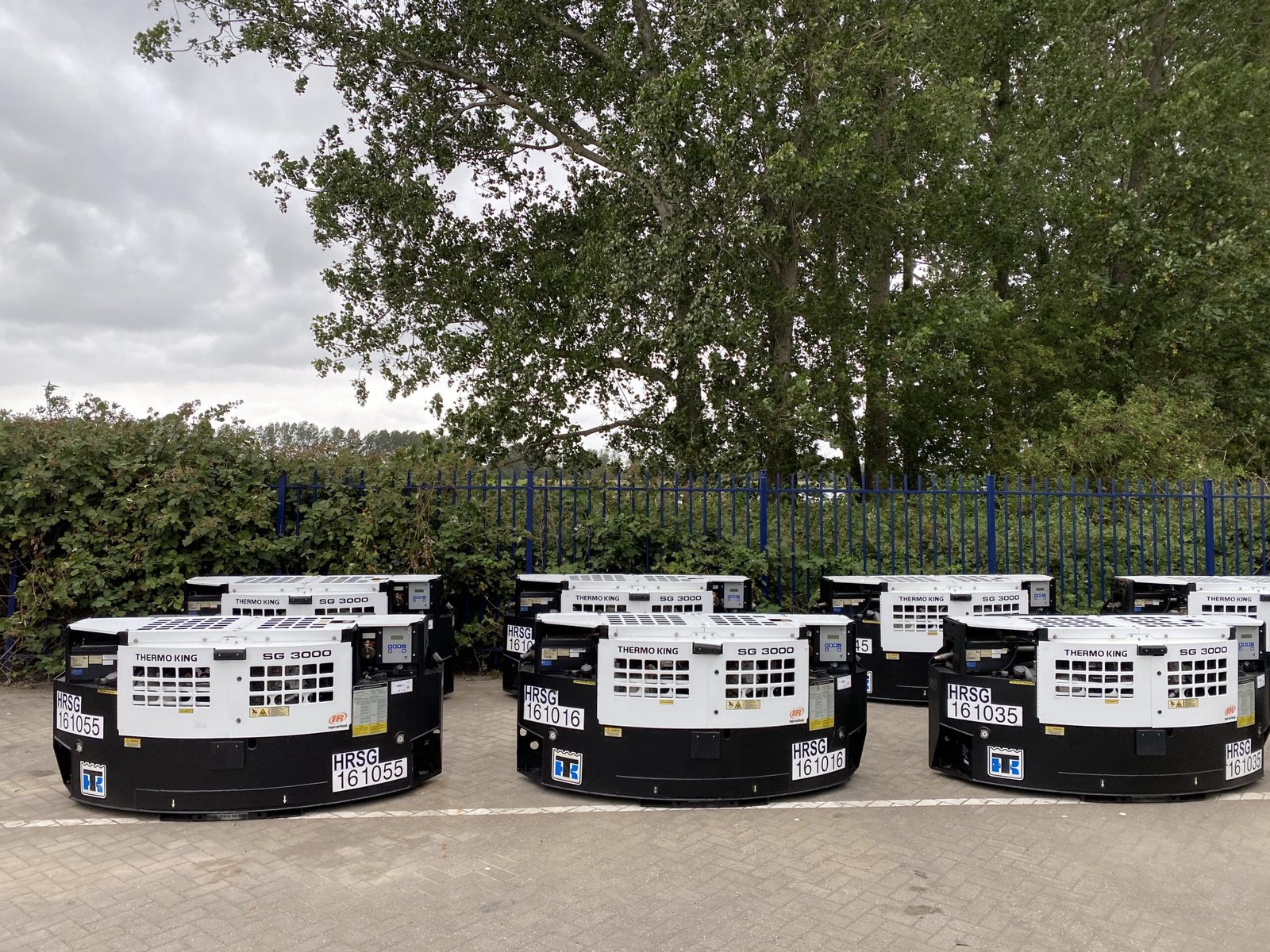

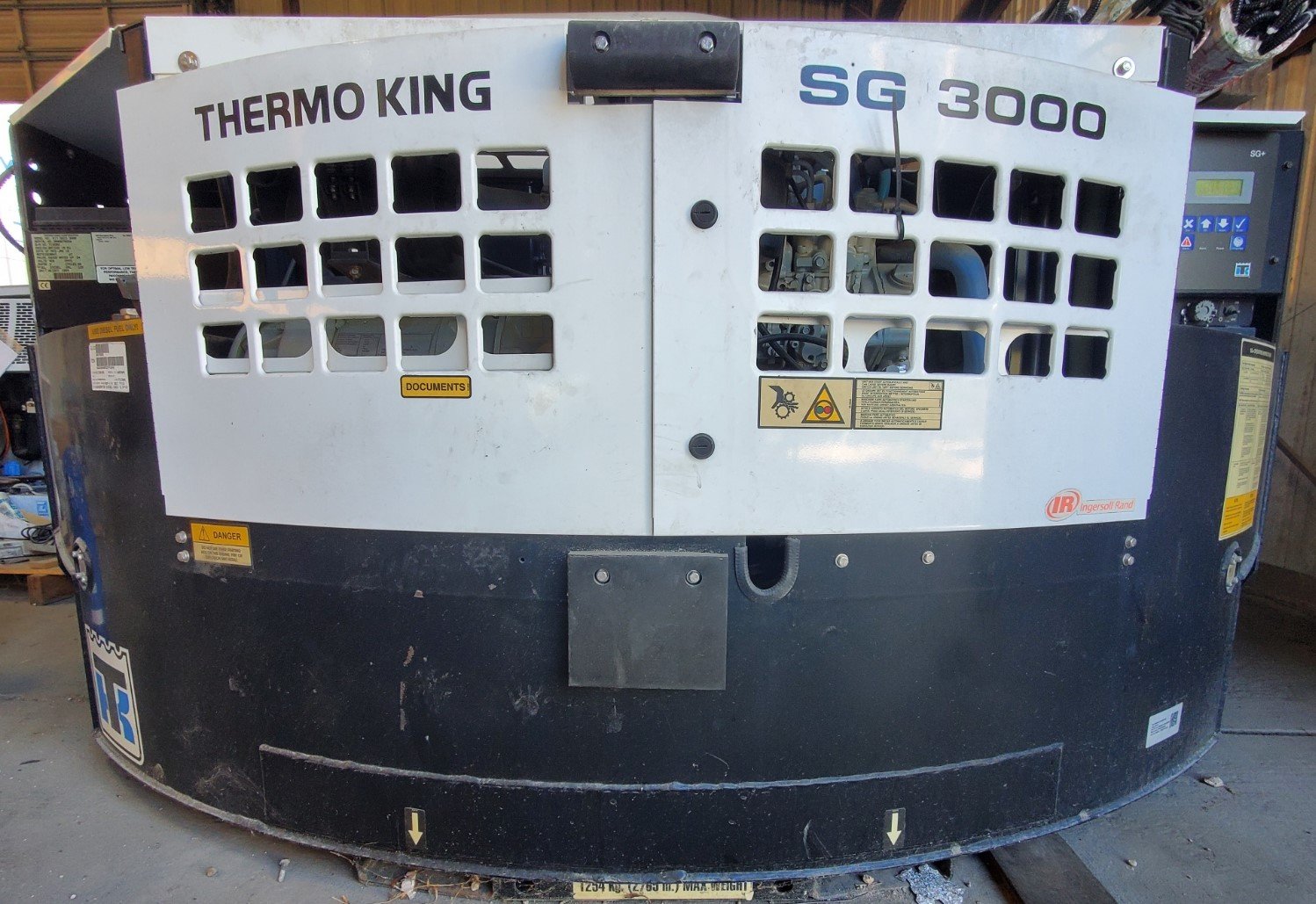

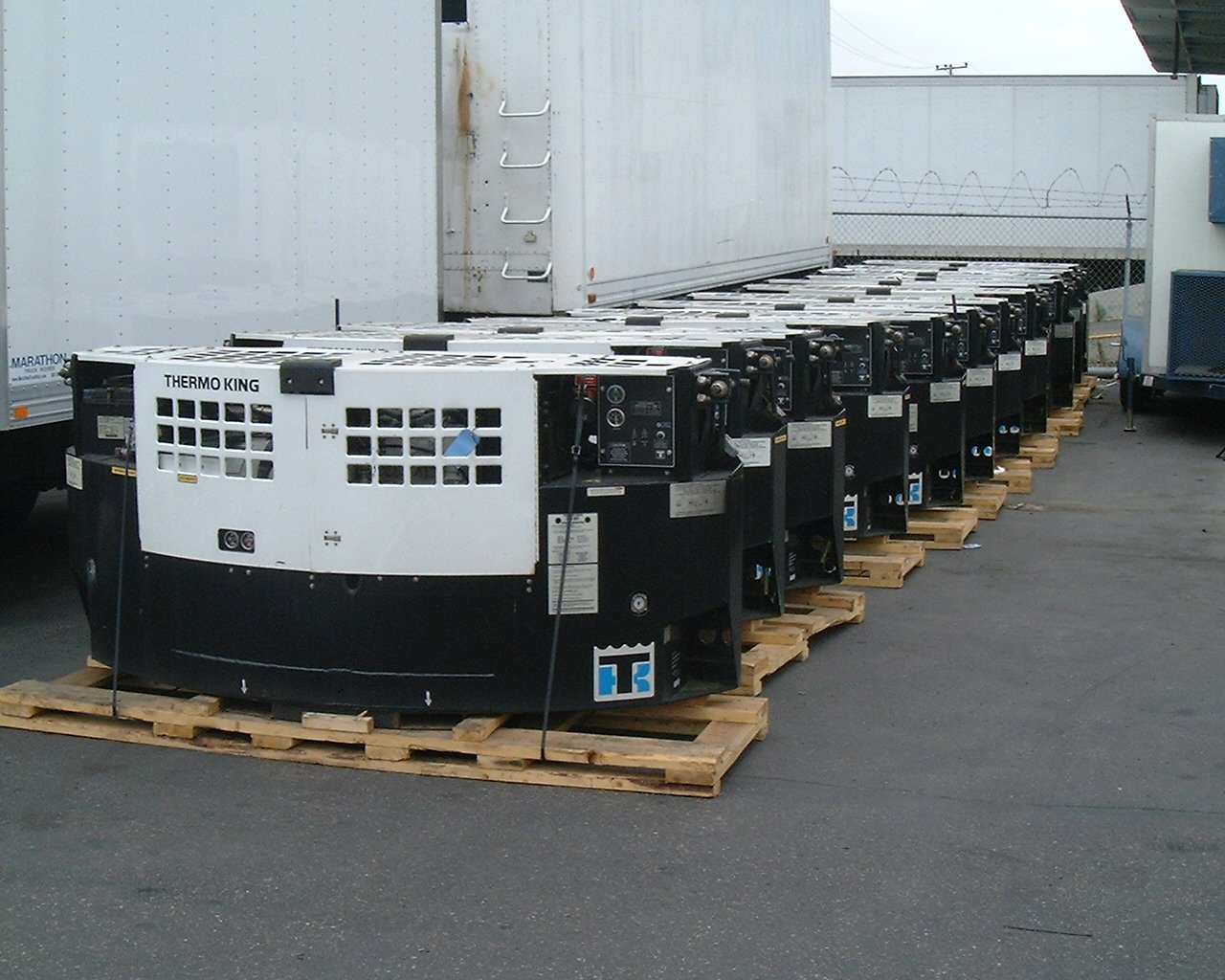

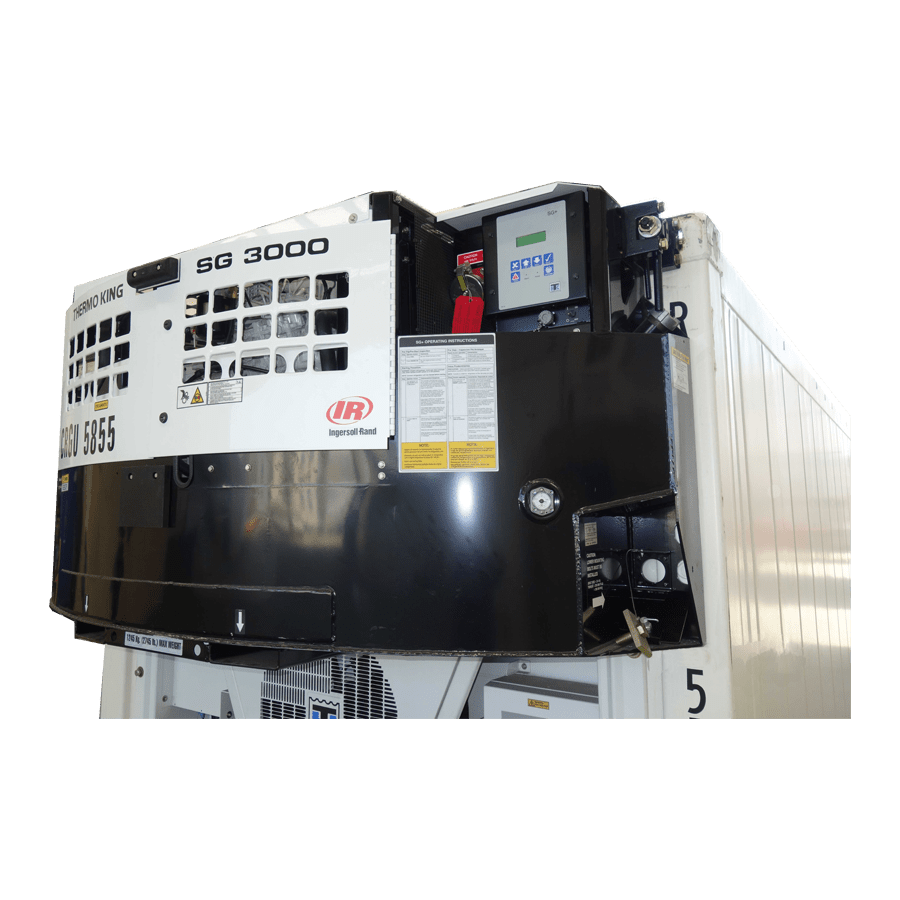

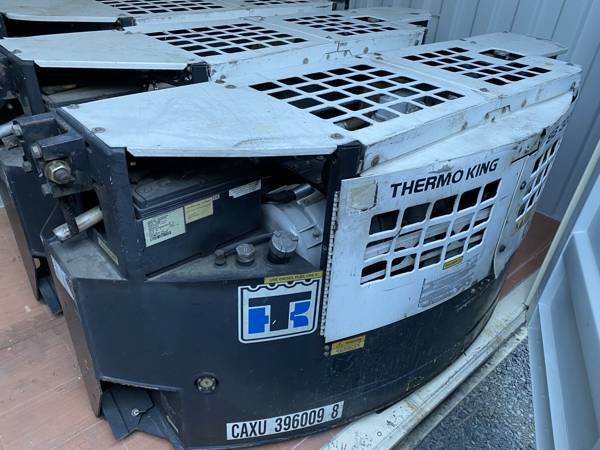

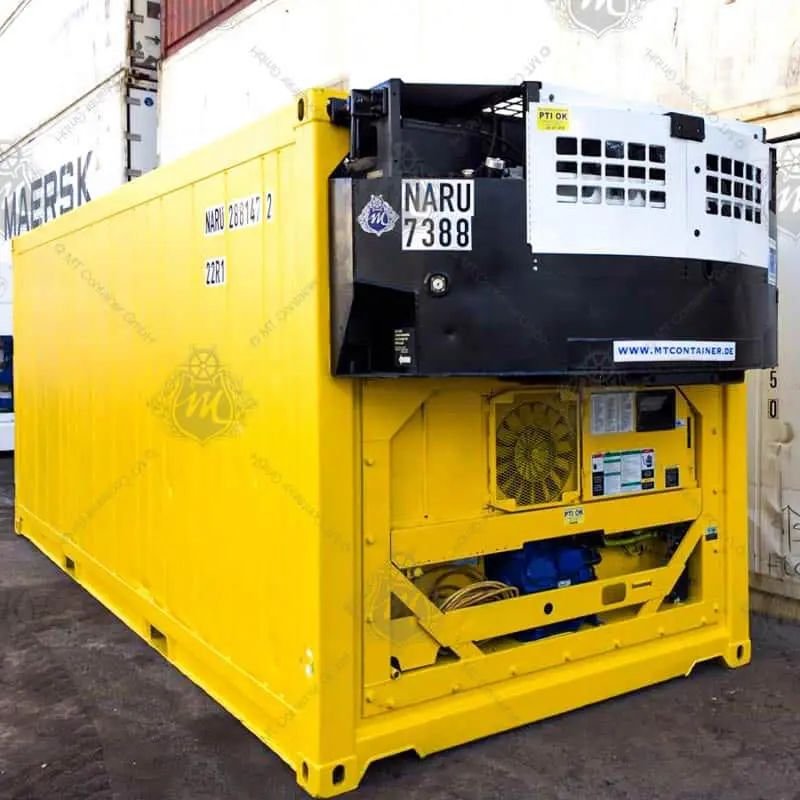

The Thermo King SG-3000 Clip-On Generator Set delivers reliable, independent electrical power designed specifically to maintain the cold chain for refrigerated shipping containers and tank containers. Built for demanding intermodal applications, this clip-on genset mounts securely to container corner castings using standard pin-mount or clamp-mount systems, making it suitable for road, rail, and double-stack transport.
Key Features & Performance
- Dependable 15 kW Output: Supplies 460/230 VAC 3-phase power to keep ISO reefer containers operating continuously in diverse climatic conditions.
- Advanced SG+ Microprocessor: Features an intuitive multi-language interface, advanced self-checking diagnostics, load-independent voltage regulation, and an auto-restart feature to safeguard sensitive cargo against power interruptions.
- Extended Maintenance Intervals: Engineered for lower life-cycle costs with service intervals reaching up to 3,000 hours of operation.
- High Fuel Efficiency: Designed for low fuel consumption and compatible with standard diesel fuels as well as hydrotreated vegetable oil (HVO) biofuels.
- Robust Construction: Built with a durable steel frame and corrosion-resistant components engineered for harsh marine and transport environments.
| Brand | Thermo King |
| Model | SG-3000 |
| Product Type | Clip-On Refrigerated Container Generator Set |
| Output Power | 15 kW (18.75 kVA) |
| Electrical Output | 460V / 230V VAC, 3-Phase, 60 Hz |
| Controller | Thermo King SG+ Microprocessor Controller |
| Engine Speed | 1890 RPM (High Speed) / 1560 RPM (Low Speed) |
| Fuel Type | Diesel #1, Diesel #2, Biofuels (HVO) |
| Fuel Tank Capacity | 125 gal (473 L) |
| Service Interval | 3,000 Hours |
| Battery | 12 VDC, 925 CCA |
| Sound Level | 73 dB |
| Dimensions (L x W x H) | 92 x 28 x 41.5 in (2337 x 710 x 1053 mm) |
| Weight | 1,804 lb (818 kg) |
| Mounting Type | Clip-On (Pin-Mount / Clamp-Mount) |
