Description

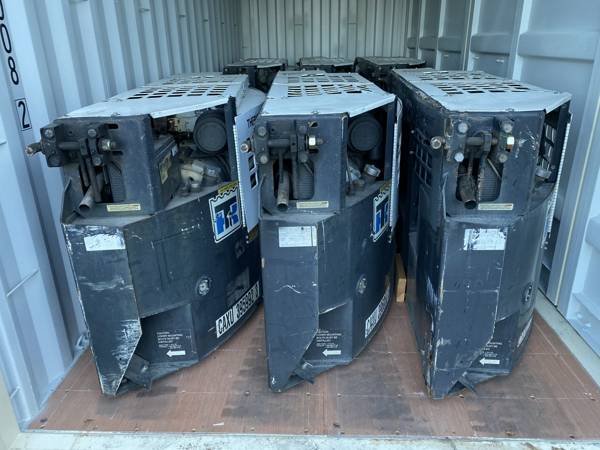

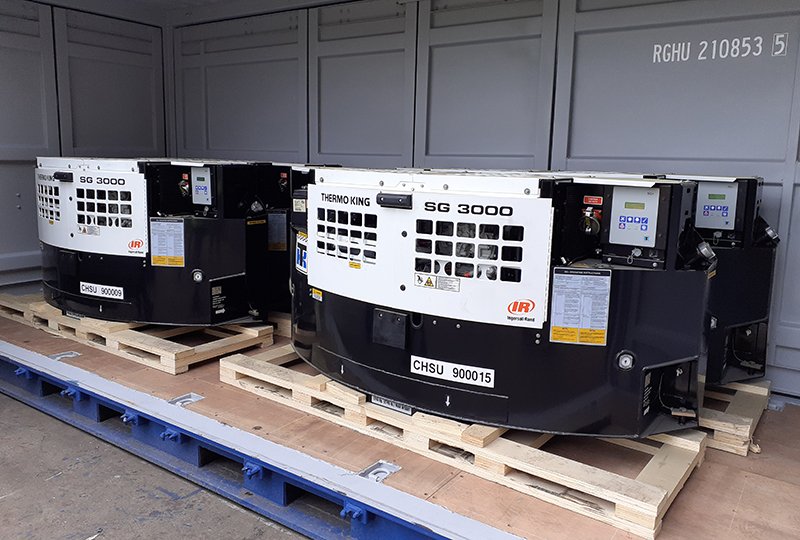

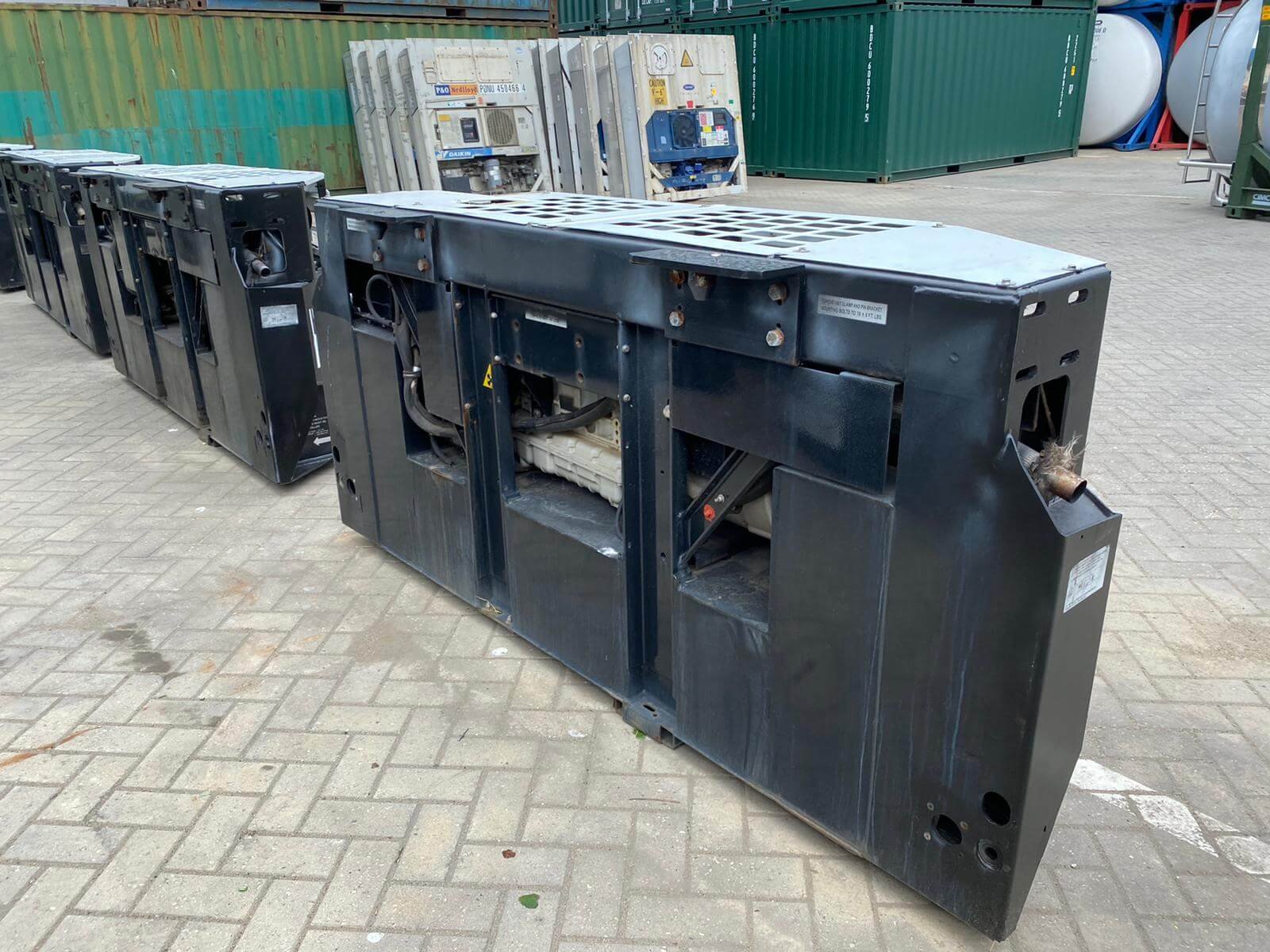

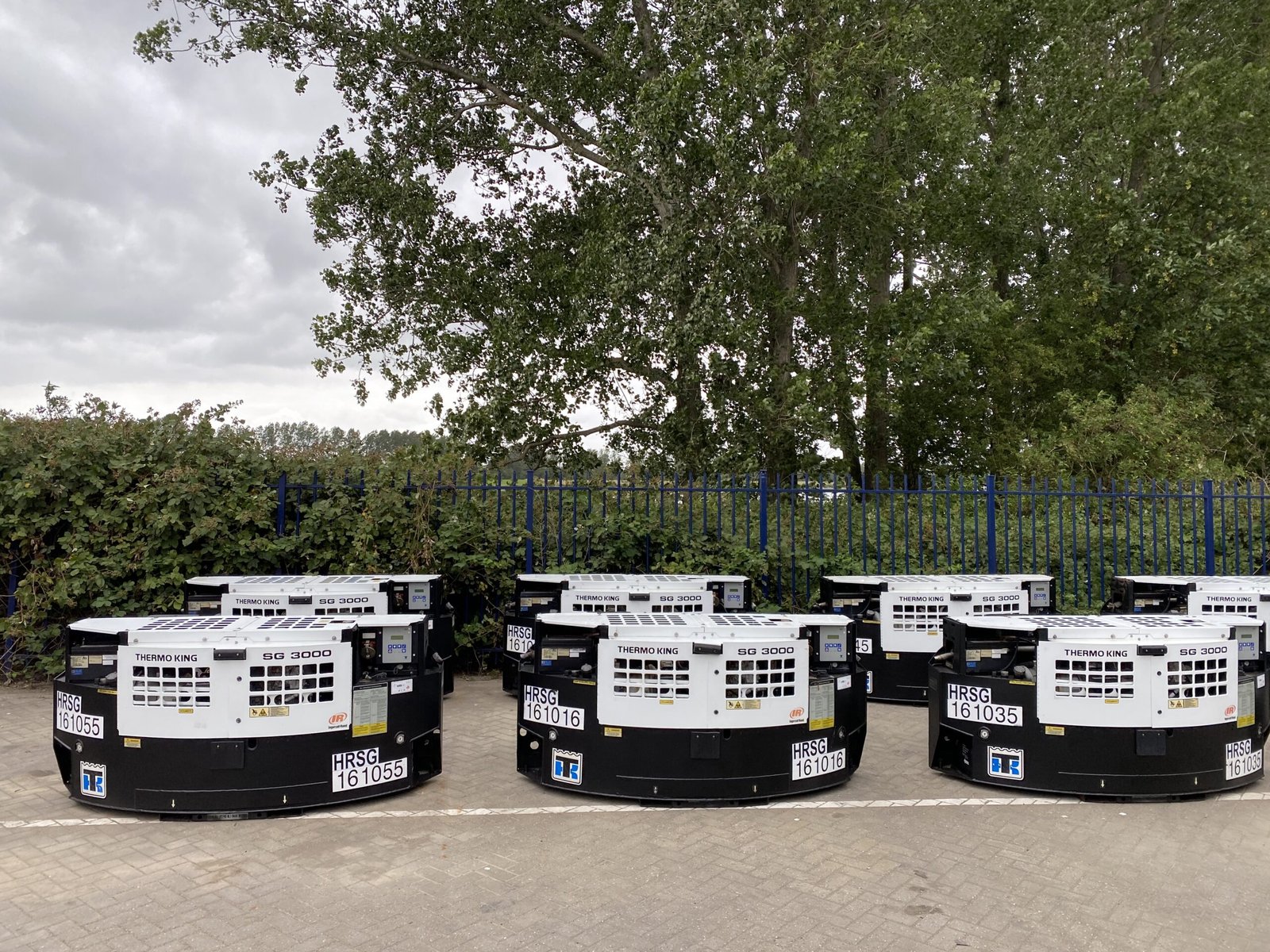

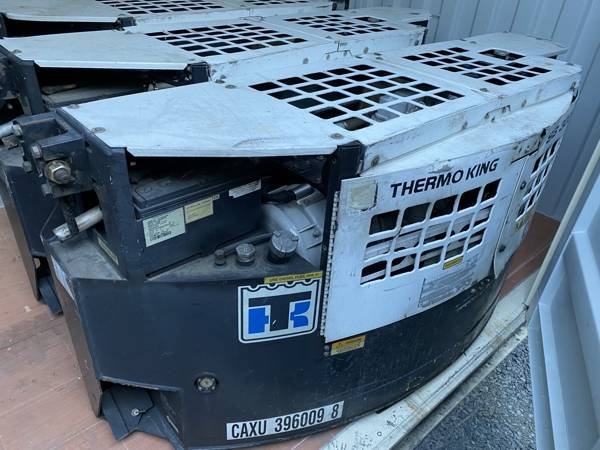

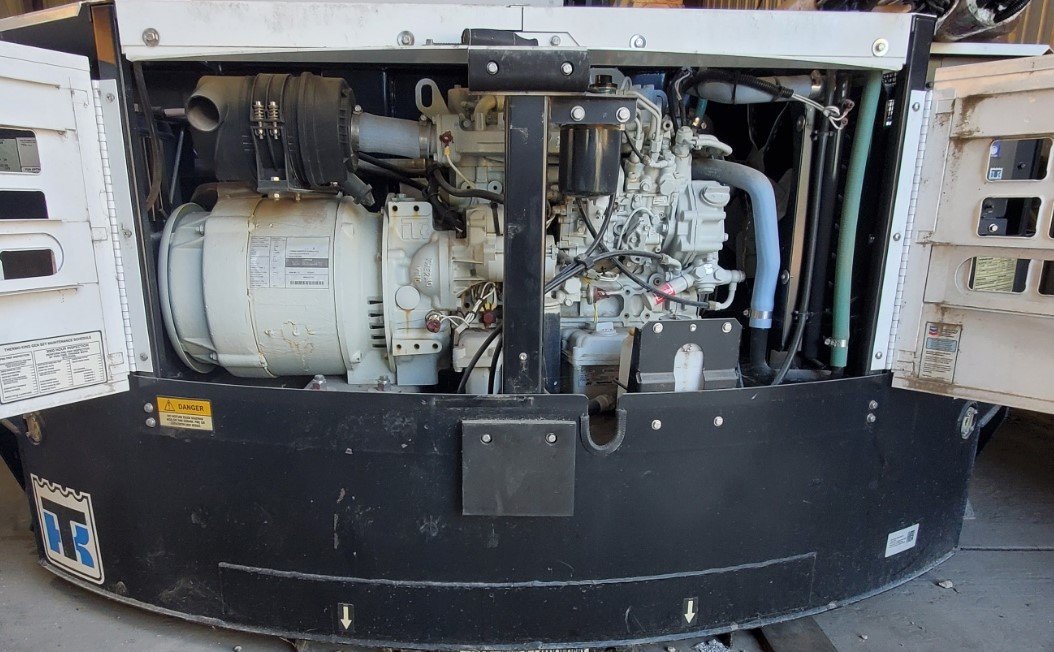

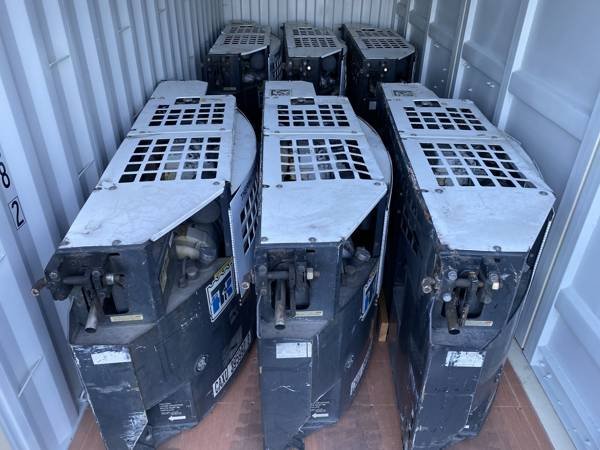

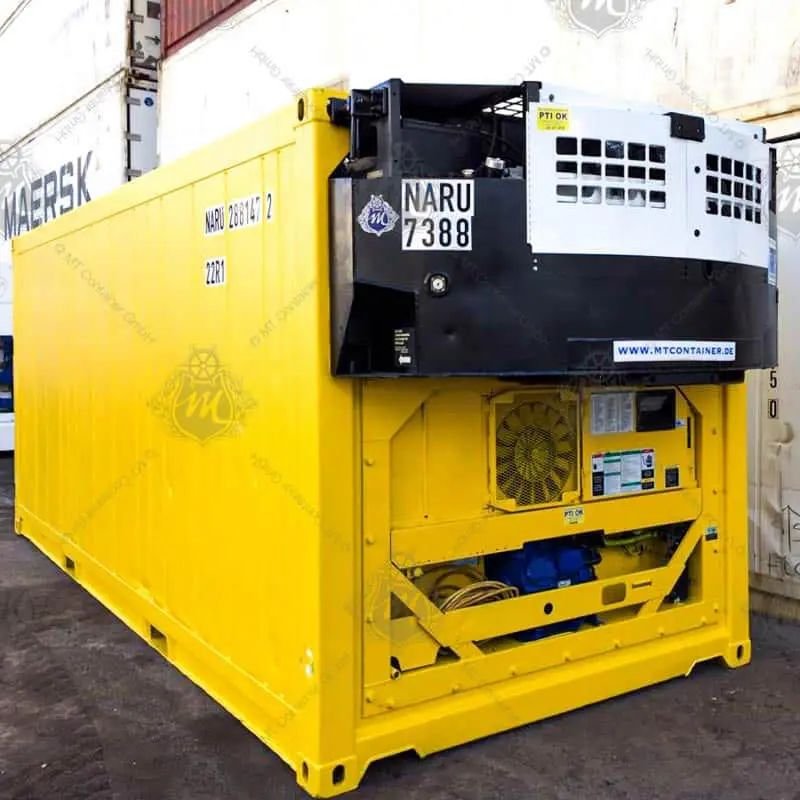

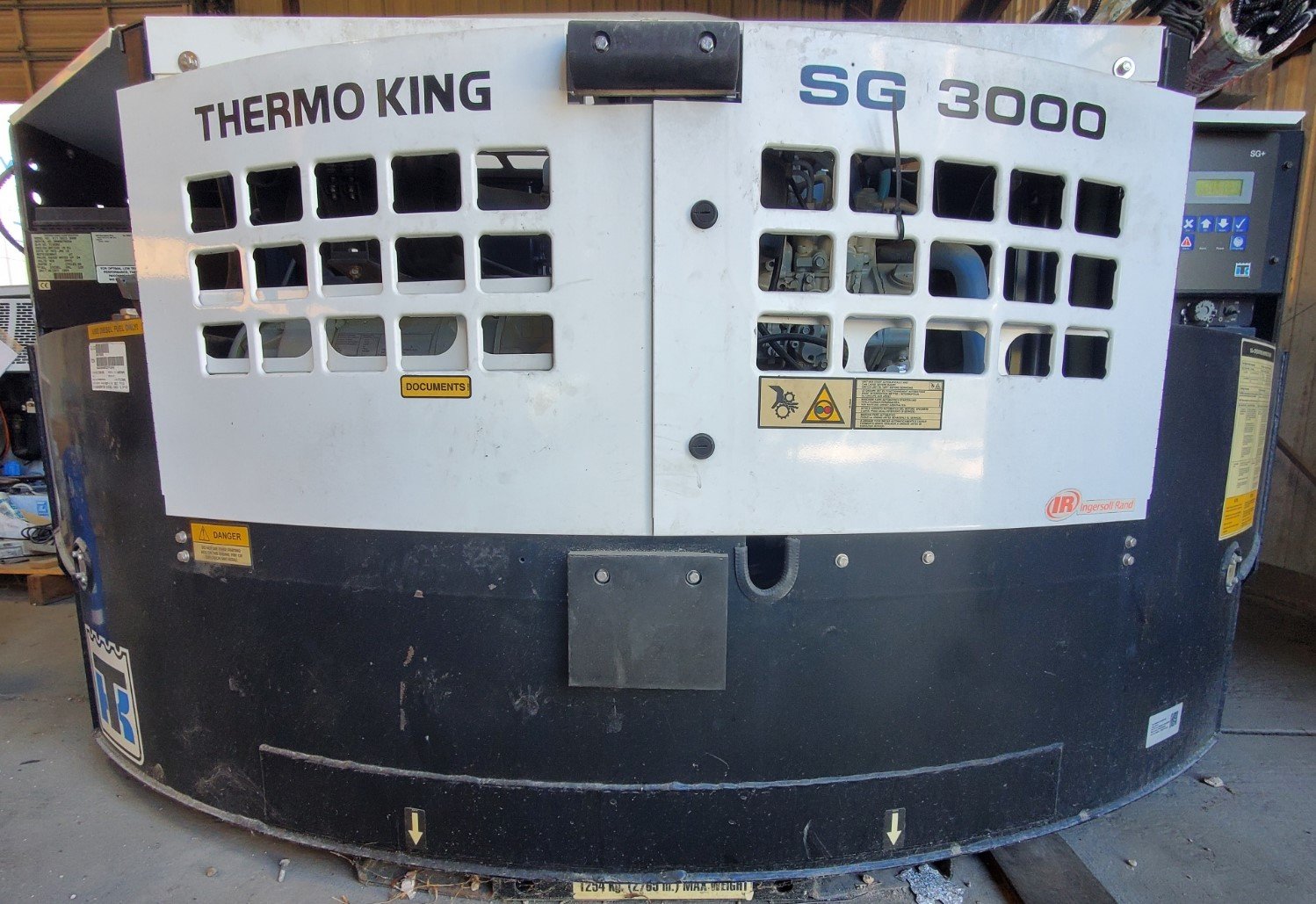

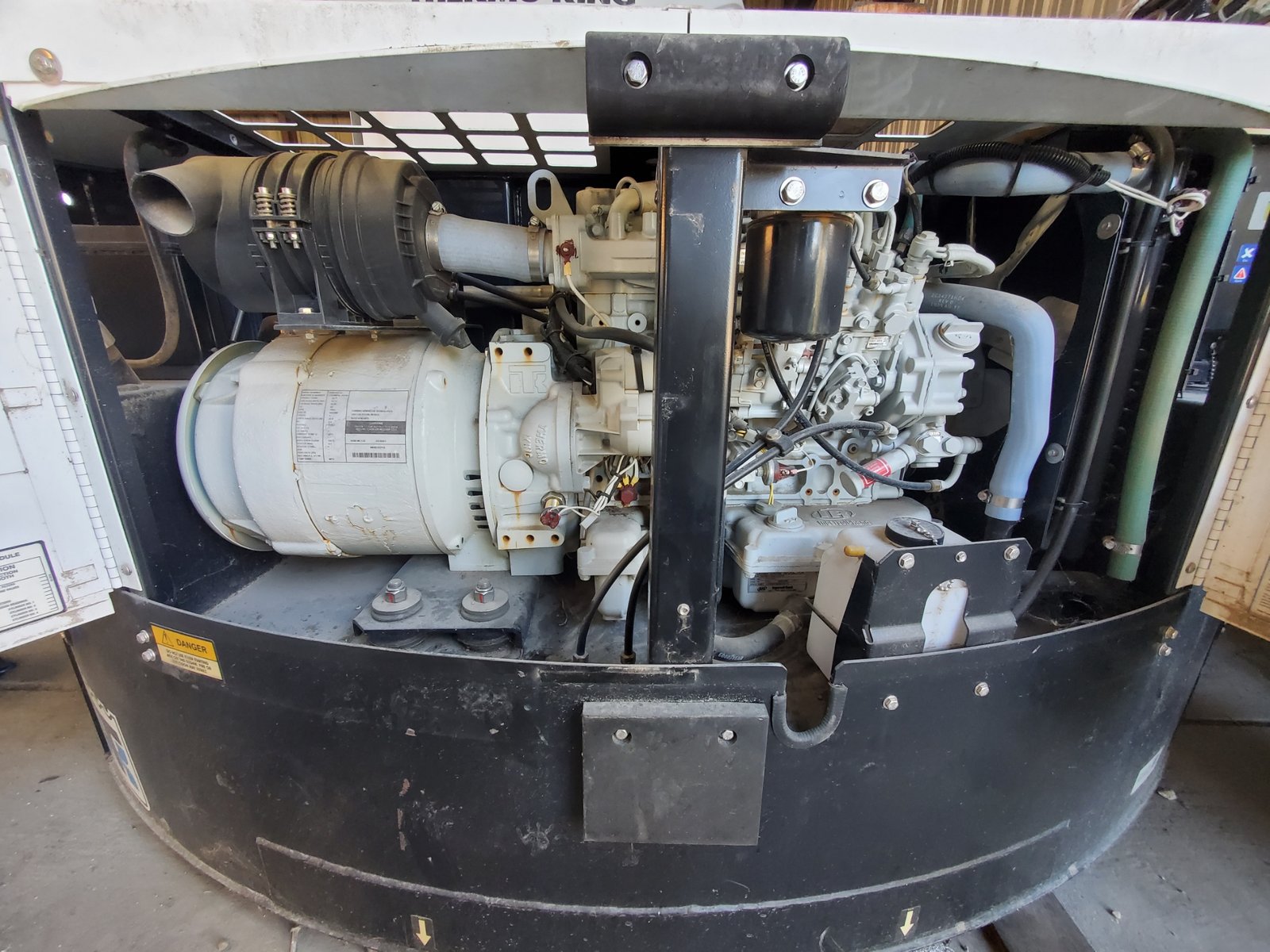

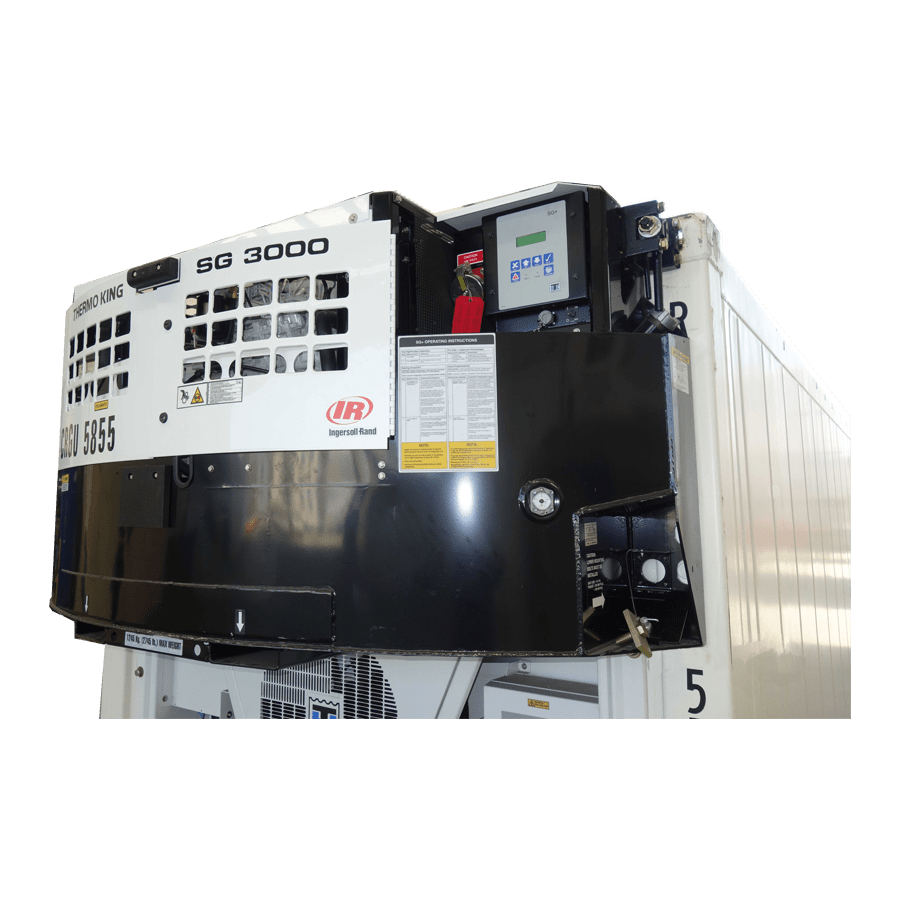

The Thermo King SG-3000 Clip-On Generator Set delivers a reliable, independent power supply engineered to maintain the cold chain for refrigerated ISO containers during transport. Powered by a robust diesel engine delivering 15 kW output, this self-contained genset attaches securely to container corner castings using pin-mount or clamp-mount systems, making it suitable for over-the-road trucking, rail, and intermodal logistics.
Intelligent Engine Management

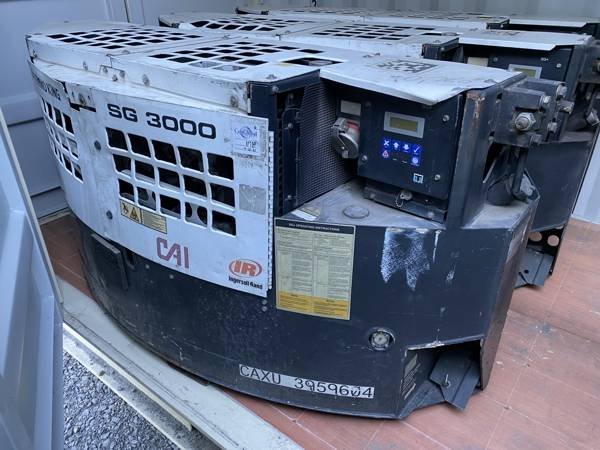

Equipped with the advanced SG+ microprocessor controller, the SG-3000 provides automated engine pre-heating, auto-restart capabilities to safeguard against cargo loss, and comprehensive diagnostics. Variable-speed engine operation and EcoPower modes optimize fuel efficiency and voltage regulation across varying load demands.
Durability and Efficiency
- Extended maintenance intervals (EMI 3000) allowing up to 3,000 hours between full services.
- Generates 15 kW (18.75 kVA) 460V/230V 3-phase power at 60 Hz.
- High-capacity 125 gal (473 L) independent fuel tank for long-range transit.
- Corrosion-resistant steel frame construction designed for severe marine and transport environments.
- Integrated safety stop controls for low oil pressure and high coolant temperature.
| Brand | Thermo King |
| Model | SG-3000 |
| Mounting Type | Clip-On |
| Output Power | 15 kW |
| Apparent Power | 18.75 kVA |
| Electrical Output | 460V / 230V AC, 3-Phase, 60 Hz |
| Fuel Type | Diesel #1 & #2, Biofuel / HVO |
| Fuel Tank Capacity | 473 L (125 gal) |
| Service Interval | 3,000 Hours |
| Controller | Thermo King SG+ Microprocessor |
| Rotation Speed | 1890 RPM (High Speed) / 1560 RPM (Low Speed) |
| Battery | 12V DC, 925 CCA |
| Noise Level | 73 dB |
| Dimensions (L x W x H) | 233.7 x 71 x 105.3 cm |
| Weight | 818 kg (1,804 lbs) |
| Safety Features | Low oil pressure shutdown, high water temperature shutdown |
