Description
The Thermo King SG-3500 Clip-On Generator Set delivers reliable, independent power for marine refrigerated containers and tank containers. Engineered for high efficiency and dependable performance, this self-contained diesel genset keeps temperature-sensitive cargo secure throughout international transport, railcar transit, and off-grid staging.

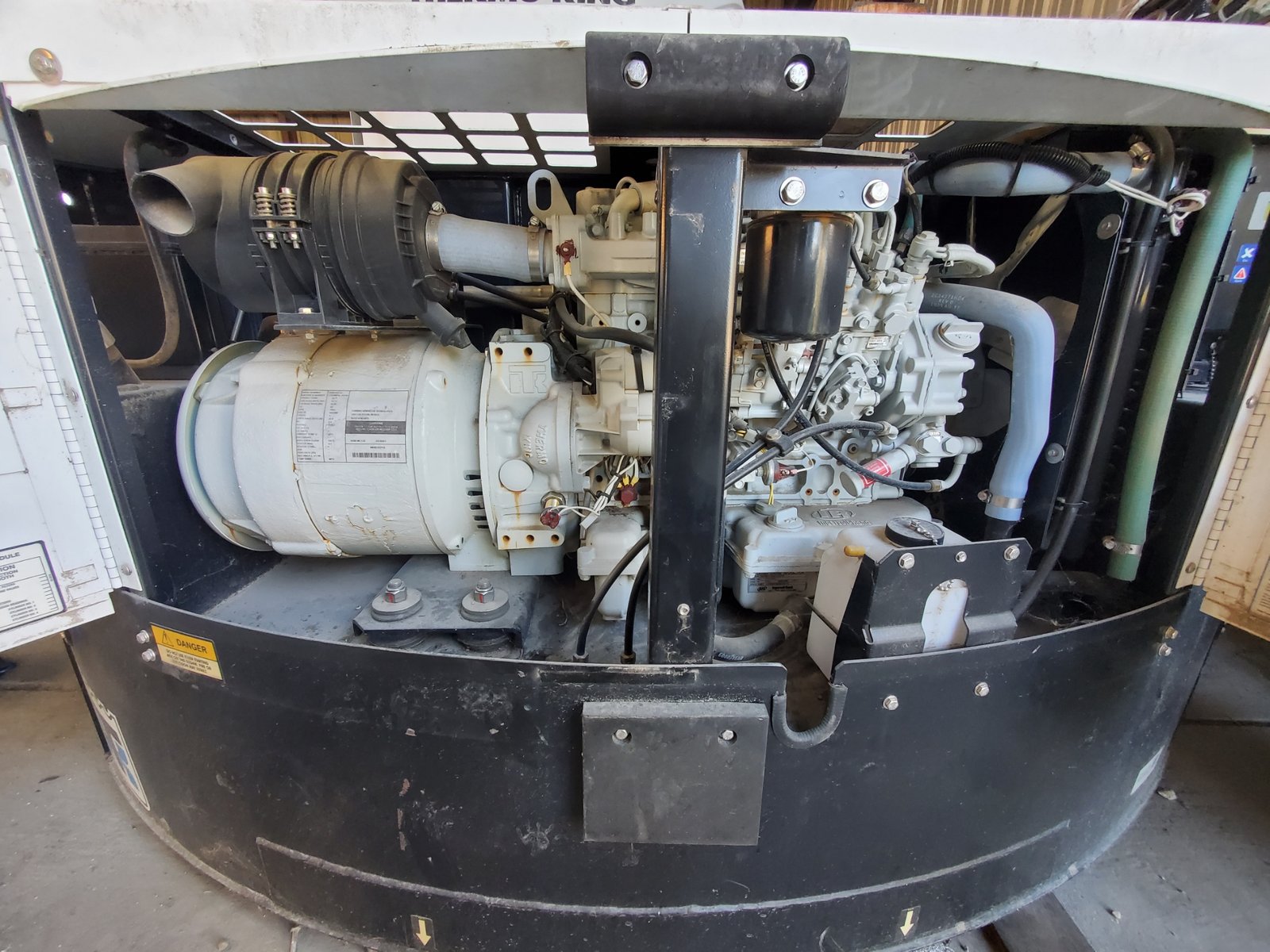

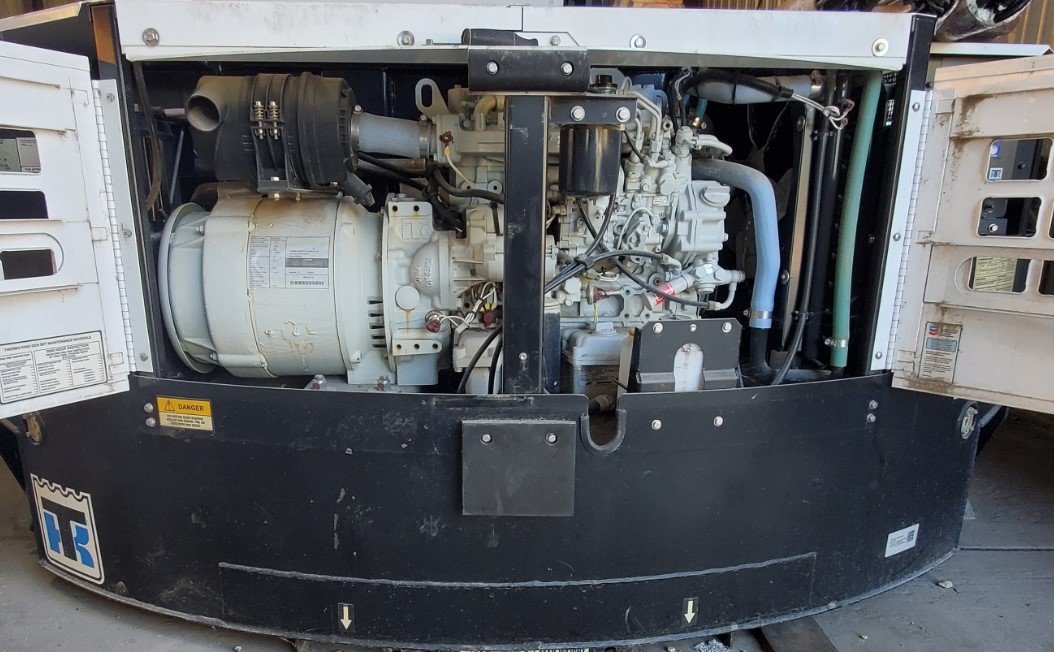

Powered by a robust 2.1L 24.1 HP diesel engine delivering a 15kW electrical output, the unit is fully compliant with EPA Tier 4, NRMM Stage V, GB4, and 7-year CARB standards, and is approved for use with biofuels including HVO and renewable diesel.
Advanced SG+ Controller & Engine Management

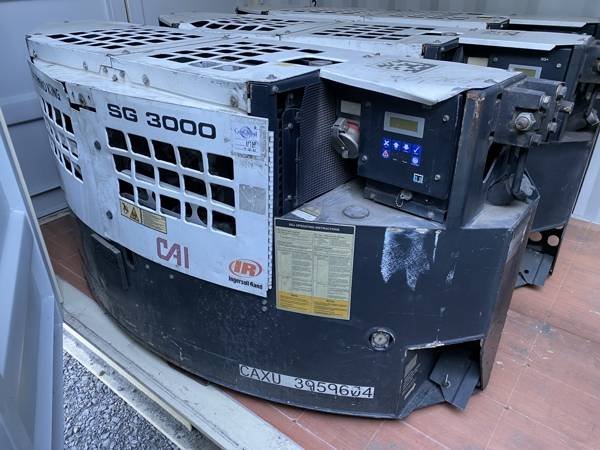

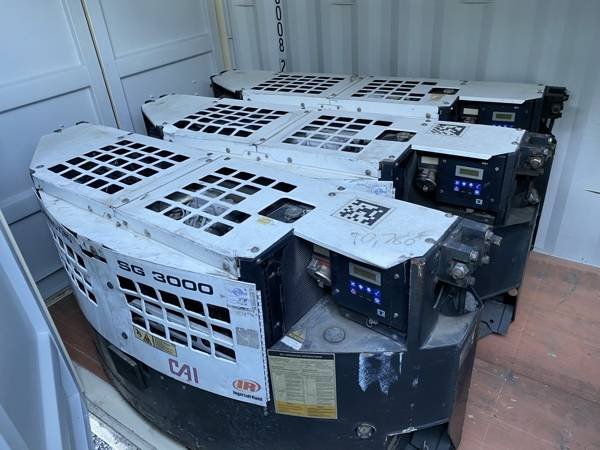

Equipped with an intelligent SG+ microprocessor controller, the SG-3500 features automated pre-heating, auto-restart functionality to minimize cargo loss risk, and advanced self-checking diagnostics. EcoPower™ engine management enables variable-speed operation for dramatic fuel savings and highly stable, load-independent voltage regulation.
Mounting & Fleet Integration

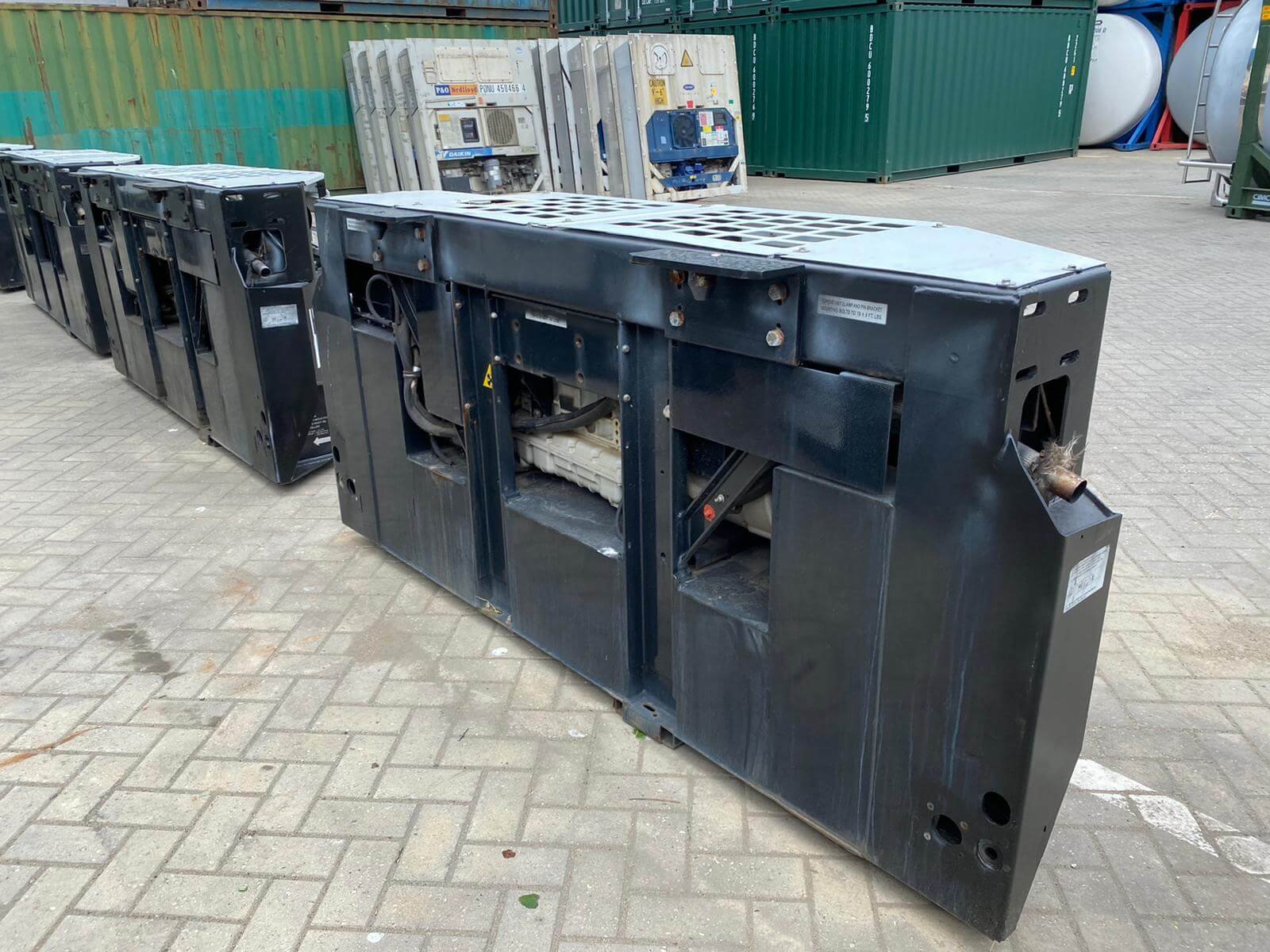

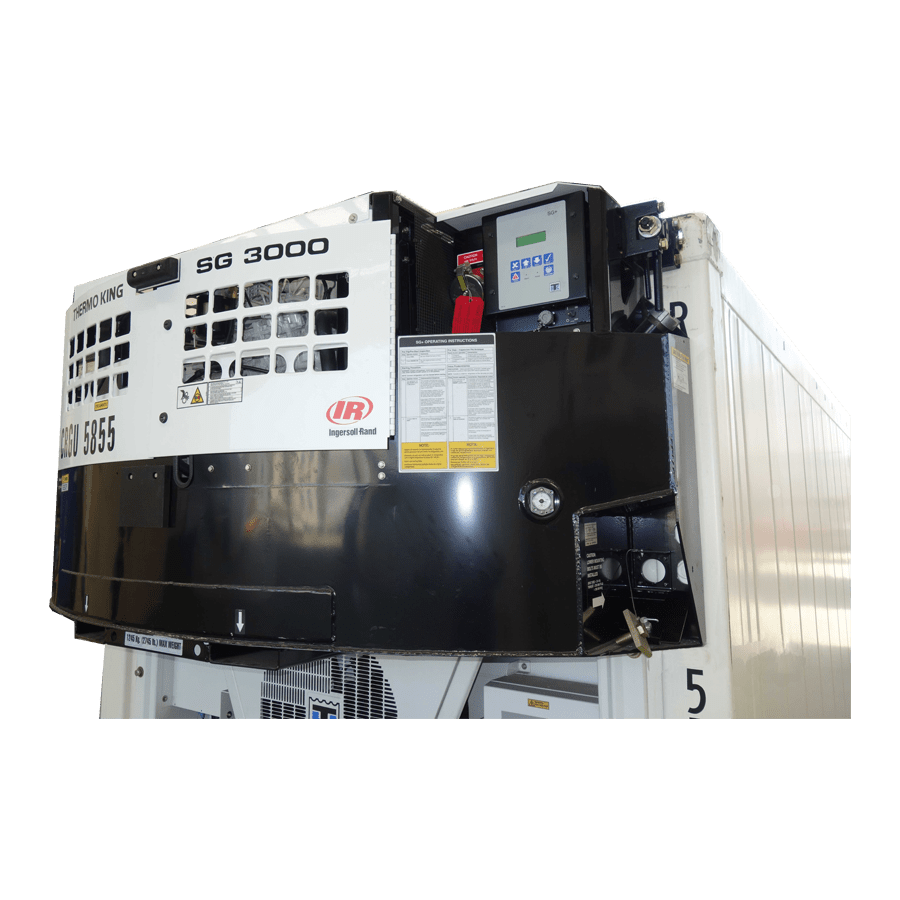

Designed for rapid deployment, the clip-on design attaches securely to container corner castings with quick-disconnect fasteners or optional pin mounting. Built-in forklift pockets ensure safe and simple handling, while optional ConnectedSuite™ telematics integration allows real-time fleet asset tracking, fuel monitoring, and operational diagnostics.
| Brand | Thermo King |
| Model | SG-3500 |
| Product Type | Clip-On Generator Set |
| Power Output | 15 kW |
| Engine Horsepower | 24.1 HP |
| Engine Displacement | 2.1 L |
| Engine Type | Eco-Governed Cast Iron Diesel |
| Generator Output | 460/230 Vac, 3-Phase, 60Hz |
| Fuel Tank Capacity | 125 gal (473 L) |
| Weight | 1,804 lbs |
| Controller | SG+ Microprocessor Controller |
| Battery | 12V, 925 CCA at 0°F |
| Service Interval | 3,000 Hours |
| Operational Lifespan | 25,000 Hours |
| Emissions Compliance | EPA Tier 4, NRMM Stage V, GB4, CARB (7-Year) |
| Operating Temperature Range | -40°F to 122°F (-40°C to 50°C) |
| Forklift Pockets | Yes |
