Description

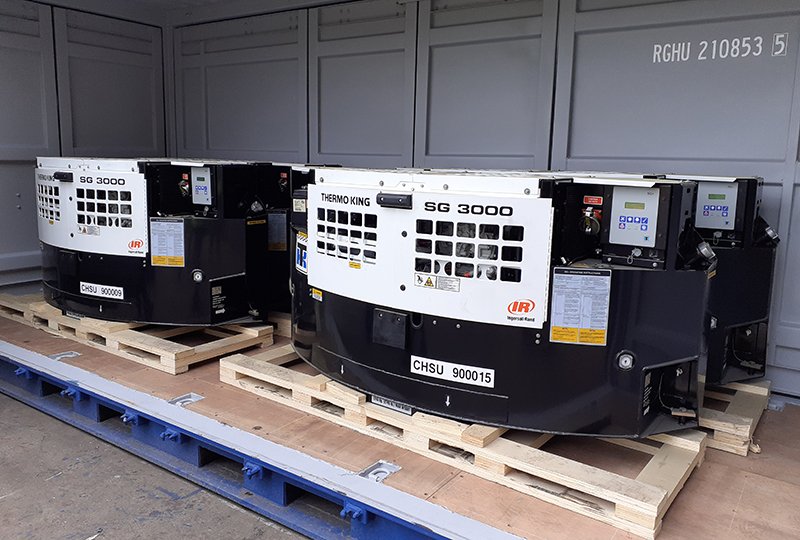

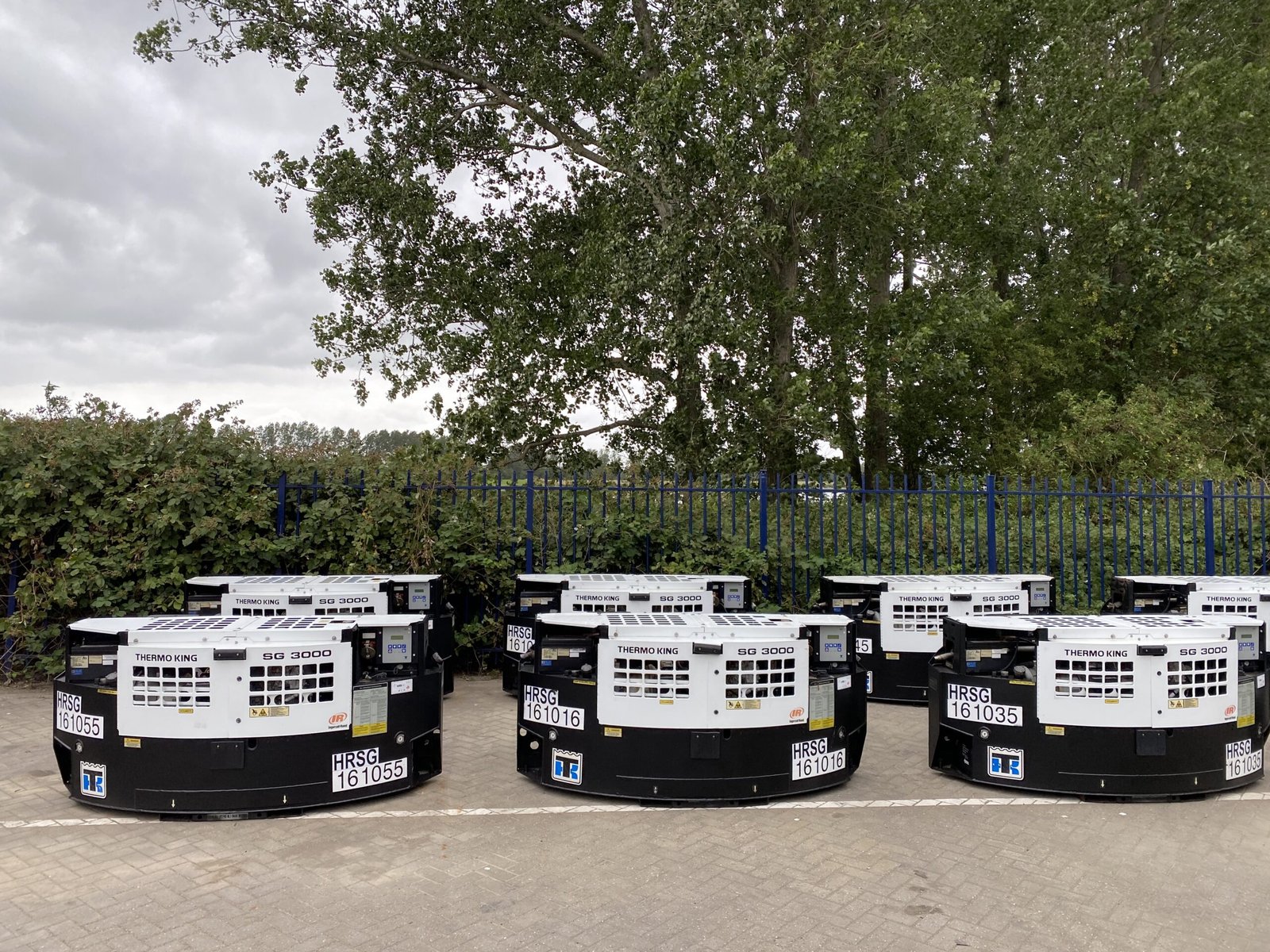

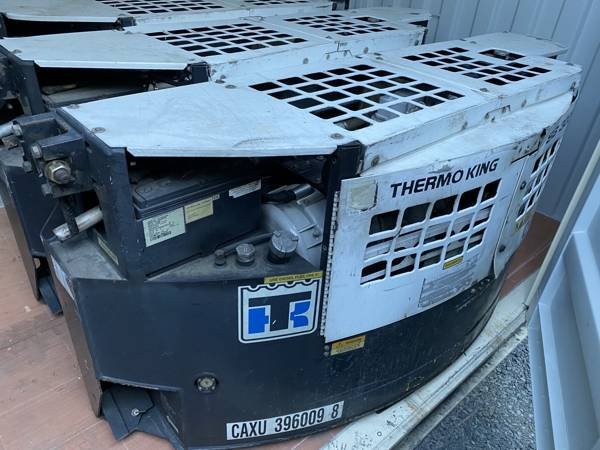

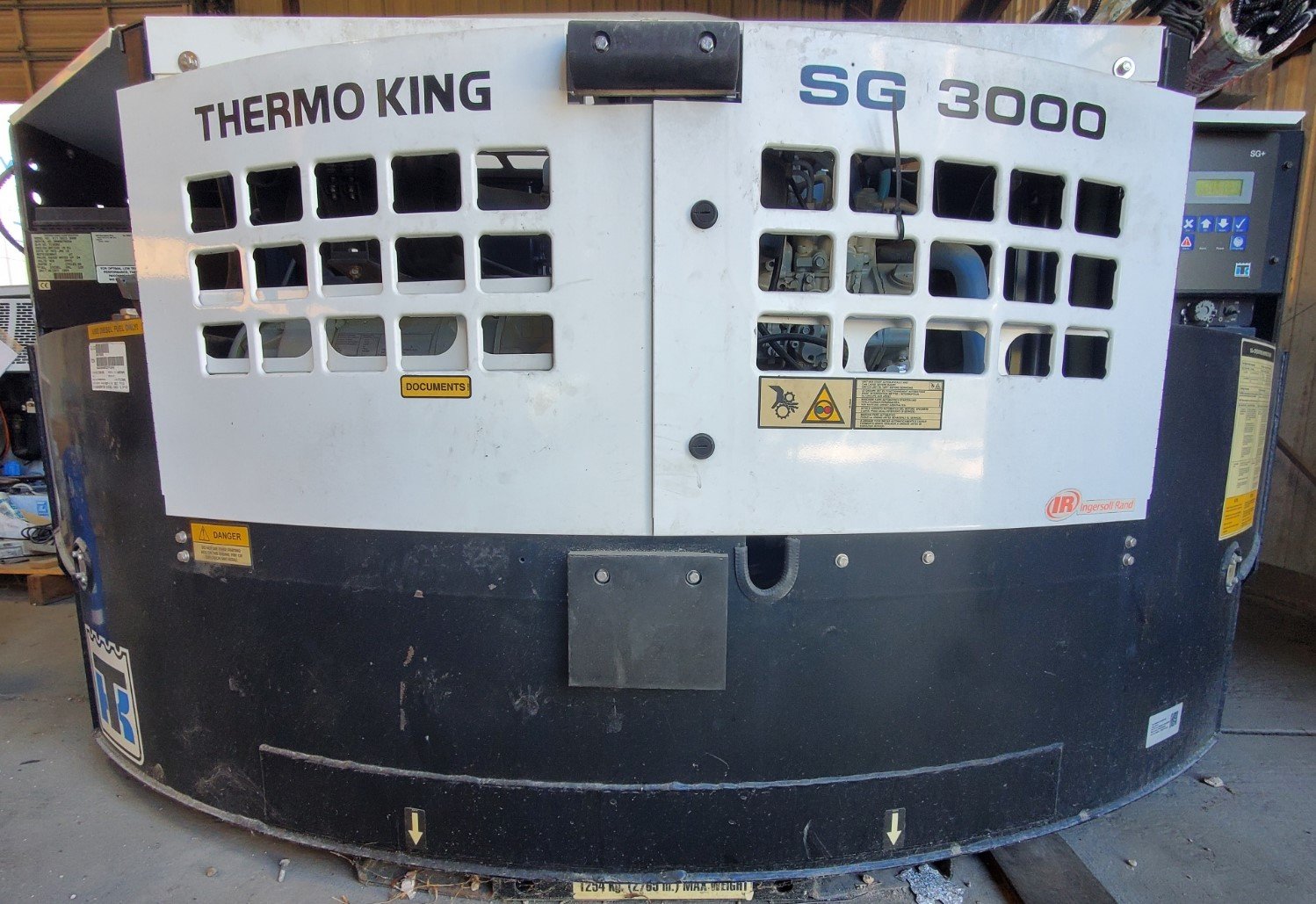

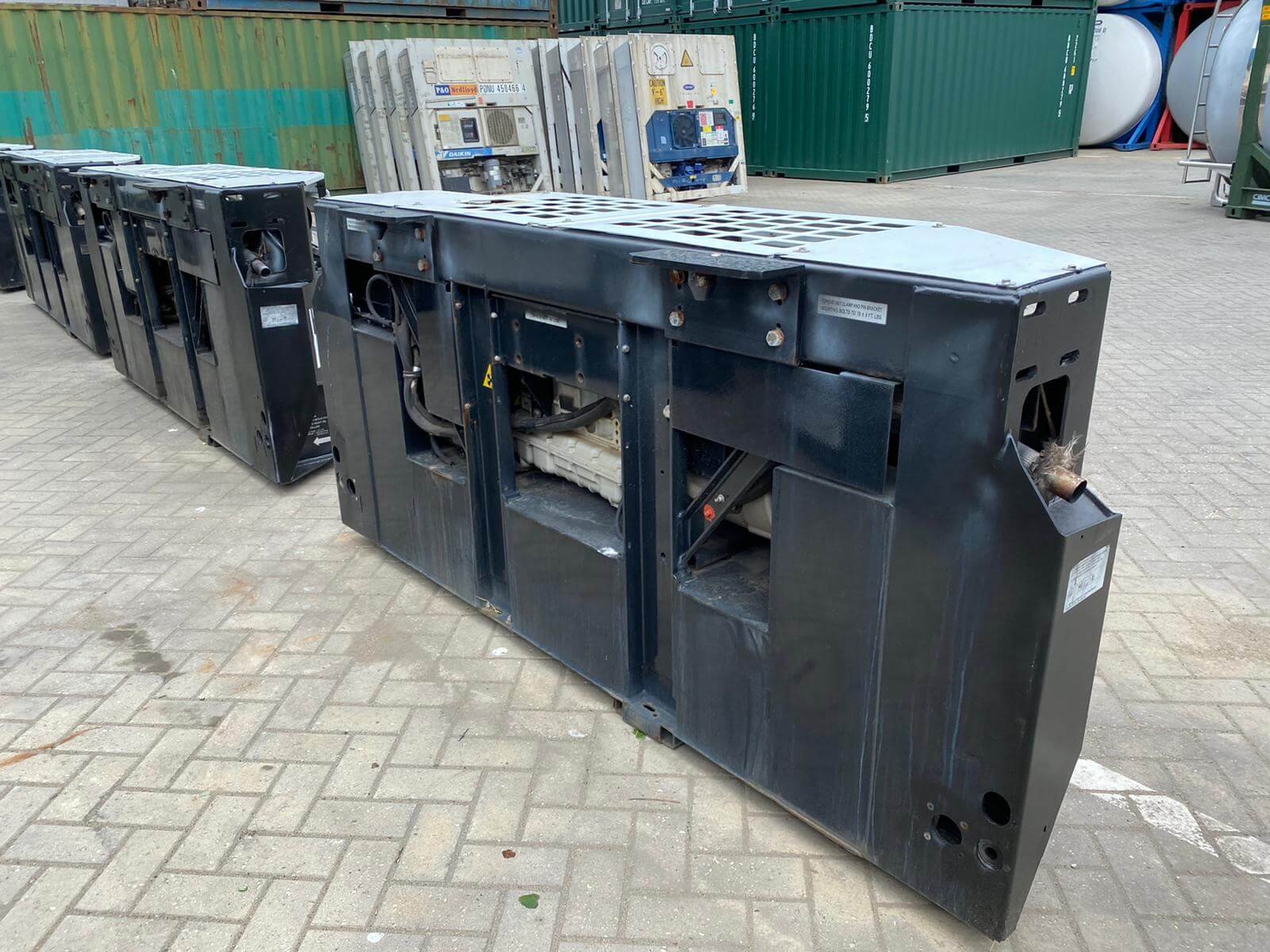

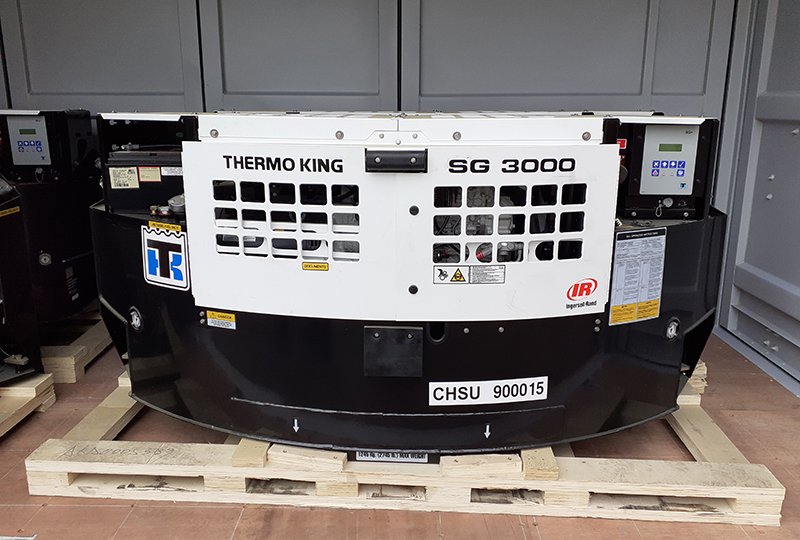

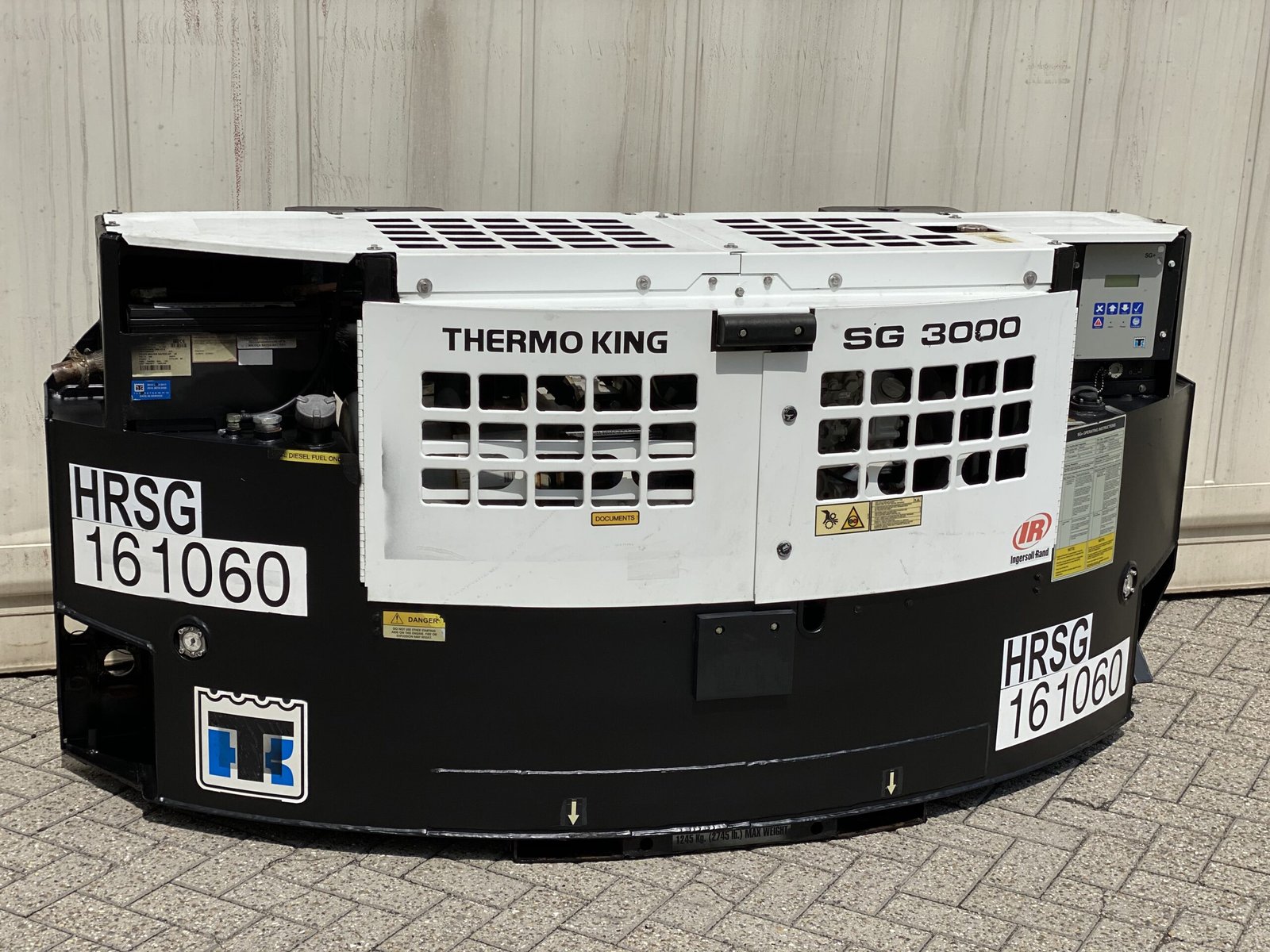

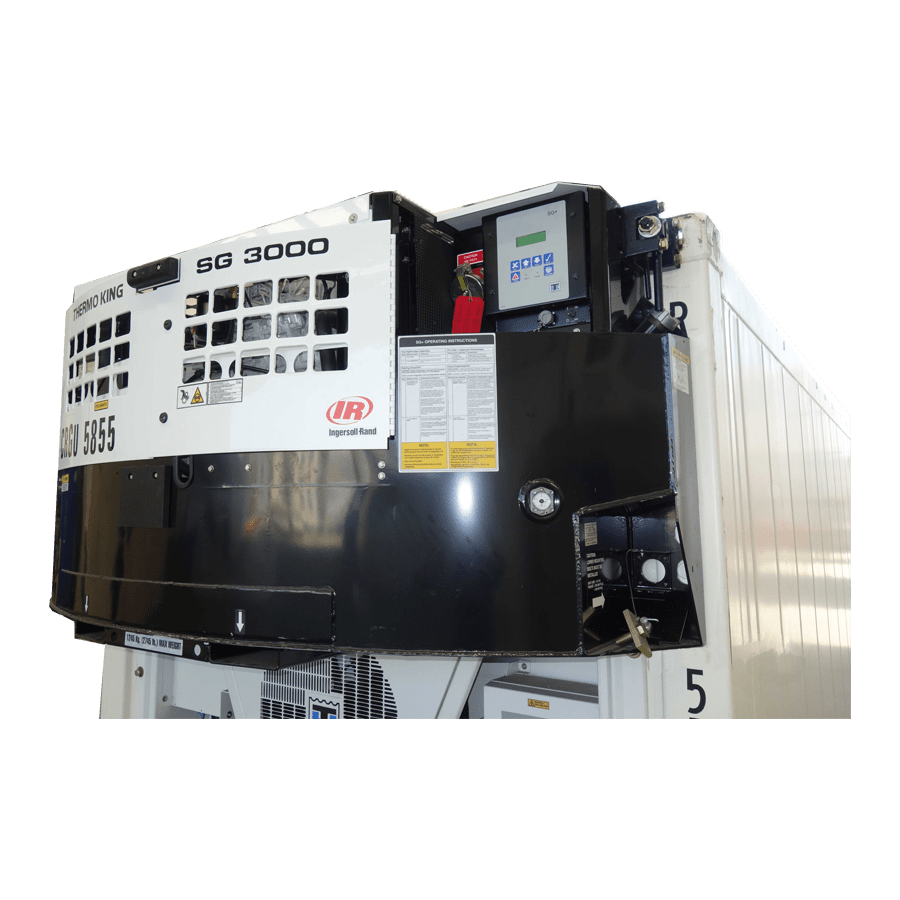

The Thermo King SG-3500 Clip-On Generator Set provides reliable, self-contained power for refrigerated shipping containers across rail, sea, and road transport. Designed specifically for ISO marine reefers, this aerodynamic clip-on genset mounts securely to container corner castings using quick-disconnect fasteners or optional pin mounting.
Powered by a 24.1 hp diesel engine with intelligent EcoPower management, the SG-3500 delivers dependable 460/230 Vac 3-phase power output with low emissions and fuel consumption. It is engineered to operate reliably in extreme conditions ranging from -40°F to 122°F (-40°C to 50°C) and at altitudes up to 10,000 ft.

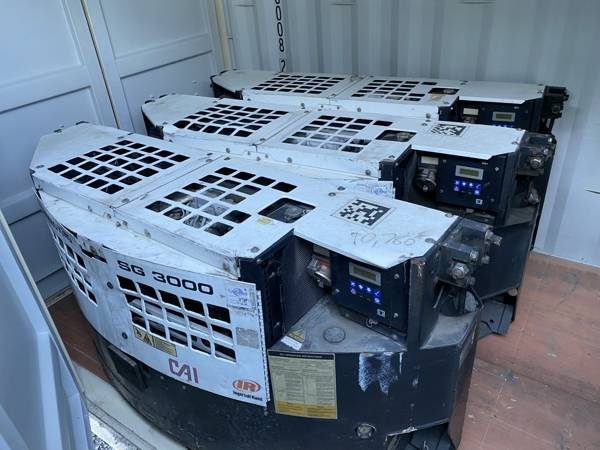

- Advanced SG+ Controller: Features an intuitive multi-language interface, automatic pre-heating, auto-restart, and advanced self-check diagnostics to prevent cargo loss.
- Extended Run Times: Equipped with a 125 gal (473 L) fuel tank and long 3,000-hour service intervals to reduce total lifecycle costs.

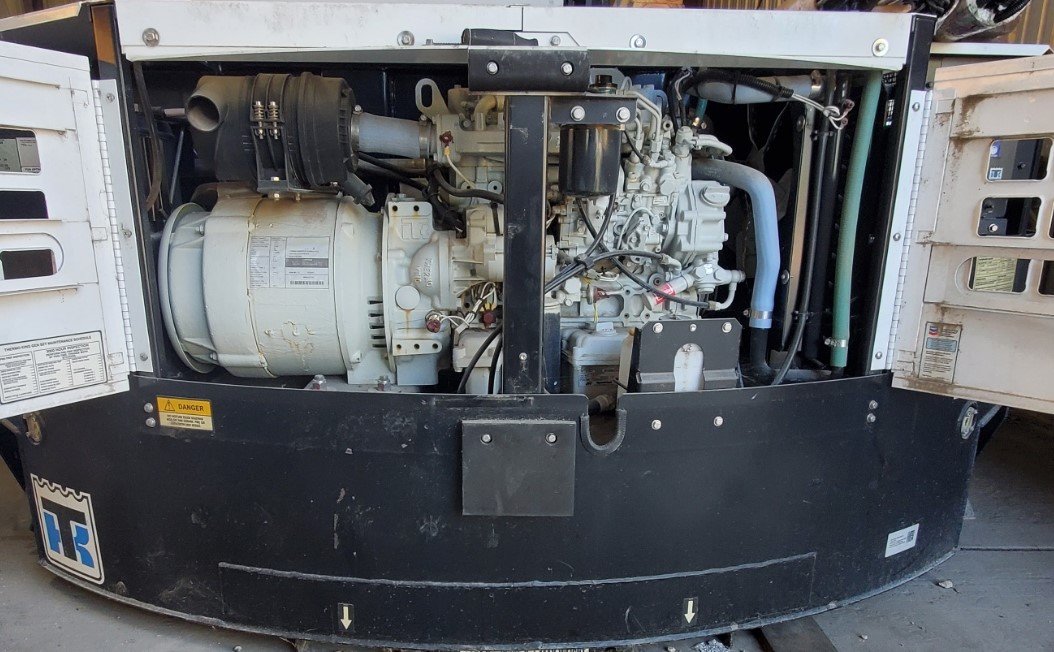

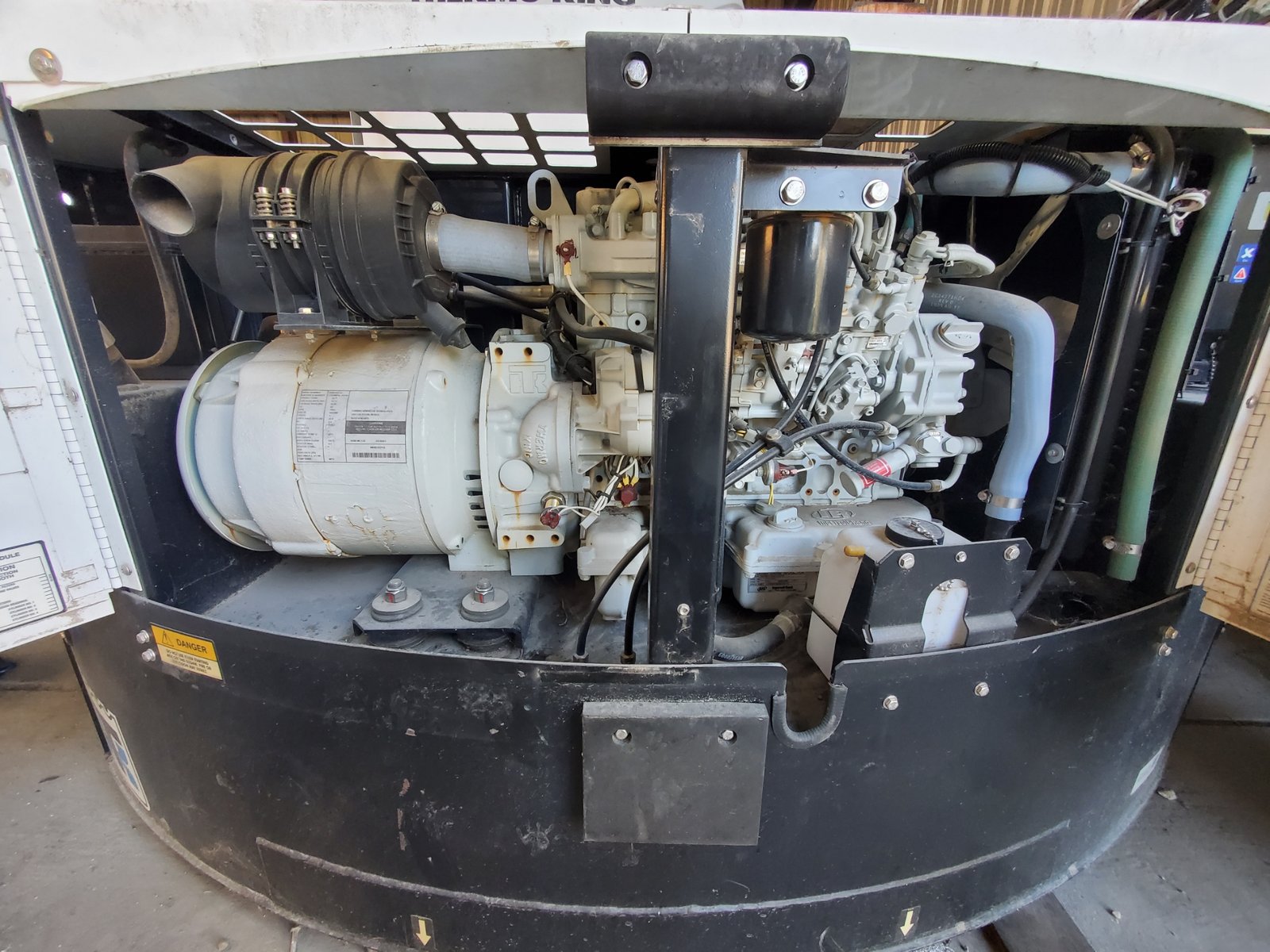

- Heavy-Duty Construction: Built with a robust steel frame, integrated forklift pockets, and a durable cast iron 2.1L engine.
- Emissions Compliance: Meets EPA Tier 4, NRMM Stage V, and CARB standards, and is approved for use with biofuels such as HVO and renewable diesel.
| Brand | Thermo King |
| Model | SG-3500 |
| Mount Type | Clip-On |
| Weight | 1804 lb |
| Fuel Tank Capacity | 125 gal |
| Engine | 2.1L Eco-Governed (cast iron) |
| Engine Power | 24.1 hp |
| Generator Output | 460/230 Vac, 3-Phase, 60Hz |
| Power Supply Output | 15 kW |
| Battery | 12V, 925 CCA at 0°F |
| Controller | SG+ microprocessor controller with auto-restart |
| Service Interval | 3,000 Hours |
| Operating Temperature Range | -40°F to 122°F (-40°C to 50°C) |
| Operating Altitude | Up to 10,000 ft |
| Forklift Pockets | Yes |
