Description

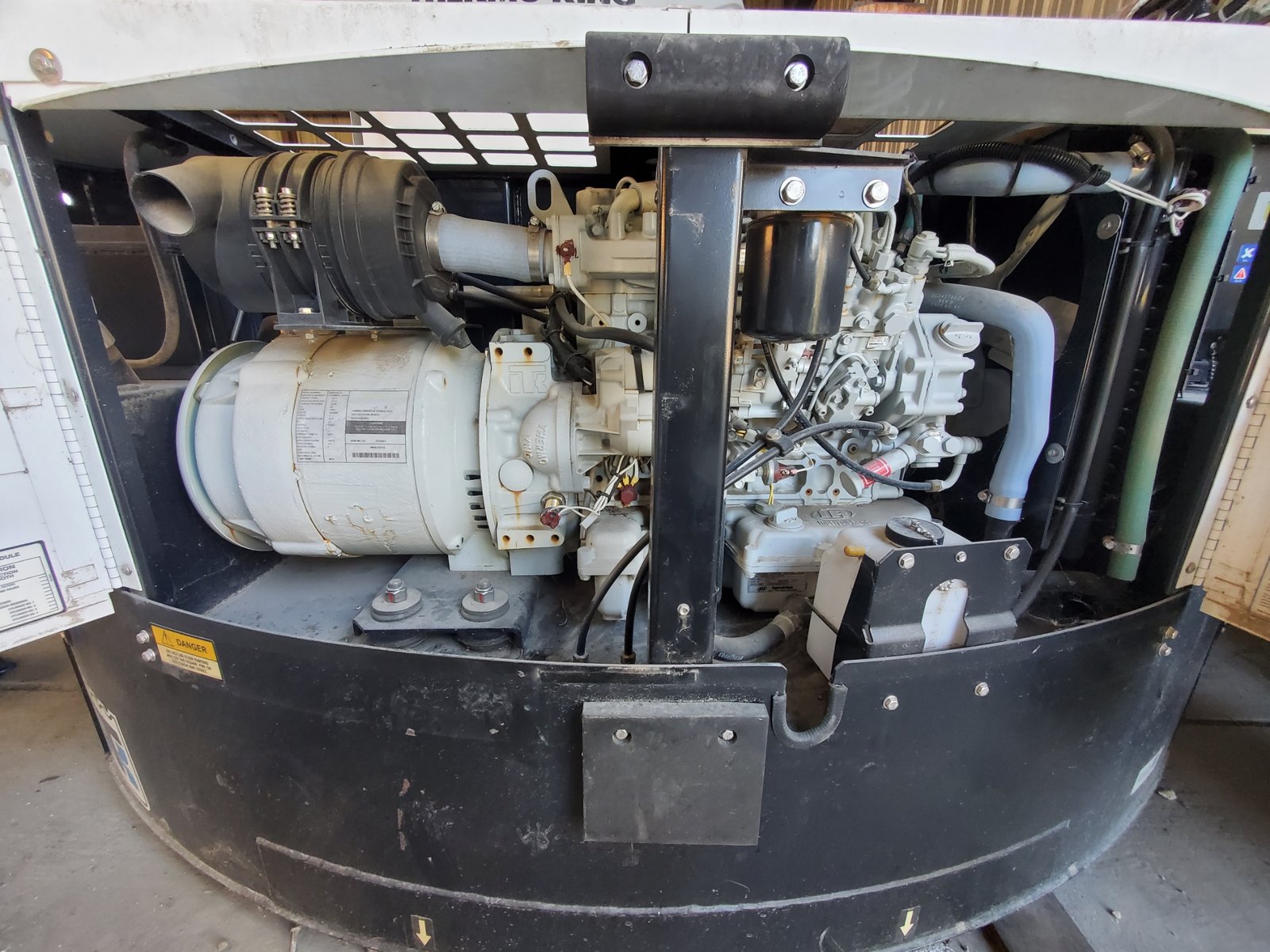

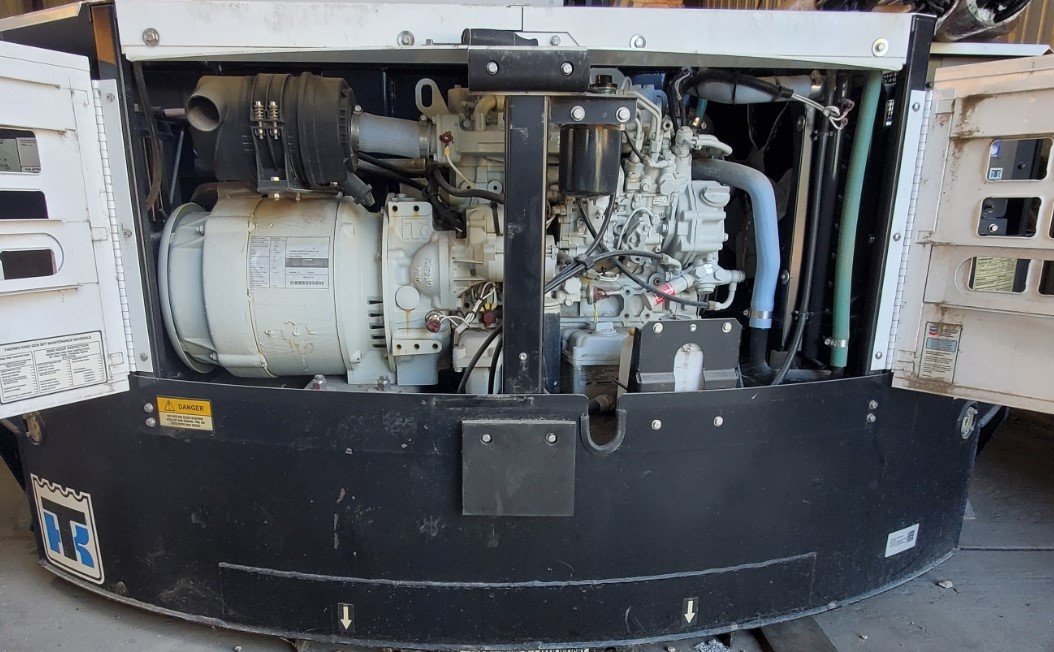

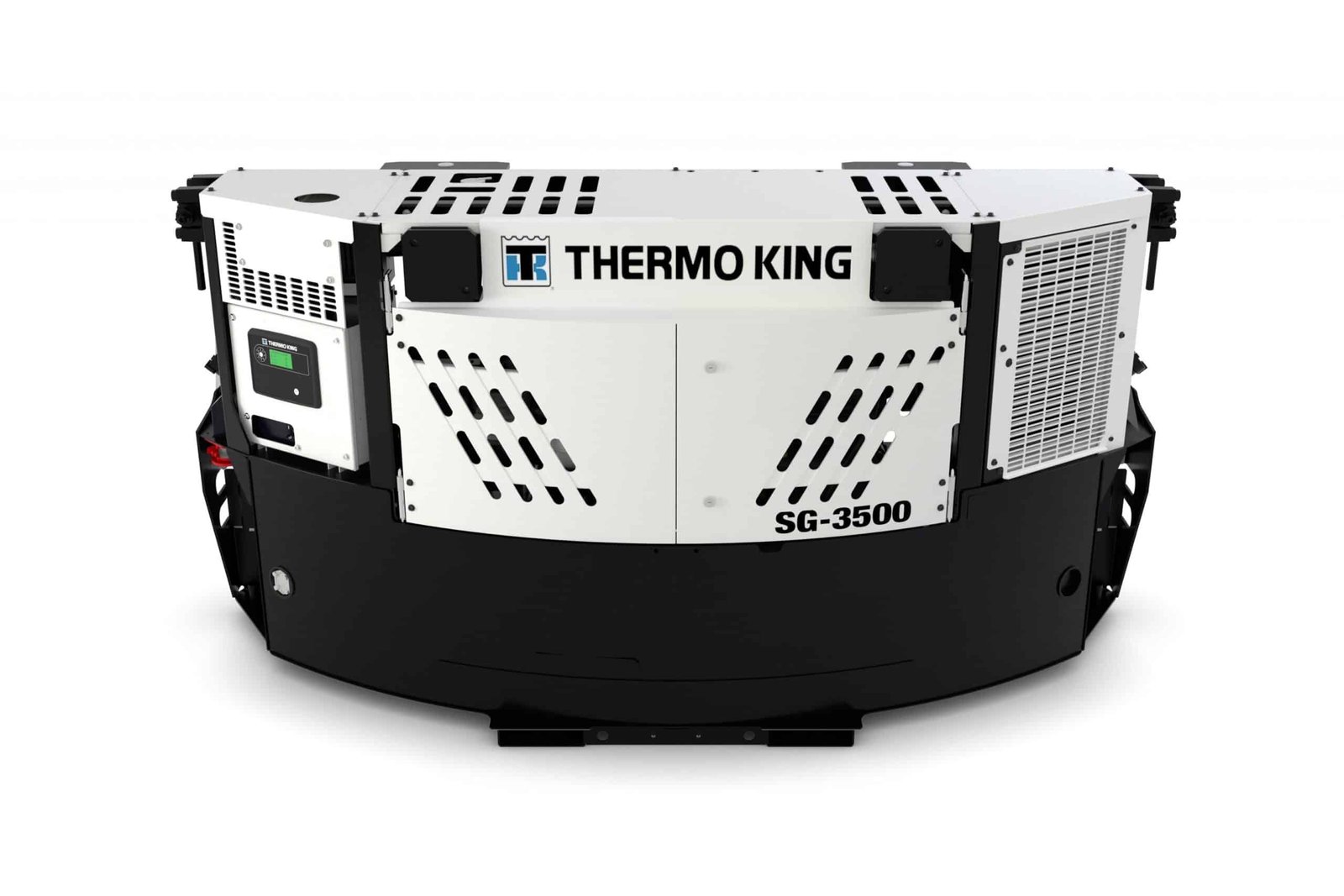

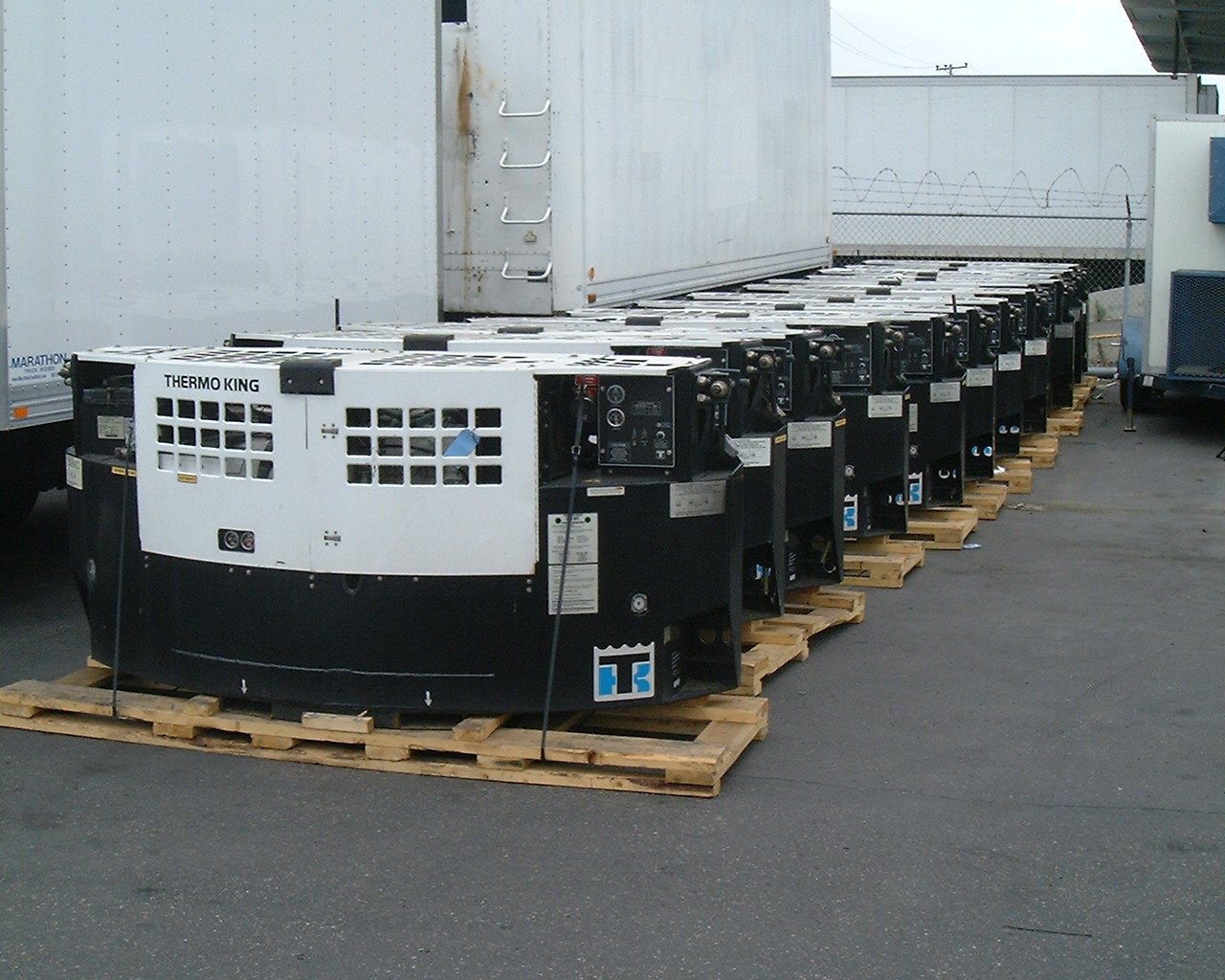

The Thermo King SG-3500 Clip-On Generator Set delivers dependable off-grid power engineered specifically for marine refrigerated containers. Powered by a 2.1L cast iron Eco-Governed diesel engine producing 24.1 HP and a 15 kW electrical output, this genset is capable of powering all ISO reefers in ambient operating temperatures ranging from -40°F to 122°F (-40°C to 50°C) and altitudes up to 10,000 ft (3,000 m).
Designed for durability and low life-cycle operating costs, the SG-3500 features extended 3,000-hour service intervals and an alternator engineered for higher capacity and reduced duty cycle times. The unit is compliant with EPA Tier 4, GB4, and NRMM Stage V emissions regulations, and is tested and approved for biofuels including hydrotreated vegetable oil (HVO), renewable diesel, and biodiesel.

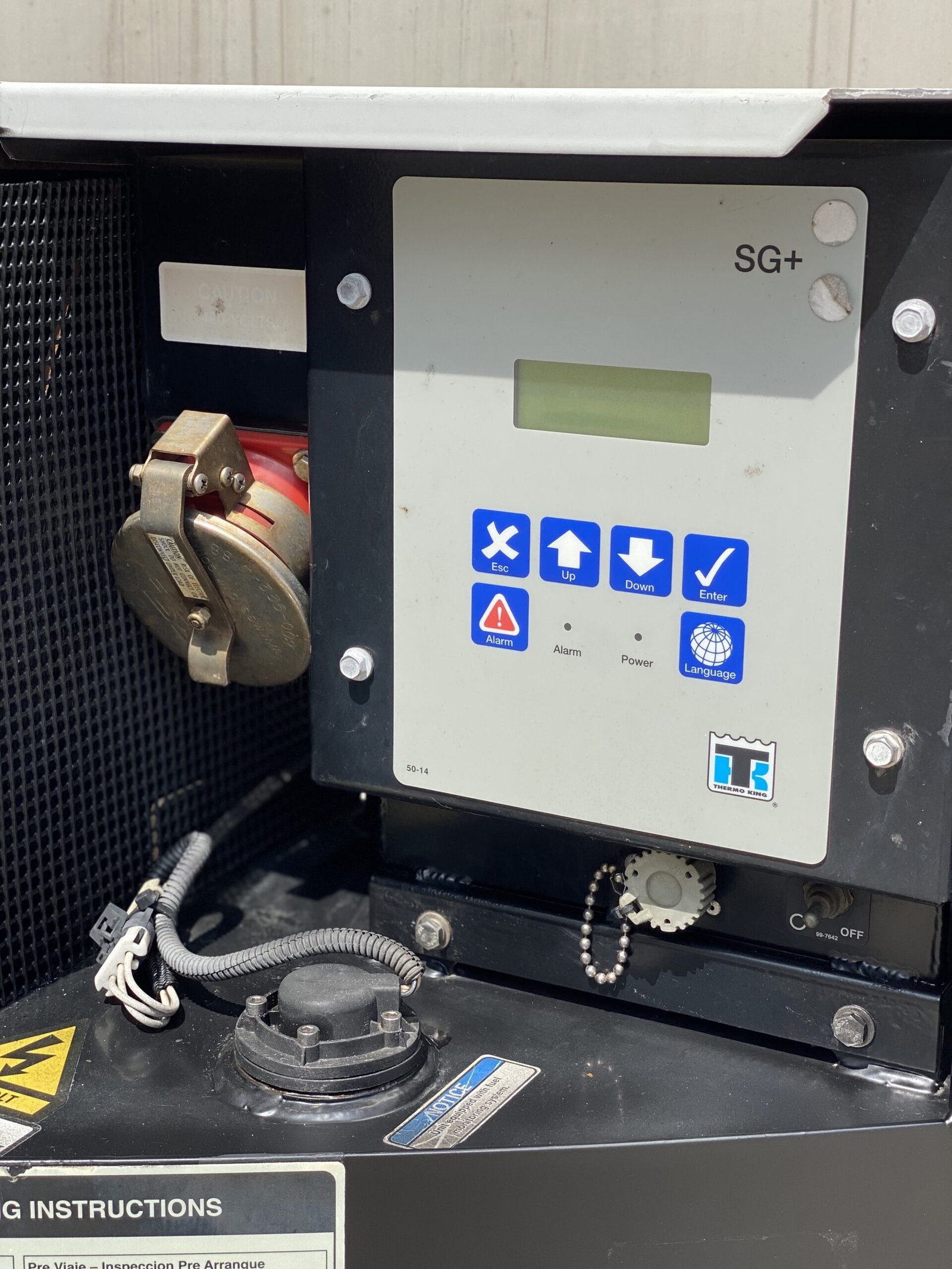

Equipped with the advanced SG+ microprocessor controller, the unit offers auto-restart functionality, manual function checks, and self-testing diagnostic capabilities. The aerodynamic clip-on frame mounts securely to container corner castings using standard quick-disconnect fasteners, pin-mount, or clamp-mount configurations, making it suitable for marine reefers, tank containers, and double-stack rail operations.
| Brand | Thermo King |
| Model | SG-3500 |
| Product Type | Clip-On Generator Set |
| Engine Type | 2.1L Eco-Governed (Cast Iron) |
| Horsepower | 24.1 HP |
| Electrical Output | 15 kW |
| Generator Output | 460/230 Vac, 3-Phase, 60Hz |
| Controller | SG+ Microprocessor Controller |
| Fuel Tank Capacity | 125 gal (473 L) |
| Weight | 1804 lb |
| Service Interval | 3,000 Hours |
| Operational Lifetime | 25,000 Hours |
| Operating Temperature Range | -40°F to 122°F (-40°C to 50°C) |
| Battery | 12V, 925 CCA at 0°F |
| Emissions Compliance | EPA Tier 4, NRMM Stage V, GB4 |
| Fuel Compatibility | Diesel, HVO, Renewable Diesel, Biodiesel |
| Mounting System | Corner Casting Quick-Disconnect / Pin-Mount / Clamp-Mount |
