Description
The Thermo King SG-3500 Clip-On Generator Set provides a reliable, self-contained, and fuel-efficient power supply designed specifically for marine refrigerated containers (ISO reefers). Powered by a 24.1 HP, 2.1L eco-governed cast-iron diesel engine, the SG-3500 delivers 15 kW of electrical output to maintain the cold chain during railcar, double stacking, or off-grid transport.
Key Features & Performance
- Efficient Power Delivery: Generates 15 kW electrical output with 460/230 Vac, 3-Phase, 60Hz power supply to run any ISO reefer container off-grid.
- Robust Engine Design: 2.1L cast-iron engine tested for continuous operation in extreme climates from -40°F to 122°F (-40°C to 50°C) and altitudes up to 10,000 ft (3,000 m).
- SG+ Microprocessor Controller: Features variable-speed engine management, auto-restart to prevent cargo loss, pre-heat start, and built-in self-checking diagnostics.
- Emission & Fuel Compliance: Approved for renewable fuels including HVO, Renewable Diesel, and Biodiesel. Meets NRMM Stage V, EPA Tier 4 / Interim Tier 4, and GB4 standards.
- Extended Service Life: Lowers lifecycle costs with long maintenance intervals of up to 3,000 operational hours between services.

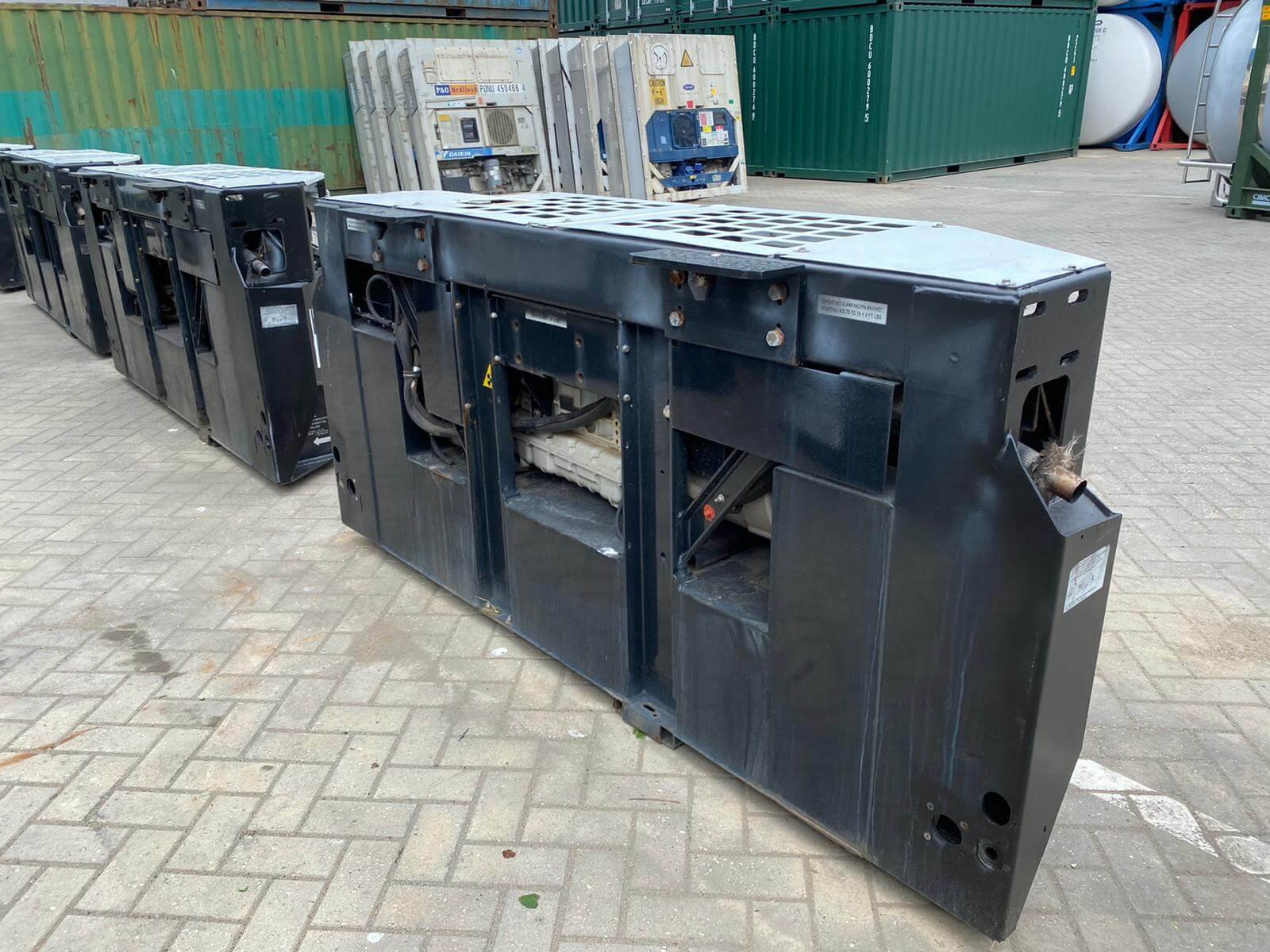

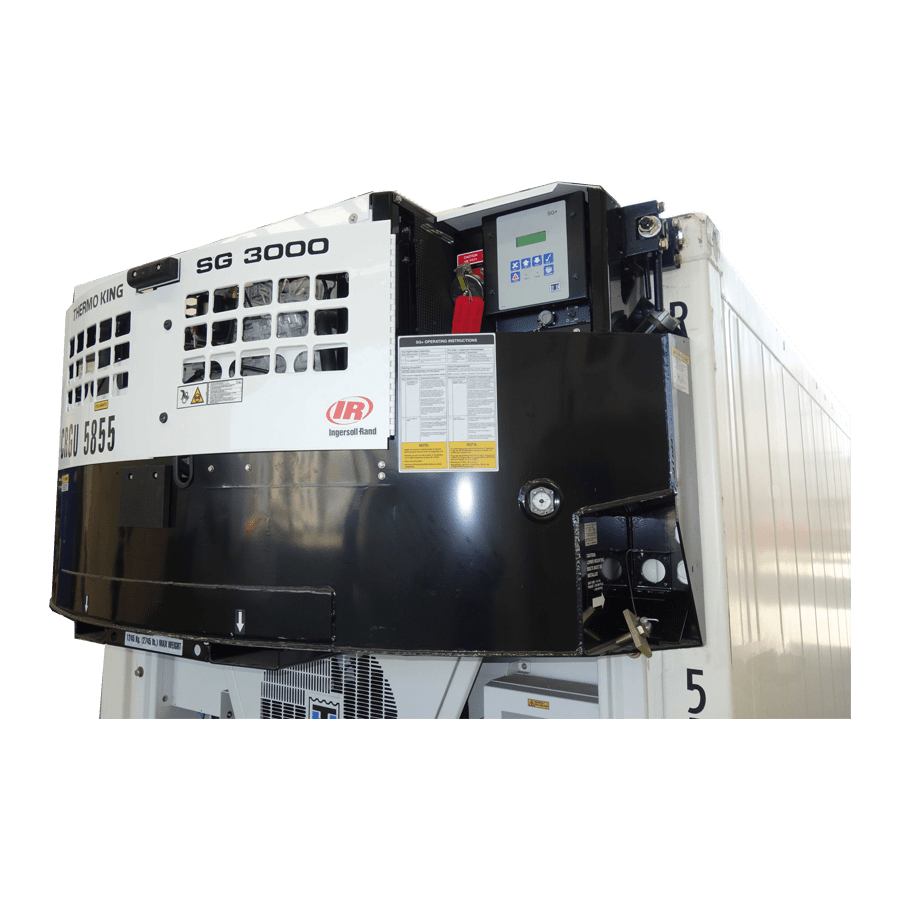

- Mounting & Handling: Clip-on aerodynamic design equipped with forklift pockets and compatible with quick-disconnect corner casting fasteners or pin mounting.
| Brand | Thermo King |
| Model | SG-3500 |
| Product Type | Clip-On Generator Set |
| Power Output | 15 kW |

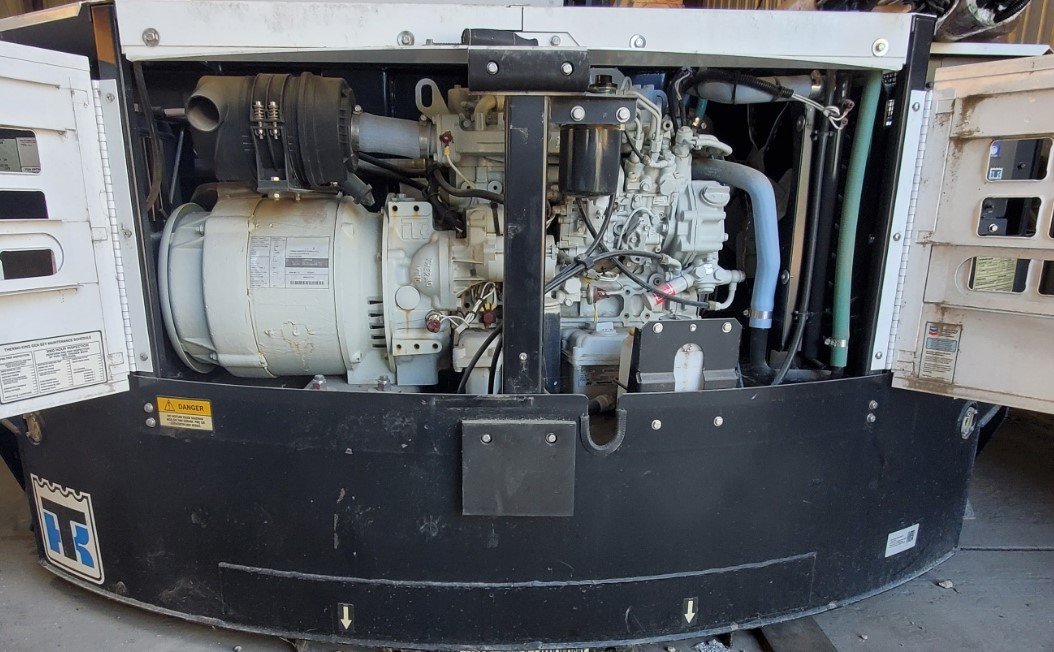

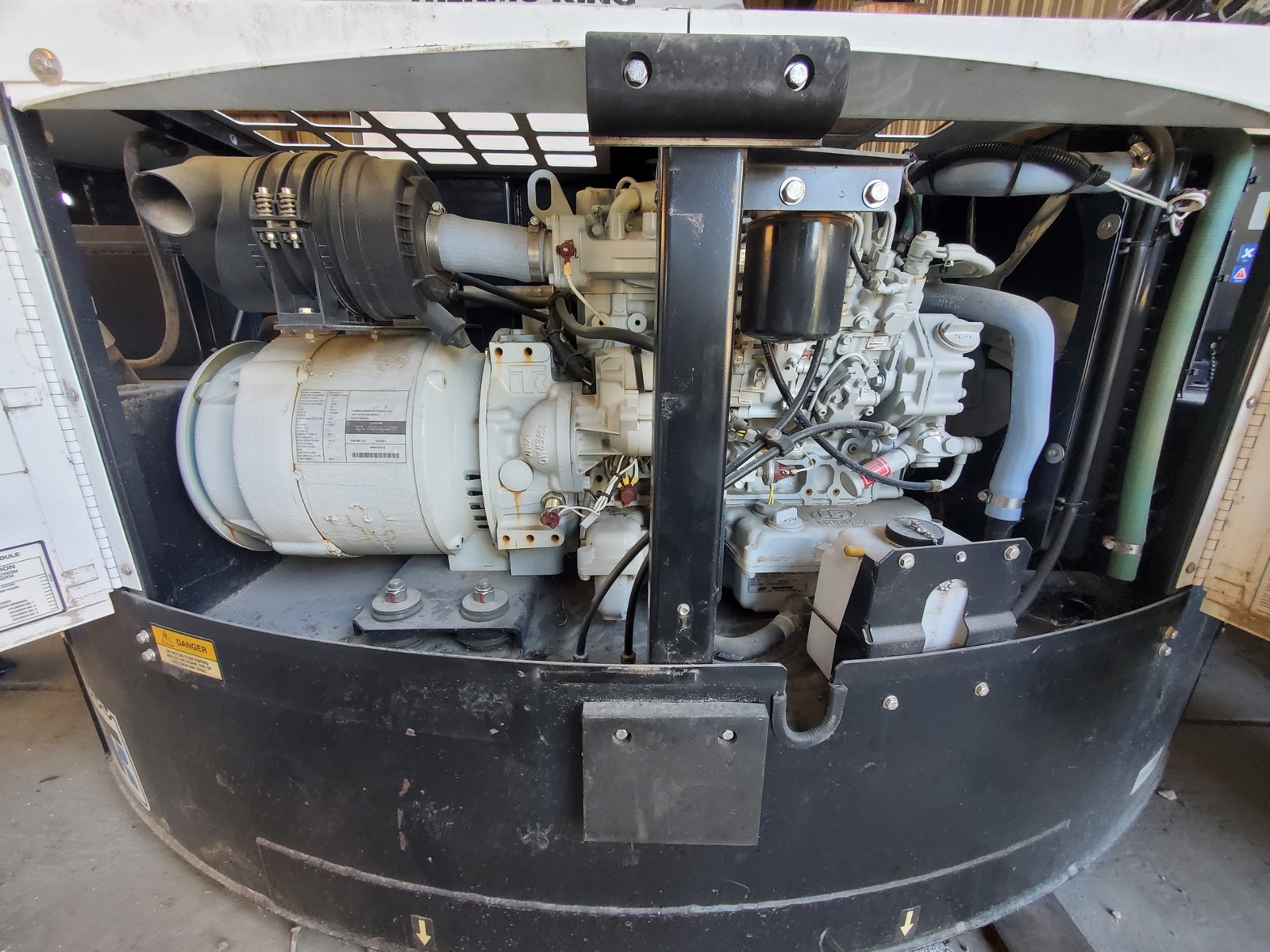

| Engine | 2.1L Eco-Governed 24.1 HP Diesel |
| Generator Output | 460/230 Vac, 3-Phase, 60Hz |
| Fuel Tank Capacity | 125 gal (473 L) |
| Weight | 1,804 lbs |
| Service Interval | 3,000 Hours |
| Controller | SG+ Microprocessor |
| Battery | 12V, 925 CCA at 0°F |
| Operating Temperature Range | -40°F to 122°F (-40°C to 50°C) |
| Emissions Compliance | EPA Tier 4, NRMM Stage V, GB4 |
| Forklift Pockets | Yes |
