Description

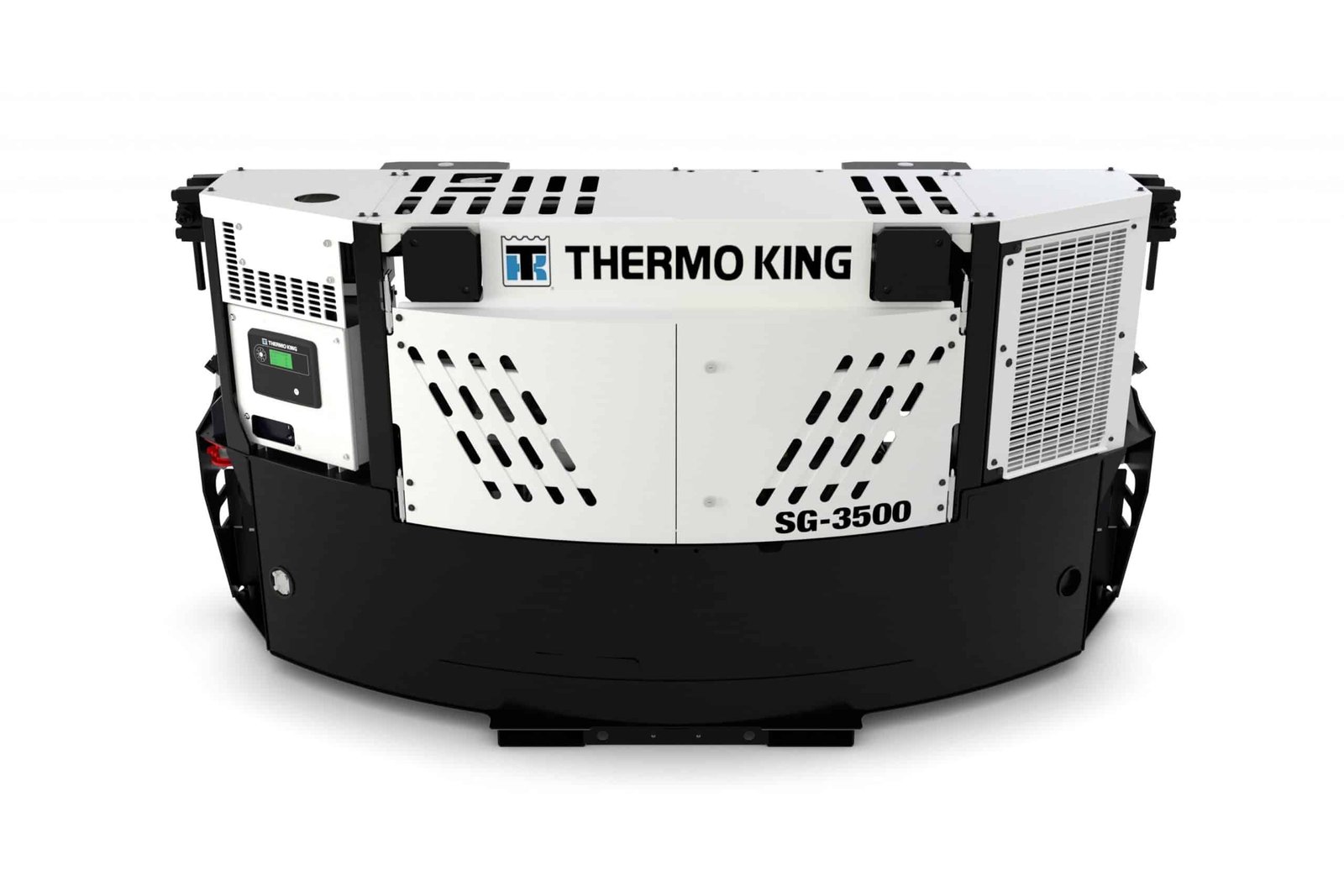

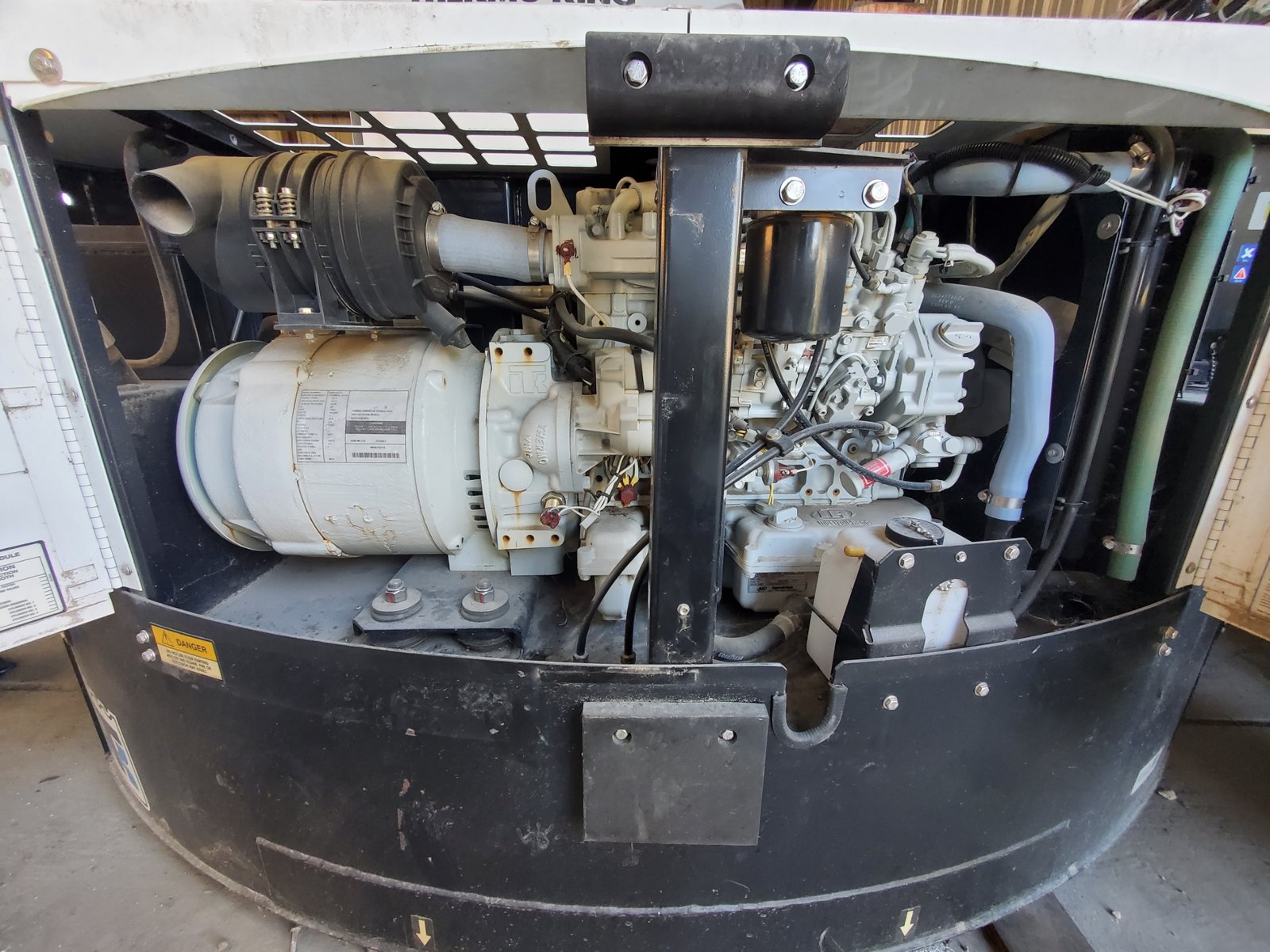

The Thermo King SG-3500 Clip-On Genset provides dependable, fuel-efficient power engineered specifically for marine refrigerated containers. Powered by a robust 2.1L cast iron diesel engine producing 24.1 HP, this generator set delivers reliable performance across extreme temperature ranges from -40°F to 122°F (-40°C to 50°C) and altitudes up to 10,000 feet.
Featuring intelligent voltage regulation compliant with ISO 1496 standards, the SG-3500 ensures steady 460/230 Vac 3-phase power output for ISO reefers. Advanced SG+ microprocessor controls offer automated pre-heating, auto-restart capabilities to minimize cargo risk, and extensive self-check diagnostic routines. Designed with sustainability in mind, the unit is approved for standard diesel and biofuels such as HVO, meeting EPA Tier 4 and NRMM Stage V regulatory standards.
| Brand | Thermo King |
| Model | SG-3500 |
| Product Type | Clip-On Generator Set |

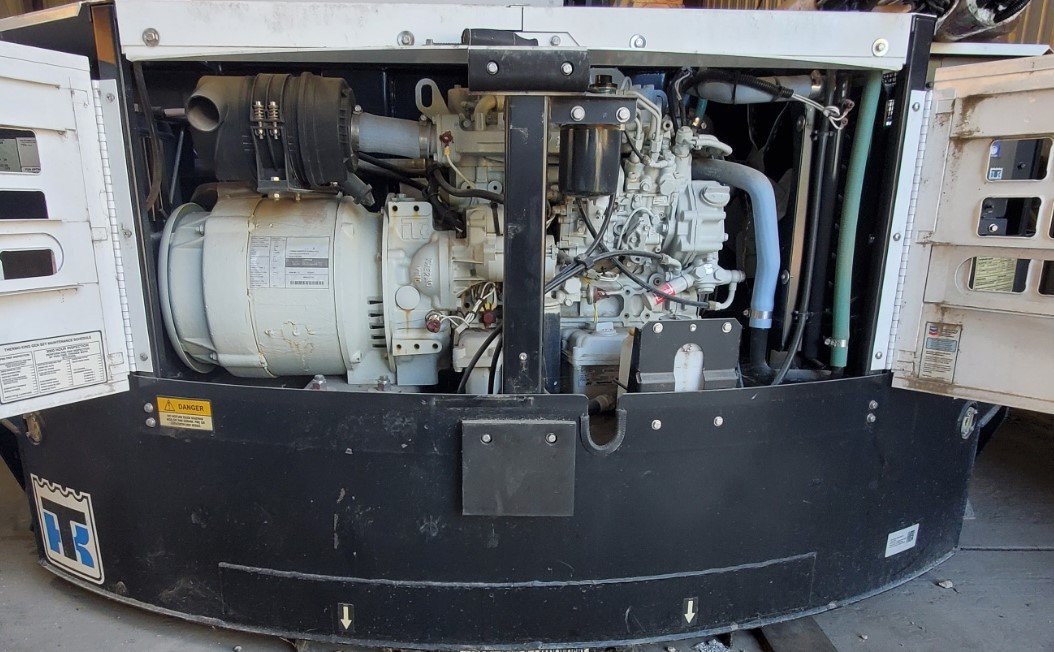

| Engine | 2.1L Eco-Governed Diesel Engine (24.1 HP) |
| Generator Output | 460/230 Vac, 3-Phase, 60Hz (15kW) |
| Weight | 1,804 lbs |
| Fuel Tank Capacity | 125 gal (473 L) |

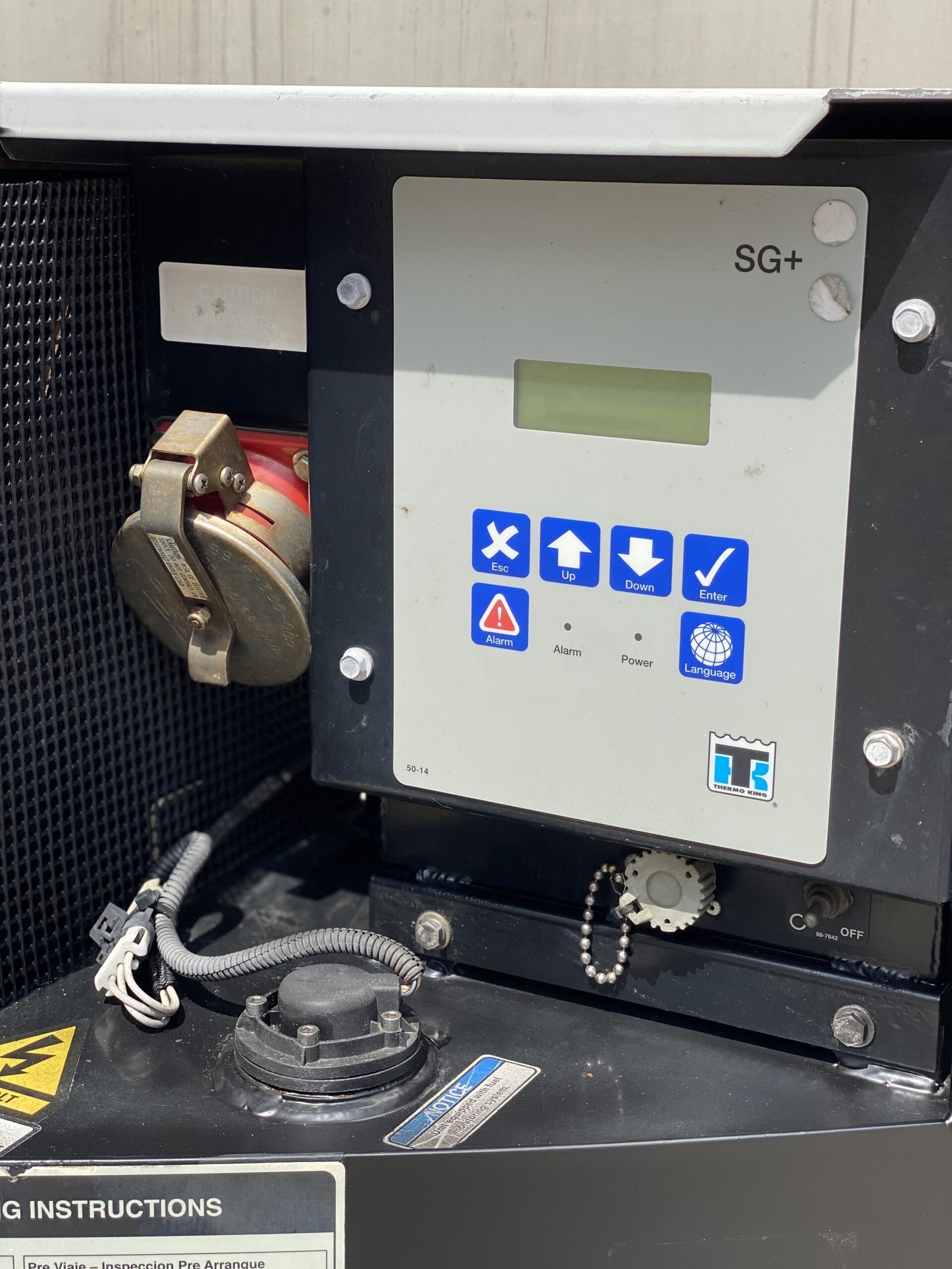

| Controller | SG+ microprocessor controller with auto-restart and diagnostics |
| Battery | 12V, 925 CCA at 0°F |
| Operating Temperature Range | -40°F to 122°F (-40°C to 50°C) |
| Service Interval | 3,000 Hours |
| Safety Controls | Low oil pressure, high water temperature shut-off |
| Forklift Pockets | Yes |
| Remote Monitoring | Optional |
