Description

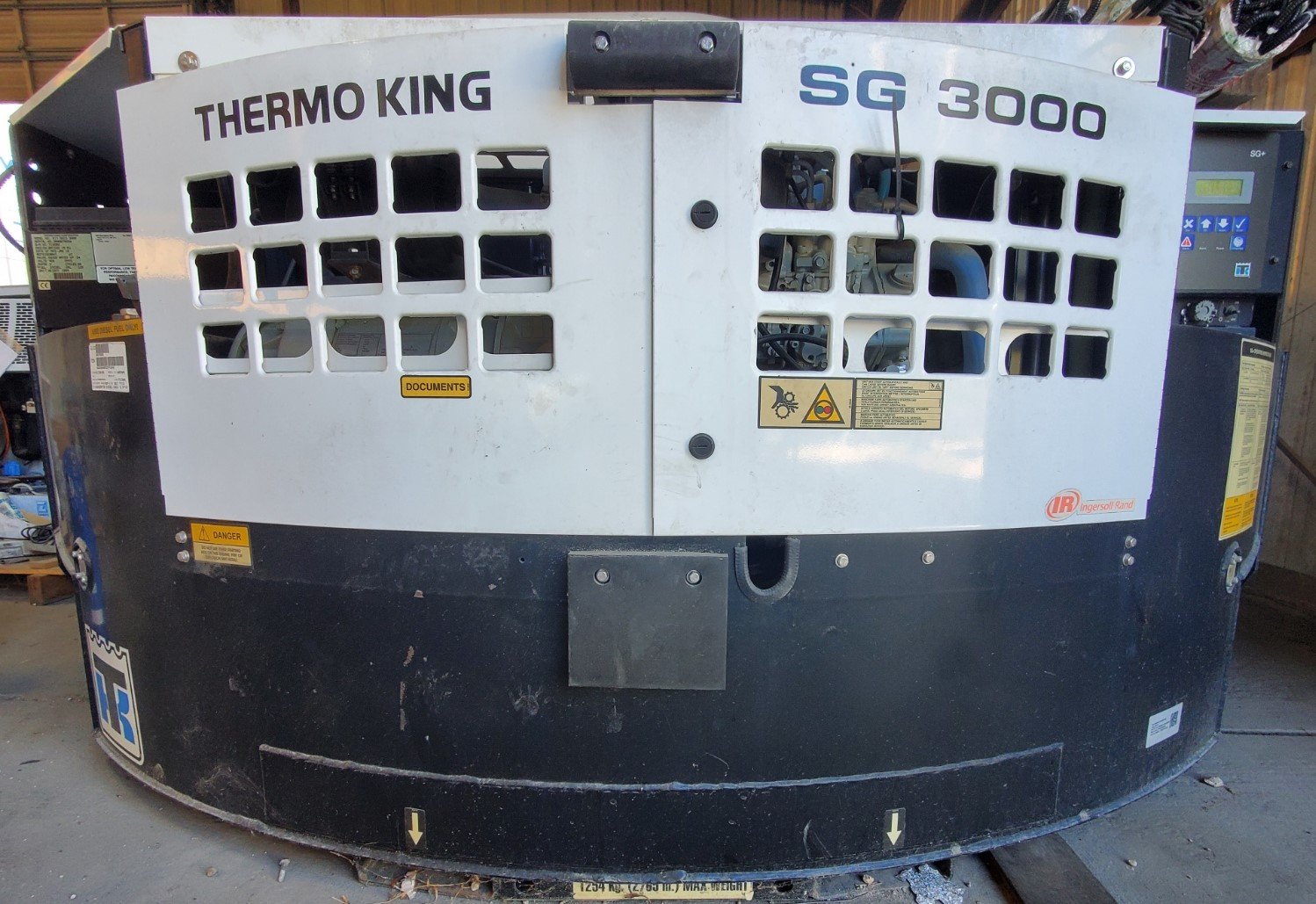

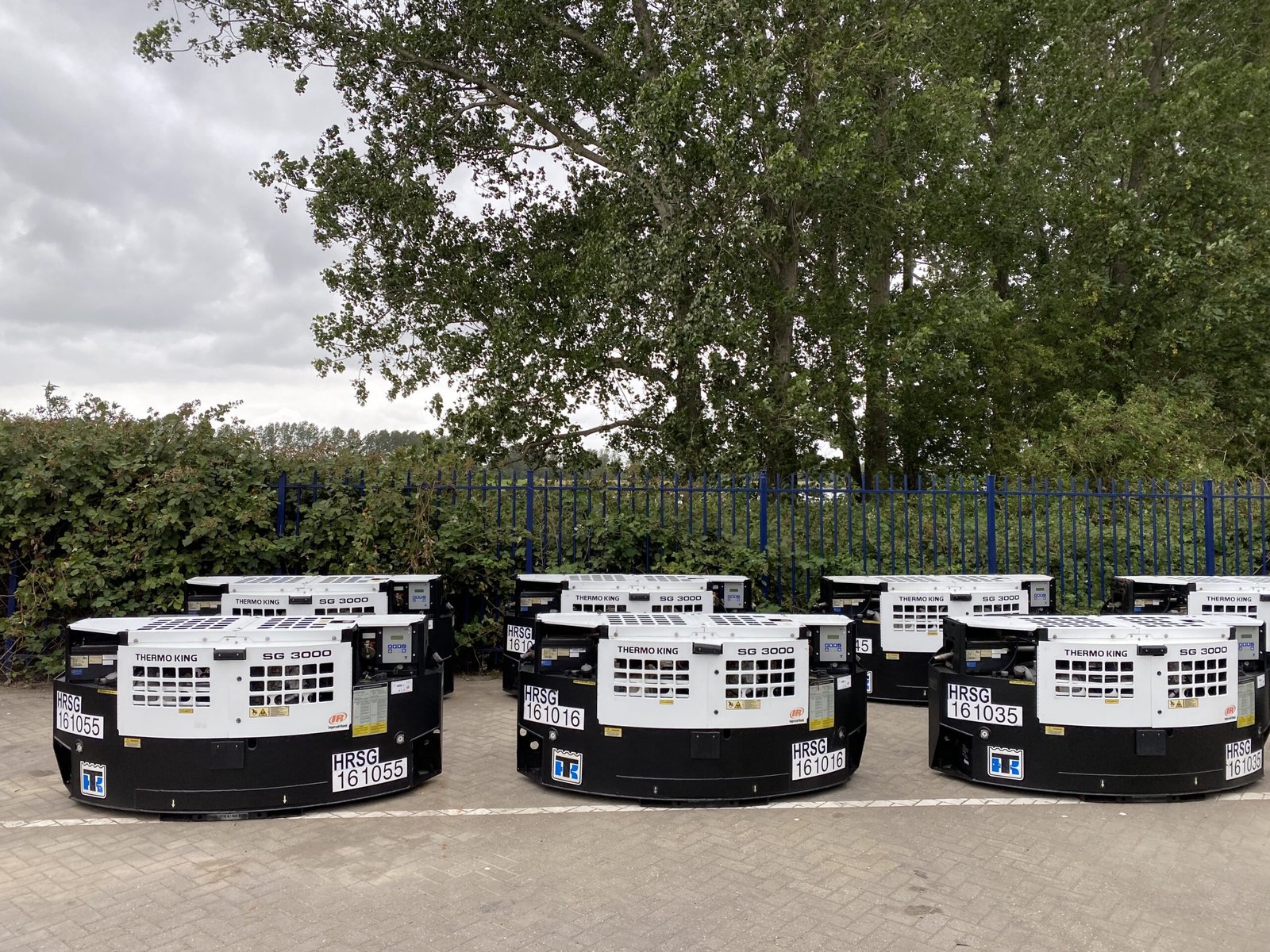

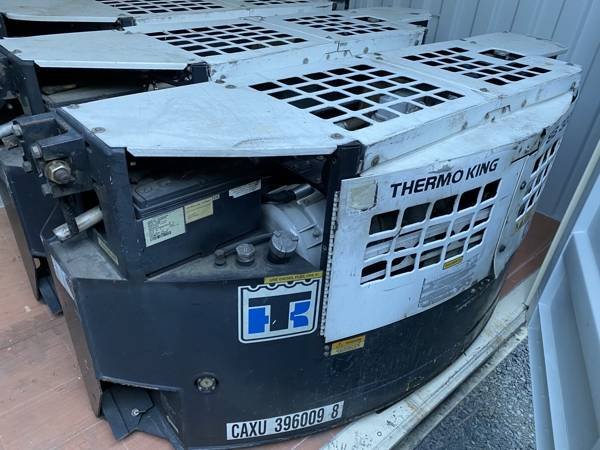

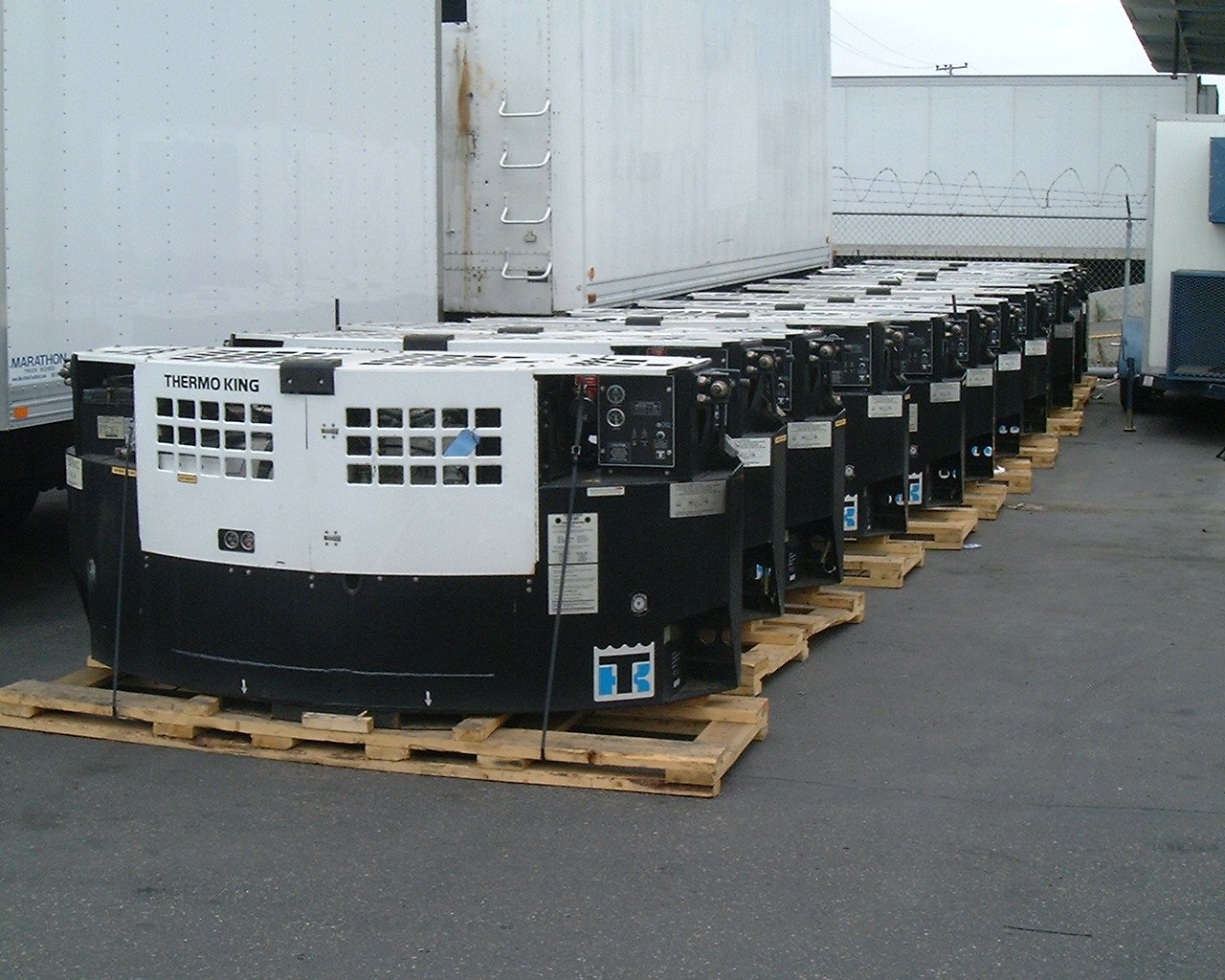

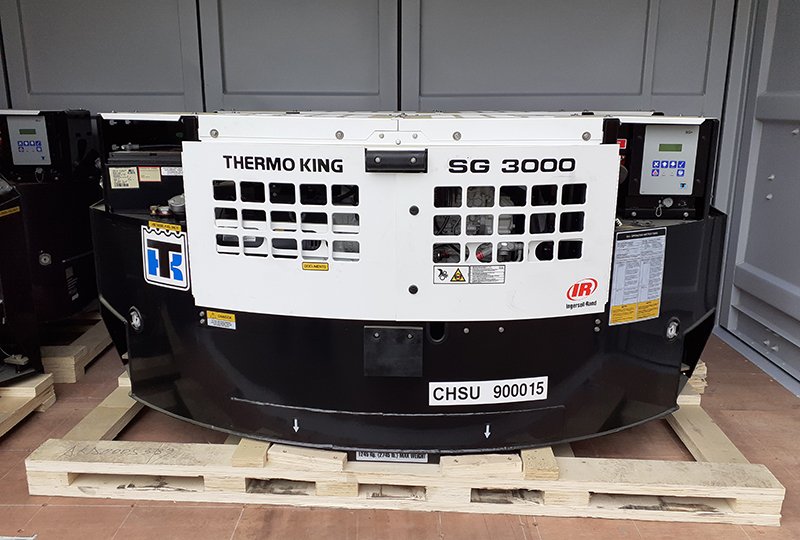

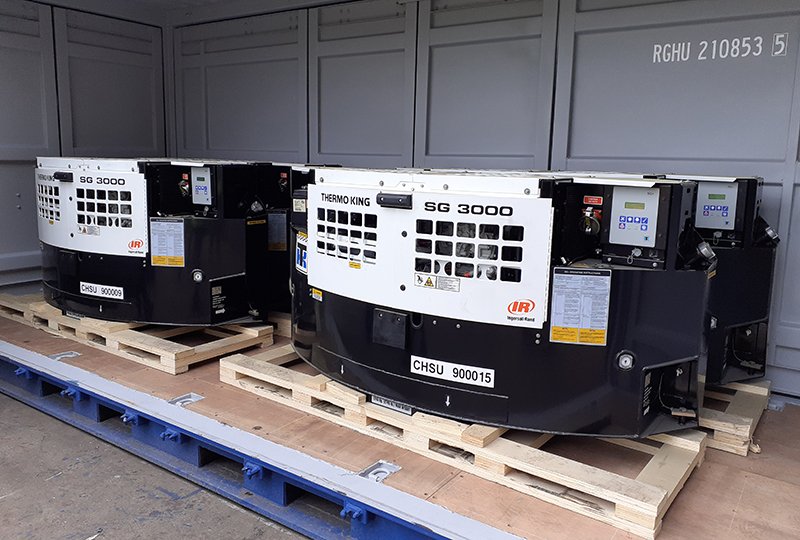

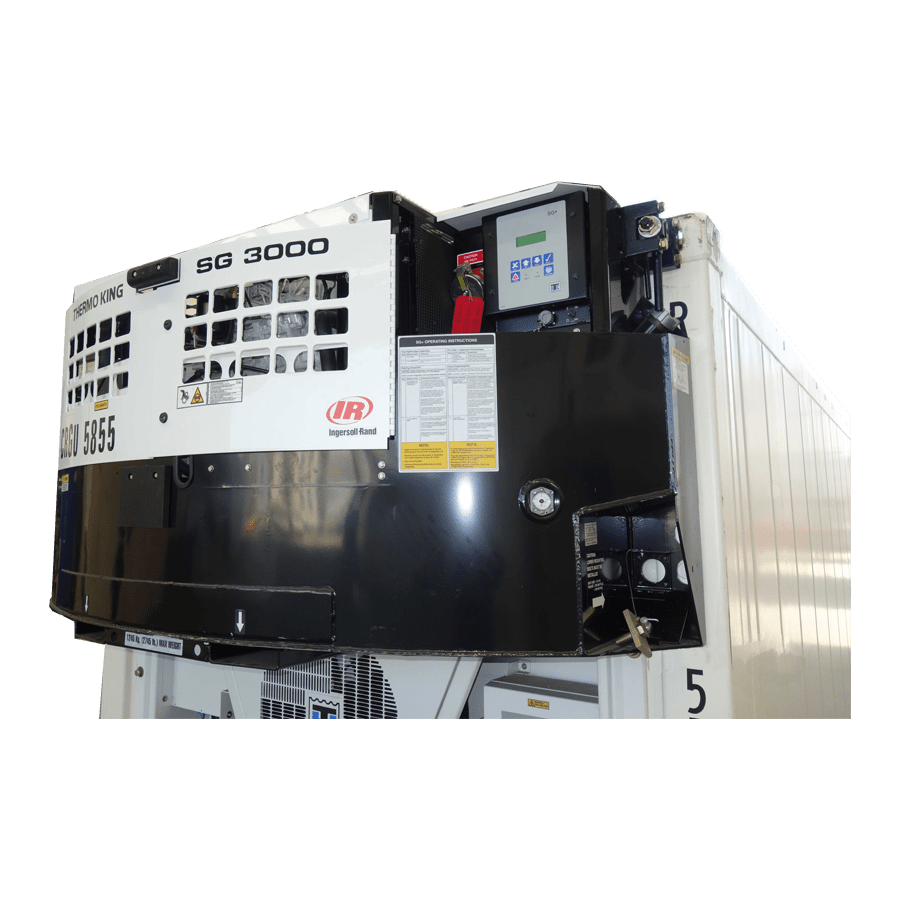

The Thermo King SG-3500 Clip-On Genset provides a reliable, self-contained mobile power source designed specifically for marine refrigerated containers, railcars, and double-stack intermodal transport. Delivering high-efficiency power management, this genset mounts securely to container corner castings via quick-disconnect fasteners or optional header pin mounting.
Key Features & Performance
- EcoPower Technology: Enhanced operation mode delivers intelligent engine management for reduced emissions, maximum fuel savings, and load-independent voltage regulation.

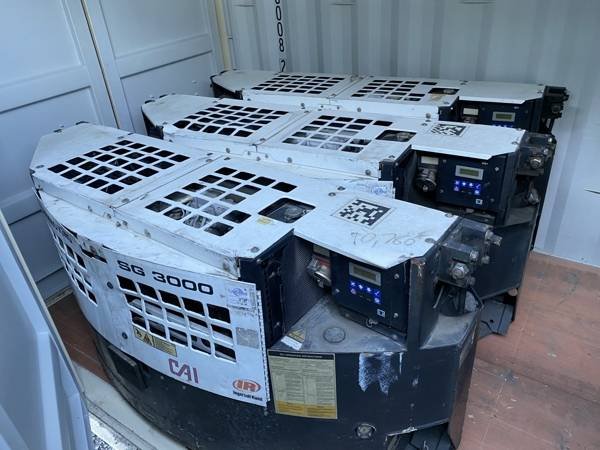

- Advanced SG+ Controller: Features automated pre-heating, auto-restart to prevent cargo loss, pre-trip testing, and comprehensive self-checking diagnostic capabilities.

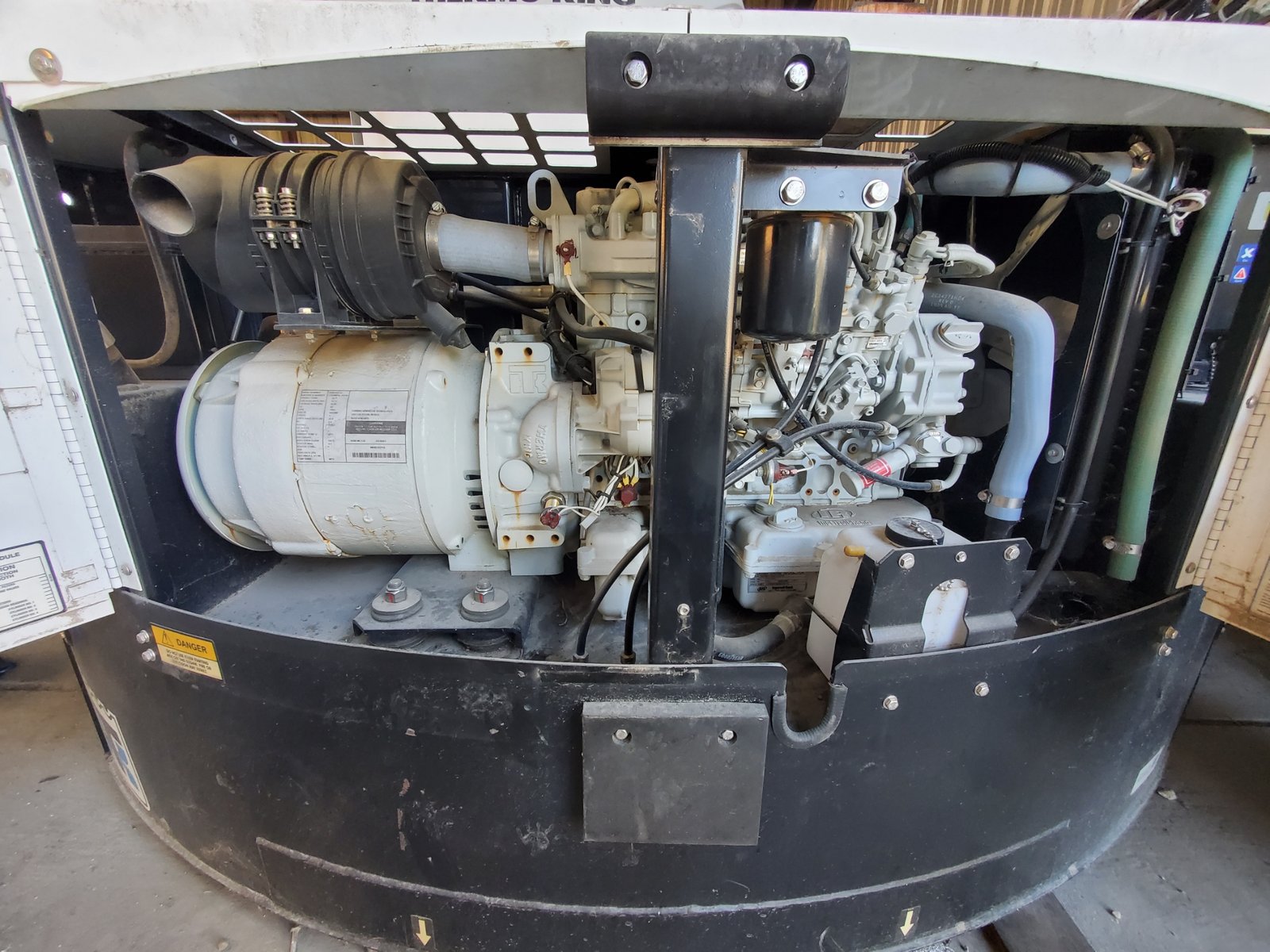

- Robust Power Delivery: Provides 460/230 Vac 3-Phase power at 60Hz, driven by a reliable Thermo King diesel engine.
- Extended Service Intervals: Designed with extended 3,000-hour maintenance intervals and a large 125-gallon (473 L) fuel capacity to minimize lifecycle operating costs.
- Handling & Telematics: Integrated forklift pockets for straightforward handling, with optional remote monitoring and telematics tracking capabilities.
| Brand | Thermo King |
| Model | SG-3500 |
| Product Type | Clip-On Genset |

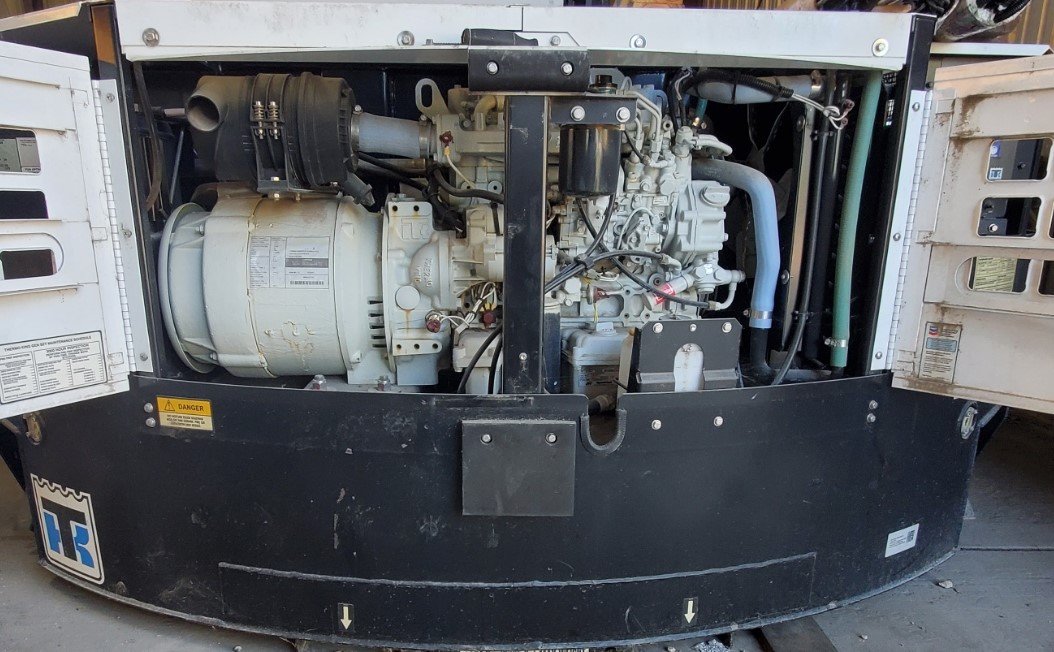

| Engine | TK Diesel engine compliant with Interim Tier 4 2008 requirements |
| Generator Output | 460/230 Vac, 3-Phase, 60Hz |
| Fuel Tank Capacity | 125 gal (473 L) |
| Weight | 1,804 lbs |
| Battery | 12V, 925 CCA at 0°F |
| Controller | SG+ microprocessor controller with auto-restart, pre-heating, and diagnostics |
| Service Interval | 3,000 Hours |
| Safety Stop Controls | Low pressure, high water temperature |
| Forklift Pockets | Yes |
| Remote Monitoring | Optional |
