Description

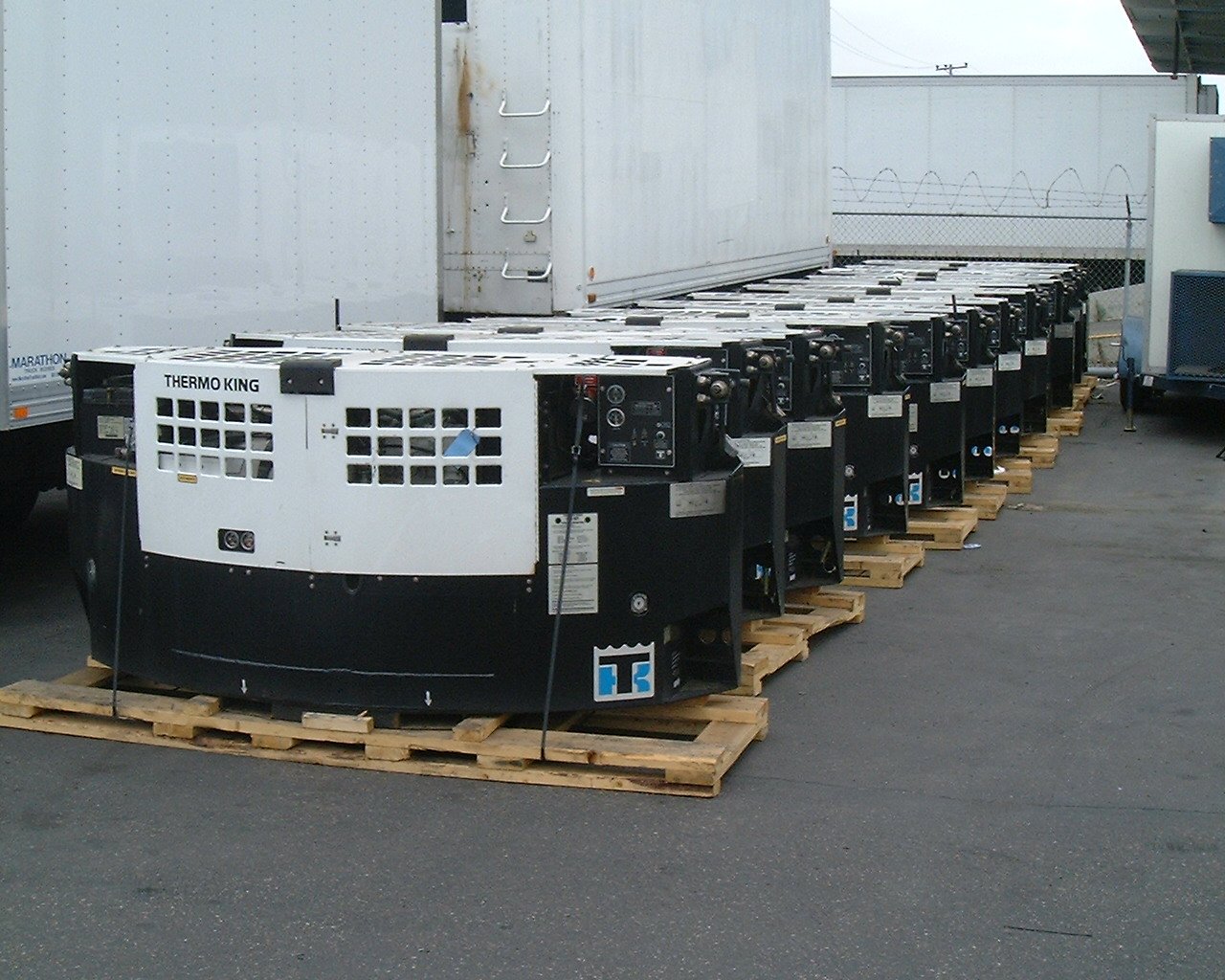

The Thermo King SG-3500 Clip-On Genset is engineered to deliver reliable, fuel-efficient mobile power for refrigerated marine containers (reefers) and tank containers. Featuring a 2.1L eco-governed cast iron diesel engine producing 24.1 HP and a 15 kW electrical output, this generator set ensures continuous temperature control off-grid, across rail, road, and maritime transit.
Key Features & Technology
- SG+ Microprocessor Controller: Features variable-speed engine management, automatic preheating, auto-restart to minimize cargo loss, and simplified pre-trip diagnostic self-checks.
- Reliable & Stable Power: Intelligent voltage regulation maintains output within ISO 1496 limits (460/230 Vac, 3-Phase, 60Hz).
- Mounting & Transport: Designed with integrated forklift pockets and corner casting mounts compatible with quick-disconnect clamp-mount or pin-mount systems.
- Extended Service Intervals: Engineered for operational durability with 3,000-hour service intervals and a 125-gallon (473 L) fuel tank.
- Fuel Versatility: Approved for standard diesel as well as renewable biofuels including HVO and Biodiesel.
| Brand | Thermo King |
| Model | SG-3500 |
| Product Type | Clip-On Generator Set |

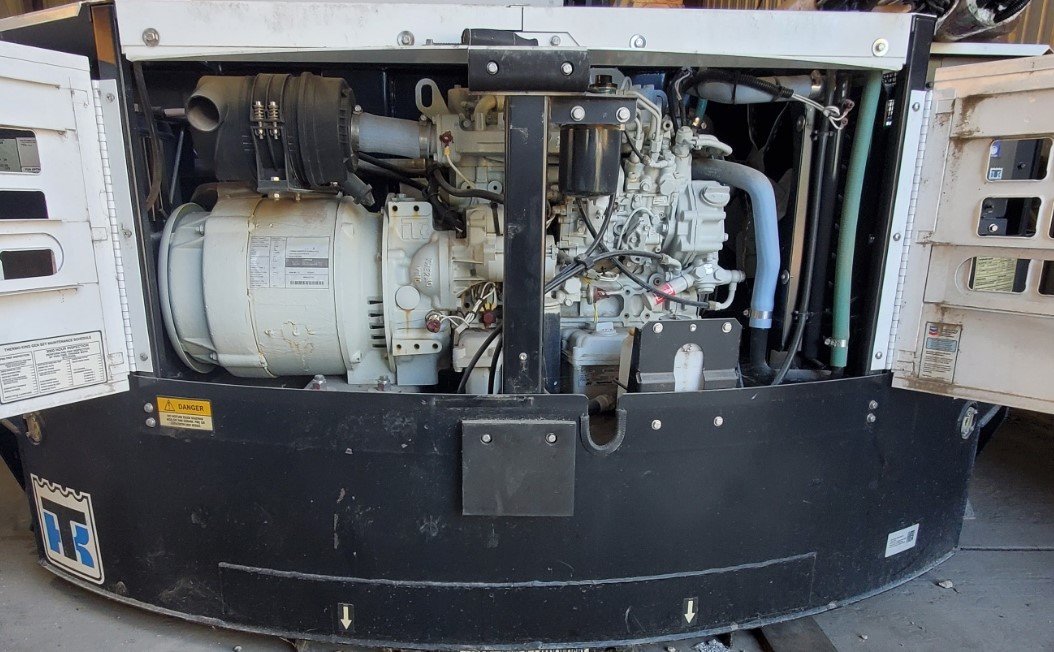

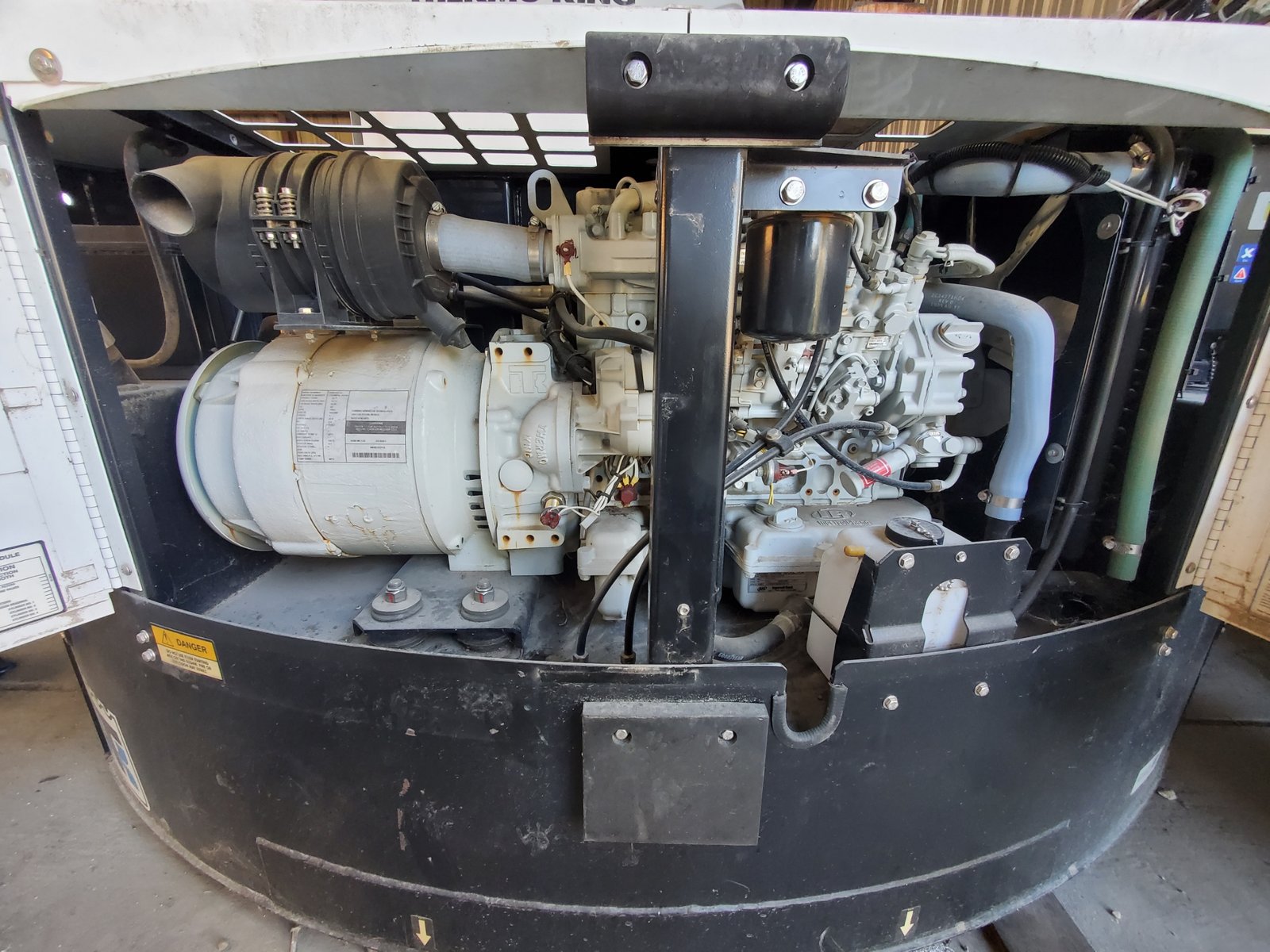

| Engine | 2.1L TK Diesel Engine, 24.1 HP |
| Electrical Output | 15 kW, 460/230 Vac, 3-Phase, 60Hz |
| Fuel Tank Capacity | 125 gal (473 L) |
| Weight | 1,804 lbs |
| Controller | SG+ Microprocessor with Auto-Restart and Diagnostics |
| Battery | 12V, 925 CCA at 0°F |
| Service Interval | 3000 Hours |
| Safety Features | Low oil pressure and high water temperature shutdown |
| Forklift Pockets | Yes |
