Description

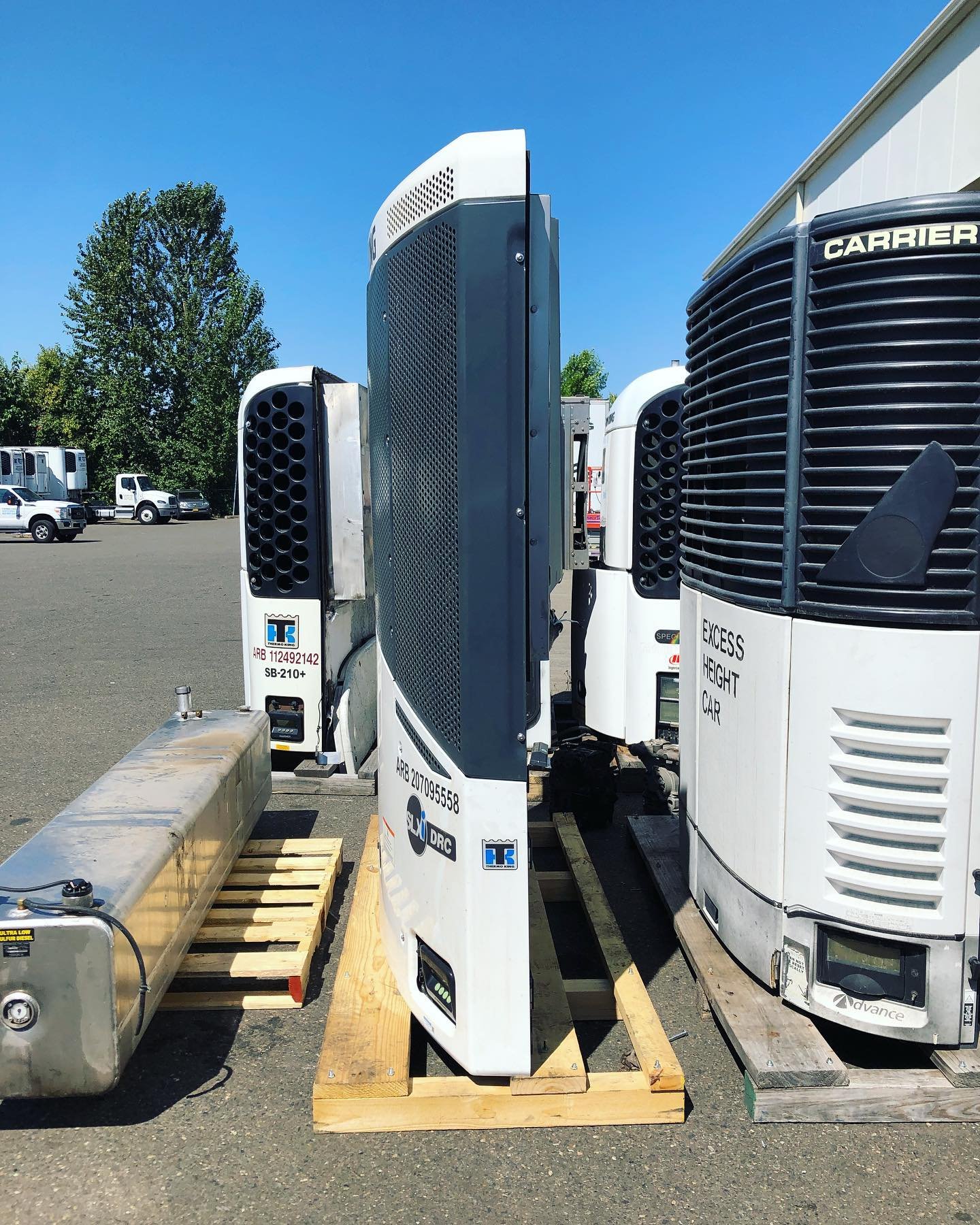

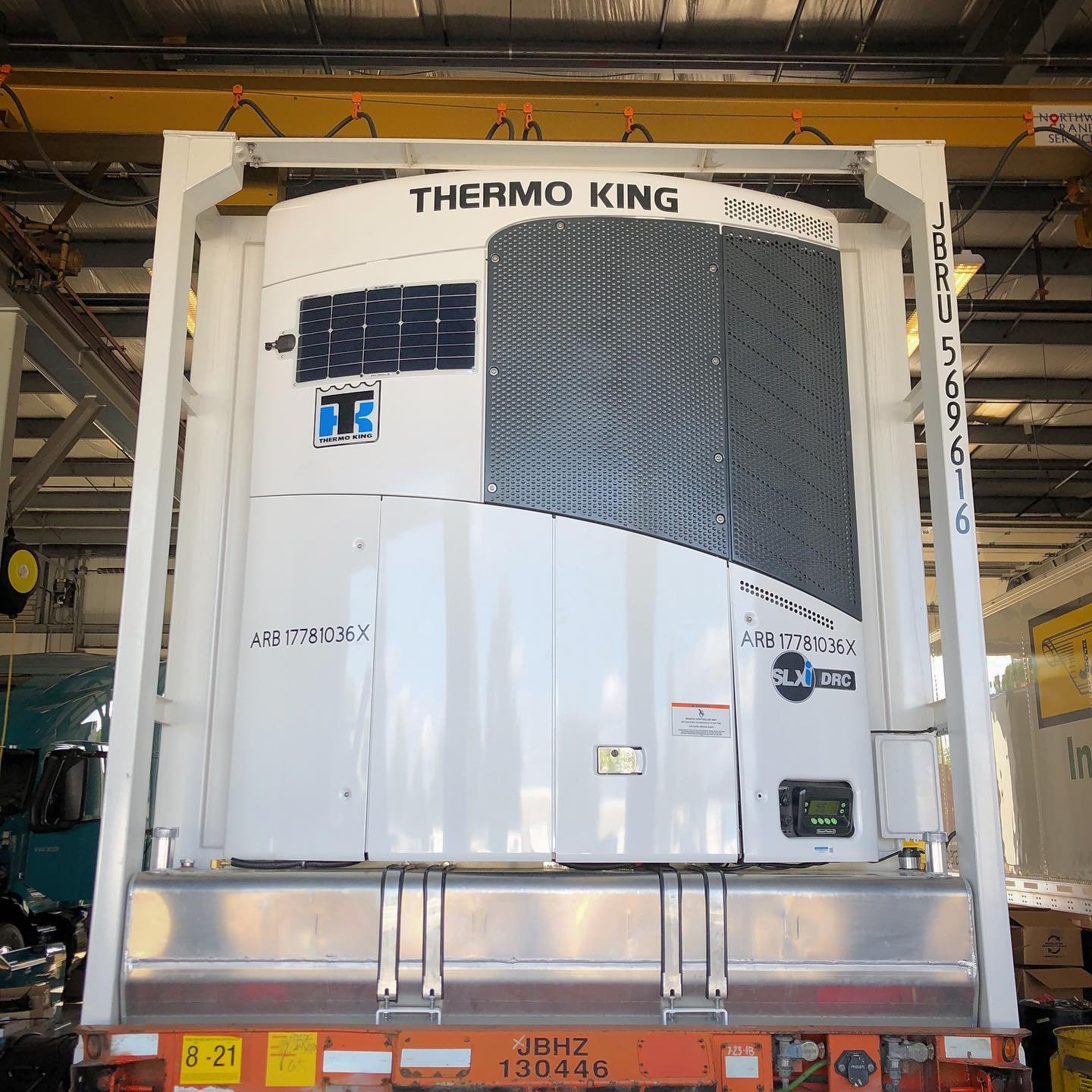

The Thermo King SLXi-DRC is a slim-profile mobile refrigeration unit engineered specifically for domestic refrigerated container (DRC) and intermodal rail applications. Designed to maximize payload capacity, its ultra-slim design allows operators to fit an additional pallet row into standard 53-ft domestic containers—expanding capacity from 14 to 15 pallet rows.
High Performance & Efficiency
- Maximized Capacity: 7 inches slimmer and 200 lbs lighter than comparable models, increasing overall payload potential.
- Powerful Cooling & Heating: Delivers net cooling capacities of up to 46,000 BTU/hr at 35°F and 40,000 BTU/hr heating capacity.
- Reliable Engine: Powered by the TK486V 4-cylinder, liquid-cooled direct injection diesel engine rated at 24.4 hp, compliant with Final Tier 4 EPA emissions standards.
- Advanced Compressor: Equipped with the lightweight X430P aluminum alloy compressor with a 30.0 cu in displacement.
Sustainability & Technology
- Eco-Friendly Refrigerant: Utilizes R-452A refrigerant with zero ozone depletion potential and significantly lower global warming potential.
- Telematics & Solar: Telematics ready from the factory and equipped with a 40W ThermoLite solar panel for battery maintenance.
- Extended Service Life: Features a 3,000-hour maintenance interval and durable construction built for demanding transport conditions.
| Brand | Thermo King |
| Model | SLXi-DRC |
| Model Year | 2020 |
| Engine Model | TK486V |
| Engine Type | Four cylinder, direct injection, liquid cooled |
| Engine Power | 24.4 hp at 2,200 RPM |
| Emissions Compliance | Final Tier 4 EPA |
| Cooling Capacity (35°F) | 46,000 BTU/hr |
| Cooling Capacity (0°F) | 32,000 BTU/hr |
| Cooling Capacity (-20°F) | 19,000 BTU/hr |
| Heating Capacity | 40,000 BTU/hr |
| Airflow Volume | 3,230 ft³/min |
| Compressor Model | X430P |
| Compressor Displacement | 30.0 cu in |
| Refrigerant Type | R-452A |
| Refrigerant Charge | 12.6 lb |
| Oil Capacity | 12 qt |
| Maintenance Interval | 3,000 hrs |
| Dimensions | 89.7 x 81.7 x 16.9 in. |
| Weight | 1,620 lb |
