Description

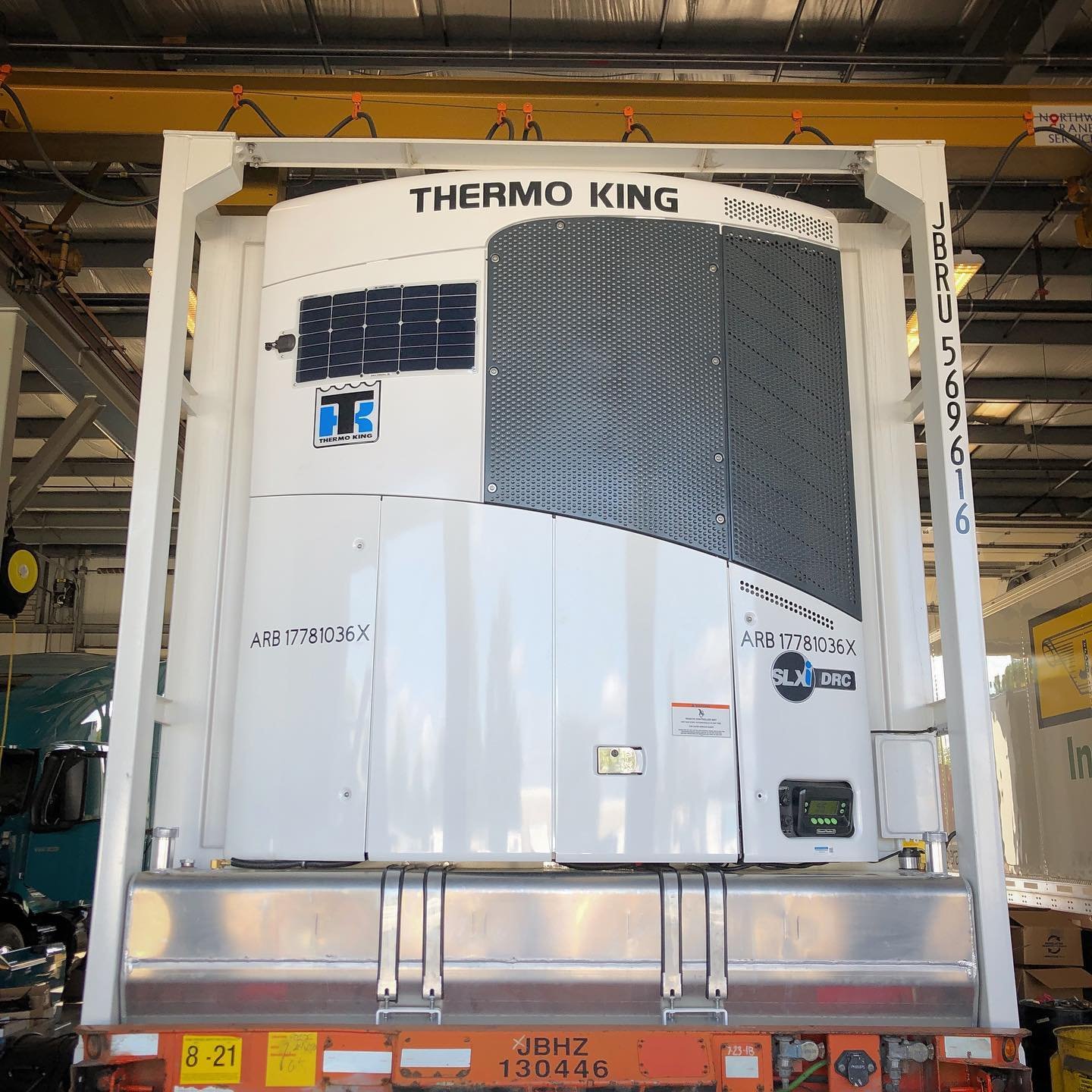

The Thermo King SLXi-DRC is a self-contained, single-temperature transport refrigeration unit engineered specifically for domestic refrigerated container (DRC) and rail operations. Designed with a slim profile that is 7 inches slimmer and over 200 lbs lighter than comparable models, it maximizes internal cargo volume to accommodate 15 pallet rows in standard 53-ft domestic containers.
Performance and Engine Specifications
Powered by a liquid-cooled TK486V 4-cylinder direct-injection diesel engine compliant with EPA Final Tier 4 standards, the SLXi-DRC delivers 46,000 BTU/hr of cooling capacity at 35°F and 40,000 BTU/hr of heating capacity. It is equipped with the Smart Reefer 3 (SR-3) programmable microprocessor controller and an X430P reciprocating compressor.
Durable Design and Low Maintenance
Built for the rigors of rail transport, the unit features aluminum doors, stainless steel hardware, a flush-mount evaporator to minimize loading damage risk, and a rail-ready horizontal side exhaust system. The standard EMI 3000 package extends maintenance intervals to 3,000 hours or 2 years, supported by Extended Life Coolant (ELC) rated for up to 5 years or 12,000 hours.
Efficiency and Connectivity
Each unit utilizes low-GWP R-452A refrigerant and includes factory-integrated telematics readiness along with a ThermoLite solar panel to maintain battery charge and support auxiliary fleet monitoring systems.
| Brand | Thermo King |
| Model | SLXi-DRC |
| Model Year | 2020 |
| Engine Model | TK486V |
| Engine Type | Four cylinder, direct injection, liquid cooled |
| Emissions Compliance | EPA Final Tier 4 |
| Engine Rating | 24.4 hp at 2,050 RPM |
| Compressor Model | X430P |
| Compressor Displacement | 30.0 in³ |
| Refrigerant Type | R-452A |
| Refrigerant Charge | 12.6 lbs |
| Cooling Capacity (35°F) | 46,000 BTU/hr |
| Cooling Capacity (0°F) | 32,000 BTU/hr |
| Cooling Capacity (-20°F) | 19,000 BTU/hr |
| Heating Capacity | 40,000 BTU/hr |
| Airflow Volume | 3,230 ft³/min |
| Maintenance Interval | 3,000 hrs |
| Oil Capacity | 12 qt |
| Weight | 1,620 lbs |
| Dimensions | 89.7 x 81.7 x 16.9 in |
