Description

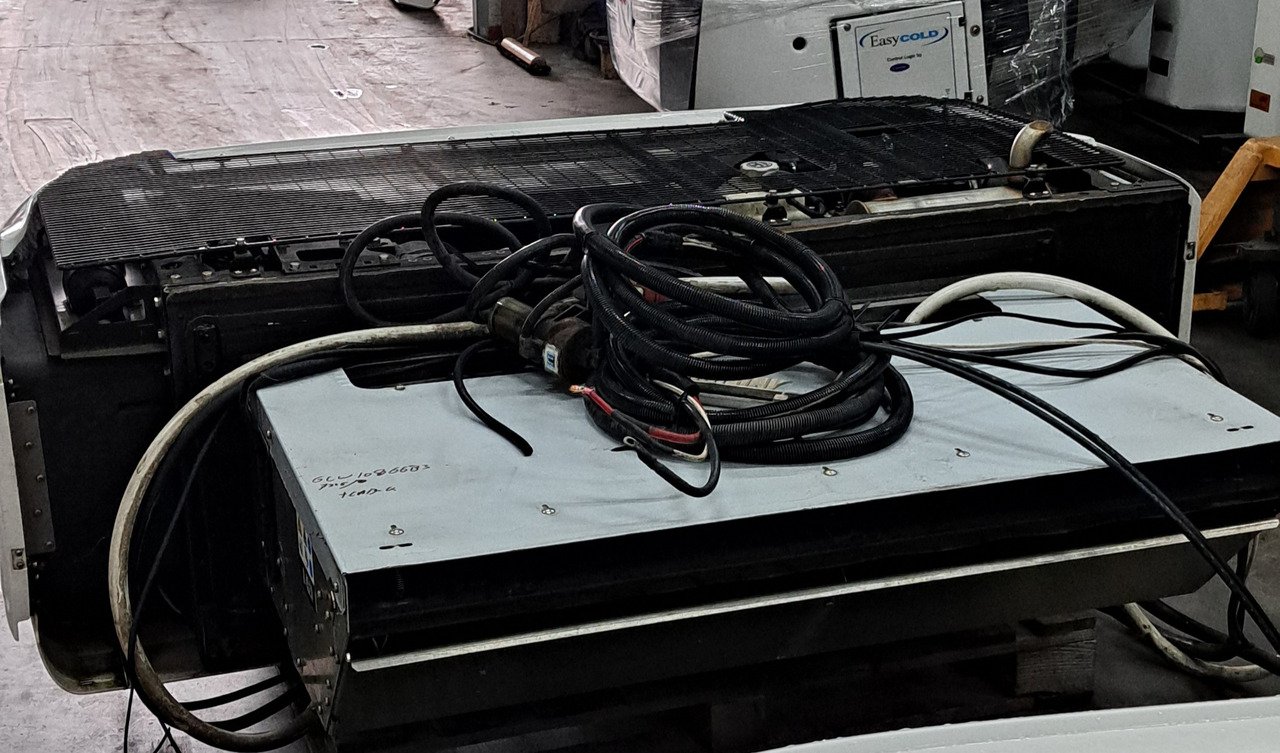

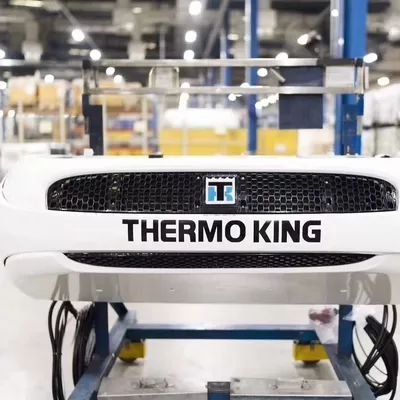

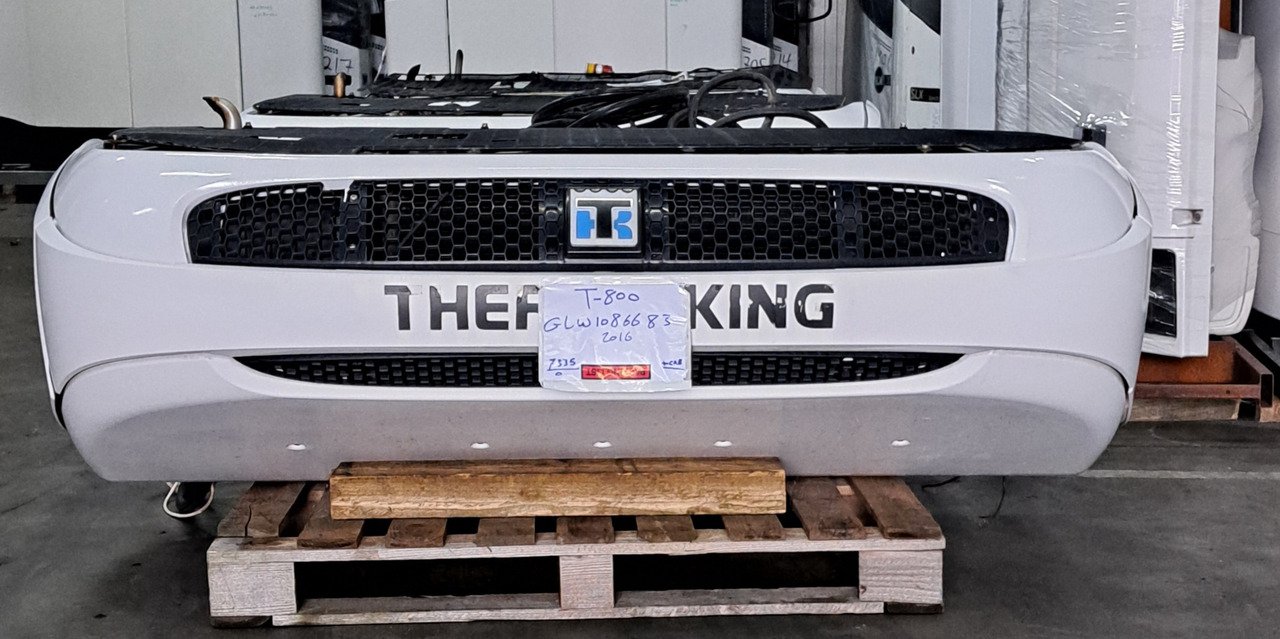

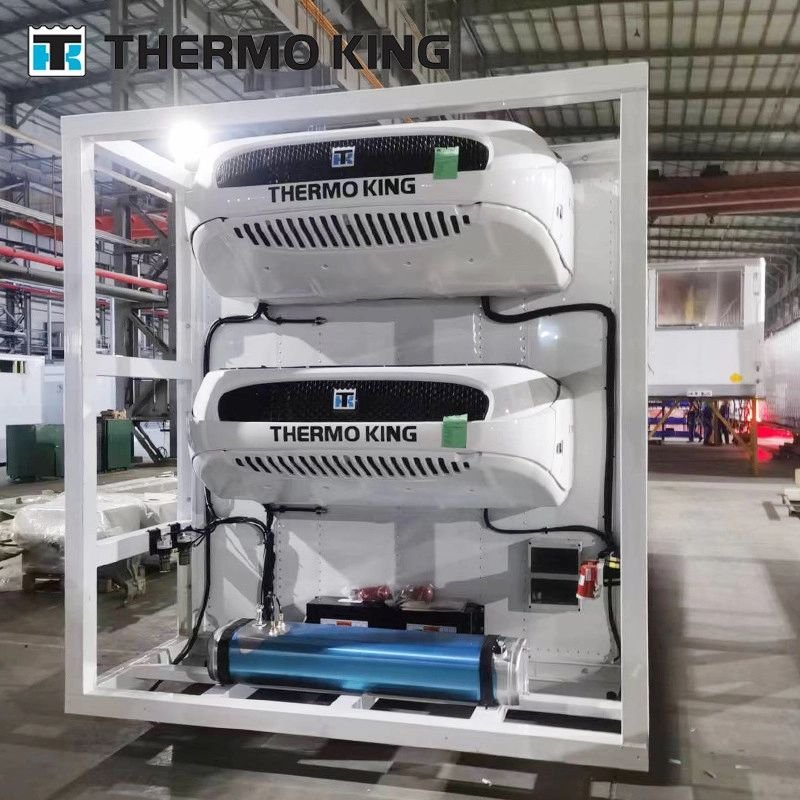

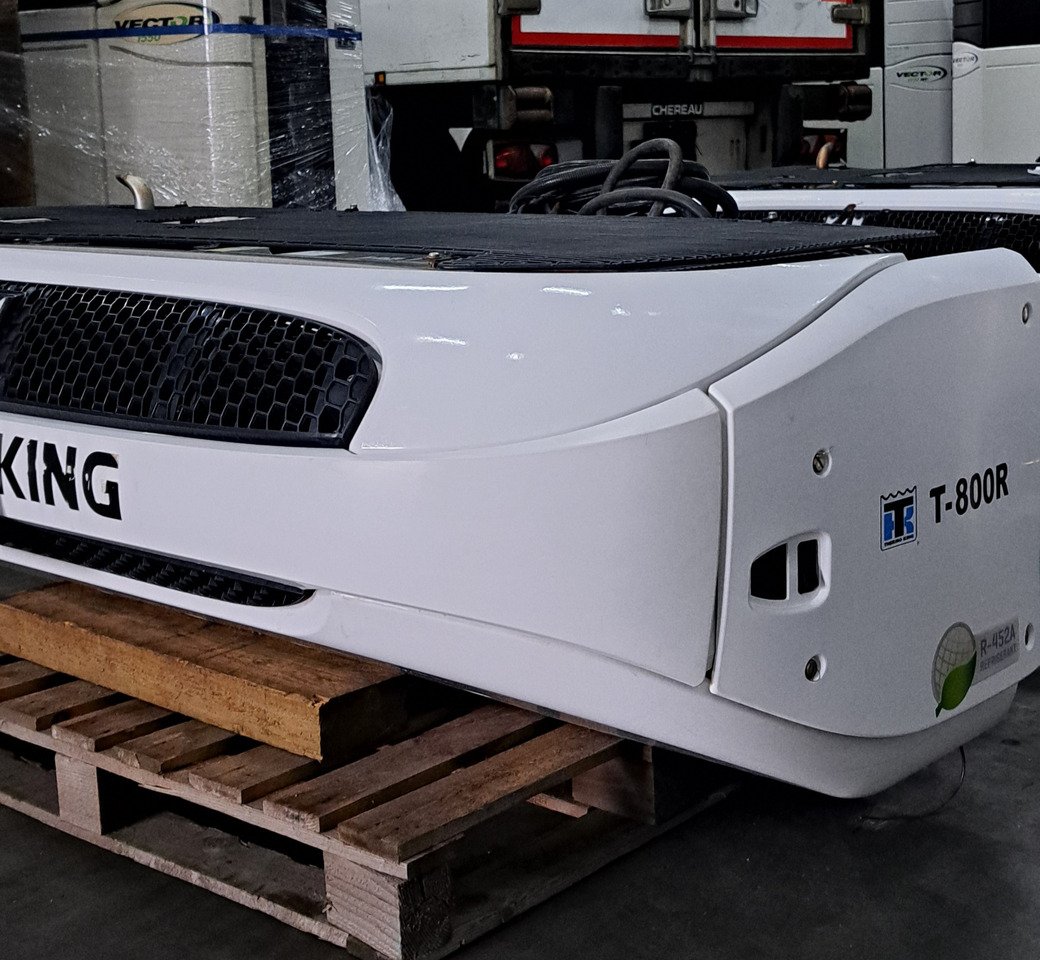

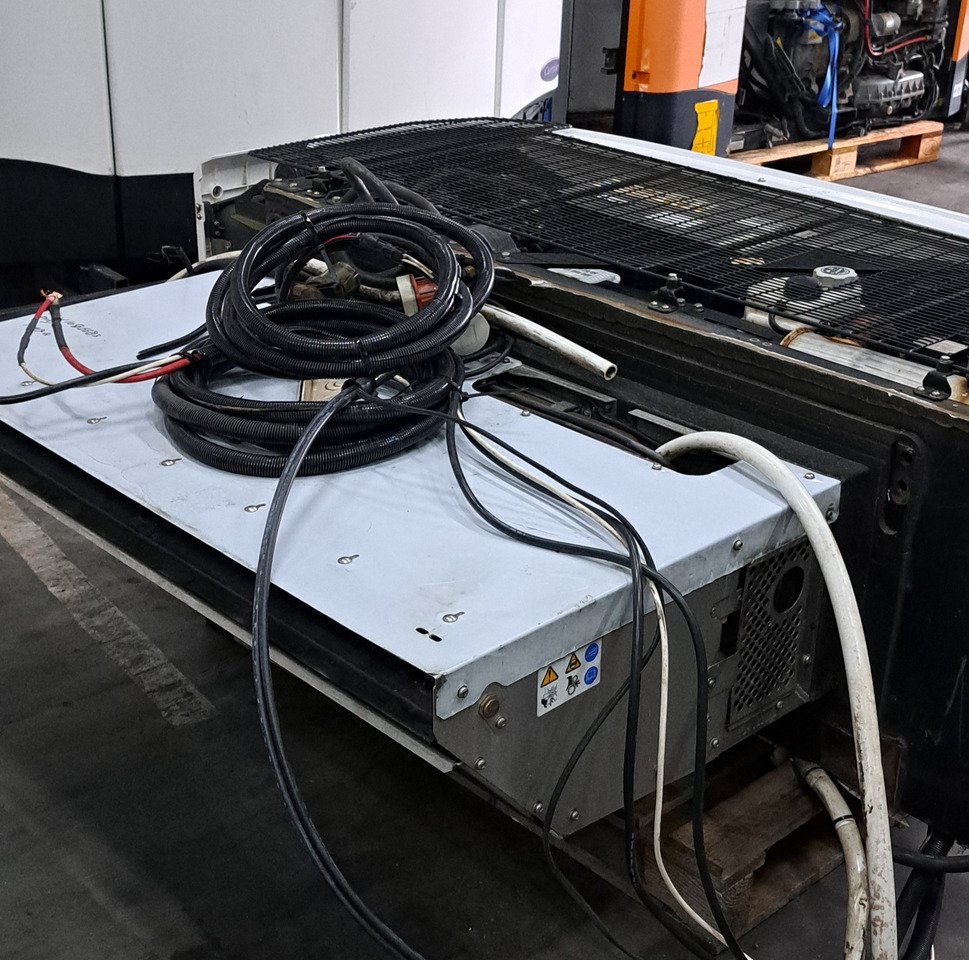

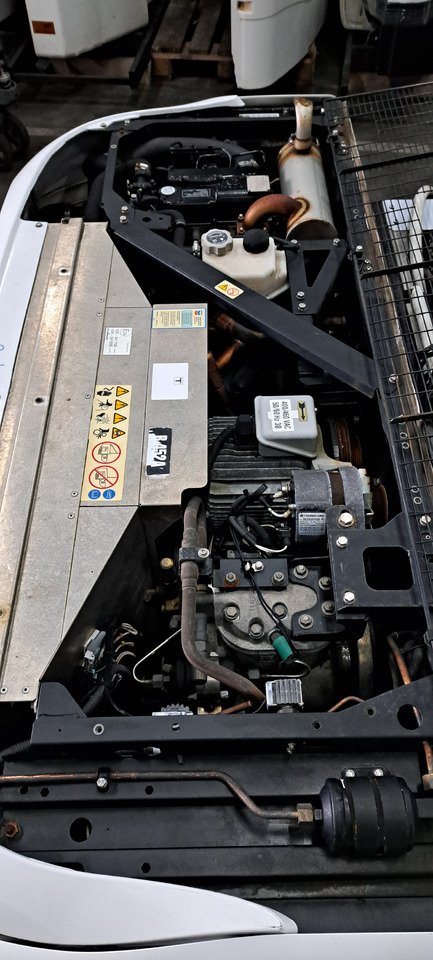

The Thermo King T-800R Spectrum is a self-powered diesel refrigeration unit engineered for straight trucks and multi-temperature transport applications. Designed to meet the demands of multi-temp distribution, the T-800R provides precise temperature control, low fuel consumption, and dependable performance across demanding operating environments.
Key Features & Performance

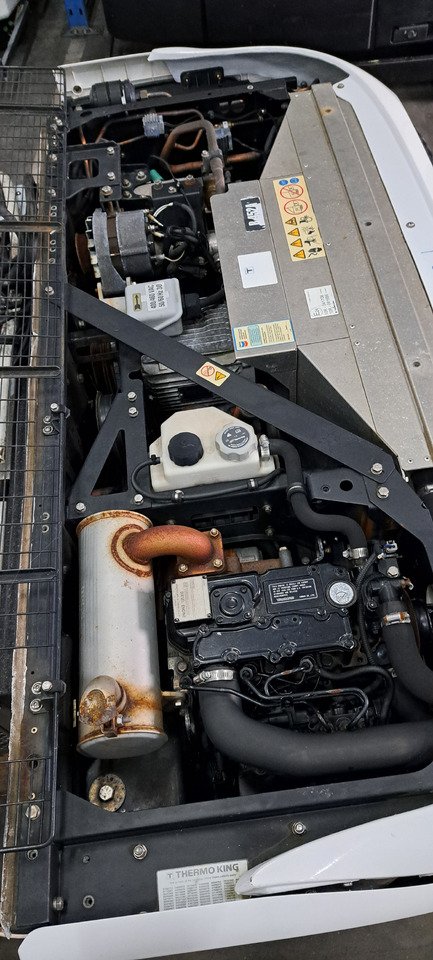

- Engine & Cooling Efficiency: Powered by a TK 370 3-cylinder diesel engine with a displacement of 855 cm³, delivering up to 7,800 W cooling capacity at 0°C on engine power and 4,200 W at -20°C.
- Electric Standby Capability: Features electric standby operation providing 6,000 W at 0°C and 3,200 W at -20°C (compatible with 400V/3ph/50Hz, 230V/3ph/50Hz, and 230V/3ph/60Hz configurations).
- Airflow & Capacity: Delivers an airflow rate of 2,700 m³/hr, suitable for truck box lengths between 6.5 m and 7.5 m.
- Advanced Control System: Equipped with the Truck Smart Reefer 3 (TSR-3) controller featuring an intuitive in-cab symbolic interface for error-proof operation, integrated ServiceWatch™ diagnostics, and Cycle-Sentry™ fuel management.
- Compressor & Refrigerant: Fitted with an X214 reciprocating compressor (228 cm³ displacement) utilizing R-404A/R-452A refrigerant with a 3.6 kg factory charge.
- Extended Service Life: Extended Maintenance Interval (EMI) allows up to 2,000 operating hours between routine service cycles.
| Brand | Thermo King |
| Model Name/Number | T800R |
| Usage/Application | Industrial Use |
| Mounting Type | Truck Top |
| Automation Grade | Automatic |
| Controller | Truck Smart Reefer 3 |
| Airflow | 2700 m3/hr |
| Height | 617 mm |
| Width | 1887 mm |
| Depth | 919 mm |
| Compressor Model | X214 |
| Compressor Displacement | 228 cm3 |
| Refrigerant | R-404A/R-452A |
| Refrigerant Charge | 3.6 kg |
| Capacity on engine power 0 Degree C | 7800 W |
| Capacity on engine power -20 Degree C | 4200 W |
| Capacity on electrical stand by 0 Degree C | 6000 W |
| Capacity on electrical stand by -20 Degree C | 3200 W |
| Boxlength | 6.5 – 7.5 m |
| no. of cylinders/displacement | TK 370 / 3 / 855 cm3 |
| Maintenance Interval | 2000 hrs |
| Voltage / Phase / Frequency | 400 / 3 / 50 — 230 / 3 / 50 — 230 / 3 / 60 |
