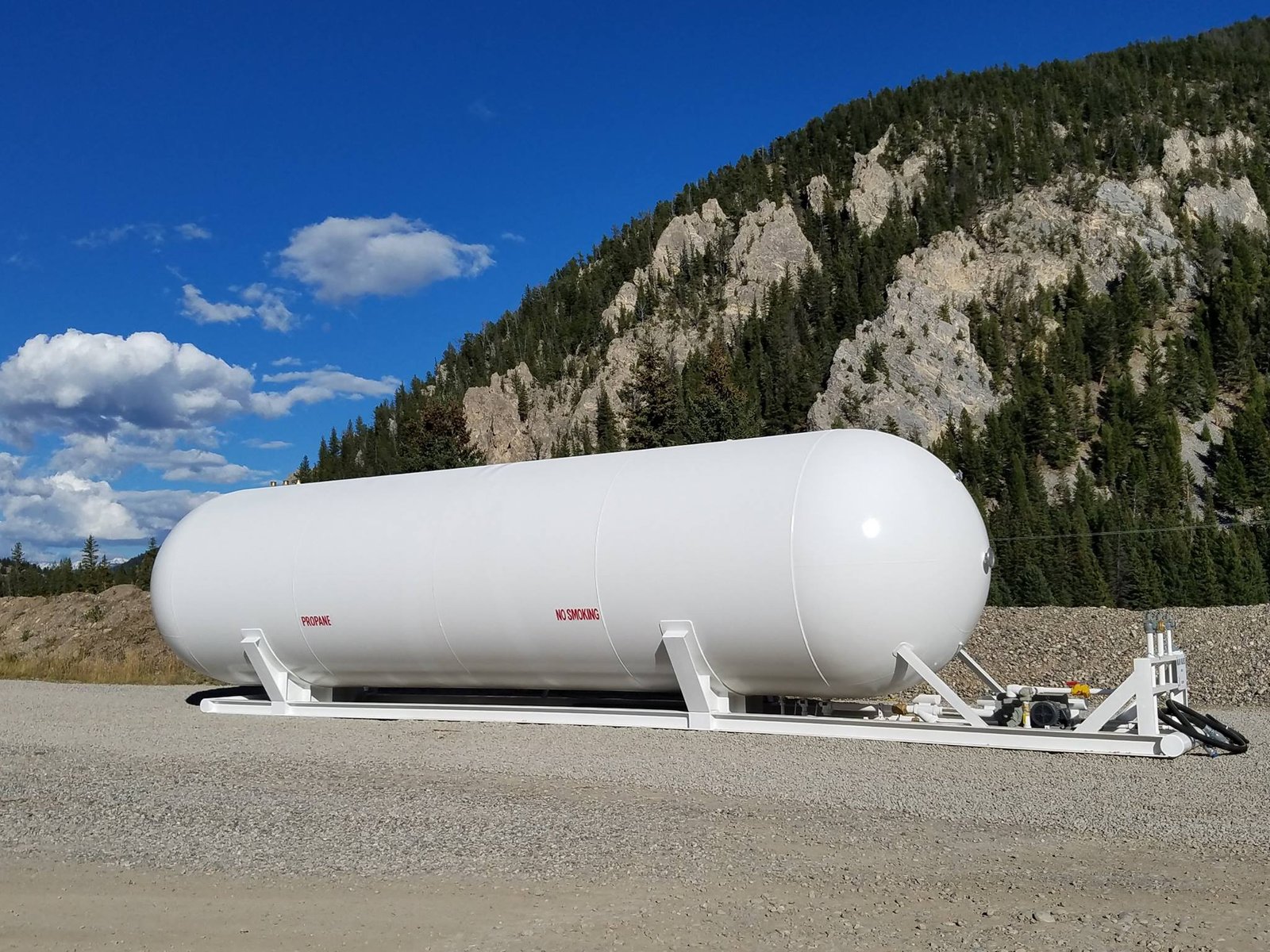

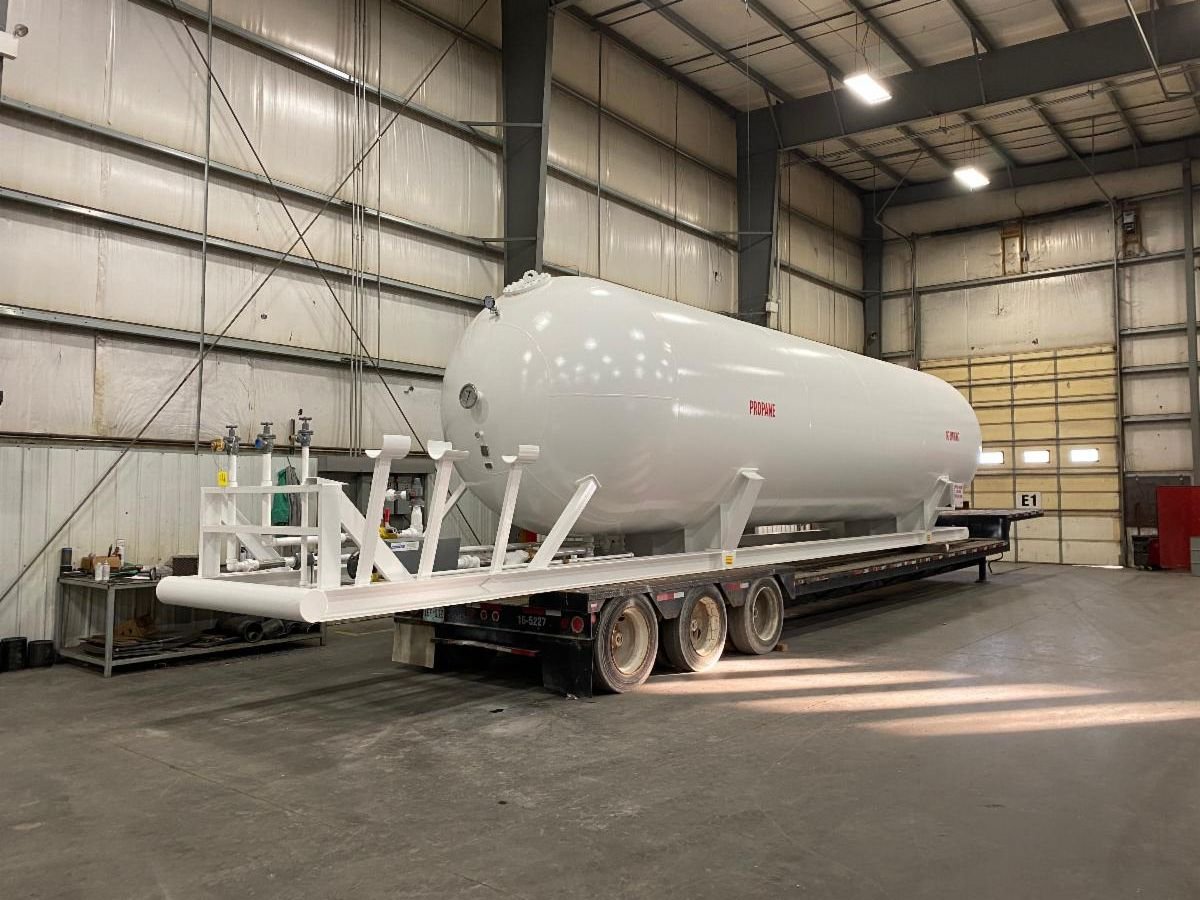

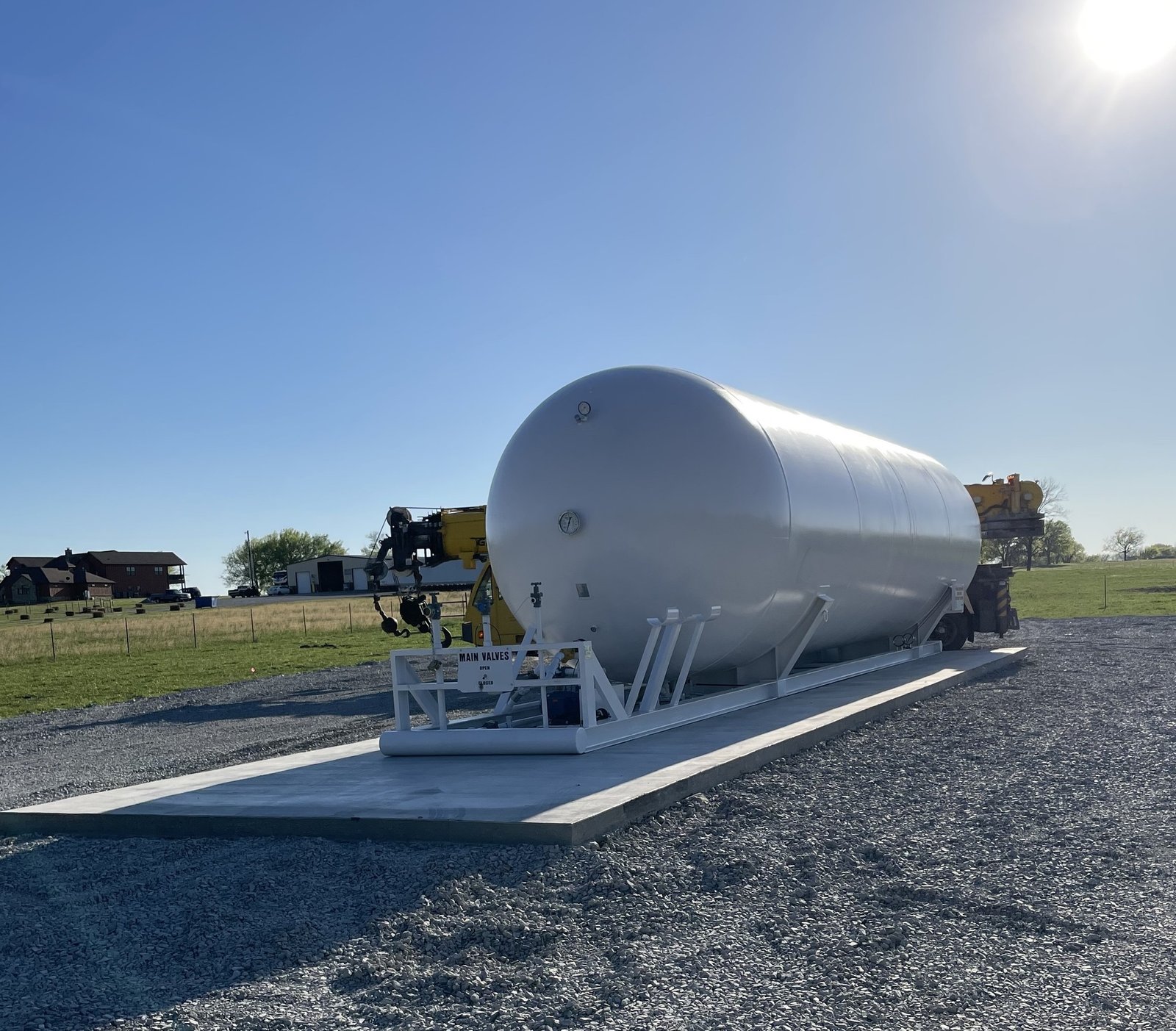

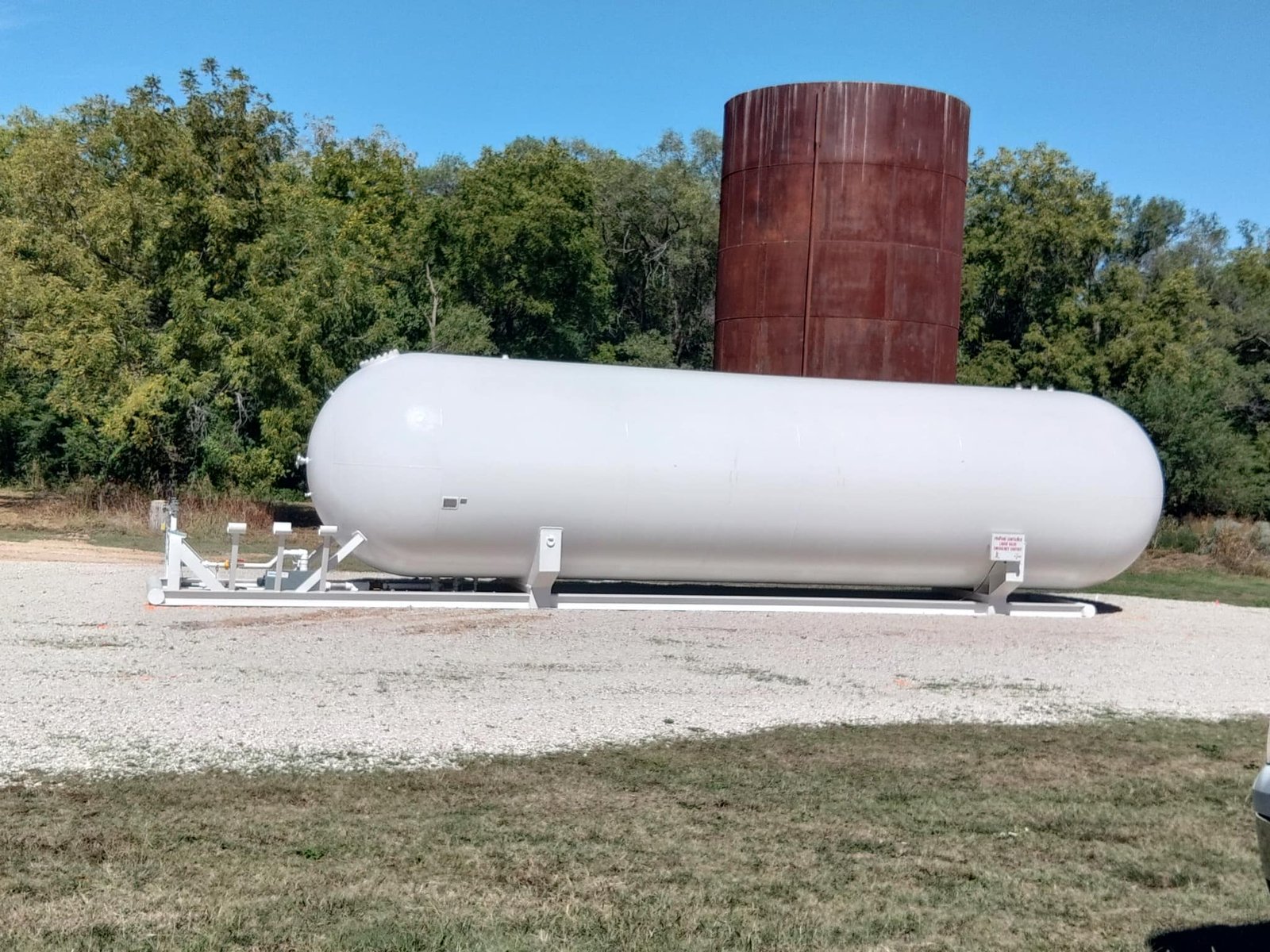

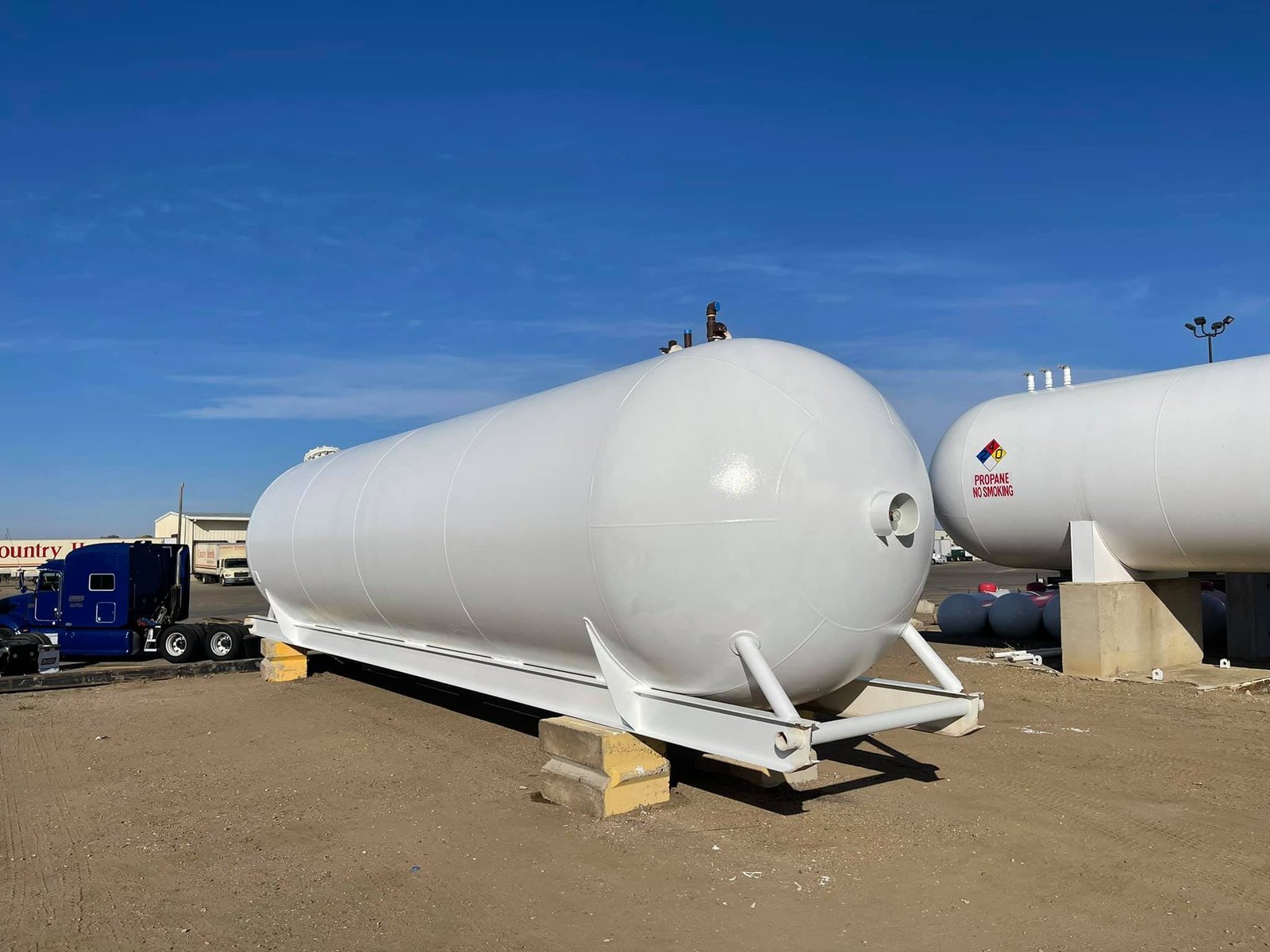

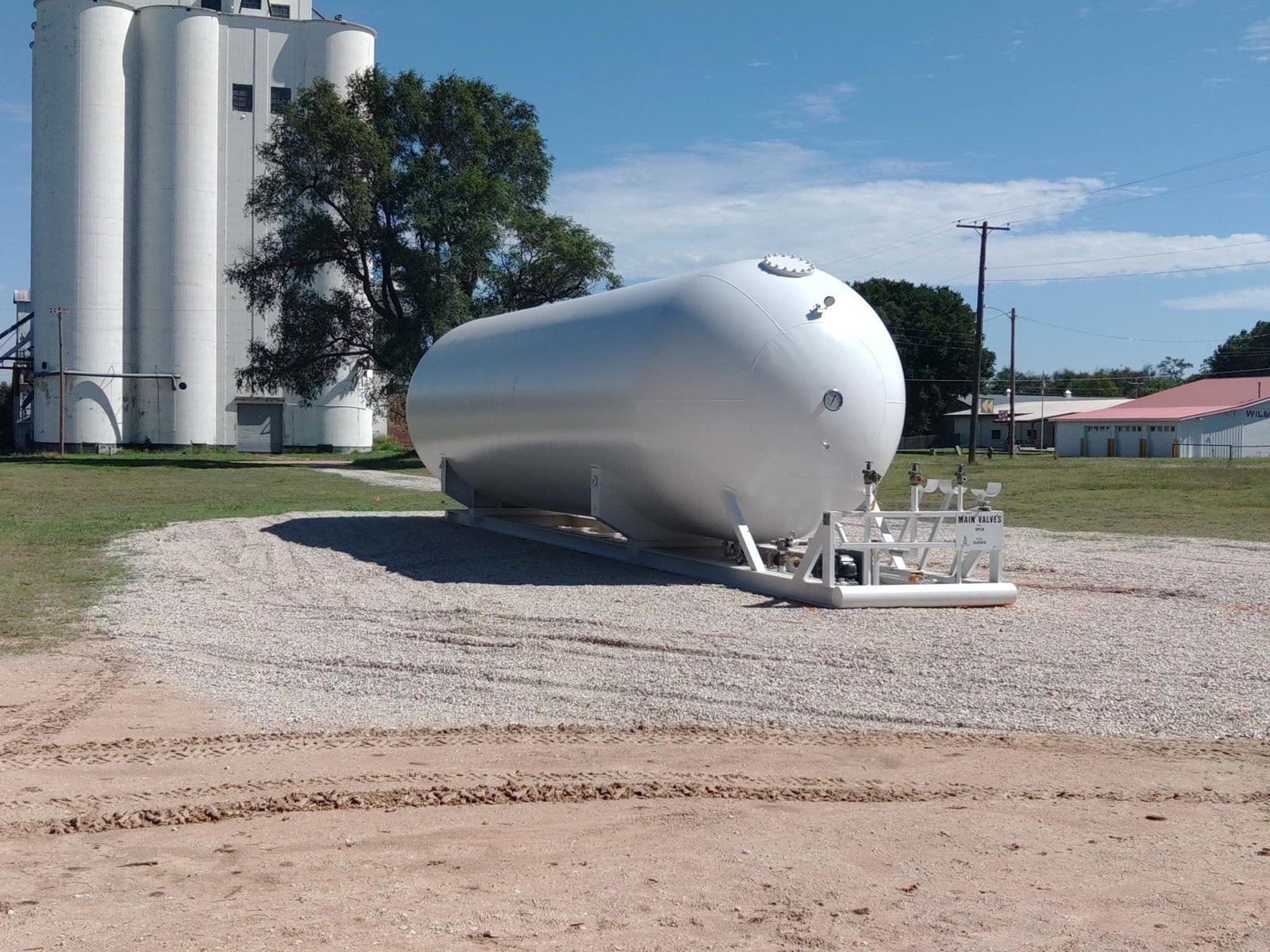

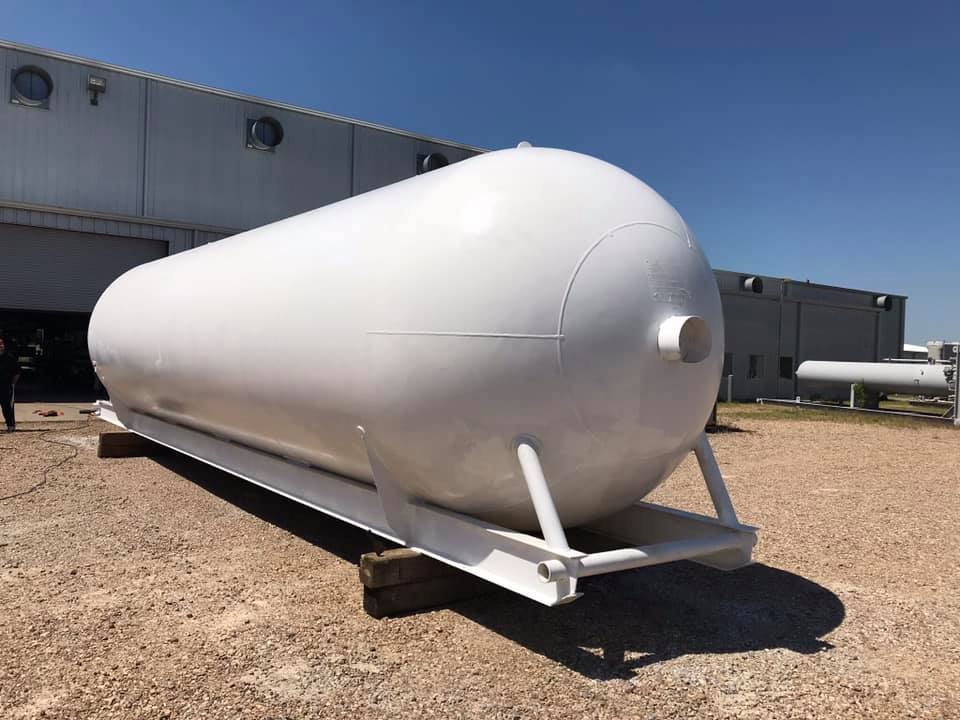

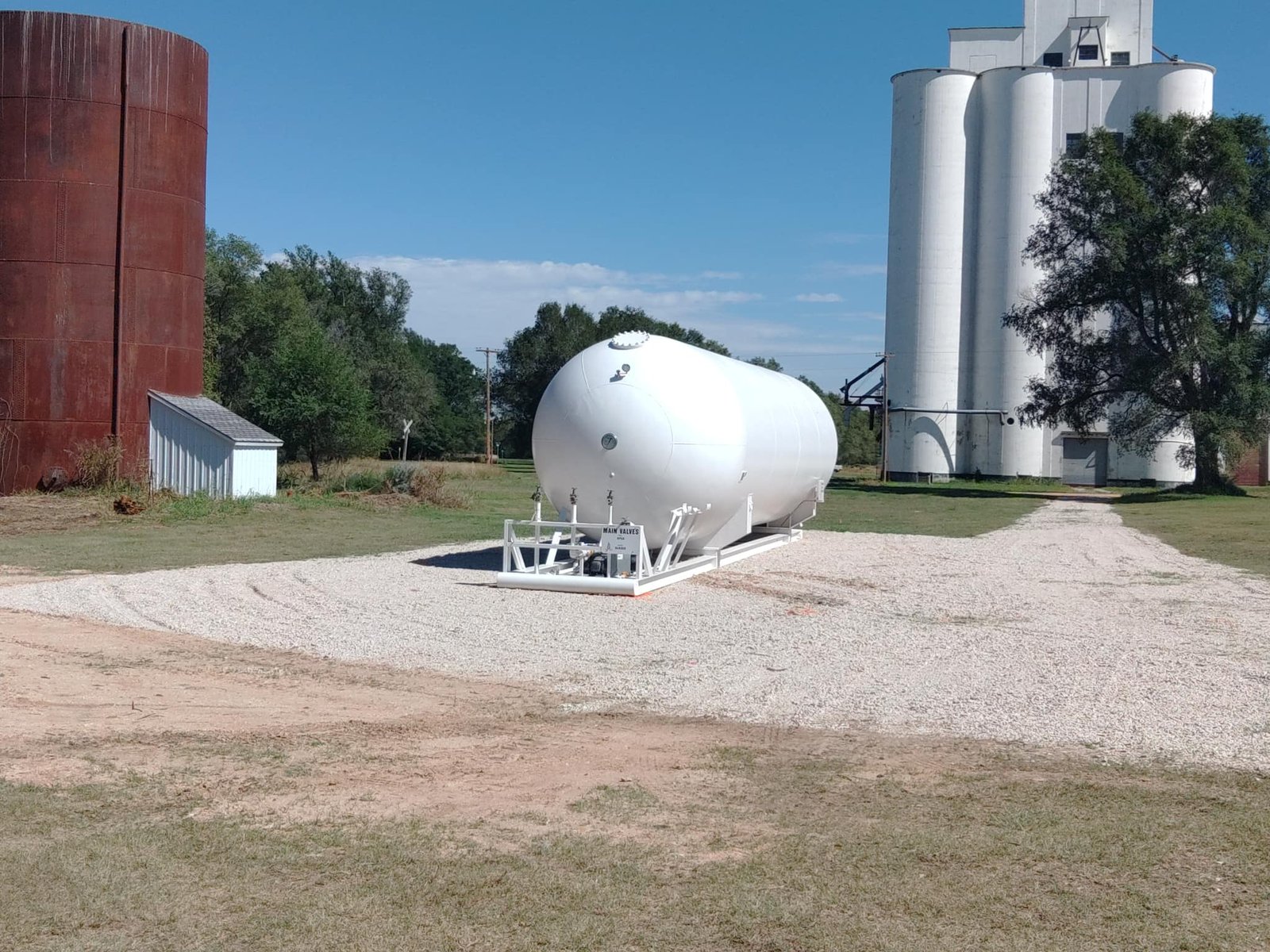

Triarc Tank D300LP 30,000 Gallon Propane Skid Tank

Description

The Triarc Tank D300LP 30,000 Gallon Skid Tank provides bulk storage for LPG, propane, and NGL products. Built on a heavy-duty skid foundation, this ASME-certified pressure vessel offers rapid deployment with minimal on-site preparation, eliminating the need for permanent in-ground piers or piping infrastructure.

Key Features & Specifications

• Design & Capacity: 30,000 gallon capacity horizontal pressure vessel built from durable carbon steel (SA612 shell and head material).
• Pressure Rating: Rated for a maximum allowable working pressure (MAWP) of 250 PSI at 125°F.
• Safety & Valving: Equipped with internal valves, manual emergency shutdown systems, back check mechanisms, and comprehensive relief piping.

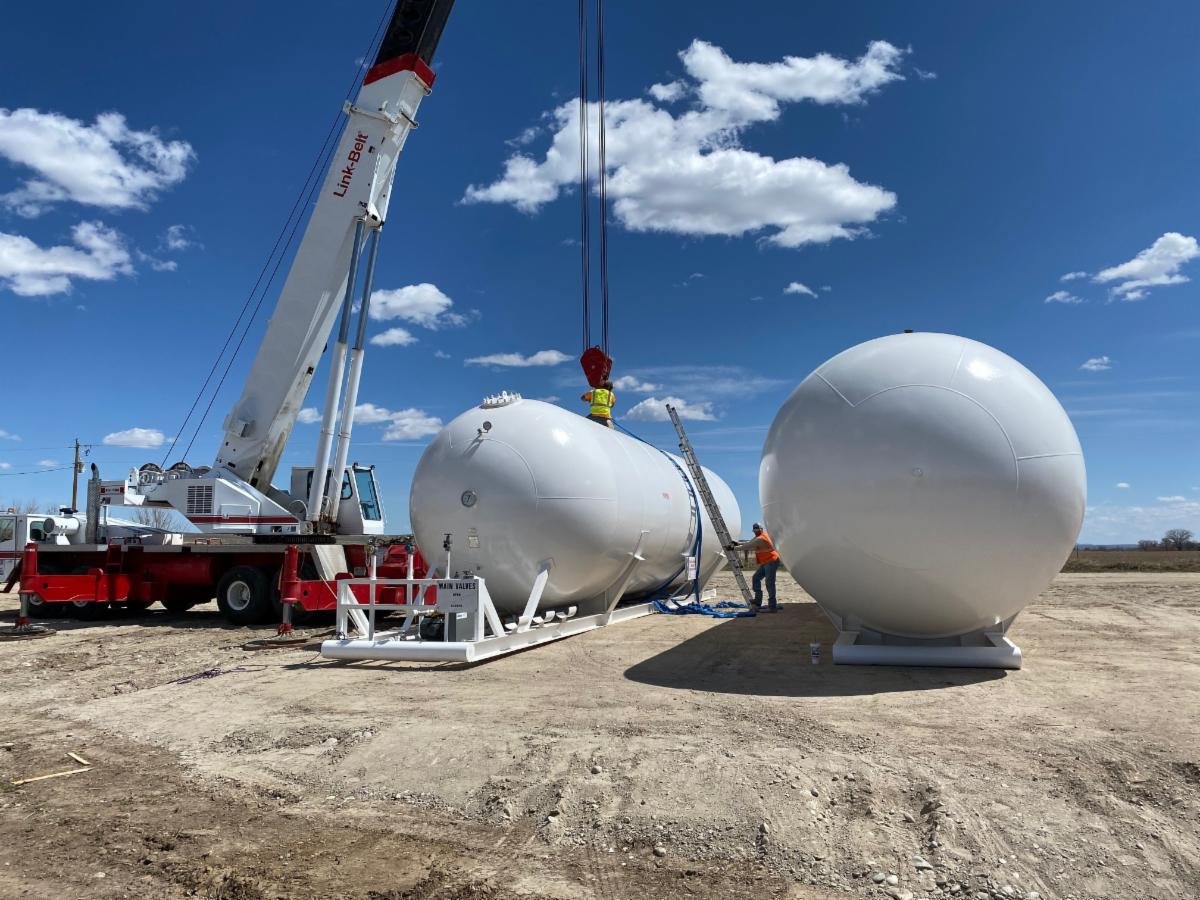

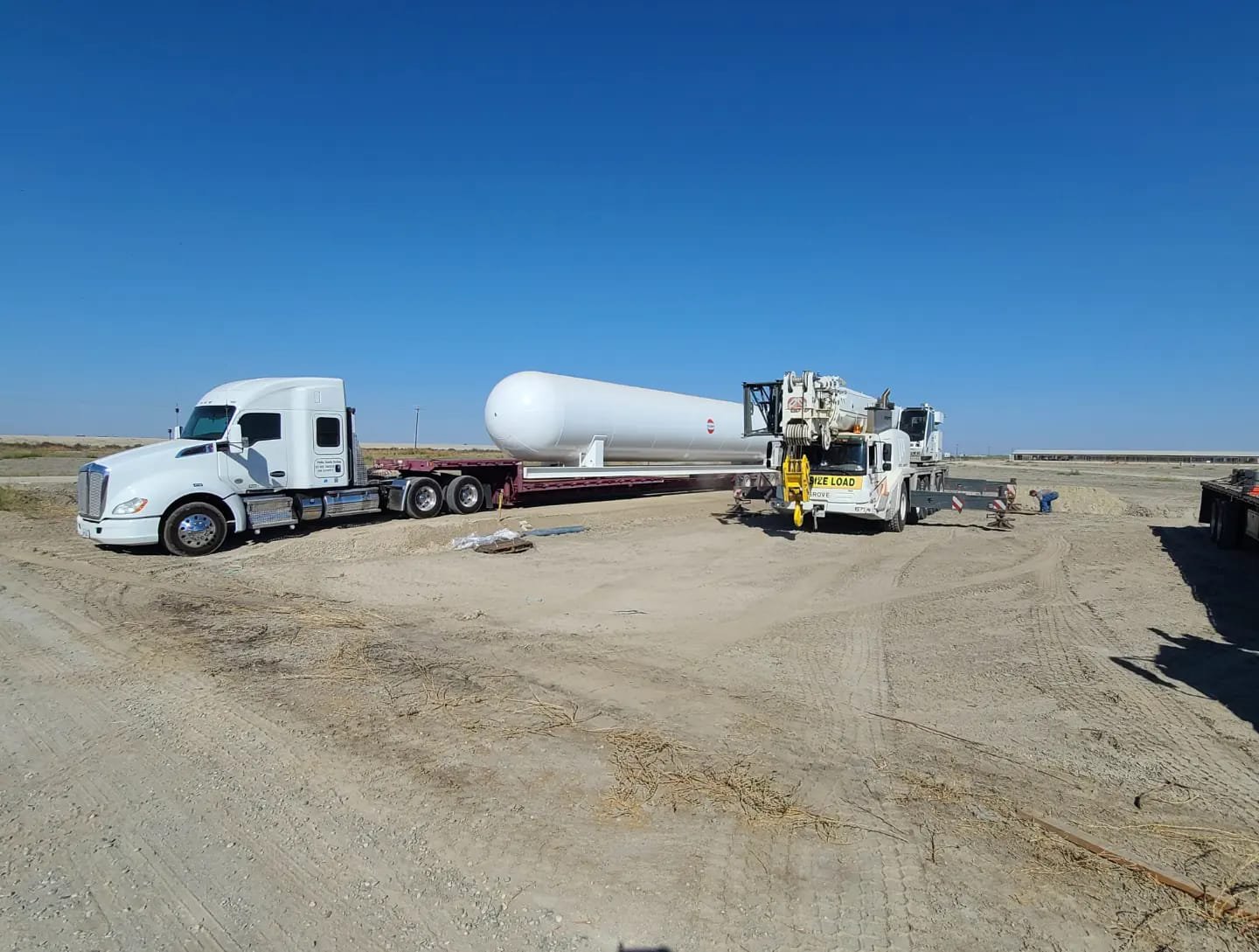

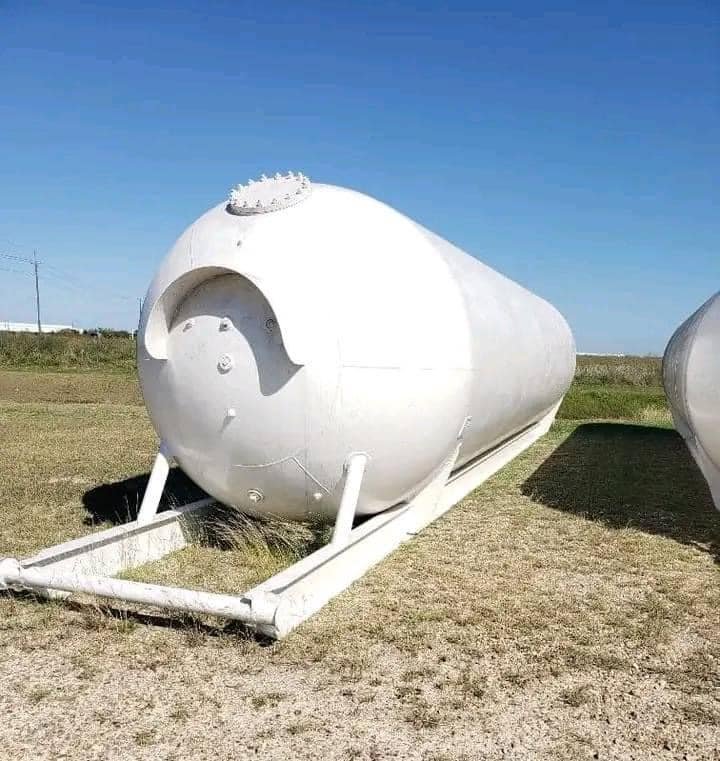

• Mobility & Mounting: Mounted securely on wide steel saddles, enabling straightforward site relocation and multi-unit compatibility.

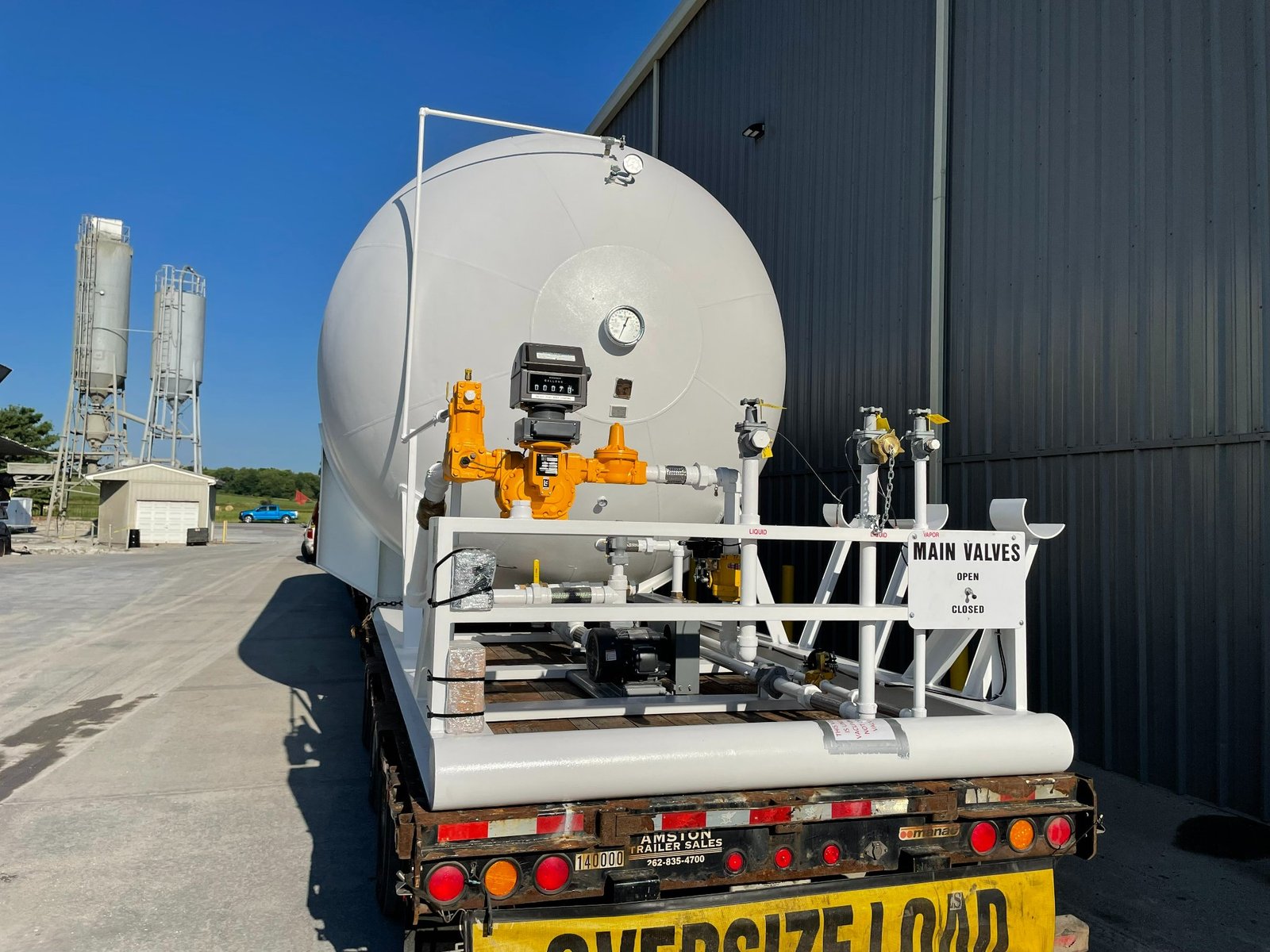

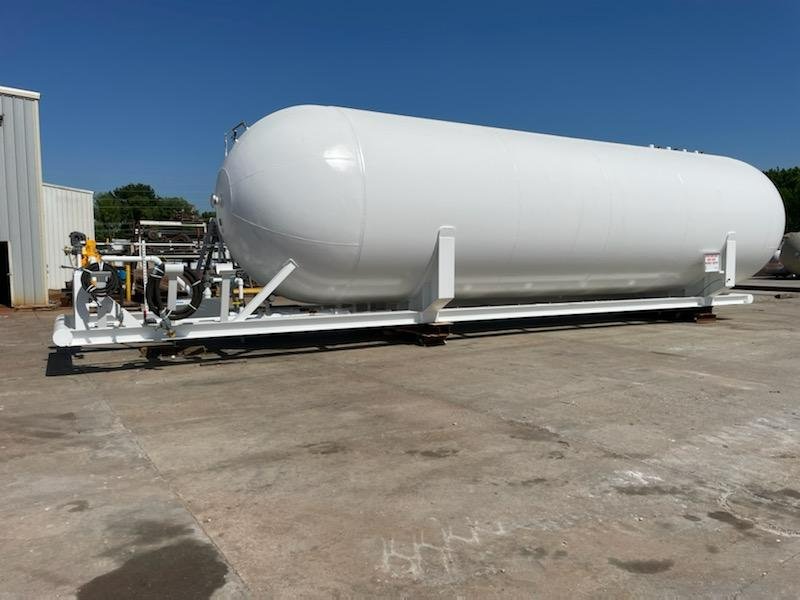

• Pumping Station: Includes integrated pump station package with metering capabilities suitable for bulk transport and bobtail loading/unloading operations.
• Certifications: ASME compliant and registered with the National Board.

Applications

Engineered for industrial propane standby facilities, wellhead intermediate liquids storage, agricultural fuel supply, and commercial bulk terminal operations.
